For Sale by Blumberg Machinery Co
Description

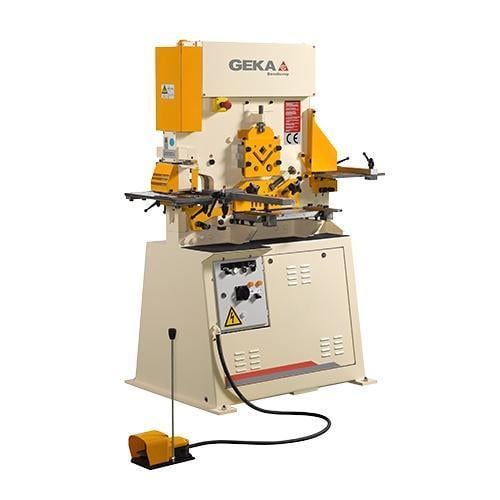

The Bendicrop 50, part of Geka’s Bendicrop Series of hydraulic ironworking machines, features a single cylinder and six workstations. The six workstations include a built-in bending station that makes the Bendicrop machines unique in the market.
BENDICROP 50 FEATURES AND SPECIFICATIONS
| FEATURES | BENDICROP 50 |
|---|---|
| Punching Power | 55 US Tons |
| Punching | Ø 1-1/16” x 1/2″ |
| Shearing flat bars | 14 x 3/8″@ 2º 14 x 1/2″@4º |
| Shear of angle section L at 90 | 3” x 3” x 5/16 |
| Bending | 4” x 3/8” with 2 “V” dies of 1-5/8” and 2-3/4” Openings |
| Rectangular Notching | Thickness 3/8” Width of Notcher 1-9/16” Depth of Cut 3/8” |
| Round and Square Bar Shearing | Ø1-3/8” Ø 1-3/16” Square |
- The manufacturer reserves the right to make modifications without prior notice.
- All capacities based on a material resistance of 65,000 tensile.
- Throat depth of punch is 6-7/8”.
- Can also accept cutting of U profiles up to 3” x 4.1lb and other shapes of profiles in the Section
- Shearing. Ask of more details on the sizes you may need to shear.
- Also, the ability to install a Pipe/Tube Notcher, Triangular Notcher, or even a second Punching
- Station place of the Rectangular Notcher.
- Furthermore, it is fitted with a system to reduce deformation (twisting) when Shearing Fat Bars.
- The manufacturer reserves the right to make modifications without prior notice.
- All capacities based on a material resistance of 65,000 tensile.
Goose neck die-holder for punching different profile sections on legs and webs. It also allows for the quick changing of punches and dies, with the die holder being easily adjusted in order to align tools. The punching table comes complete with scales.
Angle shearing for round and square bars, without any loss of material.
Shearing system for flat bars and plates with minimum deformation and a very sturdy table marked out with degrees for an easy setup of non-square cuts. Two material guides are also included.
Rectangular notching including a gauge table with scales. This station is also suitable for Pipe and Tube Notching, Rectangular Notching, Secondary Punching Station or for special shape Notching.
The permanent bending station is compliant with CE standards with a moving speed of 3/8” per second and a foot pedal that stops movement when pushed too hard. The lower die is held in place in a pocket and is easily removed. The station has Standard Die V openings of 2” and 3-3/8”. It also allows for a micrometer fine adjustment of the depth stroke to improve repeatability.
Thanks to the blade holder’s vertical movement, the machine has the machine performs excellently in its six workstations:
- Punching station
- Notching station
- Flat bar shearing station
- Angle cutting station
- Round and square bar shearing station
- Integrated bending station
The machine also comes equipped with Geka’s anti-torsion system, which reduces deformation when shearing flat bars.
