3" x 3" x 3/8" Uni-Hydro #ST56, Ironworker, 56 ton, Super Turret, 10-station, 6" throat, 7 SPM, 1200 psi, 5 HP, 220 Volt, 1PH

Here We Have:

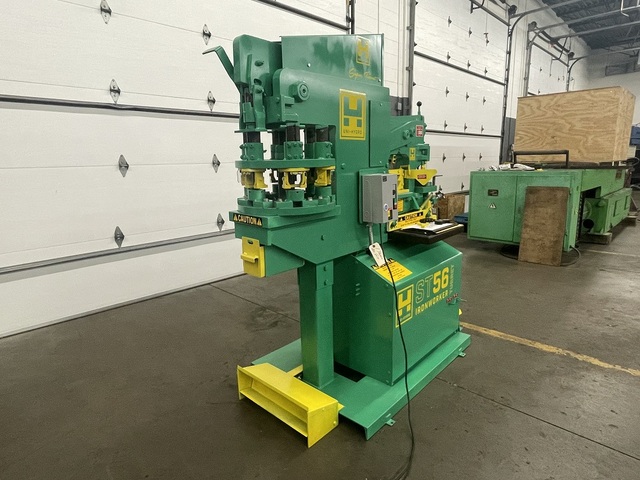

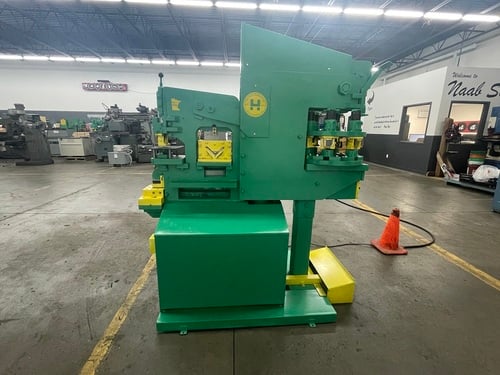

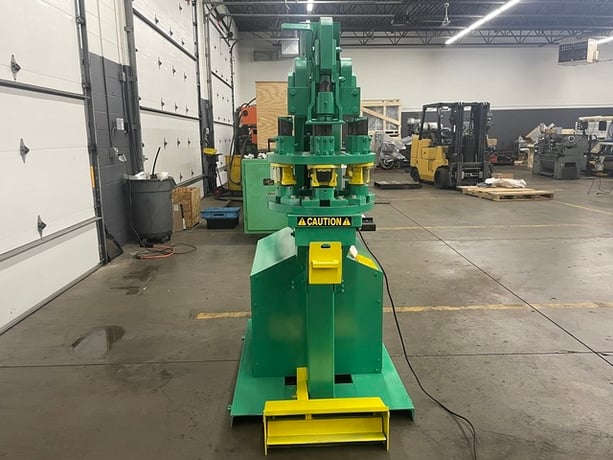

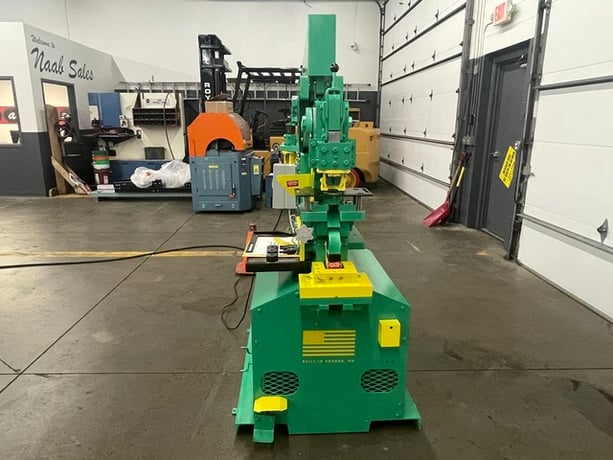

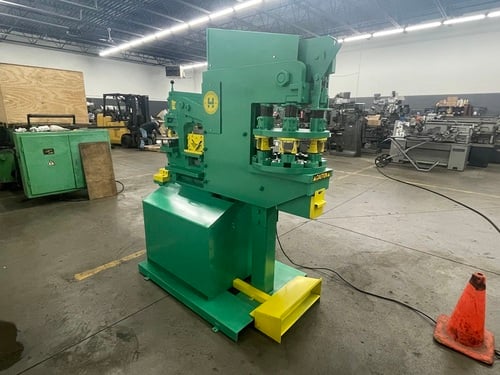

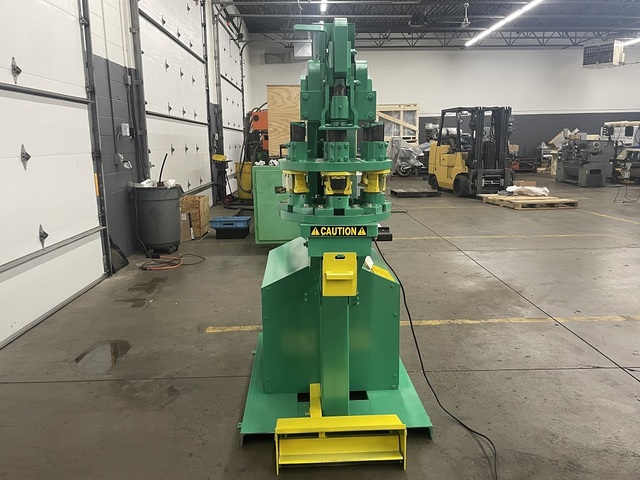

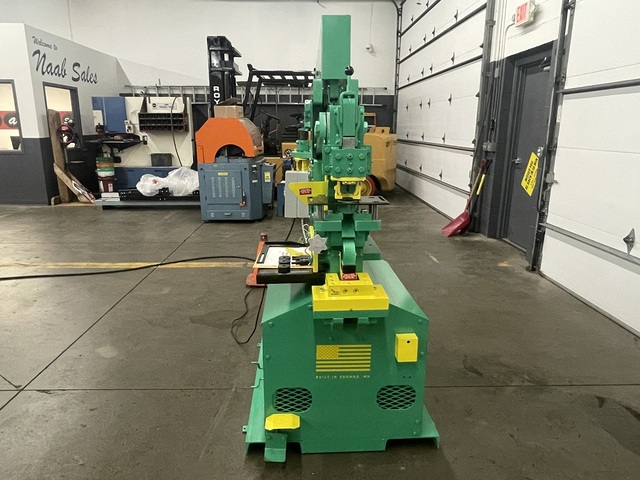

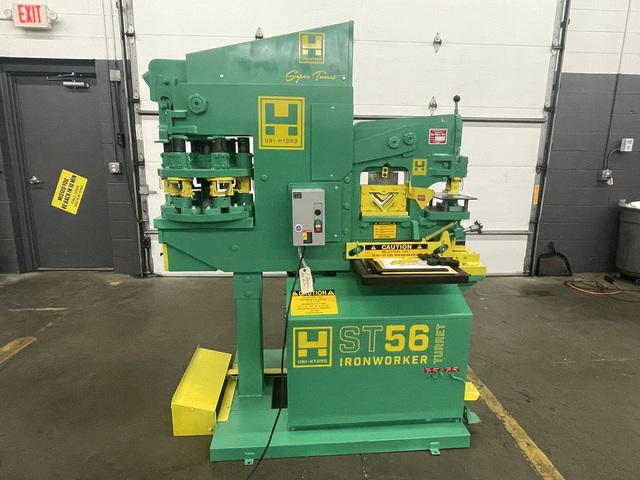

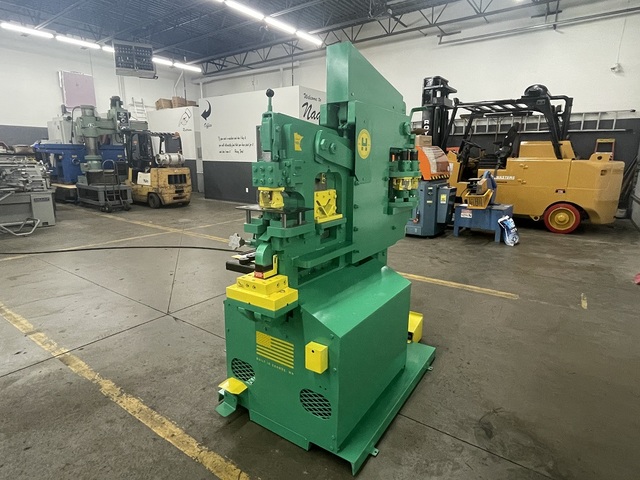

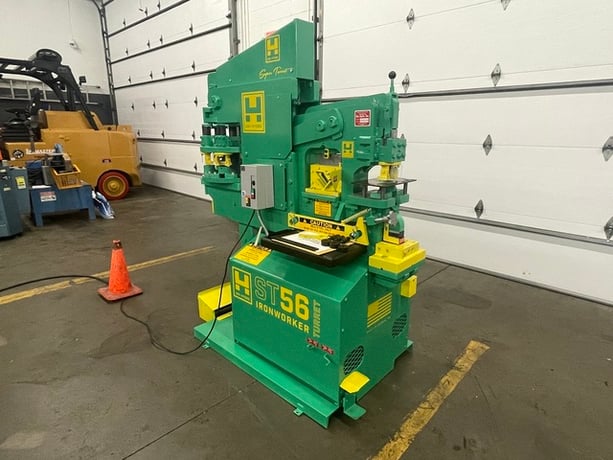

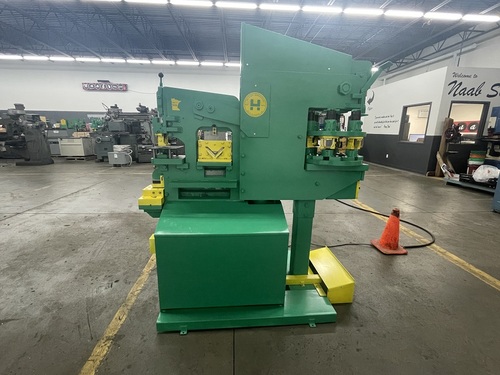

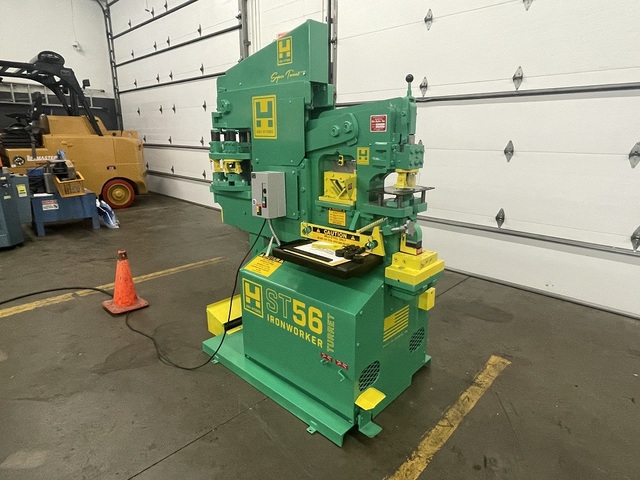

NEW Uni-Hydro 56 Ton Super Turret 10 STATION Ironworker, 1 PHASE 220v

SERIAL #

1 PHASE 220v

This is What’s INCLUDED With The Machine You Are Buying:

INCLUDED 56 Ton Super Turret, 1 Phase

INCLUDED SLUG TYPE ANGLE SHEAR: 3”X3”X3/8” $1300 Option

INCLUDED SQUARE NOTCHER: 2” X 3” X 3/8” $1500 Option

INCLUDED GREASE BANK KIT: $175.00 Option

INCLUDED BAR SHEAR TABLE: $350.00 Option

INCLUDED REAR PUNCH STATION ADJUSTABLE JIG TABLE $300.00 Option

INCLUDED TEN PACK L SERIES PUNCH & DIE SETS: $480.00 Option

INCLUDED PUNCH NUT WRENCH $25.00 Option

INCLUDED $4130.00 in Options

Total Retail Price: $32,630.00

DESCRIPTION:

Uni-Hydro’s 56 Ton ST56 Super Turret is a next level turret style ironworker featuring a 56 ton “Six Shooter”.

When others are reloading, you are completing the job.

Six punch barrels for six independent punches produces quick turnaround.

Today, Uni-Hydro is the sole manufacturer of not one, but two six-barrel turrets.

With competition counting each component as a “station”, let’s settle that score now,

this machine would be called a 10 station ironworker.

Take a Uni-Hydro PRO 56 and add on a 56 ton turret,

with a six inch throat under the Single station AND IN THE TURRET.

There’s a reason one of our slogans is “Twice The Muscle”.

FEATURES:

6” open throat turret punch with 56 ton capacity

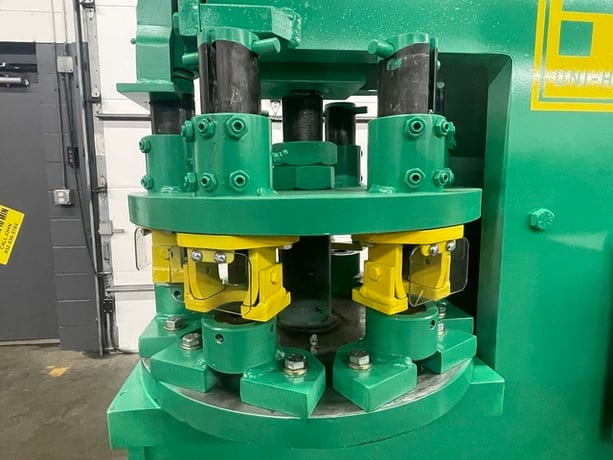

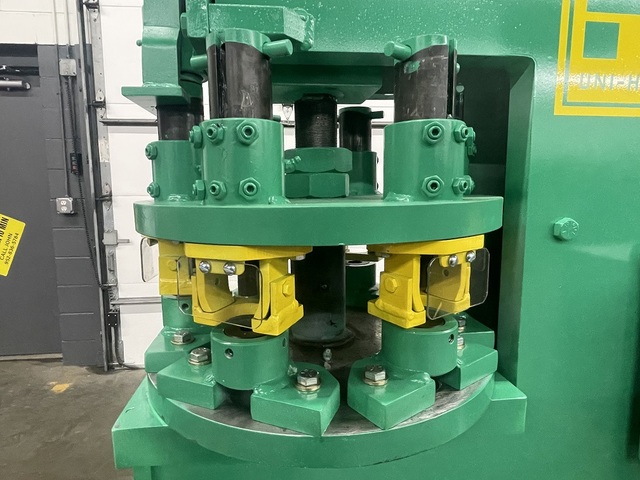

6 Station Turret Punch

Manual Punch Aligner

4-way 14″ low rake flat bar shear

Bar shear hold-down can be fixed or adjustable

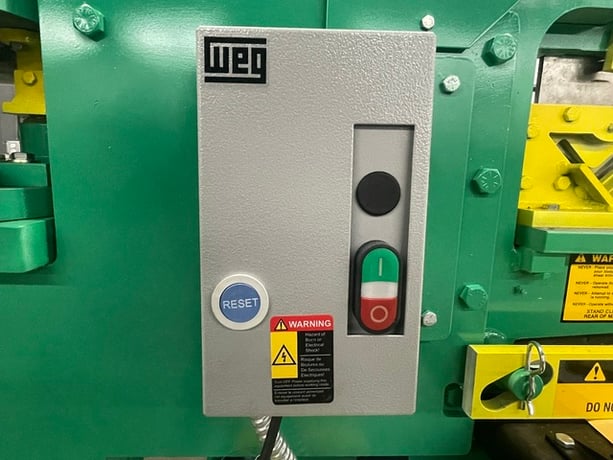

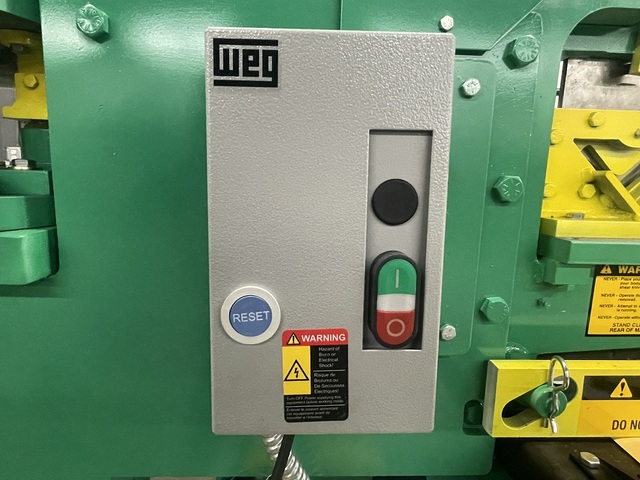

Magnetic starter for safety and reliability

Grease bank allows lubricating without removing machine covers

Built for forklift handling

Full stroke control

Full 4th Notcher Station

56 TON SUPER TURRET IRONWORKER SPECIFICATIONS

Model ST56-14

Tonnage 56

Throat Depth 6″

Punch

1-1/4″ hole in 1/2″ mild steel

13/16″ hole in 3/4″ mild steel

Bar Shear

3/8″ x 14″ , 1/2″ x 10″

5/8″ x 8”, 3/4″ x 6”

Angle Shear 90°

Slug Type – 3″ x 3″ x 3/8″

Miter Angle 45°

Bar Shear – 3″ x 3″ x 3/8″

Slug Type – 2″ x 2″ x 5/16″

Rod Shear

Round (Max) – 1-1/16″

Square (Max) – 1-1/16”

Square Notcher

Notcher Station – 2″ x 3″ x 3/8″

Strokes Per Min

Light Material – 50

Max Capacity – 7

Hydraulics 1,200 psi

Oil Capacity 20 quarts

Motor

5 HP / 1ph

Dimensions

(L x W x H) 33″ x 27.25″ x 57″

Bar Shear Work Height – 29″

Punch Table Top Height – 38-1/4″

Cavity Table Top Height – 37-1/4″

Weight – 3,375 lbs
