Manufacturer: Buffalo
Model: 1
Width: 3.00
Height/Angle Bend: 3.00
Thick: .375
Stock # 30838
Price: $7,950 USD
1 / 5
Click to zoom in
1 / 5
For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$7,950 USD
Description

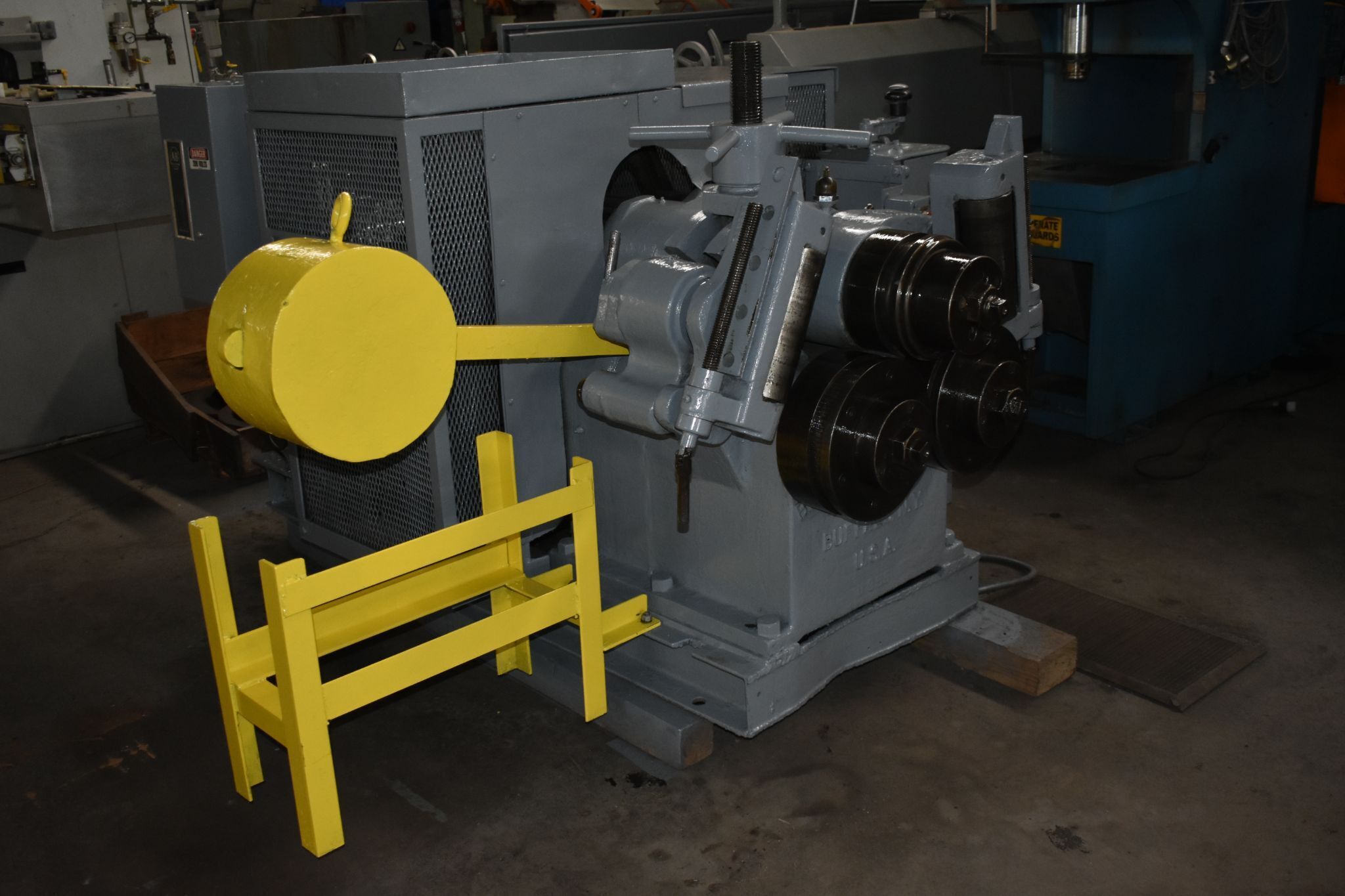

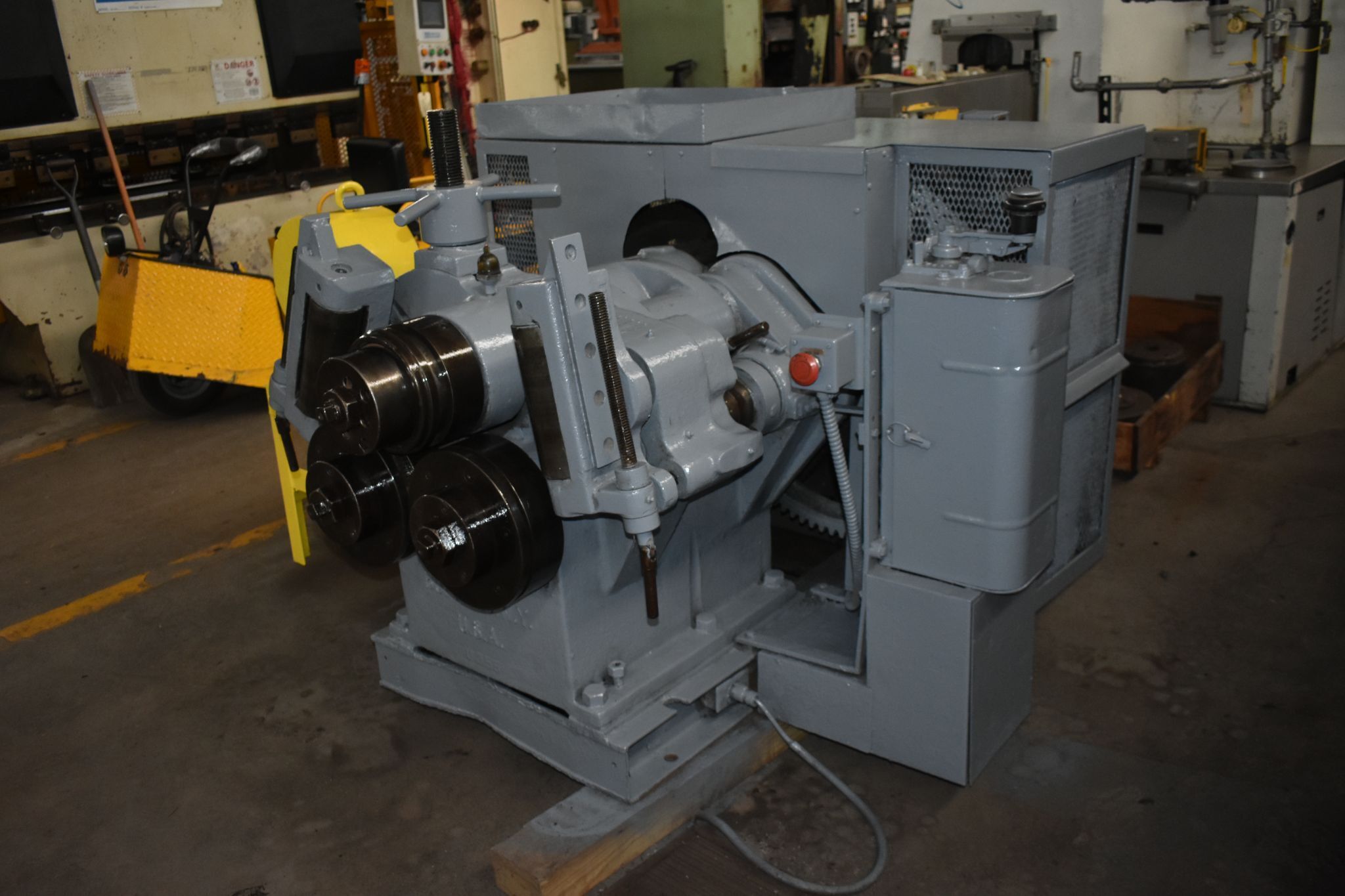

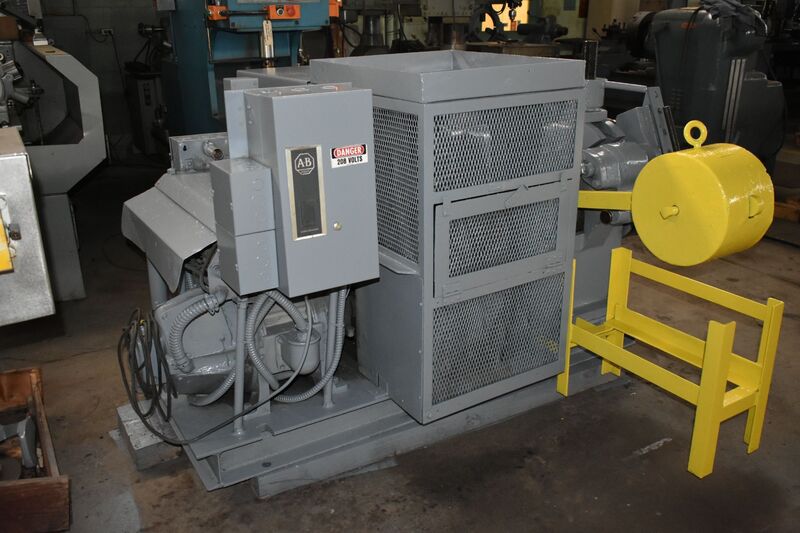

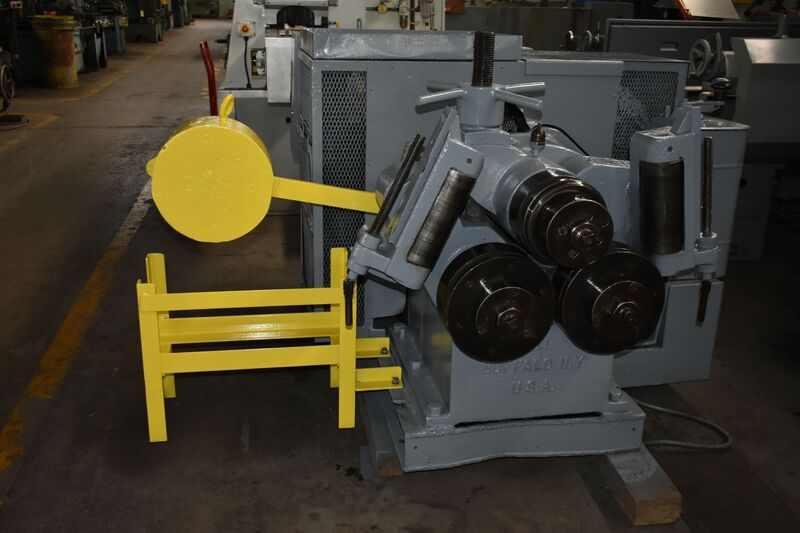

3 x 3 x 3/8 BUFFALO 1 VERTICAL ANGLE BENDING ROLL
3 X 3 X 3/8 BUFFALO VERTICAL ANGLE BENDING ROLL
Model 1
EQUIPPED WITH:
Set Of Rolls On Machine

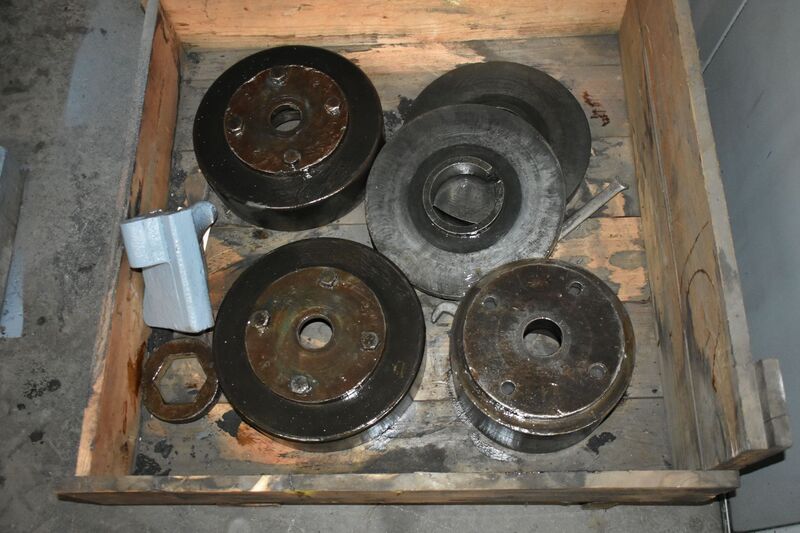

Extra Rolls
CATALOG SPECIFICATIONS:
Bending Capacity at Minimum Diameter:
Leg-In Angles, Angle Sides 2.5" x 2.5"
Leg-In angles, Angle Thickness 3/8"
Leg-Out Angles, Angle Sides 3" x 3"
Leg-Out Angles, Angle Thickness 3/8"
Flat On Flat 6" x 1"
Flat On Edge 3" x 5/8"
Flange-In Channels 5" @ 9#
Flange-Out Channels 5" @ 11.5#
Beam On Flange 5" @ 12.25#
Beam On Web 4" @ 9.5#
Solid Round Bars 2"
Solid Square Bars 1.75"
Standard Pipe 2"
Angle Rolls, Diameter 11.375"
Upper-Shaft, Diameter 4.75"
Bottom-Shaft, Diameter 4"
Roll Speed, Maximum 13.5 RPM
Speed Feet Per Minute, Maximum 40 FPM
Main Motor, Horsepower 10 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 7'2 x 5'6
Overall Height 5'
Weight, Approximately 5400 LBS
F.O.B. OUR WAREHOUSE
3 X 3 X 3/8 BUFFALO VERTICAL ANGLE BENDING ROLL
Model 1
EQUIPPED WITH:
Set Of Rolls On Machine
Extra Rolls
CATALOG SPECIFICATIONS:
Bending Capacity at Minimum Diameter:
Leg-In Angles, Angle Sides 2.5" x 2.5"
Leg-In angles, Angle Thickness 3/8"
Leg-Out Angles, Angle Sides 3" x 3"
Leg-Out Angles, Angle Thickness 3/8"
Flat On Flat 6" x 1"
Flat On Edge 3" x 5/8"
Flange-In Channels 5" @ 9#
Flange-Out Channels 5" @ 11.5#
Beam On Flange 5" @ 12.25#
Beam On Web 4" @ 9.5#
Solid Round Bars 2"
Solid Square Bars 1.75"
Standard Pipe 2"
Angle Rolls, Diameter 11.375"
Upper-Shaft, Diameter 4.75"
Bottom-Shaft, Diameter 4"
Roll Speed, Maximum 13.5 RPM
Speed Feet Per Minute, Maximum 40 FPM
Main Motor, Horsepower 10 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 7'2 x 5'6
Overall Height 5'
Weight, Approximately 5400 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
