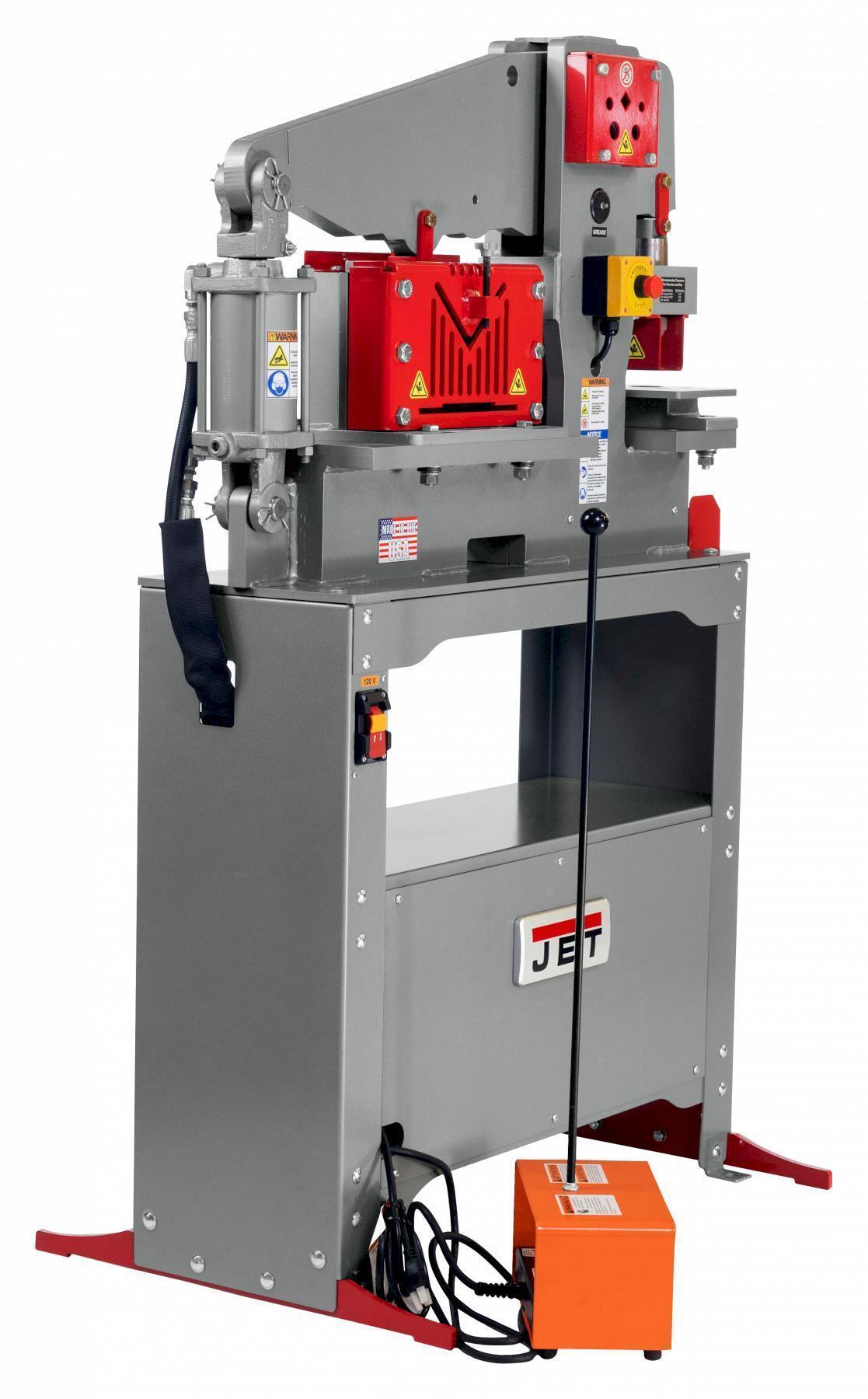

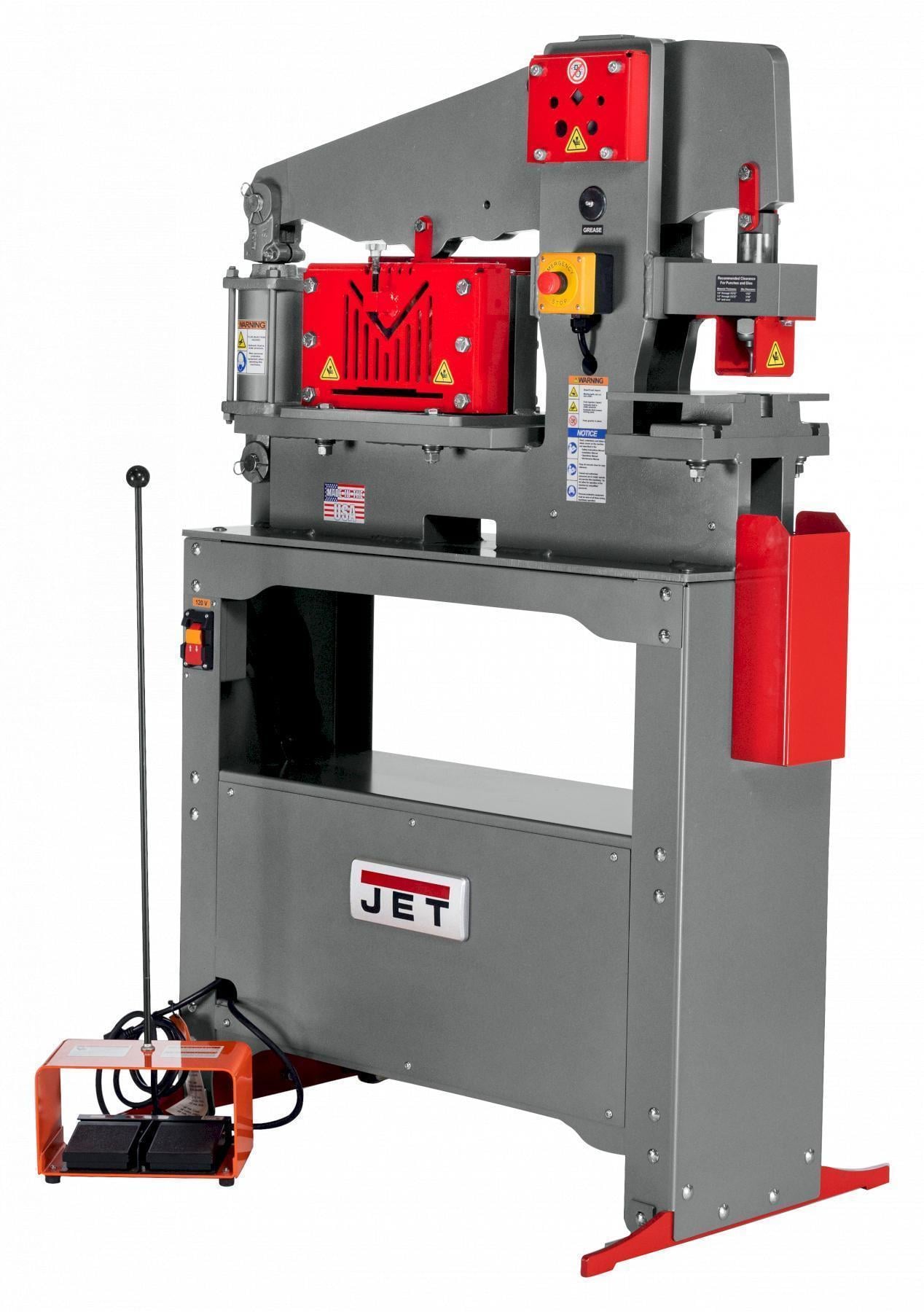

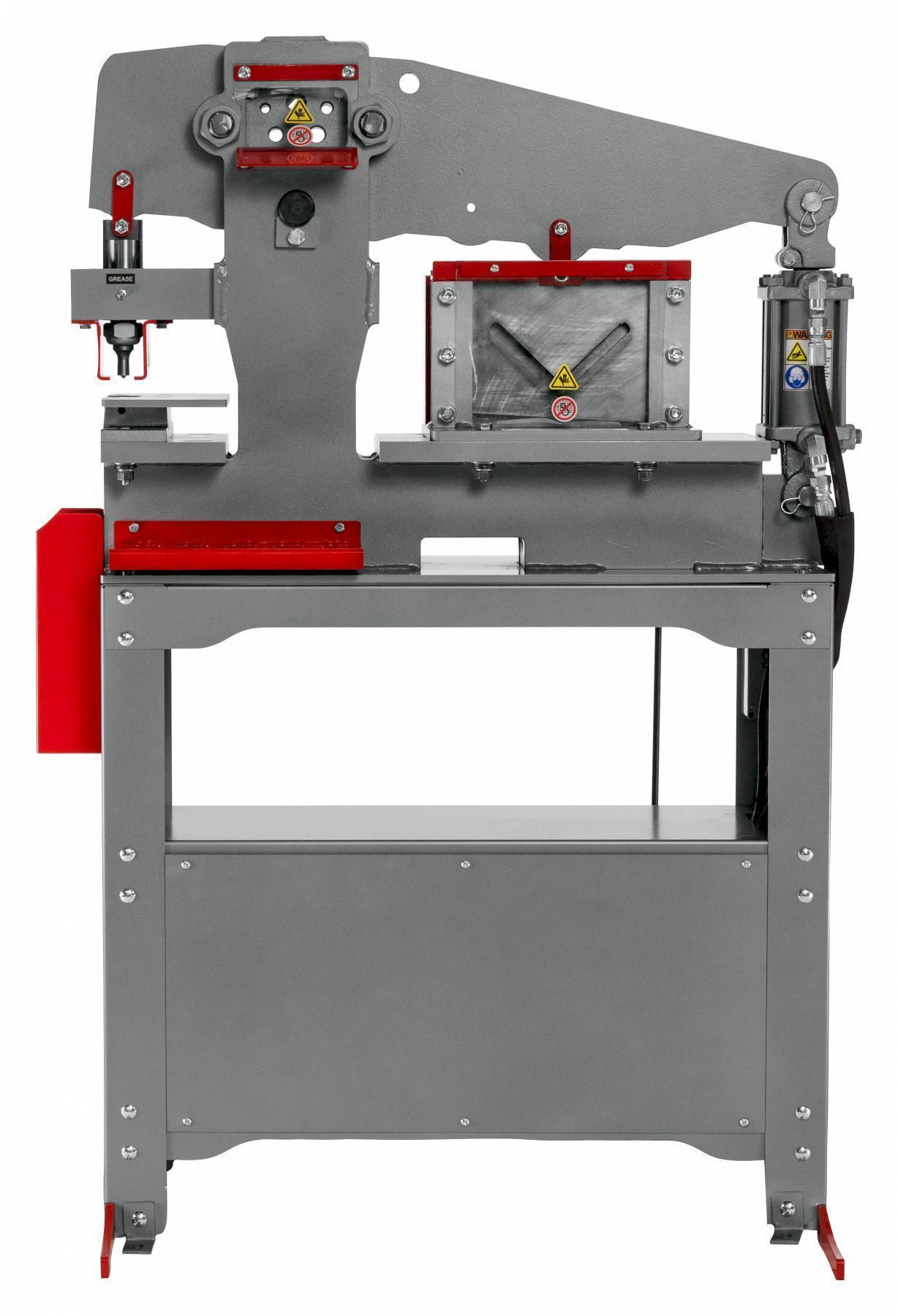

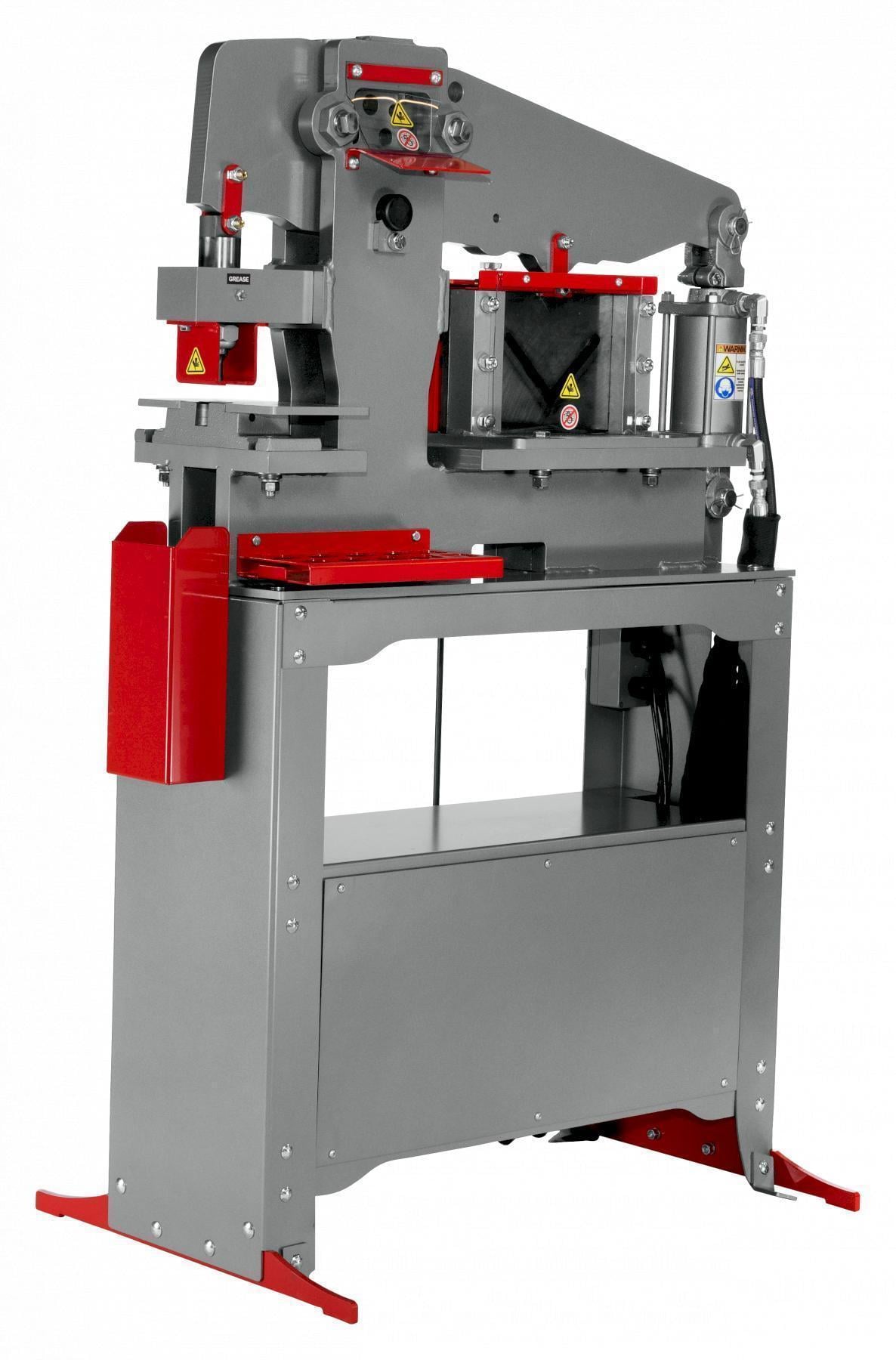

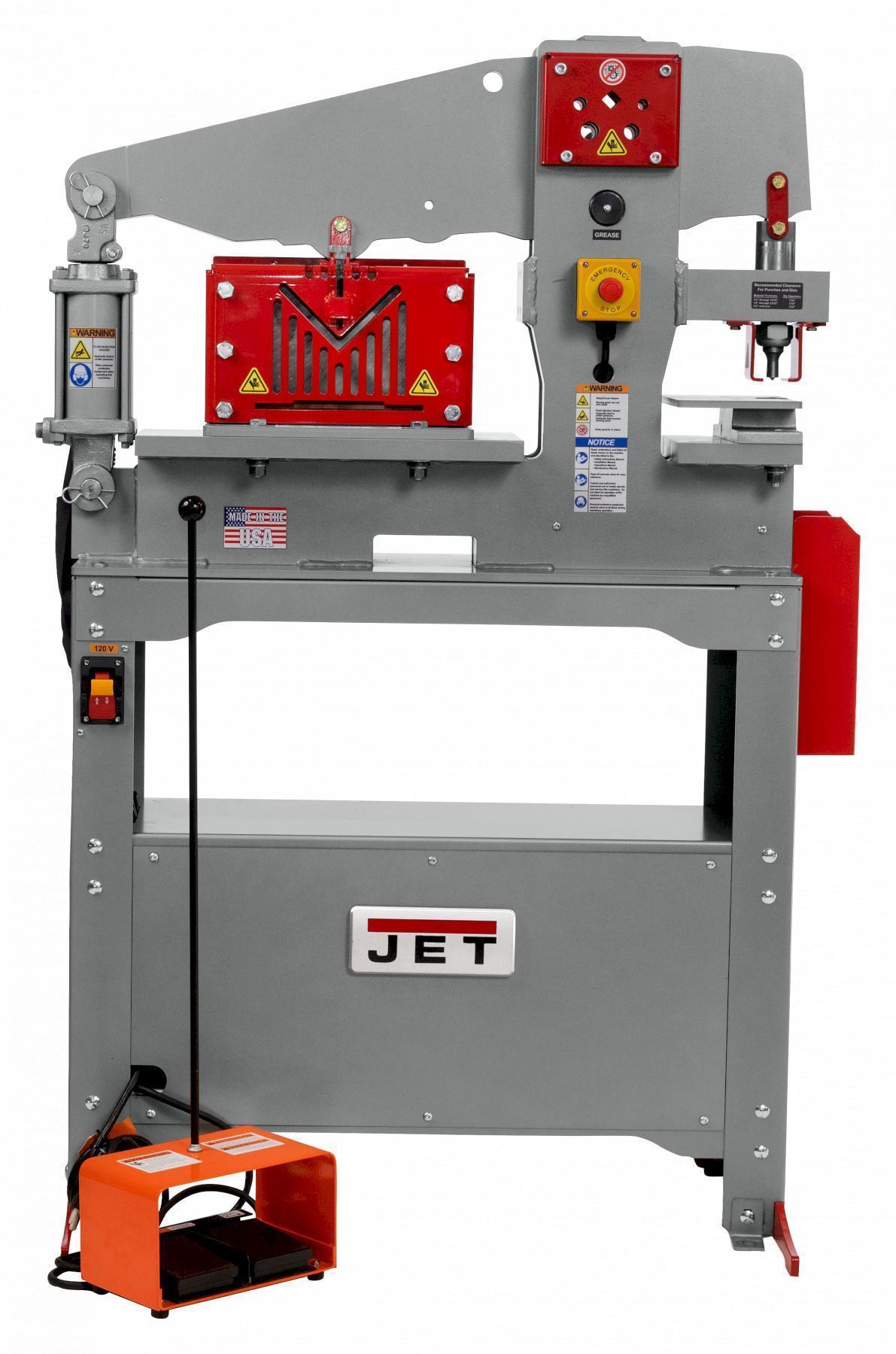

Manufacturer: Jet
Model: JIW-45T
90° Angle Shear Capacity" L: 3.00
90° Angle Shear Capacity" W: 3.00
Shear Capacity: .250
Ton: 45
Stock # 85749
1 / 10
Click to zoom in
1 / 10
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Angle Shear Max Capacity 1/4" | 3" x 3" |
| Angle Shear Max Capacity | 3" x 3" x 1/4" |
| Cylinder (Ram) | 3.5 inches |
| Flat Bar Shear Max Capacity | 1/4" x 8", 3/8" x 6" |
| Flat Bar Shear Rating | 45 tons |
| Flat Bar Shear Work Height | 40 inches |
| Gross Weight | 802 pounds |
| Motor Amps | 14 |
| Motor | 1-1/2 HP, 115V, 1Ph |
| Motor Speed | 3,500 RPM |
| Overall Dimensions (L x W x H) | 40" x 24" x 58" |
| Overall Height | 58 inches |
| Punch Max Capacity | 1 diam. In. 1/2 mild steel |
| Punch Rating | 45 tons |
| Punch Stroke | 1.5 inches |
| Punch Work Height | 41 inches |
| Rating | 45 tons |
| Rod Shear Max Round | .75 inches |
| Rod Shear Max Square | .625 inches |
| Rod Shear Work Height | 54 inches |
| Shipping Dimensions (L x W x H) | 51" x 45" x 64" |
| Valve Pressure | 2,800 PSI |
| Weight | 698 pounds |
| Throat Depth | 5.75 inches |
Equipped With
Equipped With
Features:
* Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear
* Operates on 115V power allowing use almost anywhere
* ANSI Compliant Guarding on the Angle & Rod Shears

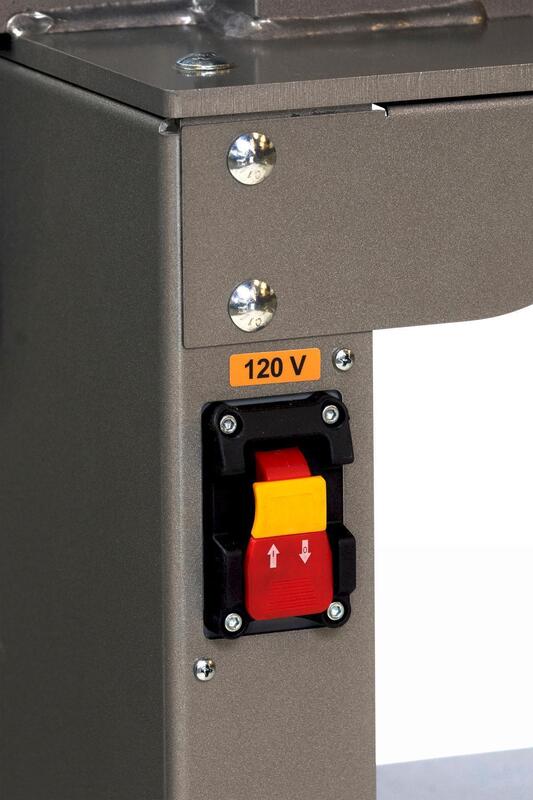

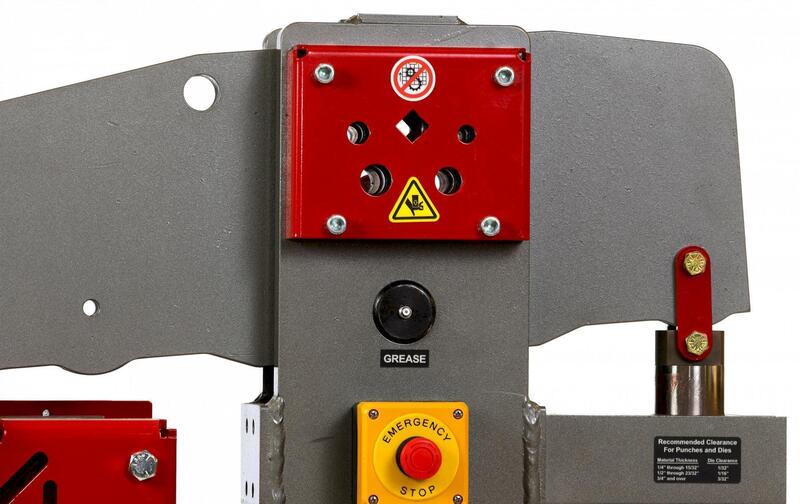

*E-stop with UL Listed compliant controls providing additional operator safety
* Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets
* Convenient foot control with handle is easy to move between workstations
* Optimized workstation heights reduce user fatigue

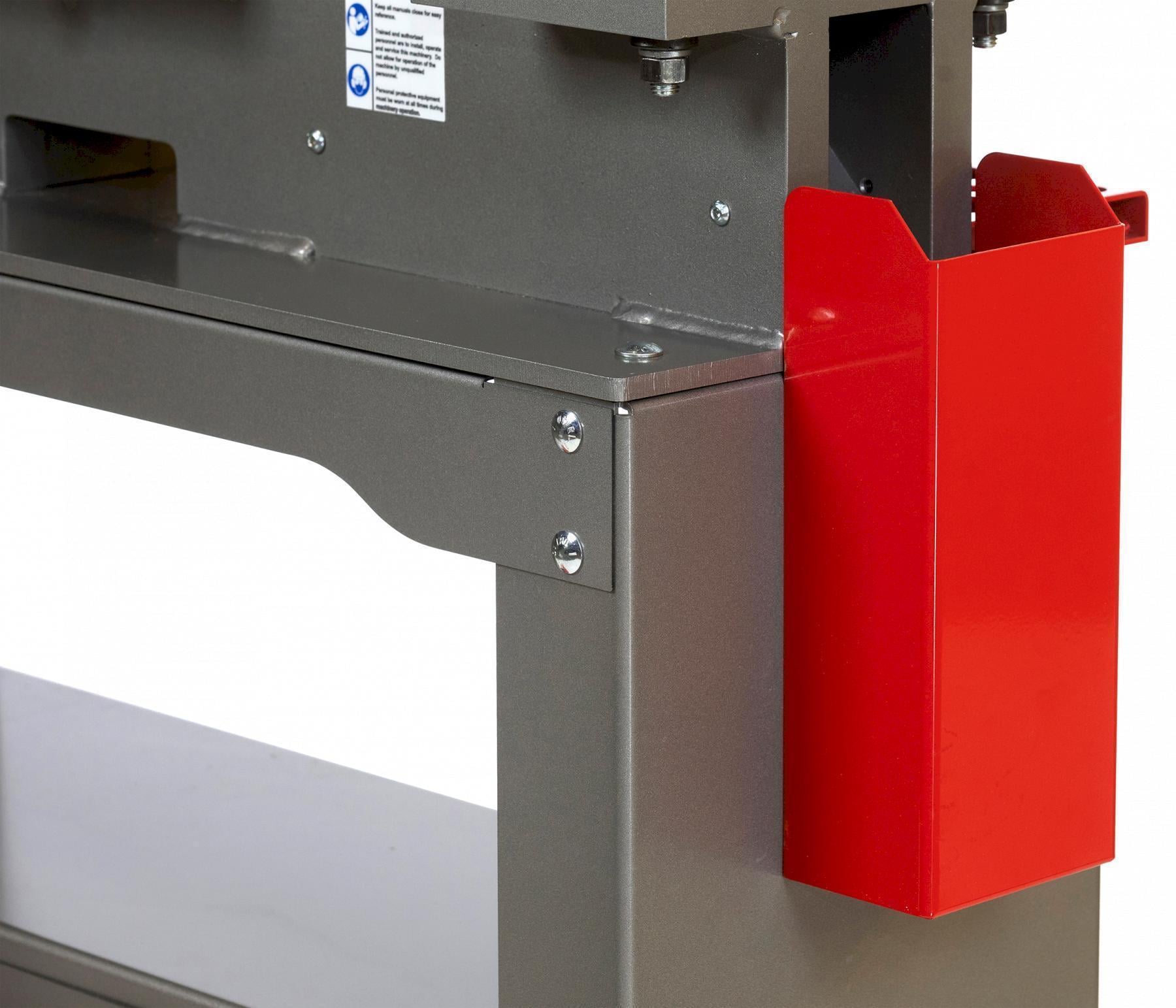

* Slug receptacle collects all punch slugs keeping work area clear
* Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
* Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric
* Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear
* Operates on 115V power allowing use almost anywhere
* ANSI Compliant Guarding on the Angle & Rod Shears
*E-stop with UL Listed compliant controls providing additional operator safety
* Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets
* Convenient foot control with handle is easy to move between workstations
* Optimized workstation heights reduce user fatigue
* Slug receptacle collects all punch slugs keeping work area clear
* Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
* Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric
Get Your Price from Smith Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
3" x 3" x 0.25" Spartan #IW-50S, hydraulic ironworker, 50 ton, 1.125" stroke, 6.5" throat, 5 HP, 5 station
Category: Ironworkers
Seller: Westbrook Engineering Co
Location: Warren, MI
Mfr: Spartan
Model: IW-50S
Year: 2011
Used Spartan 50 Ton Hydraulic Ironworker Model IW-50S. s 50-ton punch pressure, 5 work stations, 220/440V motor, and adjustable stroke. Includes scrap boxes, foot pedal, and assorted punches/dies. Compact and reliable for versatile ironworking tasks., Brand: Spartan, Model: IW50S, (rated on 65,000 PSI Tensile), Work ...more
JUST ADDED!

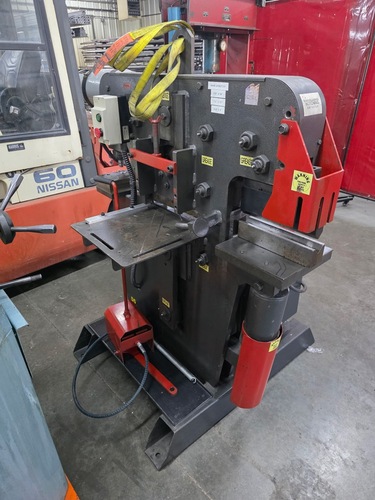

3" x 3" x 3/8" Edwards #Jaws-IV, hydraulic ironworker, 55 ton, 7-1/2" throat, 1-1/16" punch diameter, 3/8" x 14" flat bar shear, 5 HP
