Angles (Leg Out): 3″ x 3″ x 5/16″ Angles (Leg In): 2-1/2″ x 2-1/2″ x 5/16″ Flat Bar (on Flat): 3/4″ x 8″ Flat Bar (on Edge): 5/8″ x 3″ Pipe Capacity: 2-1/2″ diameter (Standard Schedule 40 pipe up to 2″) Square Bar: Up to 1-3/4″ (45 mm) Round Bar: Up to 2″ (50 mm) Roll Diameter: 9″ (225 mm) Shaft Diameter: 3″ (approx. 75 mm) Bending Speed: Approximately 23 FPM (7 m/min) Motor Power: 5 HP to 5.5 HP (4 kW) Approx. Weight: 4,000 lbs Approx. Dimensions: 41″ x 45″ x 41″

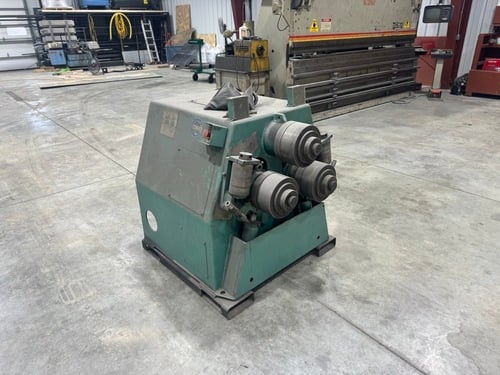

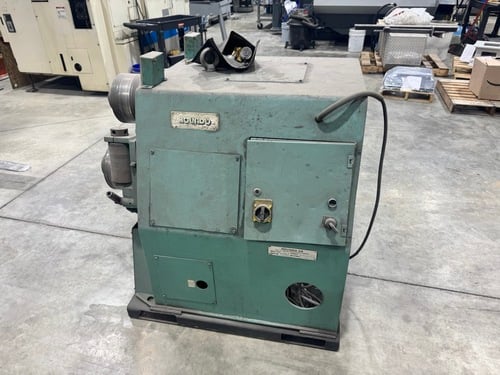

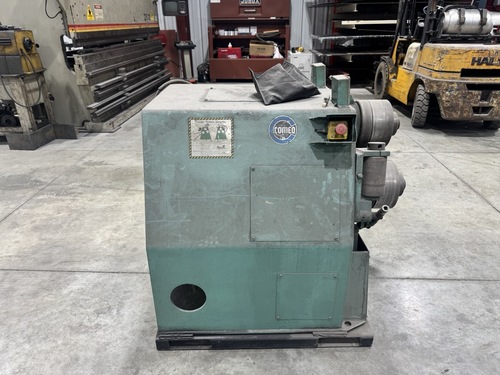

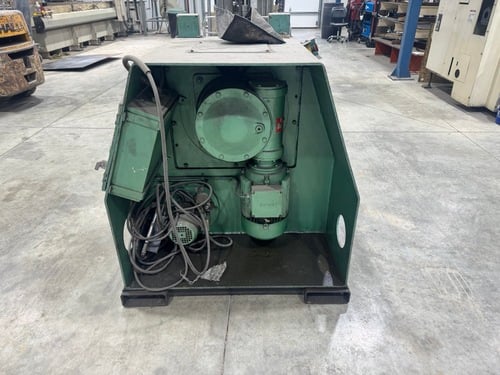

Used Roundo R3. This pre-owned Bending Roll is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Roundo Bending Roll we can review machine. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us ...more
3 x 3 x 3/8 BUFFALO 1 VERTICAL ANGLE BENDING ROLL, 3 X 3 X 3/8 BUFFALO VERTICAL ANGLE BENDING ROLL, Model 1, Set Of Rolls On Machine, Extra Rolls, CATALOG :, Bending Capacity at Minimum Diameter:, Leg-In Angles, Angle Sides 2.5" x 2.5", Leg-In angles, Angle Thickness 3/8", Leg-Out Angles, Angle Sides 3" x 3", Leg-Out ...more
Overview, Type:Misc Angle RollsManufacturer:HENDLEY-BELOITModel:20-BStatus:For SaleCountry:United States, HENDLEY BELOIT VERTICAL ANGLE BENDING ROLLS, Size 20-B, Serial Number 16701, ANGLES LEG OUT 3" x 3" x 3/8", Minimum Diameter 24", Smallest Angle 1½" x 1½" x 3/16", Minimum Diameter 13", ANGLES LEG IN ...more
