Description

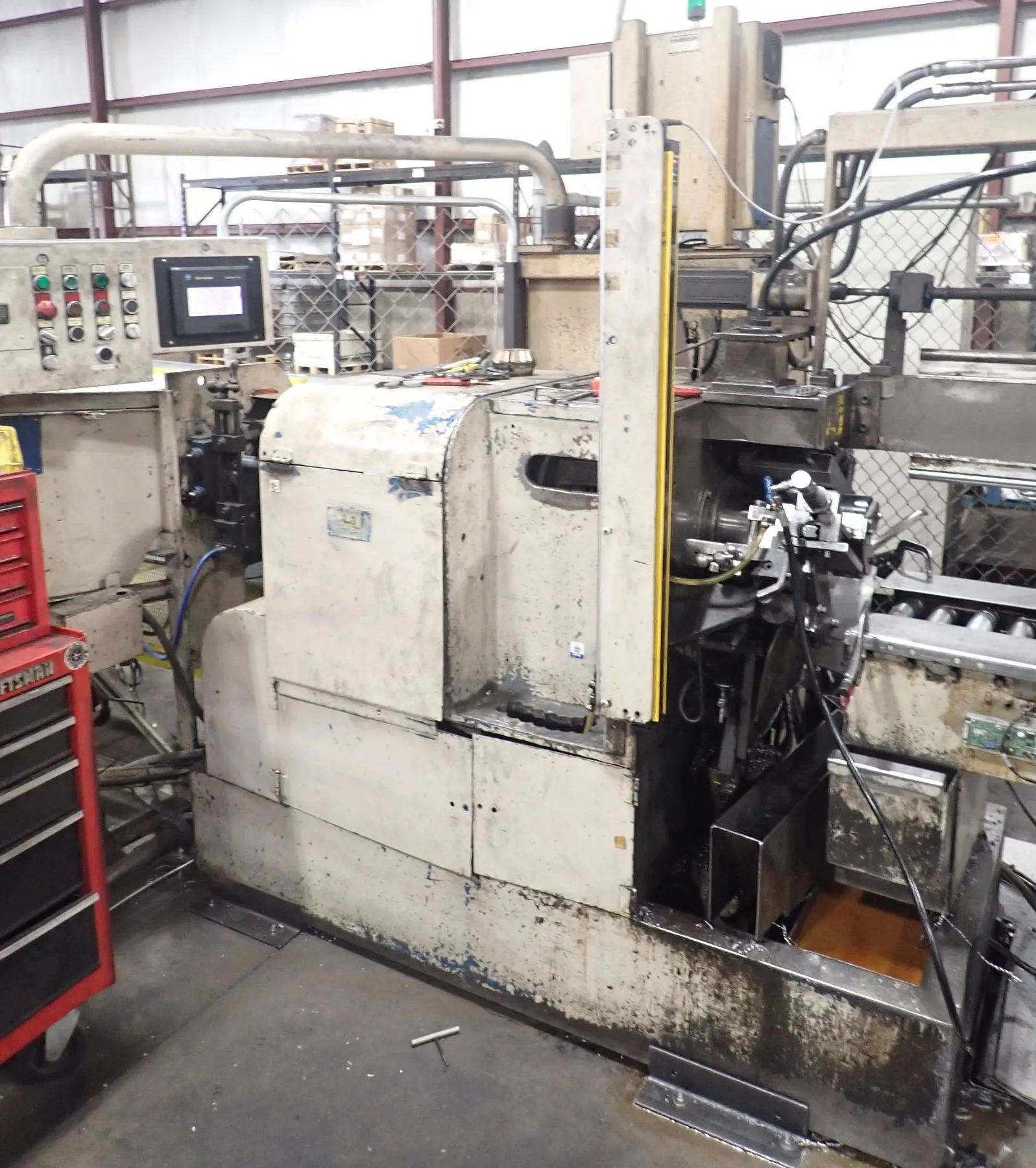

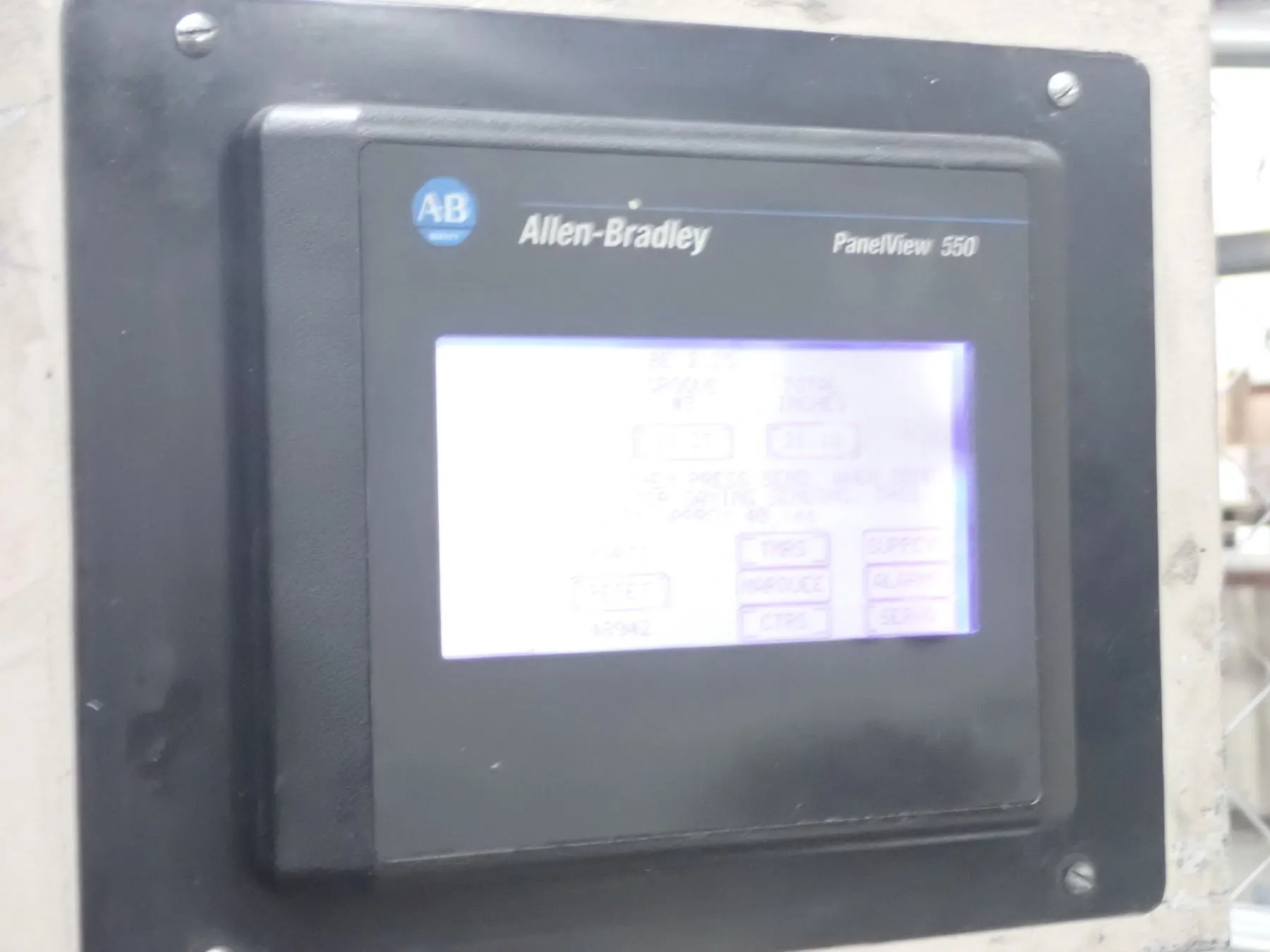

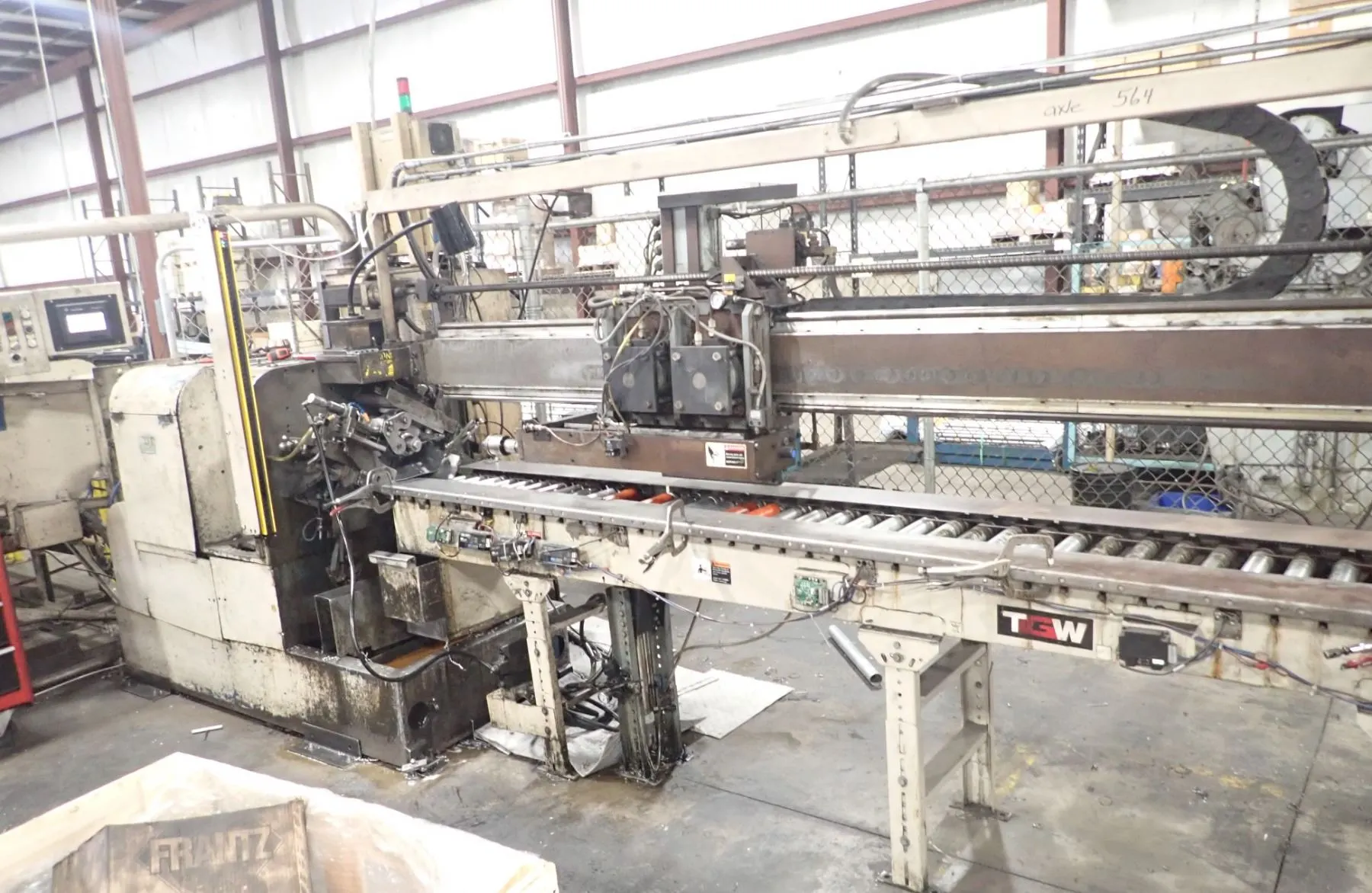

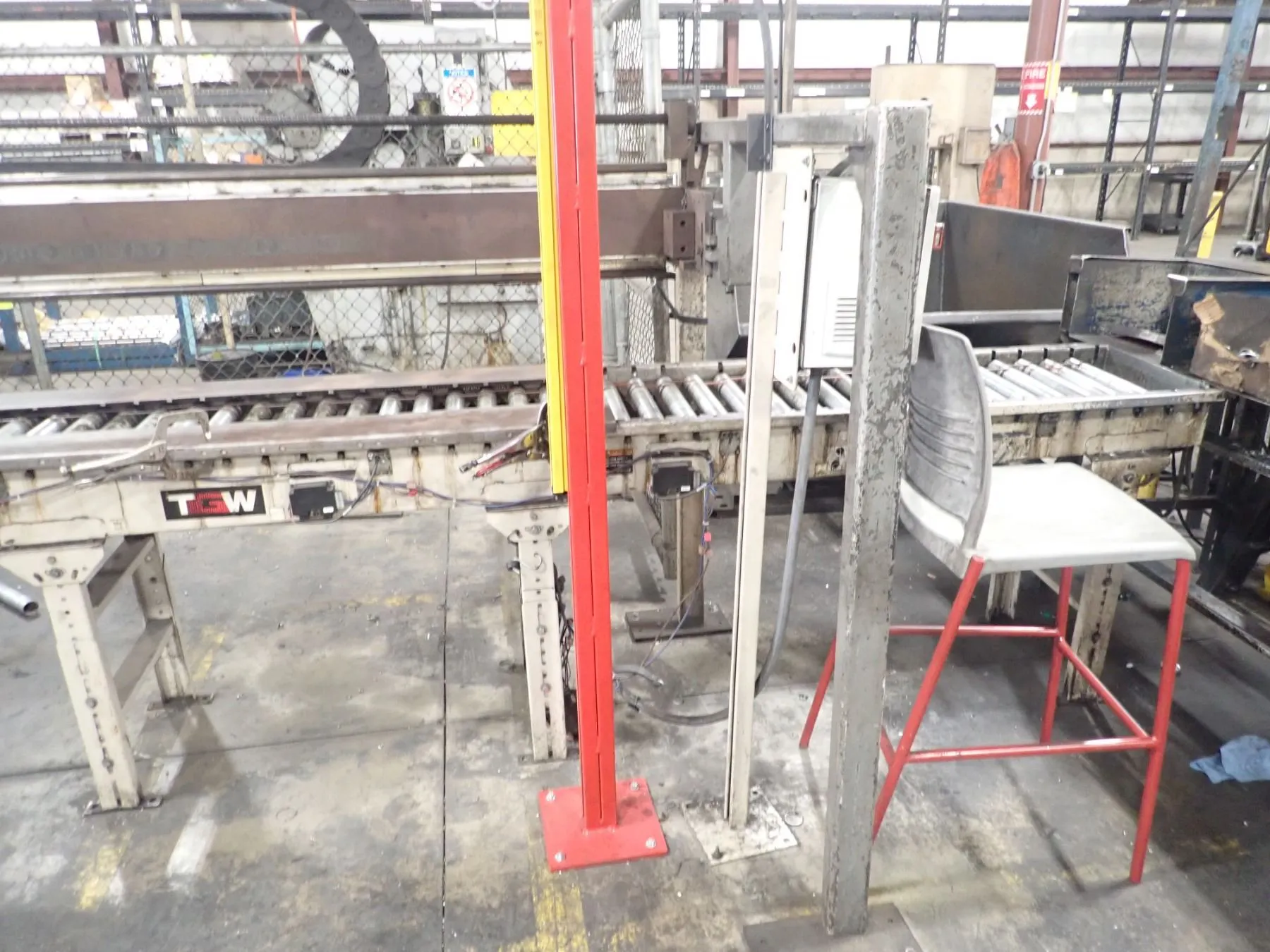

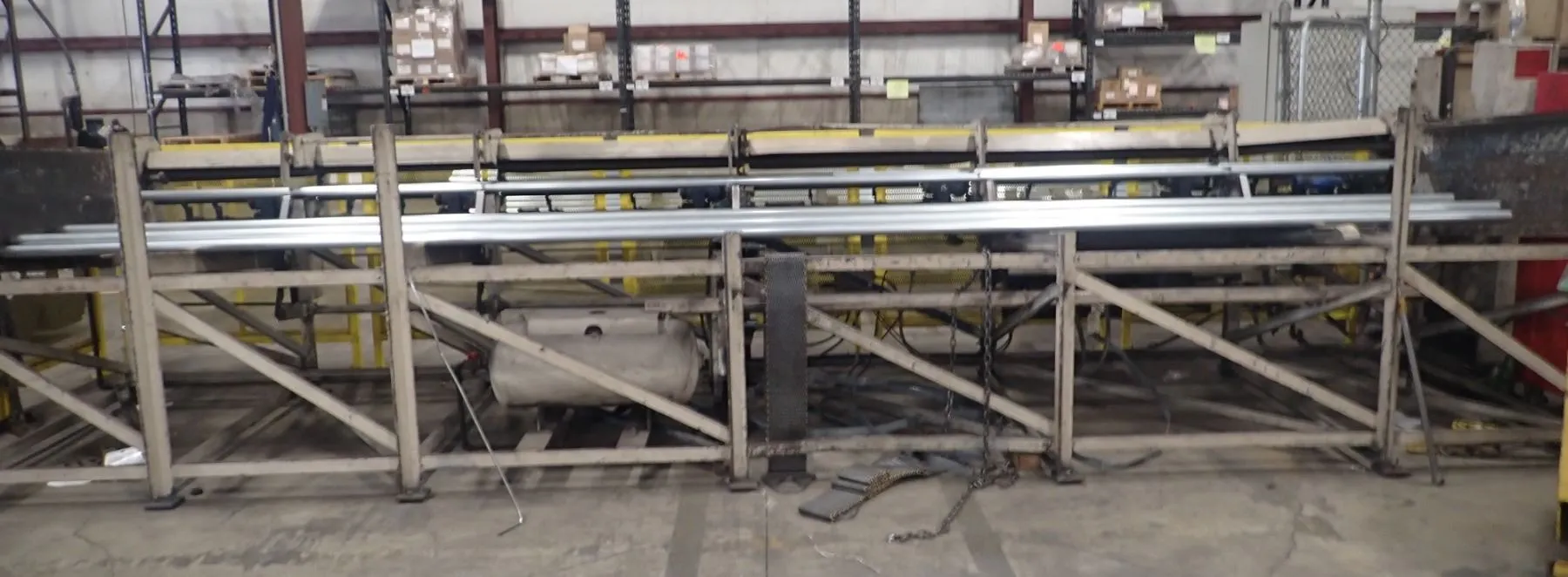

THE MODERN MACHINE MODEL 3K-LH IS A 3" AUTOMATIC PIPE-TUBE-BAR CUT-OFF LATHE EQUIPPED WITH UPDATED ALLEN BRADLEY PANEL VIEW 550 PLC CONTROLS AND A 20' MODERN AUTOMATIC BAR-FEED SYSTEM. IT FEATURES AN 11' OVERHEAD MICROMETER STOCK-STOP THAT ALLOWS FOR A MAXIMUM 8' CUT-OFF LENGTH, WITH THE STOCK-STOP LENGTH ADJUSTMENT ALSO SPECIFIED AT 8'. THE MACHINE UTILIZES FRONT AND REAR CUT-OFF SLIDES AND INCLUDES A 15' EXIT ROLLER CONVEYOR. TECHNICAL SPECIFICATIONS DETAIL A MINIMUM DIAMETER CAPACITY OF 1/4" (6MM) AND A MAXIMUM DIAMETER CAPACITY OF 3-1/8" (79MM). THE MAXIMUM WALL CAPACITY IS 1-1/2" (38MM), WHILE THE MAXIMUM SOLID BAR CAPACITY IS 3" (76MM). THE SPINDLE SPEED RANGE IS 130 TO 2000 RPM, AND THE STOCK FEED RATE IS 160 FPM (49 MPM). THE UNIT IS POWERED BY A 5 HP MAIN MOTOR OPERATING AT 440 VOLTS.
3" MODERN #3K-LH AUTOMATIC PIPE-TUBE-BAR CUT-OFF-LATHE, Serial No 3K3225LH, Model 3K-LH, 3" MODERN #3K-LH AUTOMATIC PIPE-TUBE-BAR CUT-OFF-LATHE, Serial No 3K3225LH, Model 3K-LH, Updated Allen Bradley Panel View 550 PLC, Controls, 20' Modern Automatic Bar-Feed System, 11' Overhead Micrometer Stock-Stop ...more
Tube Diameter Range: 3" Round, Tube Diameter Range Squares: 2.125" Square, Maximum Wall Thickness: 0.120", Maximum Incoming Tube Length: 25’, Maximum Outgoing Tube Length:120", Hand of Operation: L to R, s, Burrmaster Model 2 Deburring Unit with 24" Brushes (2)10HP Motors, PLC Controlled ...more
Pre Owned 1996 Modern Model 2LD Conventional Cutoff Lathe, Serial Number:, Capacity 1/4” tp 2 1/4” OD, Main Motor Horsepower 15, 1800 RPM, Spindle Speeds 196 - 3027, Air Hyd Cylinder, 15 HP Variable Speed Drive, 3rd Cross Slide, Roll Steady Rest, Swing Position, One Second Index Time, 16 Spindle Speeds ...more
