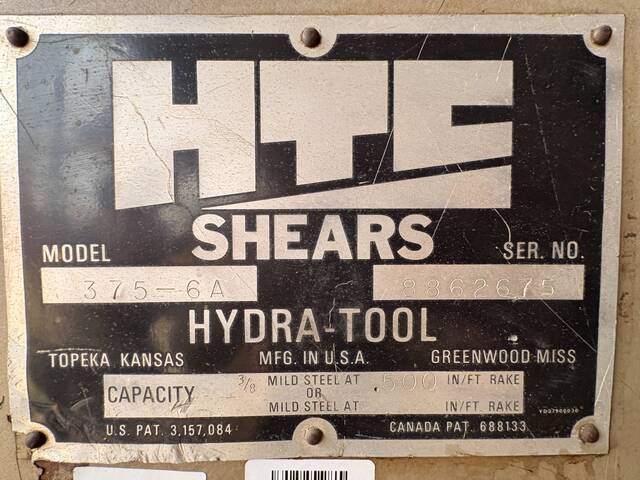

3/8" x 72" HTC #375-6A, Hydraulic Sheet Metal Shear, 36" backgauge, 17 SPM, 20 HP, 208/460 V.

Estimated monthly payment valid upon approved credit.

Request Formal Quote

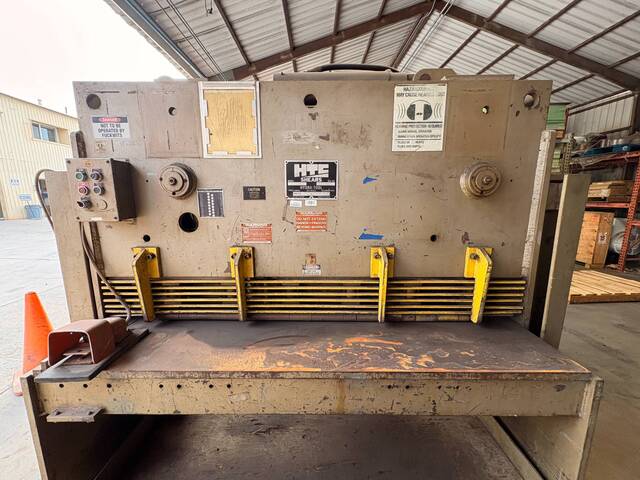

THE HTE MODEL 375-6A IS AN INDUSTRIAL HYDRAULIC METAL SHEAR DESIGNED FOR PRECISION CUTTING OF MILD AND STAINLESS STEEL. THIS MACHINE FEATURES A 6-FOOT WORKING LENGTH WITH A RATED CAPACITY OF 3/8 INCH FOR MILD STEEL AND 1/4 INCH FOR STAINLESS STEEL. IT UTILIZES A PRECISION GUILLOTINE DRIVE SYSTEM AND A HEAVY-DUTY GIBBING SYSTEM WITH PRECISION MACHINED TAPERED GIBBS TO ENSURE UNIFORM RAM TRAVEL AND HIGH-QUALITY CUTS. THE SHEAR IS EQUIPPED WITH A 36-INCH TRAVEL PLC BACKGAUGE FEATURING A "GO-TO" FUNCTION, MULTI-JOB PROGRAMMING, AND AN LED READOUT FOR ACCURATE POSITIONING. STANDARD TECHNICAL SPECIFICATIONS INCLUDE A 4-FOOT SQUARING ARM WITH AN INLAID SCALE, MULTIPLE HAND SLOTS, AND T-SLOTS IN THE TABLE FOR VERSATILE MATERIAL HANDLING. THE CUTTING SYSTEM EMPLOYS INFINITELY VARIABLE, MANUAL, QUICK-CHANGE BLADE GAP ADJUSTMENT TO ACCOMMODATE VARIOUS MATERIAL THICKNESSES. SAFETY AND OPERATIONAL FEATURES INCLUDE A HYDRAULIC SELF-COMPENSATING HOLD-DOWN BAR ASSEMBLY WITH APPROXIMATELY SEVEN HOLD-DOWNS, A LIGHT BEAM SHADOW LINE GAUGE, AND A GUARDED FOOT PEDAL FOR CYCLE CONTROL. THE UNIT IS TYPICALLY POWERED BY A 20 HP MOTOR, OPERATING ON 208/230/460V THREE-PHASE POWER, AND REACHES A STROKE SPEED OF APPROXIMATELY 17 CYCLES PER MINUTE. CONSTRUCTION CONSISTS OF AN ALL-STEEL FABRICATED FRAME WITH A TOTAL MACHINE WEIGHT OF APPROXIMATELY 13,000 TO 15,100 LBS DEPENDING ON SPECIFIC CONFIGURATIONS. ALL COMPONENTS ARE DESIGNED FOR INDUSTRIAL DURABILITY, MEETING NFPA 79 AND ANSI B11.4 SAFETY STANDARDS.
