Description

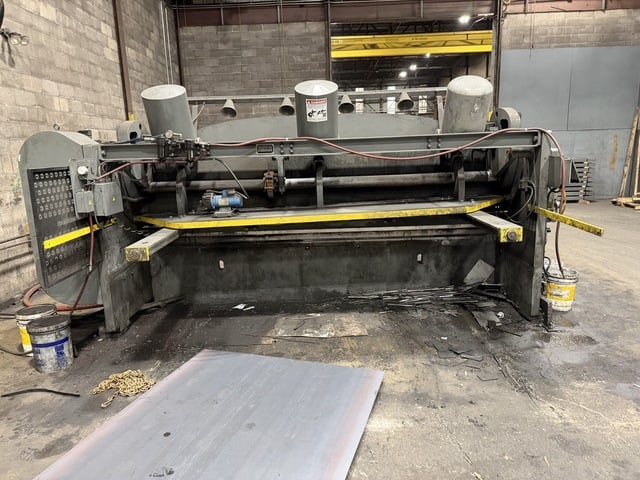

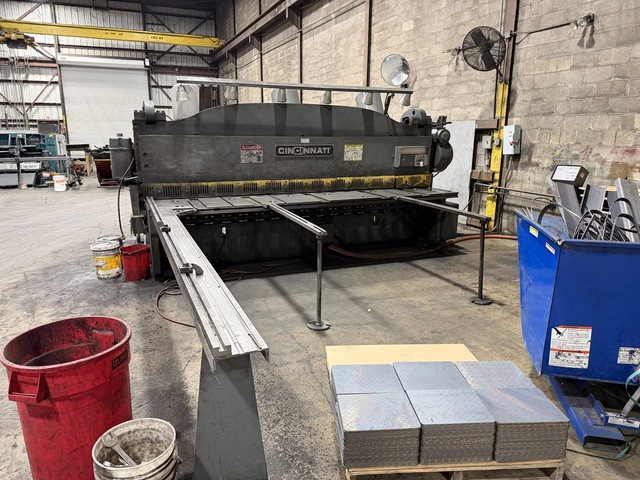

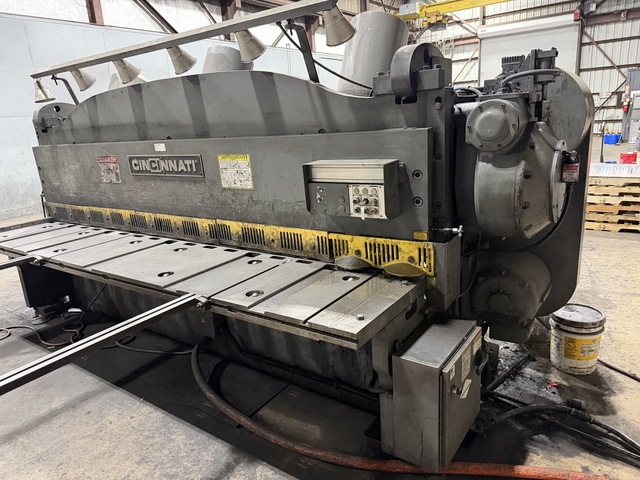

2019 Cincinnati 12′ x 3/8″ Mechanical Power Squaring Shear Model 2512G
Shearing Capacity 12’ x 3/8”
Blade Length 148”
Distance Between Frame 147”
Speed at Full Stroke 50 SPM
Rake Angle 9/32” per foot
Number of Hold Downs 13
Distance under Hold Down 11/16”
Gap Depth 18”
Table Height 32”
Main Motor 20 HP 230/460/3/60
RPM 1675 Amps 52 / 26
Approximate Dimensions 188” L x 82” W x 86” H
Approximate Weight 33,000 Lbs
Pit Required (Approximate) 12” Deep x 4” W x 11’ L
36″ power operated back gauge

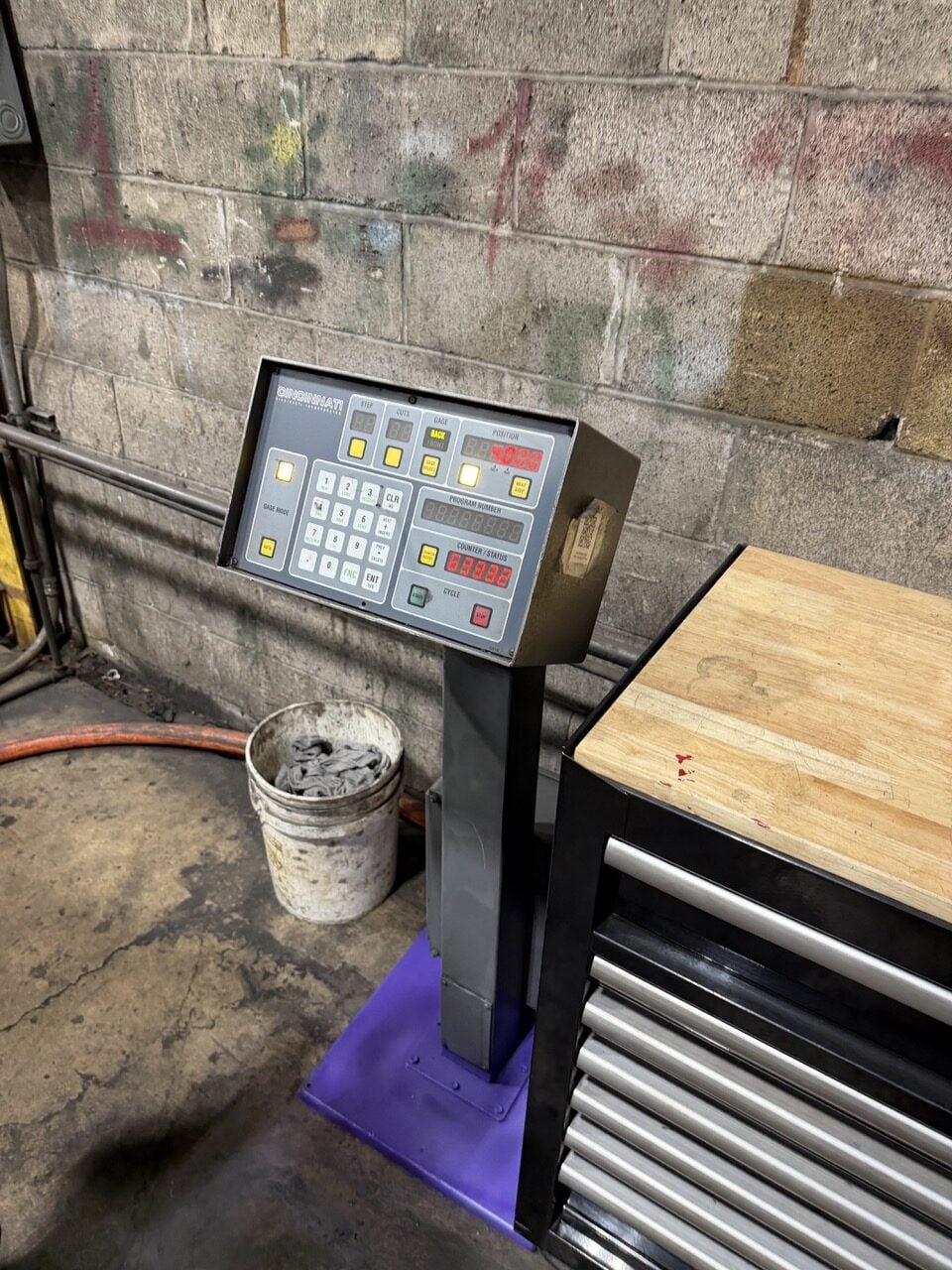

Operator control stand
13′ squaring arm
Foot pedal control
Ball transfers in table
Finger guard
Get Your Price from Equilibrium Machinery!
Buyers Who Viewed This Listing Also Viewed:
3/8" x 12' Cincinnati #2512G, Power Squaring Shear, 20 HP, 36" Back Gauge, 2019
0.4" x 12' Standard Industrial #AS375-12, Power Squaring Shear, 36" Back Gauge, 15 SPM, 20 HP
0.394" x 10.3' Knuth #KHT-3010-NC, Hydraulic Power Squaring Shear, 5.91" throat, 131.5" x 20.5" x 34.4" table, 16 hold-downs, 17 SPM, 29.5 HP, 2021

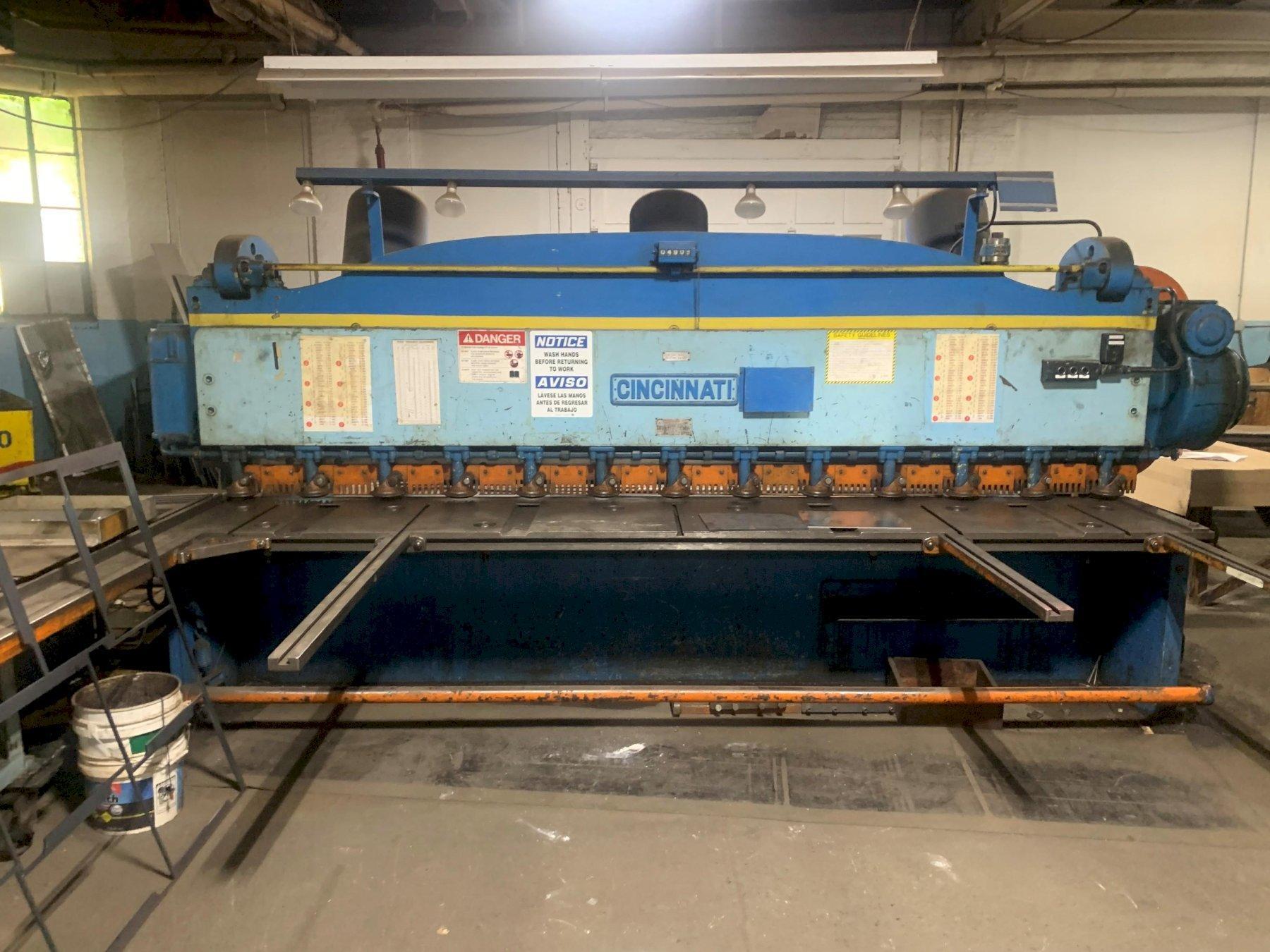

3/8" x 12' Cincinnati #2512, mechanical squaring shear, 13 holddowns, 18" throat, 50 SPM, 36" front operated power back gauge, squaring arm
