For Sale by Aleco Machinery Sales
Description

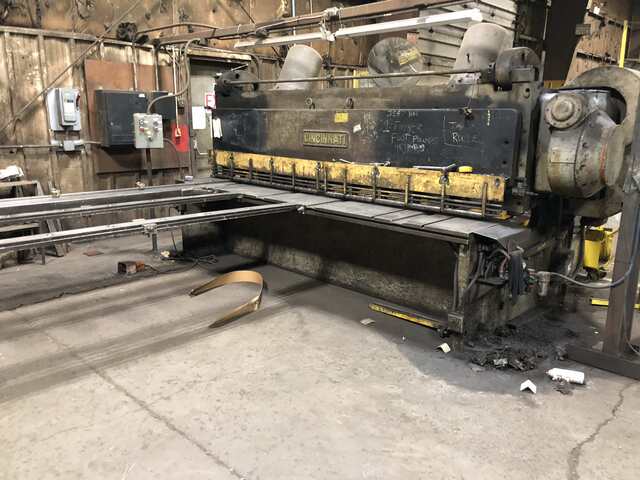

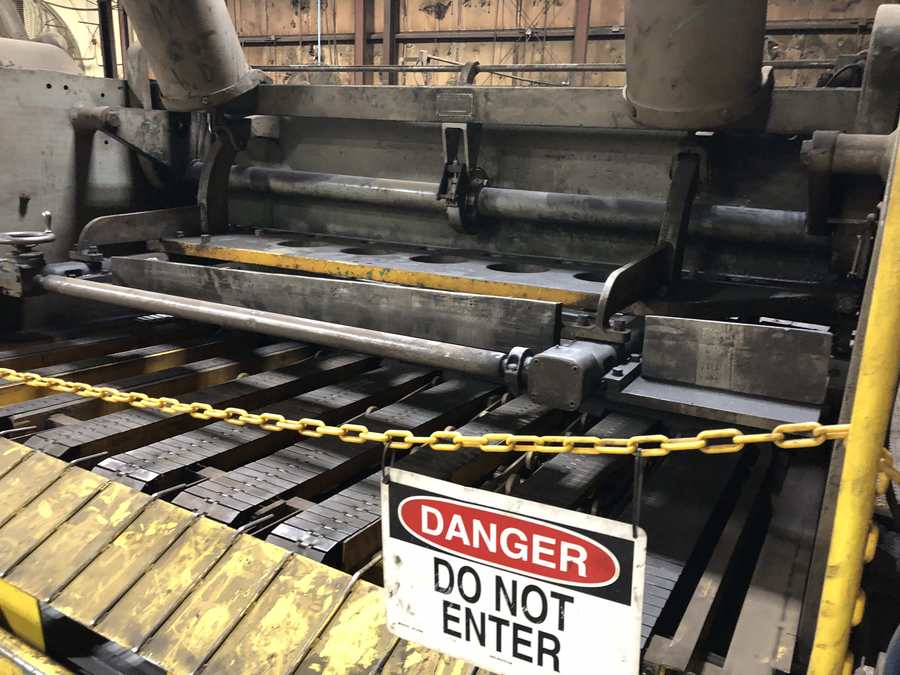

Pre Owned Cincinnati Model 2512 Mechanical Power Squaring Shear
GENERAL SPECIFICATIONS:
Capacity (Mild Steel) 3/8”
Distance Between Housings 10’3”
Back Gauge Range 0 - 36”
Back Gage Speed 120” PER MINUTE
Rake Taper 9/32” PER FOOT
Throat 4”
Strokes Per Minute 50
Distance Under Hold Downs 5/8”
Main Drive Motor 15 HP
EQUIPPED WITH:
Programmable Control for Step, Cuts and Back Gauge Distance
12’ Exit Conveyor
Sheet Stacker
Hydraulic Hold Downs:
Electric Foot Switch
Jaw Clutch/ Friction Brake
Automatic Pressure Lubrication
Interlocked Steel Construction
Non Float Inclined Ram
Approximate Overall Weight 34000 Lbs
Approximate Overall Weight 188”L X 90” W X 86” H
Get Your Price from Aleco Machinery Sales!
