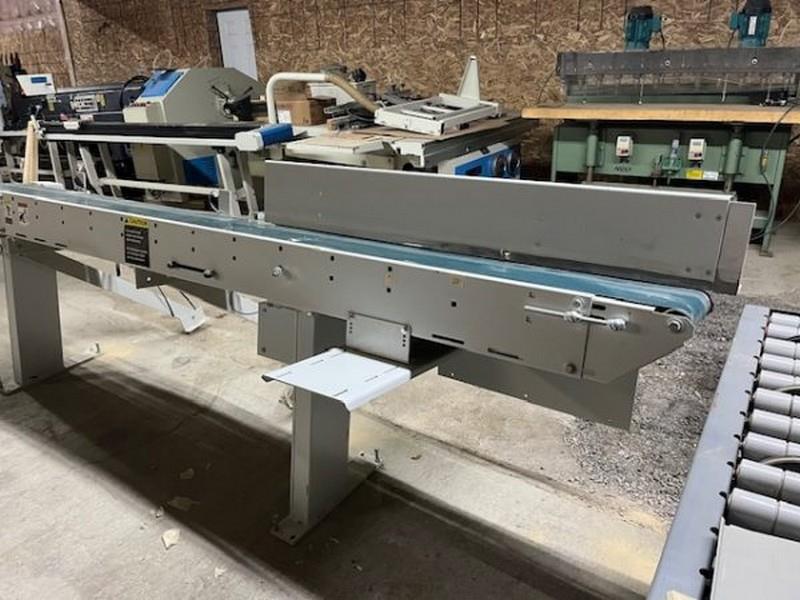

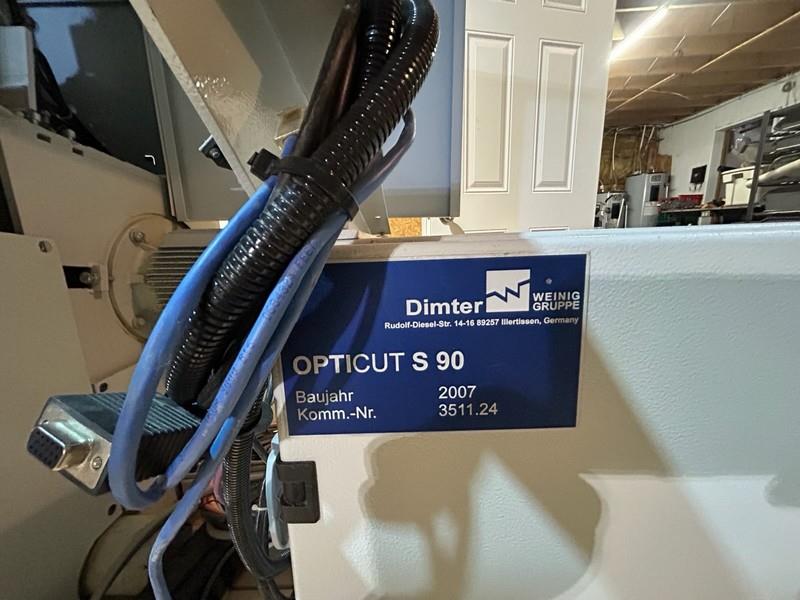

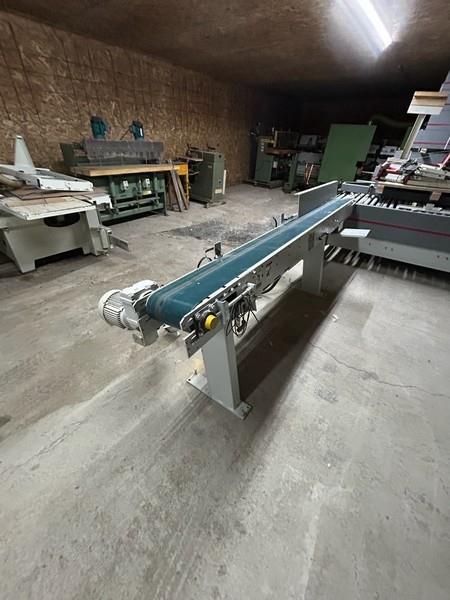

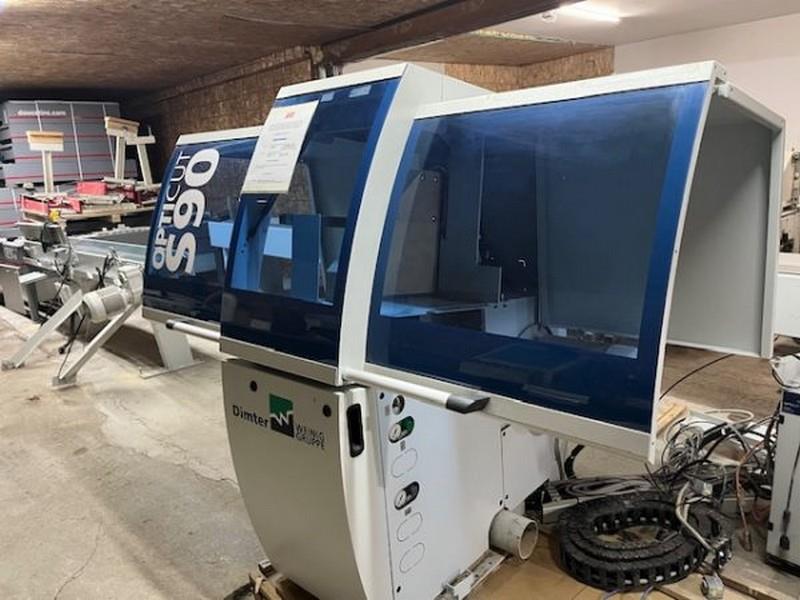

3/4" x 1" Dimter #S90, Optimizing Cut-Off Saw, 9" max. width, 4" thickness, 20.5" blade diameter, 10 HP arbor motor, 2900 RPM, 10" wide x 10' long belt conveyor, 295 FPM, 2007

Estimated monthly payment valid upon approved credit.

Request Formal Quote

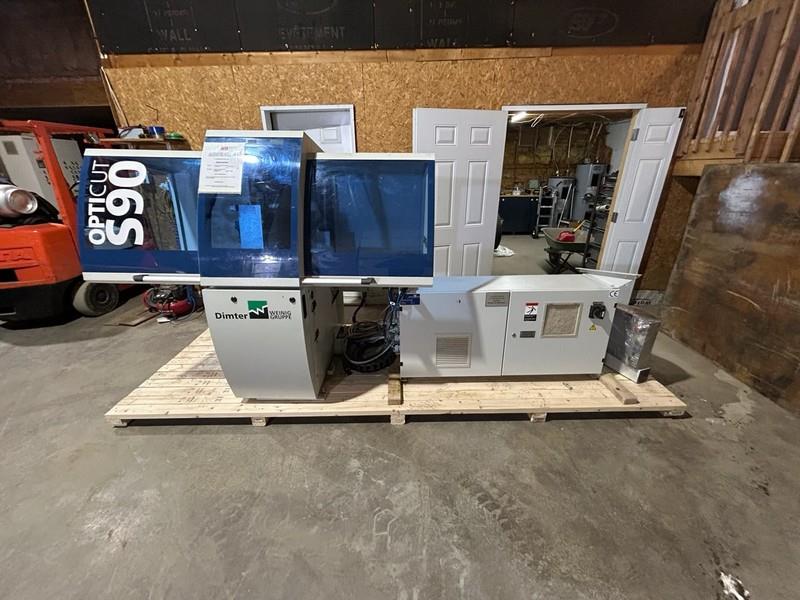

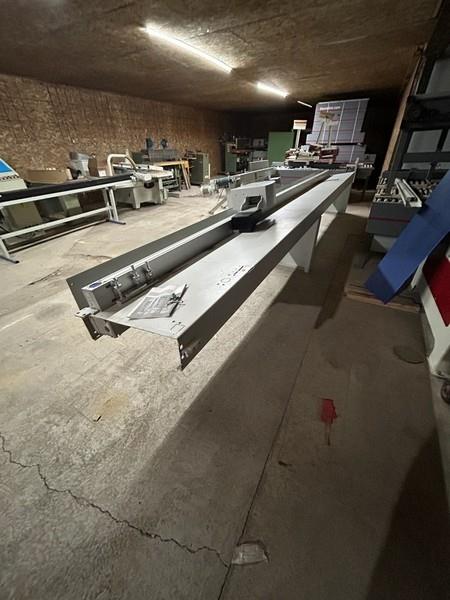

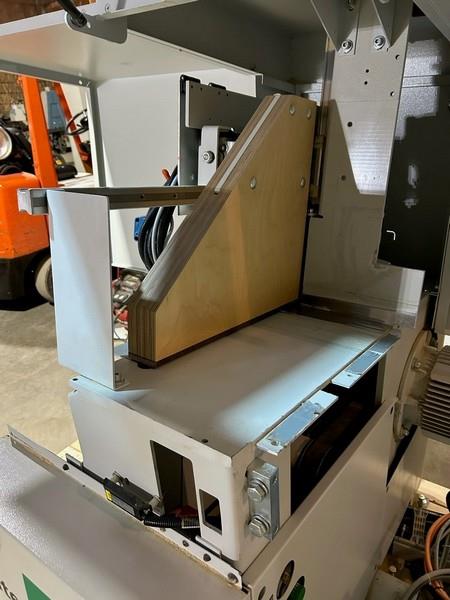

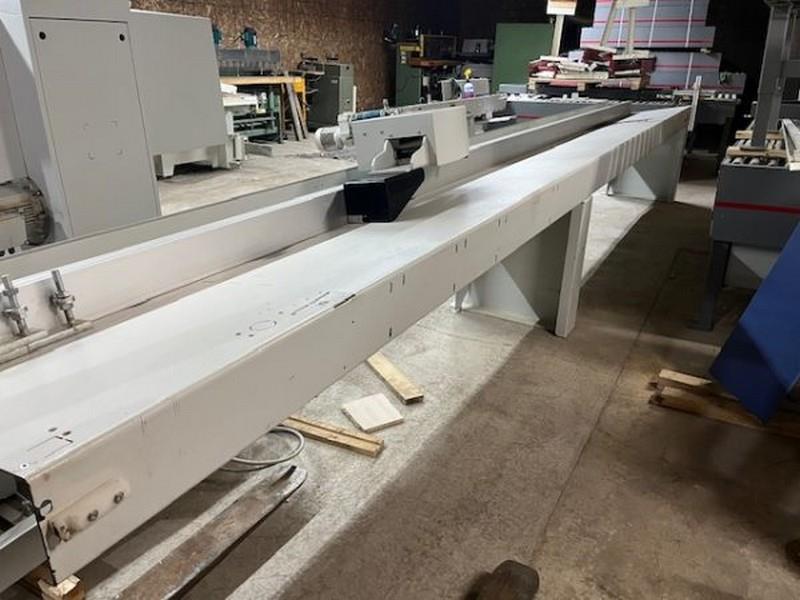

DIMTER S 90 Optimizing Cut off Saw: Working dimensions: 4" Thick x 9" wide max. incoming board cap.; min. cap. 3/4" x 1" wide. Highly accurate Push Feed Saw, right-hand version (material feeds from right-to-left), 16" min. to 18'- max. infeed board lengths, 3" min. to 10' max. outfeed lengths.Equipped with: -- 10 HP Arbor motor driving 20-1/2" dia. blade with 30 mm bore at 2,900 RPM. -- Infeed system with: Precision, Servo controlled pusher bar motor, 295 FPM max., travels full length of board, reading crayon marks for cut to length, optimization & defecting marks. -- Pusher arm automatically positions itself after measuring the board and precisely feeds the board into the saw with positioning accuracy of +/- 0.004". -- Waste gate for discharge of waste items from saw cuts. -- Marking Station: Attached to the transport section; accepts incoming lengths up to 18'-. -- Saw uses (2) pneumatically operated side hold-over rolls before-and-after the saw blade. -- Computer controlled holddown shoe ensures stock is securely held in position during cut; holddown, hold-over devices, and precision Servo controlled pusher arm provide square, accurate, and high-quality cuts - even on large cross-sections. -- Programmable controls for cutlists, optimizing for yield and defecting capability. -- Out feed sortline with 2 HP motor driving a 10" wide x 10' long beltI
