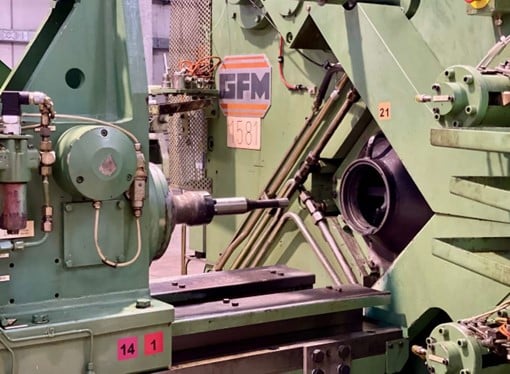

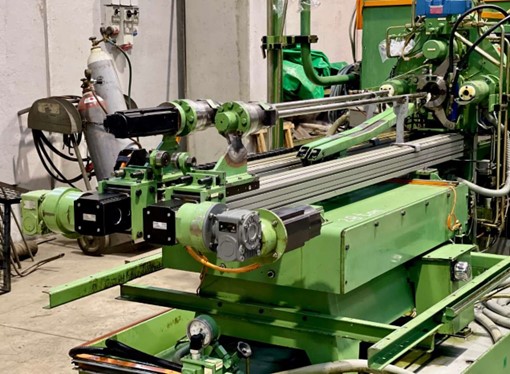

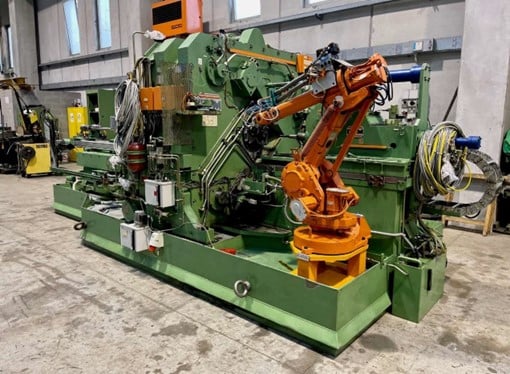

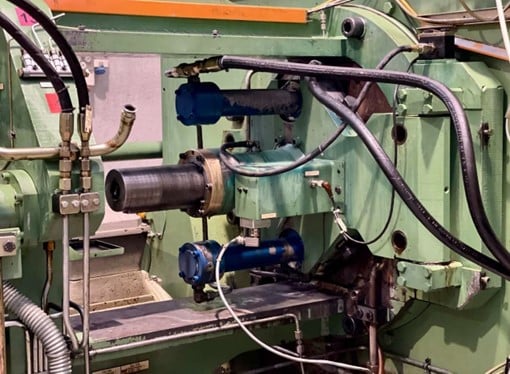

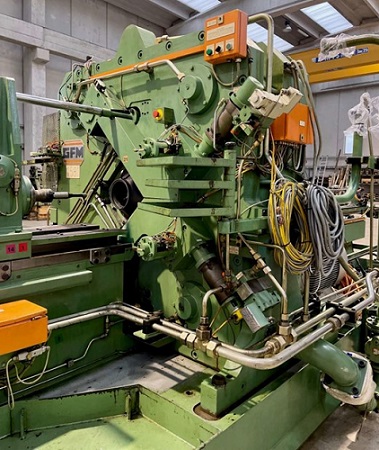

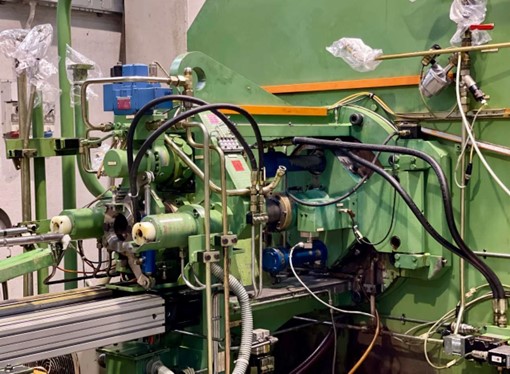

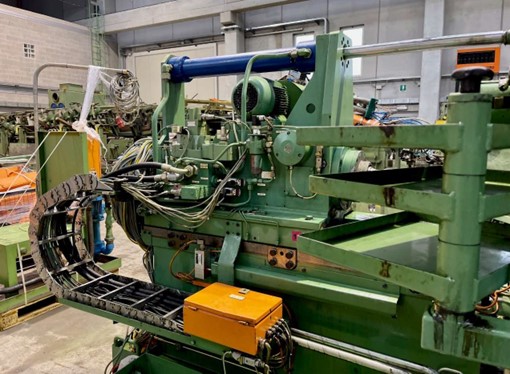

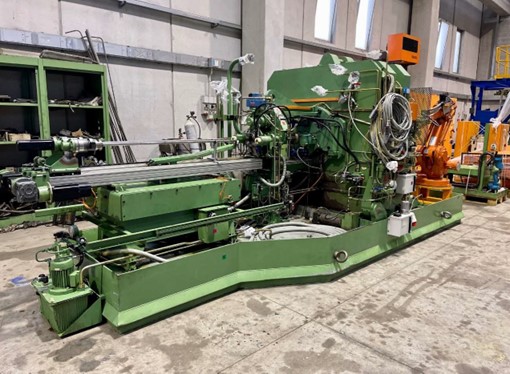

281 lb. GFM #SKK10, rotary forging machine, 1250 Kn, 4 hammers, hydraulic counter-holder

Forging box:
Shear force per hammer: 1250 kN
Number of hammers: 4
Strokes per min: 1500 / min
Diameter adjustment range: 60 mm
Forging eccentricity: 2.5 mm
Hammer length: 106 mm
Bar/Tube diameter max: 58 mm
Clamping head:
Feed force: 1-70 kN
Feed: 5-500 mm/s
Clamping head bed:
Workpiece length max: 175 mm
Clamping head stroke: 600 mm
Hydraulic counter-holder:
Clamping force max: 2-40 kN
Stroke: 200 mm
Electric Equipment:
Forging motor: 75 kW/400 V/50 Hz
Clamping head motor: 2.2 kW/400 V/50 Hz
Various hydraulic motors: 35 kW/400 V/50 Hz
Remaining consumers: 4.5 kW/400 V/50 Hz
Auxiliary equipment: 1.3 kW/220 V/50 Hz
Total nominal power: 118 kW
Cooling water:
Pressure: 3-6 bar
Consumption at 35C entry / 40 C exit: 9 m3/h
Air:
Pressure min: 5 bar
Consumption (air drawn in): 1 Nm3/min
