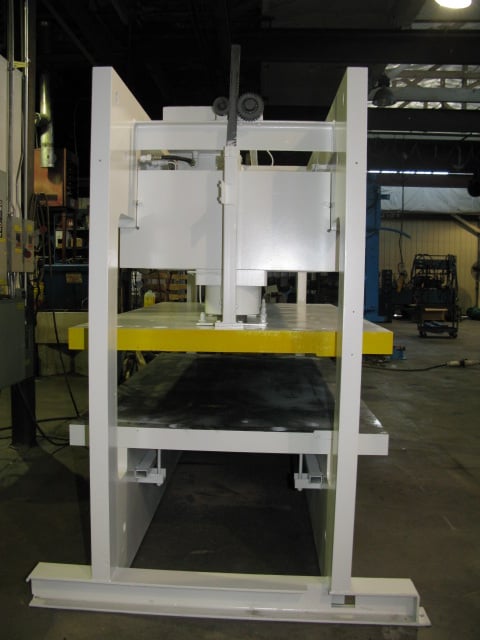

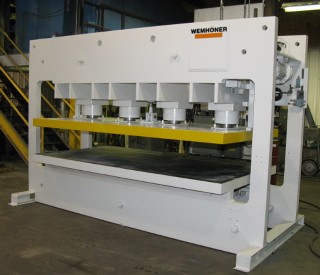

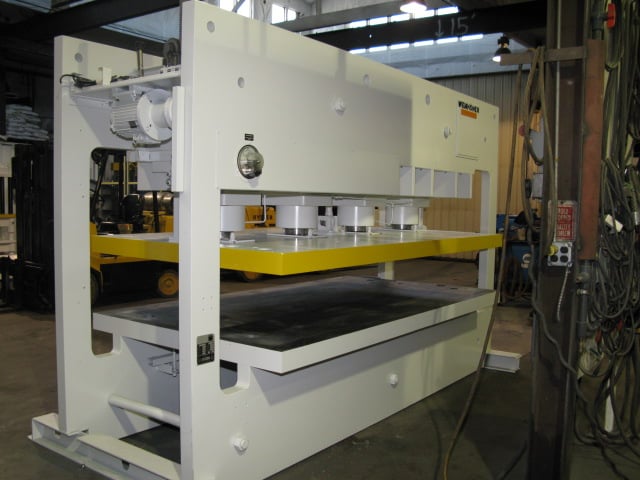

270 Ton, Wemhoner #KT-M-15/28-240, hydraulic press, 110" LR x 59" FB, dwnact, 16" daylight, 10" stroke, 96" tall, 5 HP (4 KW), #2246

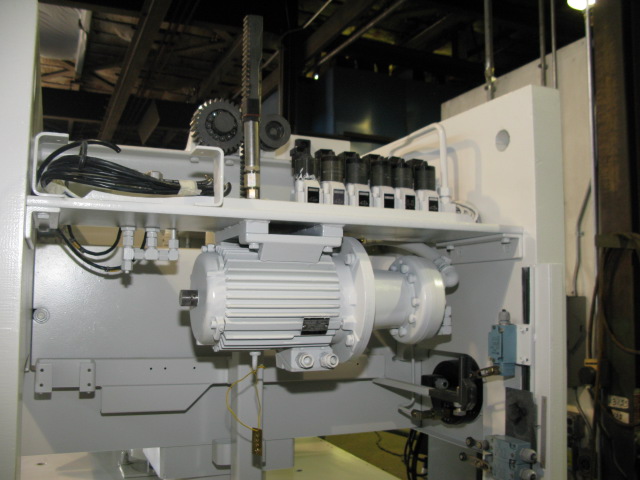

MODEL KT-M-15/28-240. CLEARANCE BETWEEN FRAME IS 126" L TO R X 37" F TO B. NOMINAL BED IS 110" X 59". FOUR CLAMP CYLINDERS THAT ARE SINGLE-ACTING; APPROX 8" BORE; 6" DIA RODS; APPROX 10" MAX STROKE. ONE CENTER TRAVERSING CYLINDER THAT IS APPROX 3" BORE WITH A 1.75" DIAMETER ROD (APPROX 16" MAX STROKE). MAX DAYLIGHT IS APPROX 16". APPROX 28.5" OPERATOR HEIGHT. GUIDED WITH ROLLERS AT EACH CORNER AND TWO GEAR & RACK GUIDES. SLIDE AND BED ARE 4" THICK. SELF-CONTAINED HYDRAULIC SYSTEM: TWO RESERVOIRS THAT ARE APPROX 14 GALLONS EACH. 4 KW MOTOR (APPROX 5 HP; 1800 RPM; 440 VOLTS; 9.15 AMPS). HAWE PUMP (TYPE R60A; MAX 350 BAR); ETC…. APPROX SPEEDS: 99 IPM FAST DOWN; 2.0 IPM PRESSING ADJ; 99 IPM FAST UP. APPROX OVERALL DIMENSIONS: 146" X 65" X 96" TALL. APPROX 30,000 POUNDS. ITEM #2246.
