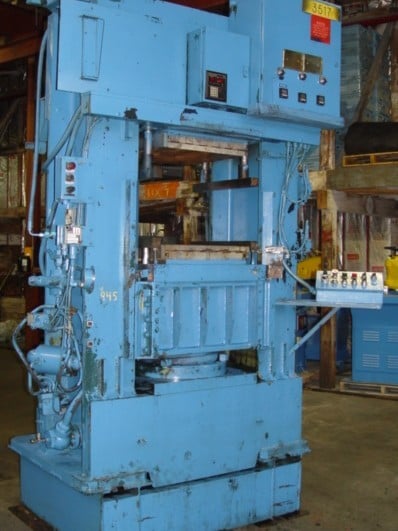

270 Ton, Rochart, 23" x25", up-act, slabside, electric platens, 20" daylight, 22" stroke, self-cont., #945

CLEARANCE BETWEEN SLAB SIDES IS 39.5". TWO 23.5" X 25.5" ELECTRIC PLATENS WITH 6 STRIP HEATERS EACH 20.5" DAYLIGHT WITH PLATENS, 28.25" WITHOUT. 22" APPROX STROKE. MOVING BOLSTER FULLY GUIDED WITH 16" LONG 45 DEGREE GIBS. BOTTOM AND TOP HYDRAULIC KNOCK OUT BARS 14" DIAMETER SINGLE ACTING MAIN RAM RATED TO 3600 PSI. 65" OPERATOR HEIGHT. CONTROL PANEL WITH ALLEN BRADLEY SLC500 CONTROLLER, PUSH BUTTONS, TIMERS, HEATER CONTROLS. HYDRAULIC POWER UNIT NEW IN 1993, 40HP, 1800 RPM, 230/460 VOLT. RACINE PRESSURE COMP VANE PUMP 60 GPM TO 500 PSI. HYDRAULIC PRESSURE COMPENSATED PISTON PUMP 5.9 GPM TO 3600 PSI. BOSCH GEAR PUMP FOR FILTER AND WATER COOLING WITH WATER SAVER VALVE. PRESSURE AND RETURN LINE FILTERS. LEVEL TEMP SWITCHES IN TANK. APPROX PRESS SPEEDS 90 IPM FAST CLOSE, 7 IPM PRESSING, 50 IPM OPEN. OPERATORS MANUAL. ELECTRIC AND HYDRAULIC PRINTS. PRESS OVERALL DIMENSIONS 65" D X 80" W X 121" TALL. POWER UNIT OVERALL DIMENSIONS 72" W X 65" D X 89" TALL. APPROX WEIGHT 20,000. SOME DRAWINGS. R2. (ITEM #945)
