For Sale by Southern Fabricating Mchy Sales
Description

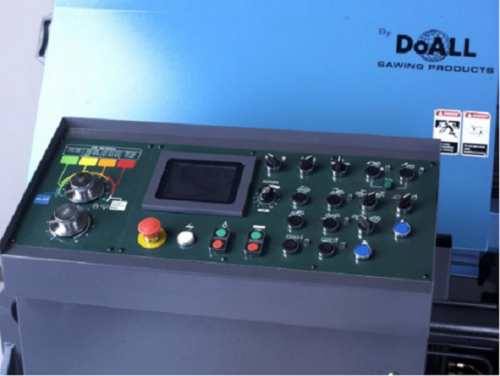

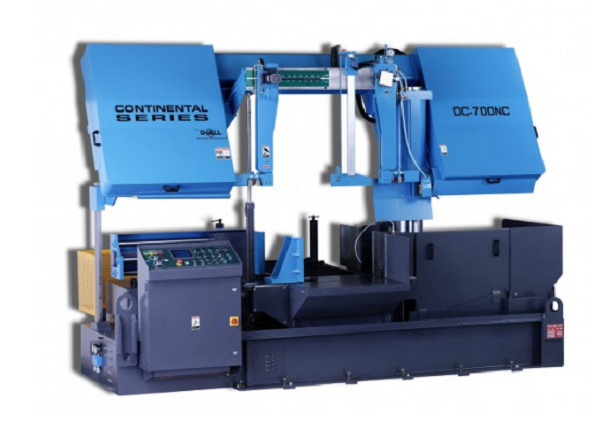

27” x 31″ Band Saw with PLC Control for all Electric and Hydraulic Functions Infinitely Variable Speed Controlled by VFD Hydraulic Retractable Shuttle Vise Material Indexer Rapid and Creep Speed Index Vise Control Multi-Step Full Stroke Vises with Split Front Vise and Variable Vise Pressure Control Spring Loaded Zero Clearance Coolant Through Carbide Faced Saw Guide with Lead-In Rollers Power Driven Coolant Flushed Blade Cleaning Wire Brush Flushing Hose and Auxiliary Coolant Nozzles Hydraulic Blade Tension Automatic Chip Conveyor Blade Breakage/Stall Motion Detector Shut Off Switch Band Door Interlocks Work Light Tool Kit Complimentary DoALL Cutting Fluids Package One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.
GENERAL SPECIFICATIONS
- Cutting Capacity Round: 27″
- Cutting Capacity Rectangle: 31″ x 27″
- Bundle Capacity Maximum: 25-5/8″ x 13″
- Bundle Capacity Minimum: 13-3/8″ x 7-5/8″
- Band Saw Blade (L x W x Gage): 325 x 2-5/8 x 0.063″
- Band Speed: 52-275 fpm
- Band Drive Motor: 15 hp
- Hydraulic Pump: 3 hp
- Hydraulic Tank Capacity: 34 gal
- Coolant Pump: 1/4 hp
- Coolant Tank Capacity: 61 gal
- Automatic Index Length Single: 15.75″
- Automatic Index Length Multiple: 141.73″
- Material Pass Line Height: 31-1/2″
- Machine Weight: 15650 lbs.
- Floor Space Required: 154” x 89” x 90"
INCLUDES: Hydraulic Retractable Shuttle Vise Material Indexer, Rapid and Creep Speed Index Vise Control, Multi-Step Full Stroke Vises with Split Front Vise and Variable Vise Pressure Control, Spring Loaded Zero Clearance Coolant Through Carbide Faced Saw Guide with Lead-In Rollers, Power Driven Coolant Flushed Blade Cleaning Wire Brush, Flushing Hose and Auxiliary Coolant Nozzles, Hydraulic Blade Tension, Automatic Chip Conveyor, Blade Breakage/Stall Motion Detector Shut Off Switch, Band Door Interlocks, Work Light, Tool Kit, Complimentary DoALL Cutting Fluids Package, One DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.
***All Price, Location and Specifications Subject to Change without Notice***
