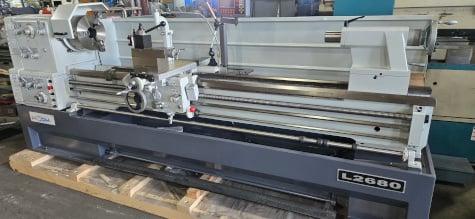

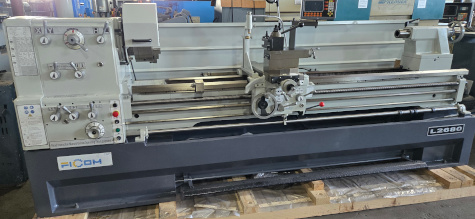

26" x 80" Ficom #L2680, Engine Lathe, 17.9" swing over cross slide, 4-1/16" bore, 25-1500 RPM, inch/metric thread, 10 HP, tailstock, digital read out, new

26” X 80” Engine Lathe with SINO 2-Axis Digital Readout, 12” 3-Jaw Chuck, 16” 4-Jaw Chuck, Face Plate, Thread Dial, Quick Change Tool Post with Holders, Steady Rest, Follow Rest, Work Light, Coolant System, Chuck Guard with Safety Switch, Solid Bed Casting for Max. Rigidity, Set of Levelling Pads, Full Length Splash Guard, Foot Brake and Turning Attachment.
GENERAL SPECIFICATIONS
Swing Over Bed: 26”
Swing Over Cross Slide: 17.9”
Swing in Gap X Width: 33.6” X 6.7”
Distance Between Centers: 80”
Spindle Hole: 4 - 1/16”
Spindle Nose: D1-8 Camlock
Spindle Speeds Number: 12
Spindle Speeds Range: 25 - 1500 RPM
Inch Threads Number: 60
Inch Threads Range: 2 - 112 tpi
Metric Threads Number: 47
Metric Threads Range: .2 - 14mm
Feeds Number: 35
Feed Range: .0022” - .0612”
Tailstock Taper: #5 MT
Tailstock Travel: 7”
Tailstock Diameter: 3”
Main Motor Power: 10 HP
Coolant Pump Motor: HP
Approx. Weight: 7,000 Lbs
Floor Dimensions: 132” X 46” X 60”
INCLUDES: SINO 2-Axis Digital Readout, 12” 3-Jaw Chuck, 16” 4-Jaw Chuck, Face Plate, Thread Dial, Quick Change Tool Post with Holders, Steady Rest, Follow Rest, Work Light, Coolant System, Chuck Guard with Safety Switch, Solid Bed Casting for Max. Rigidity, Set of Levelling Pads, Full Length Splash Guard, Foot Brake and Turning Attachment.

***All Price, Location and Specifications Subject to Change without Notice***
