$29,500 USD
Finance for as low as $598/mth
Description

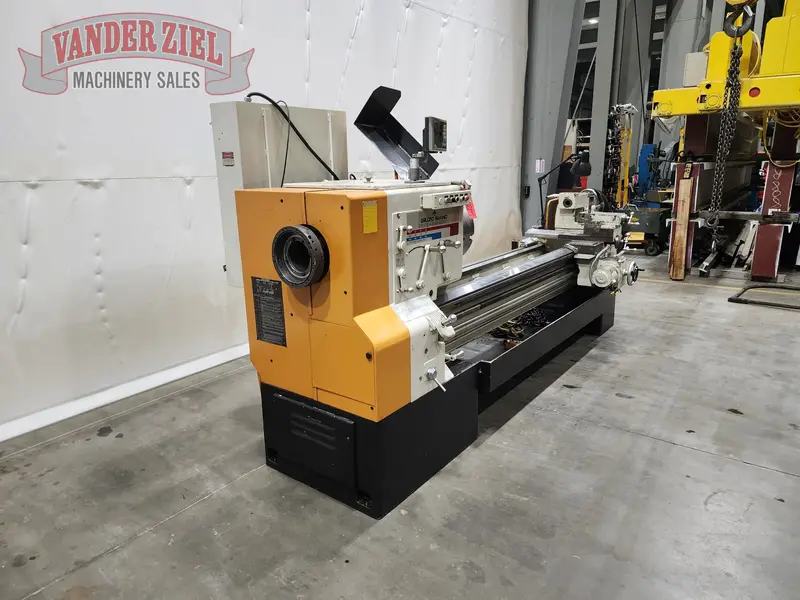

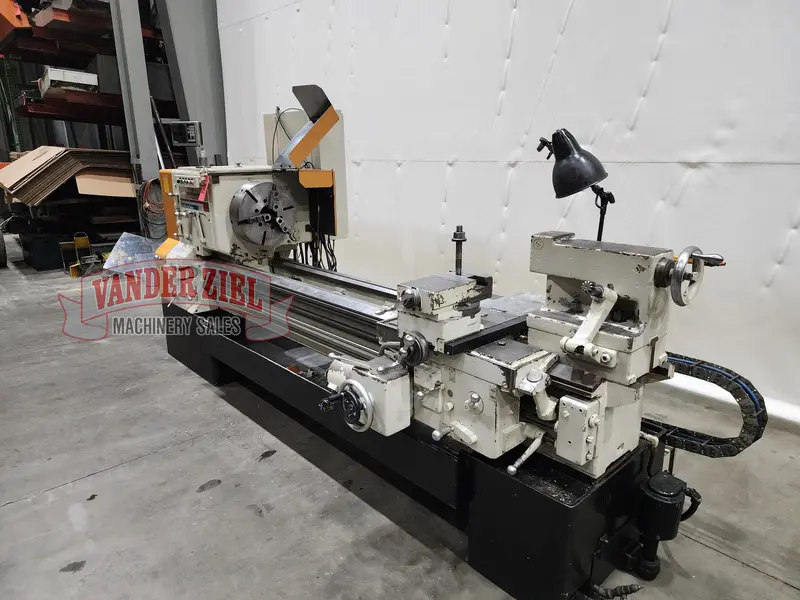

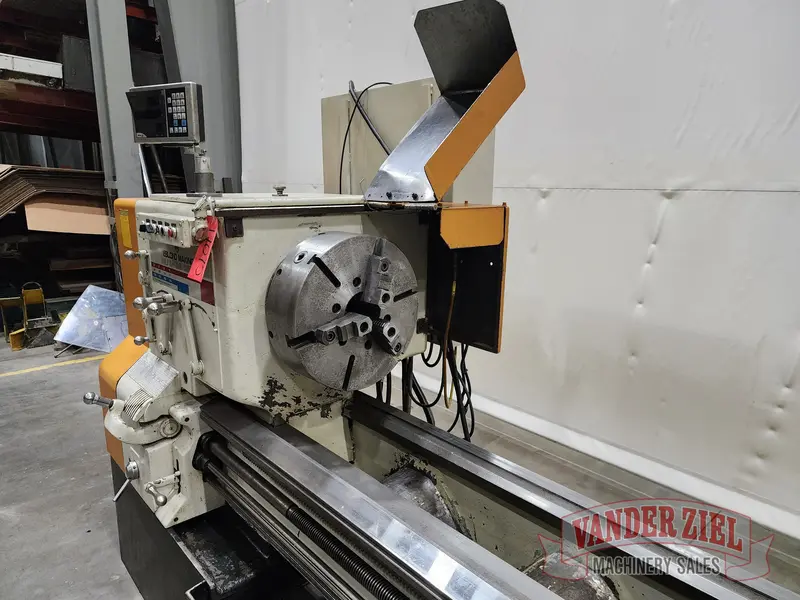

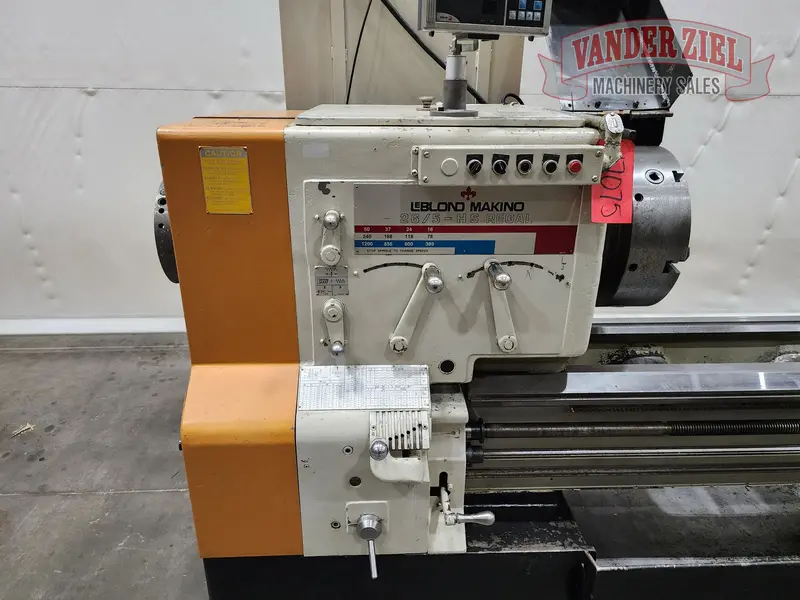

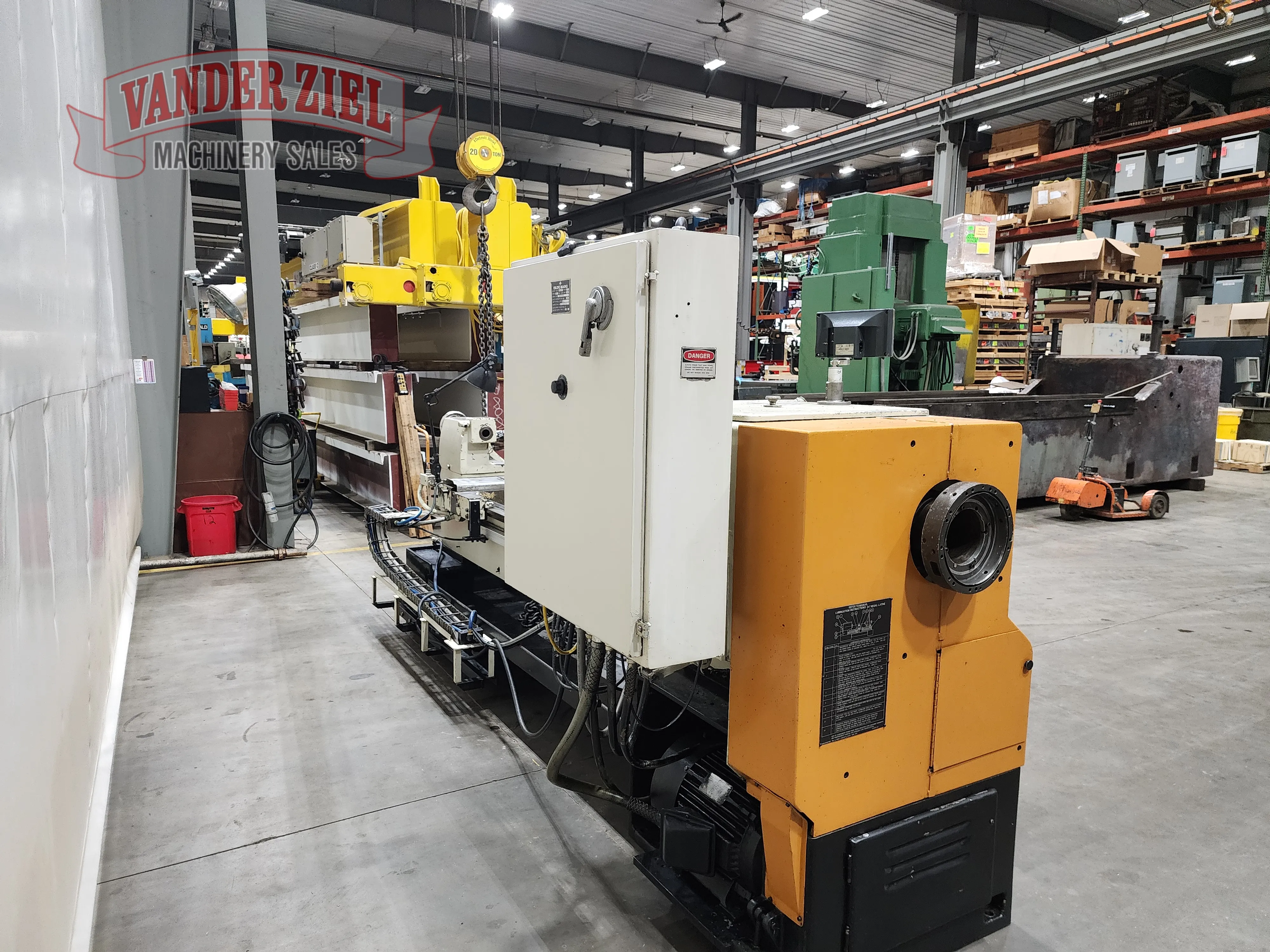

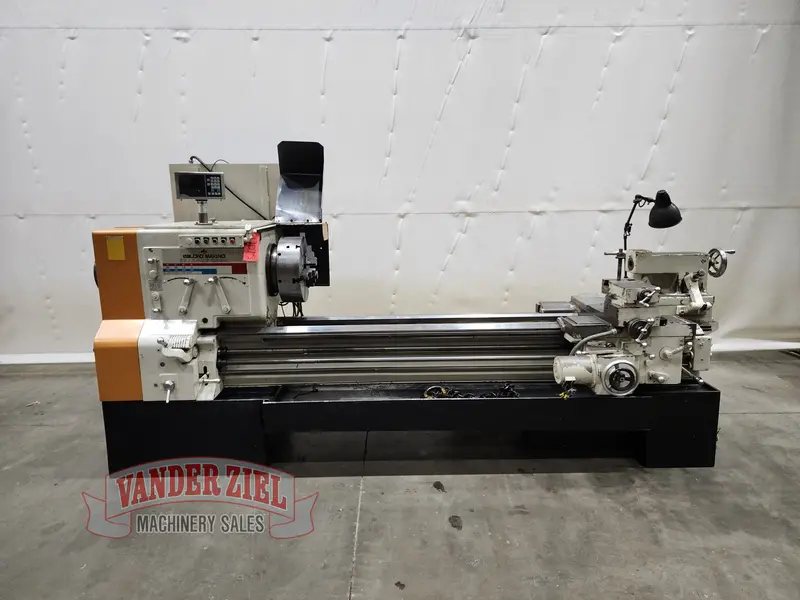

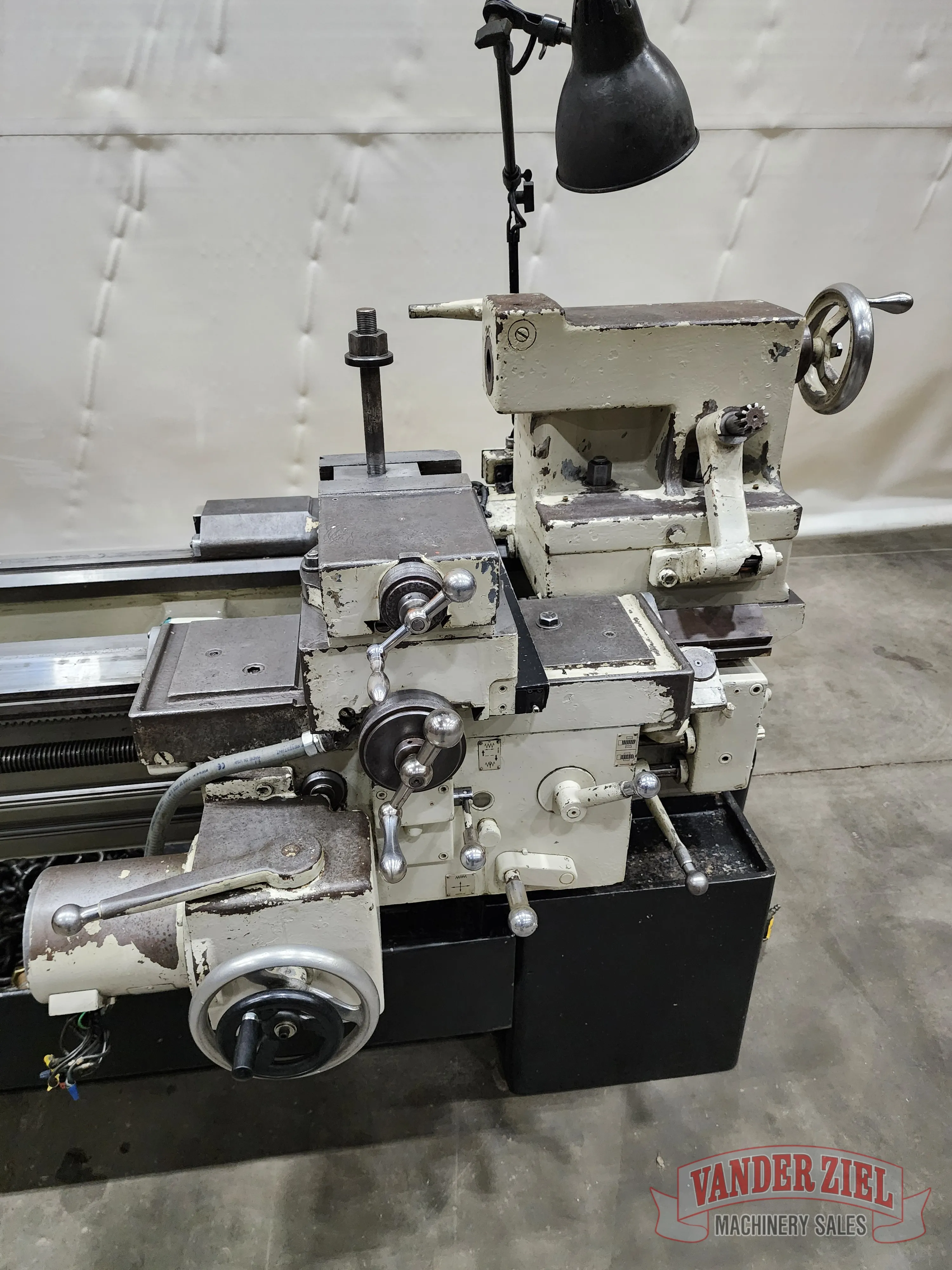

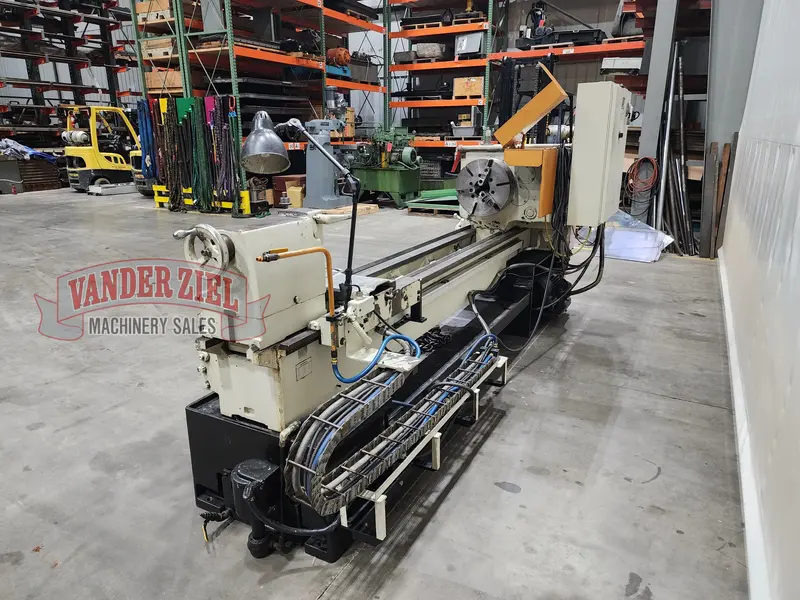

LeBlond Makino 26" x 72" Lathe, 5 1/4" Spindle Bore, Model 26/5 HS
Serial # 8HS-142
Asset # 17075
Specifications:
Swing over Bed & Carriage Ways 26"
Swing over Cross Slide 18 1/4"
Distance Between Centers 72"
Size of Tool Holder 1 1/16" x 1 1/2"
Size of Hole thru Spindle 5 1/4"
Spindle Speeds (12) 16-1200 RPM
Spindle Nose 11"
Bed Width 17"
Bed Length 10' 6"
Length of Carriage on Bed 26"
Cross Slide Travel 14 1/4"
Feeds (48) .0036 - .205 IPR
Threads (48) 2-112 TPI
Tailstock Spindle Diameter 3 1/8"
Motor 30 HP, 1800 RPM
Weight 8,250 lbs.
Preliminary Specifications - Subject to Verification
