For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Jim Smith
515-23...> Show Seller's Phone Number 515-233-6330 Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With OPTIONAL FEATURES:
DELIVERY:
SUBJECT TO STOCK
| Swing Over Bed | 26 inches |
| Swing Over Cross Slide | 17.5 inches |
| Swing In Gap | 35.1 inches |
| Gap Width in Front of the Face Plate | 10.6 inches |
| Distance Between Centers | 60 inches |
| Width of Bed | 15.75 inches |
| Height of Center from Leg Bottom | 43 inches |
| Spindle Bore | 4.0625 inches |
| Taper of spindle bore and center | MT#7 x #5 |
| Type of Spindle Nose | D1-11 |
| Number of Spindle Speeds | 12 |
| Spindle Speed | 13-1,200 RPM |
| Number of Feed Changes | 16 |
| Feeds per revolution Longitudinal | 0.0012-0.039 |
| Feeds per revolution Cross | 0.0007 0.0188 |
| Leadscrew Diameter & Threads Per Inch | 1.77 , 2 TPI |
| Range of Inch Threads | 1 42 TPI (48) |
| Range of Metric Pitches | 0.2 14 (39) |
| Maximum Travel of Compound | 9.5 inches |
| Maximum Travel of Cross Slide | 15.8 inches |
| Tailstock Quill Travel | 9.8 inches |
| Tailstock Quill Diameter | 2.9 inches |
| Taper in Tailstock Quill | M.T. #5 |
| Main Drive Motor | 15 HP |
| Coolant Pump Motor | 1/8 HP |
| Floor Space | W: 47 L: 114 |
| Machine Weight | 5500 pounds |
Equipped With
Equipped With
EQUIPPED WITH:

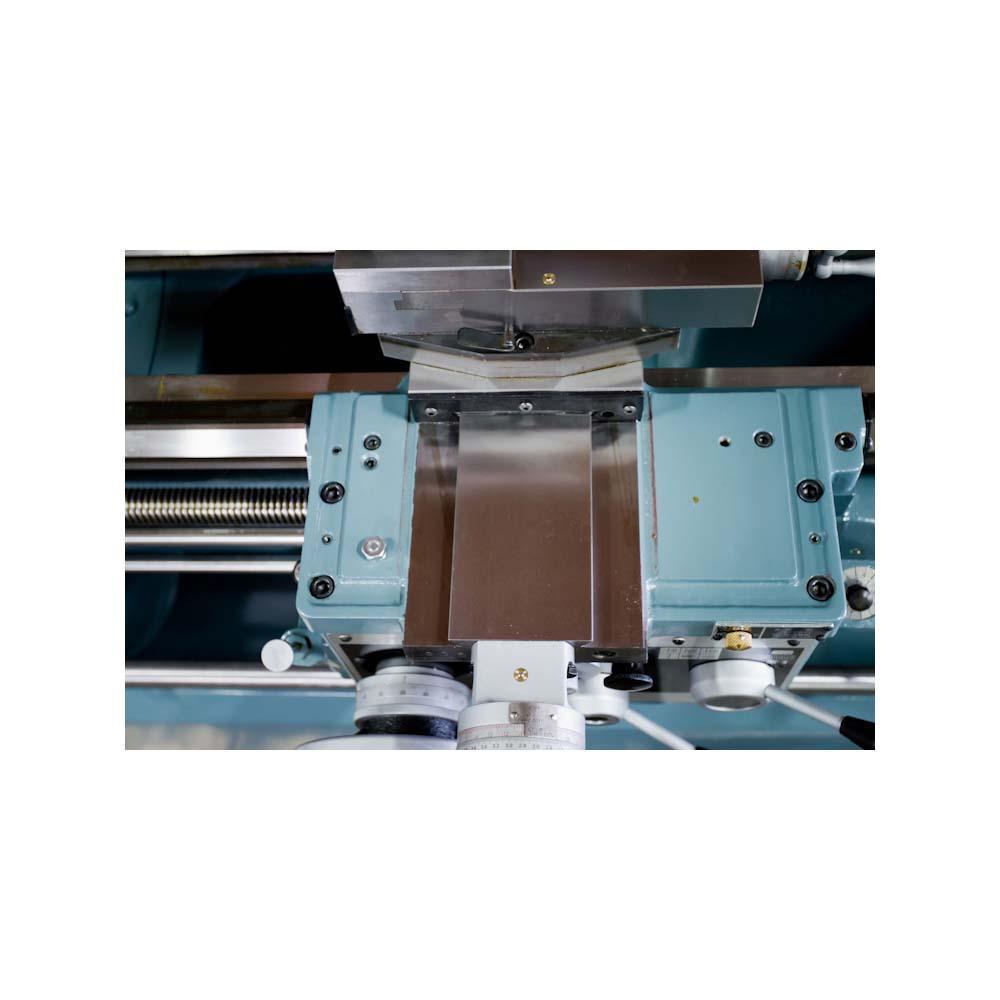

• Hardened & Ground Bed & Cross Slide Ways
• Thread Chasing Dial
• Automatic Longitudinal Feed Stop Bar
• 4-Way Tool Post Fitted To T-Slotted Compound
• LED Work Light
• 10” Steady Rest with Roller Jaws
• Z-Axis Rapid Traverse (Except 35” & 60” C.C.)
• Chuck Guard
• Headstock Spindle Center Adaptor: MT#7 to #5
• Ground Steel Center MT#5 For Headstock
• 12" Back Plate

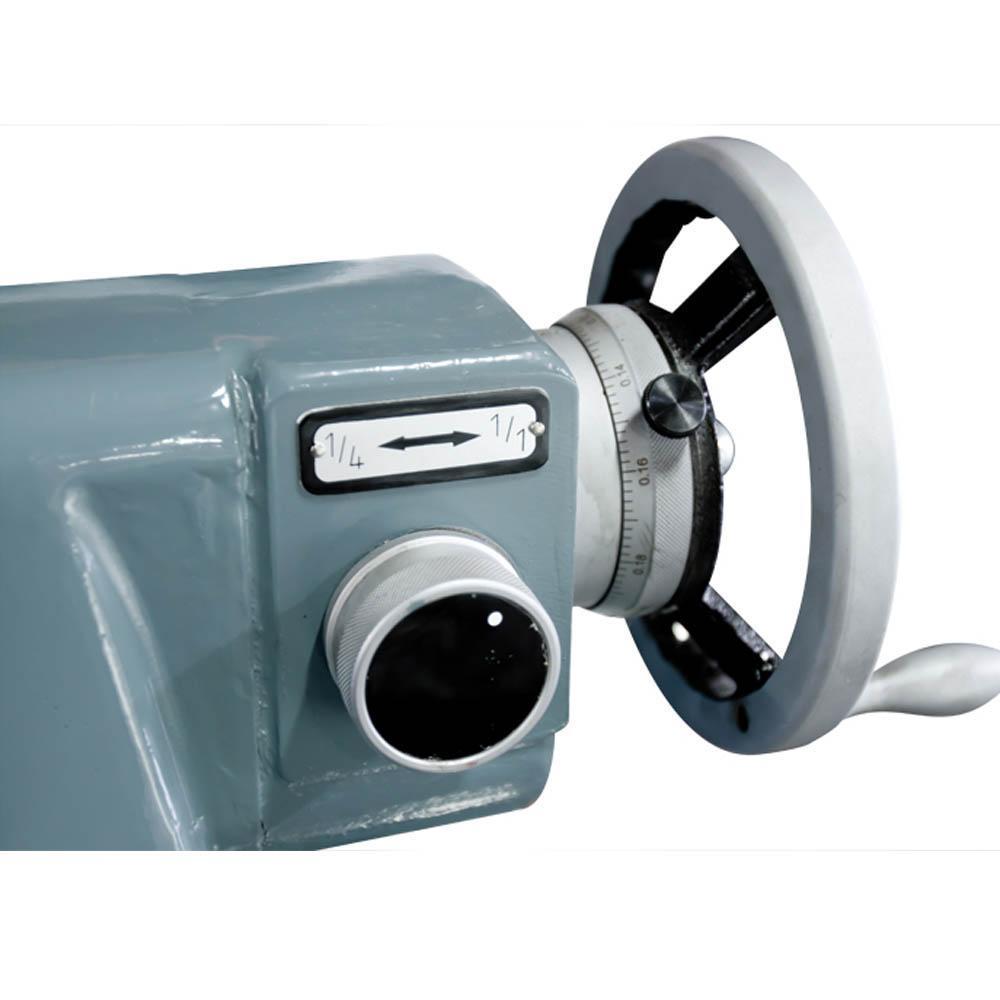

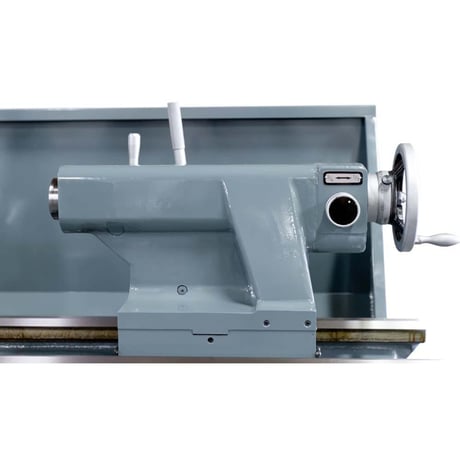

• Two-Speed Drive Tailstock Spindle (MT#5)
• Coolant System with Pump and Piping
• Full Length Splash Guard
• Pull Drawer Chip (Oil) Pan
• Tool Box w/ Necessary Wrenches & Spanners
• Instruction Manual & Parts List
• Emergency Stop Button
• Additional 10" Steady Rest with Roller Jaws (Min. Capacity 1.6"): $3,500.00
• 15" Steady Rest with Roller Jaws (Min. Capacity 7.5"): $3,900.00
• 7" Follow Rest: $1,500.00
• Telescopic Taper Turning Attachment: $5,900.00
• Z-axis Rapid Traverse on 35” or 60” Bed: $3,500.00
• Micro Carriage Stop: $450.00
• Turret Carriage Stop: $450.00
• Tailstock Complete Crank Assembly: $400.00
• Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI): $1,250.00
• Aloris CA Tool Post Only: $975.00
• Aloris CA Tool Post plus 6 Tool Holders (set #4): $1,950.00
• Aloris DA Tool Post Only: $1,350.00
• Aloris DA Tool Post plus 6 Tool Holders (set #5): $2,595.00
• Newall DP-700 2-Axis Digital Readout + Installation (Net):
35” C.C.: $3,800.00 + $550.00
35” C.C.: $3,800.00 + $550.00
60” C.C.: $3,900.00 + $550.00
90” C.C.: $5,800.00 + $650.00
120” C.C.: $6,000.00 + $750.00
160” C.C.: $7,200.00 + $850.00
WORKHOLDING:
• Chandox SK 12” 3-Jaw Semi-Steel Scroll Chuck (D1-8 plate, solid jaws): $2,100.00
• Chandox KT 12” 3-Jaw Steel Body Adjustable Chuck (D1-8 plate, hard+soft solid jaws): $2,900.00
• Taiwan KC 12” 4-Jaw Semi-Steel Independent Chuck (D1-8direct mount, solid jaws): $1,450.00
• Bison 16” 3-Jaw Forged Steel Scroll Chuck (D1-8 direct mount, 2pc jaws): $5,450.00
• Bison 16” 4-Jaw Forged Steel Independent Chuck (D1-8 direct mount, 2pc jaws): $4,500.00
• Taiwan KC 16” 4-Jaw Semi-Steel Independent Chuck (D1-8 direct mount, solid jaws): $2,400.00
• Bison 20” 3-Jaw Forged Steel Scroll Chuck (D1-11 direct mount, 2pc jaws): $11,900.00
• Bison 20” 4-Jaw Forged Steel Independent Chuck (D1-11 direct mount, 2pc jaws): $7,100.00
• Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (D1-11 direct mount, solid jaws): $3,250.00
• 20” Face Plate: $1,500.00
• Other Chucks: Upon Request
WORKHOLDING:
• Chandox SK 12” 3-Jaw Semi-Steel Scroll Chuck (D1-8 plate, solid jaws): $2,100.00
• Chandox KT 12” 3-Jaw Steel Body Adjustable Chuck (D1-8 plate, hard+soft solid jaws): $2,900.00
• Taiwan KC 12” 4-Jaw Semi-Steel Independent Chuck (D1-8direct mount, solid jaws): $1,450.00
• Bison 16” 3-Jaw Forged Steel Scroll Chuck (D1-8 direct mount, 2pc jaws): $5,450.00
• Bison 16” 4-Jaw Forged Steel Independent Chuck (D1-8 direct mount, 2pc jaws): $4,500.00
• Taiwan KC 16” 4-Jaw Semi-Steel Independent Chuck (D1-8 direct mount, solid jaws): $2,400.00
• Bison 20” 3-Jaw Forged Steel Scroll Chuck (D1-11 direct mount, 2pc jaws): $11,900.00
• Bison 20” 4-Jaw Forged Steel Independent Chuck (D1-11 direct mount, 2pc jaws): $7,100.00
• Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (D1-11 direct mount, solid jaws): $3,250.00
• 20” Face Plate: $1,500.00
• Other Chucks: Upon Request
SAFETY ACCESSORIES:
• Add Limit Switch to Chuck Guard: $150.00
• Clear Lexan Chuck Guard [Installed]: $495.00
• Leadscrew Guard [60” / 90” Lengths Only]: $1,050.00 / $1,150.00
• Travelguard Tool Post Guard [Kingston Installation]: $540.00
• Heavy Duty Tool Post Guard [Factory Installation Only]: $2,000.00
• NRTL / UL Ready [UL/NFPA standards, No Certification]: Upon Request
• NRTL / UL Certification: Upon Request
SUBJECT TO STOCK
