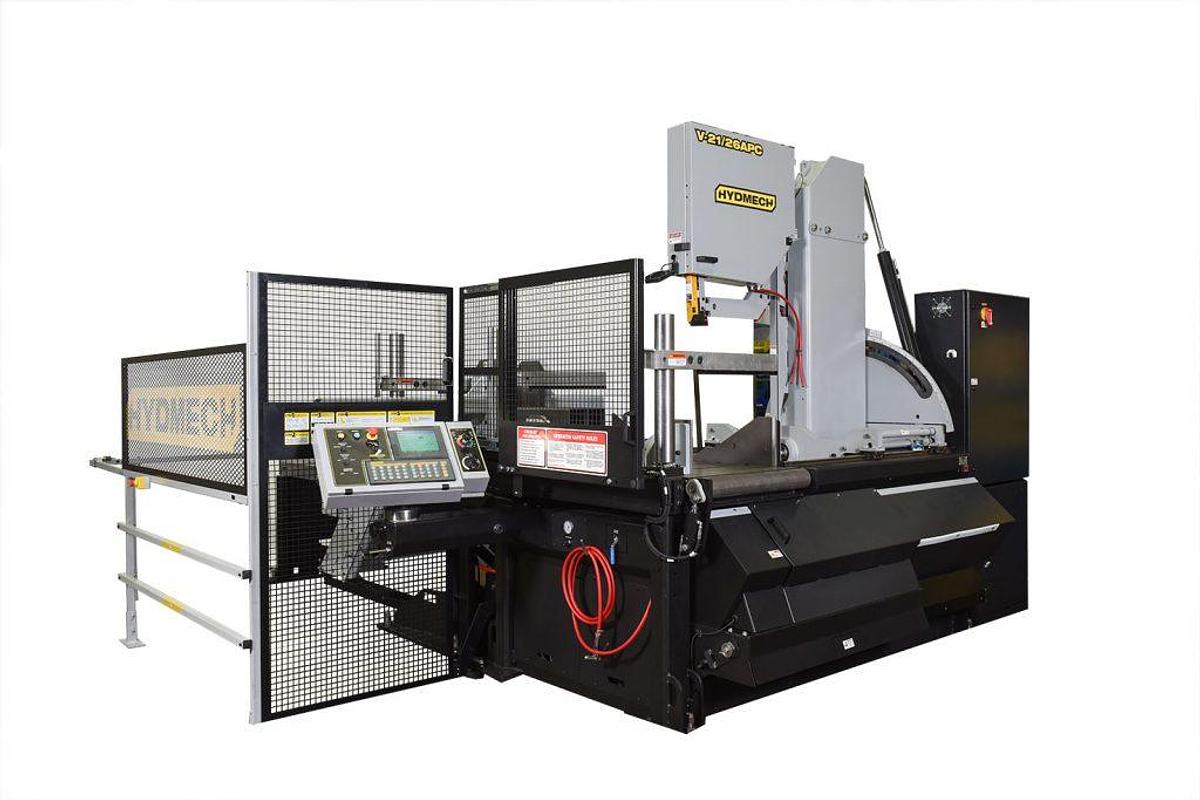

26" x 21" Hyd-Mech #V-21/26APC, automatic vertical bandsaw, 1-1/2" x 19' 4" blade, 10 HP, 65-385 SFM, work light

Equipped with:
4 canted head
60 bar feed, left side
Shuttle features automatic multi-indexing up to 60 (120 optional) in a single stroke w/automatic kerf
compensation. Powered by a rack and pinion servo drive,
Automatic programmable mitering w/go to angle functionality from 60 left to 60 right
Hydraulic head tilt
Cast iron band wheels
Hydraulic DDF system
2 full stroking hydraulic vises
Hydraulically powered programmable guide arm attached to saw column
8.5 Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is
interactive w/messages for the operator that reduces the learning curve. User friendly graphical icon
programming for miter cutting,1000 jobs, 20 jobs in queue.
10 HP VFD. True direct blade drive no belts/pulleys
Blade chamber separates material from cut part
Hydraulic chip conveyor
Replaceable blade brush
Out of stock switch
Blade breakage switch
Easy access electrical panel and hydraulics
Pop-up feed roller one, opposite bar feed
Hydraulic band tensioning w/digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant w/wash down hose
Work light
Laser light
Variable vise pressure
Optional features for additional cost:
Chip bucket w/pump
Full capacity hydraulic overhead bundling
Mist lubrication
Tall square vise inserts
Out feed vise
Out feed vise bundling
Right side infeed shuttle
Optional features for additional cost (cont.):
10 shuttle infeed
Bridge/interface bracket
Powered bridge/interface bracket
Idler conveyors and accessories
Power conveyors and accessories
Power transformer
