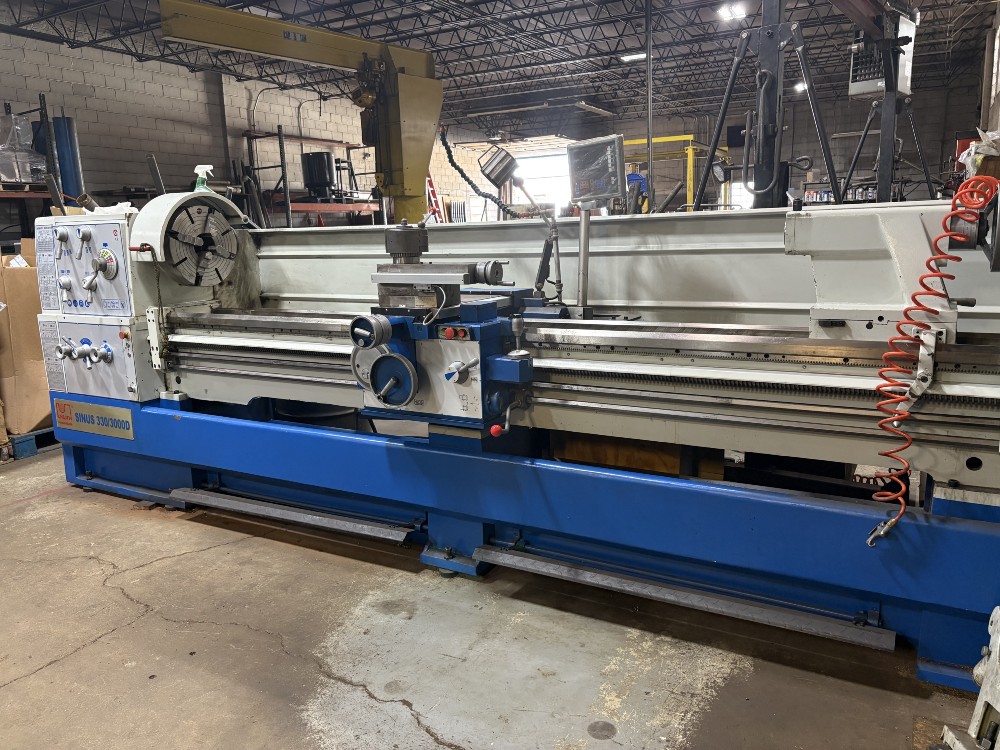

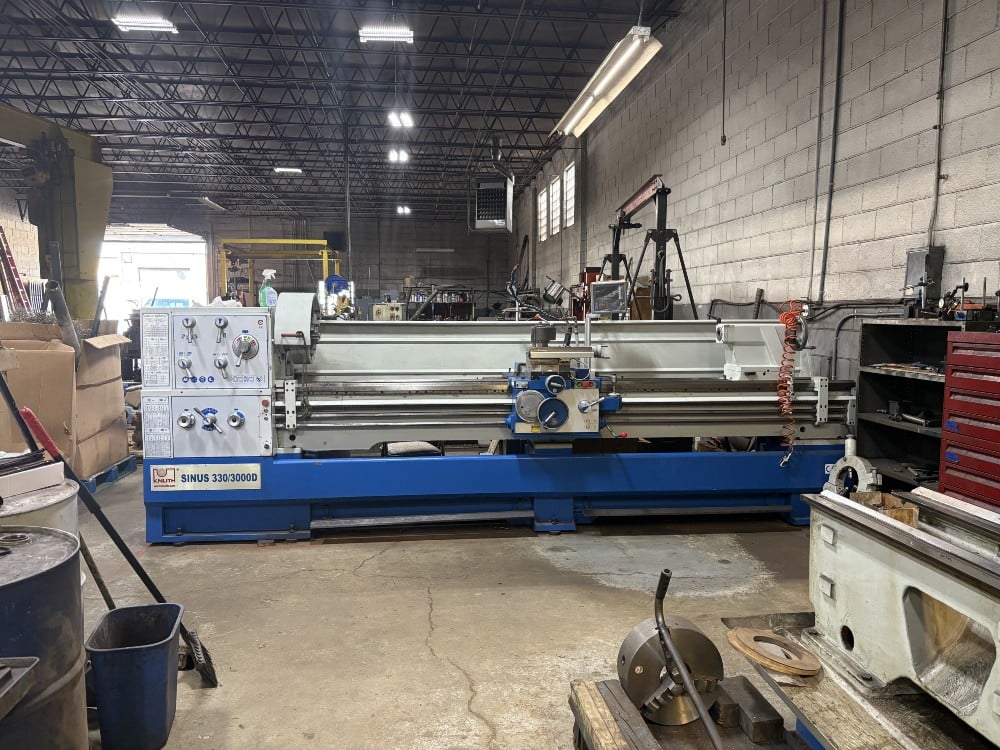

26" x 120" Knuth #Sinus-D-330/3000, engine lathe, 35" swing in gap, 17" swing over cross slide, 4.13" spindle bore, D1-8, 25-1600 RPM, 10 HP, 3-axis digital read out, 2023

This machine was purchased new in March of 2023. We used the machine throughout 2023 up to June of 2024. It only has 1 year and 3 months of useage. The machine likely only has about 1,600 hours of useage. The specifications are as follows:

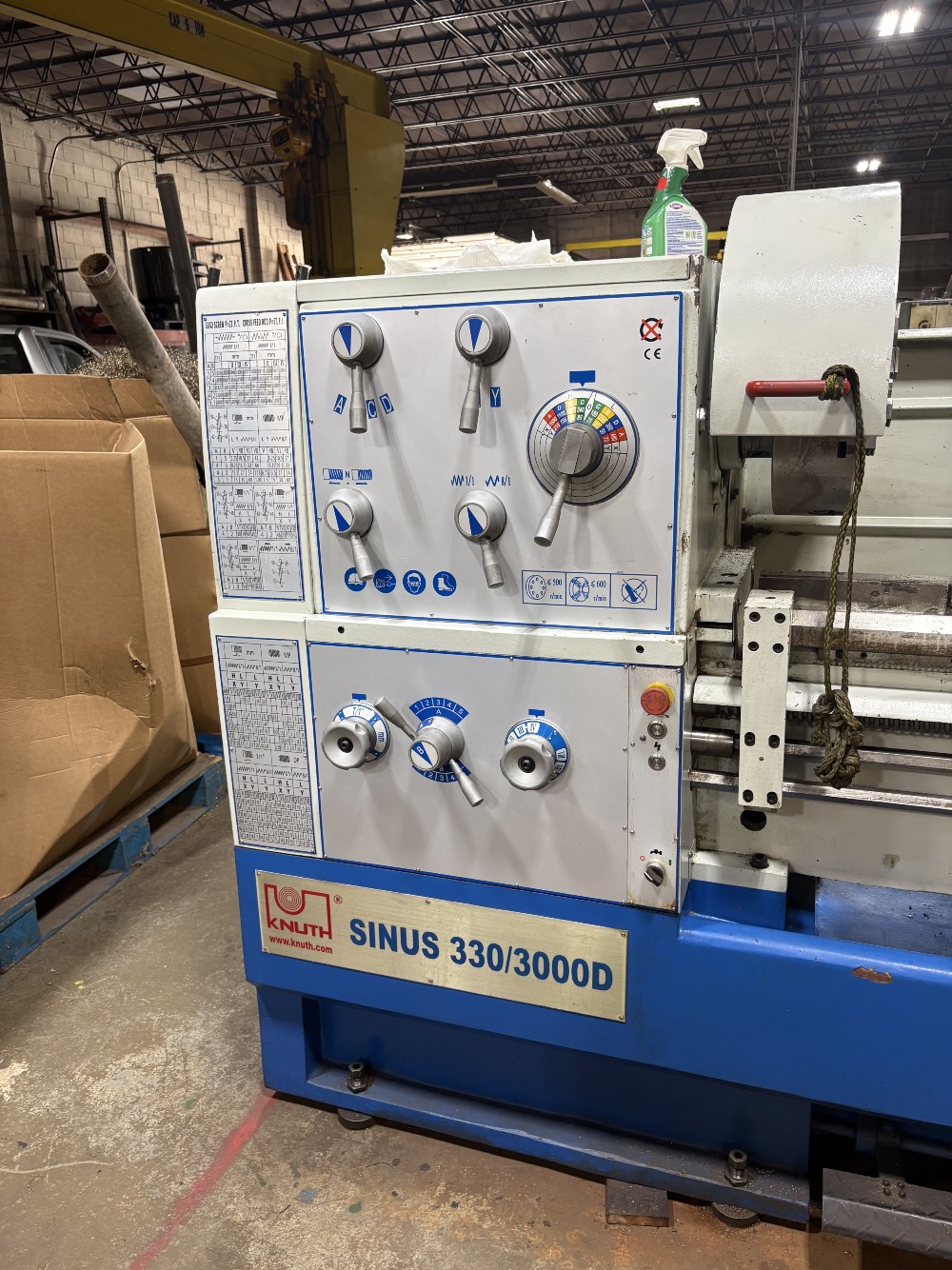

Knuth Sinus D 330/3000 Engine Lathe

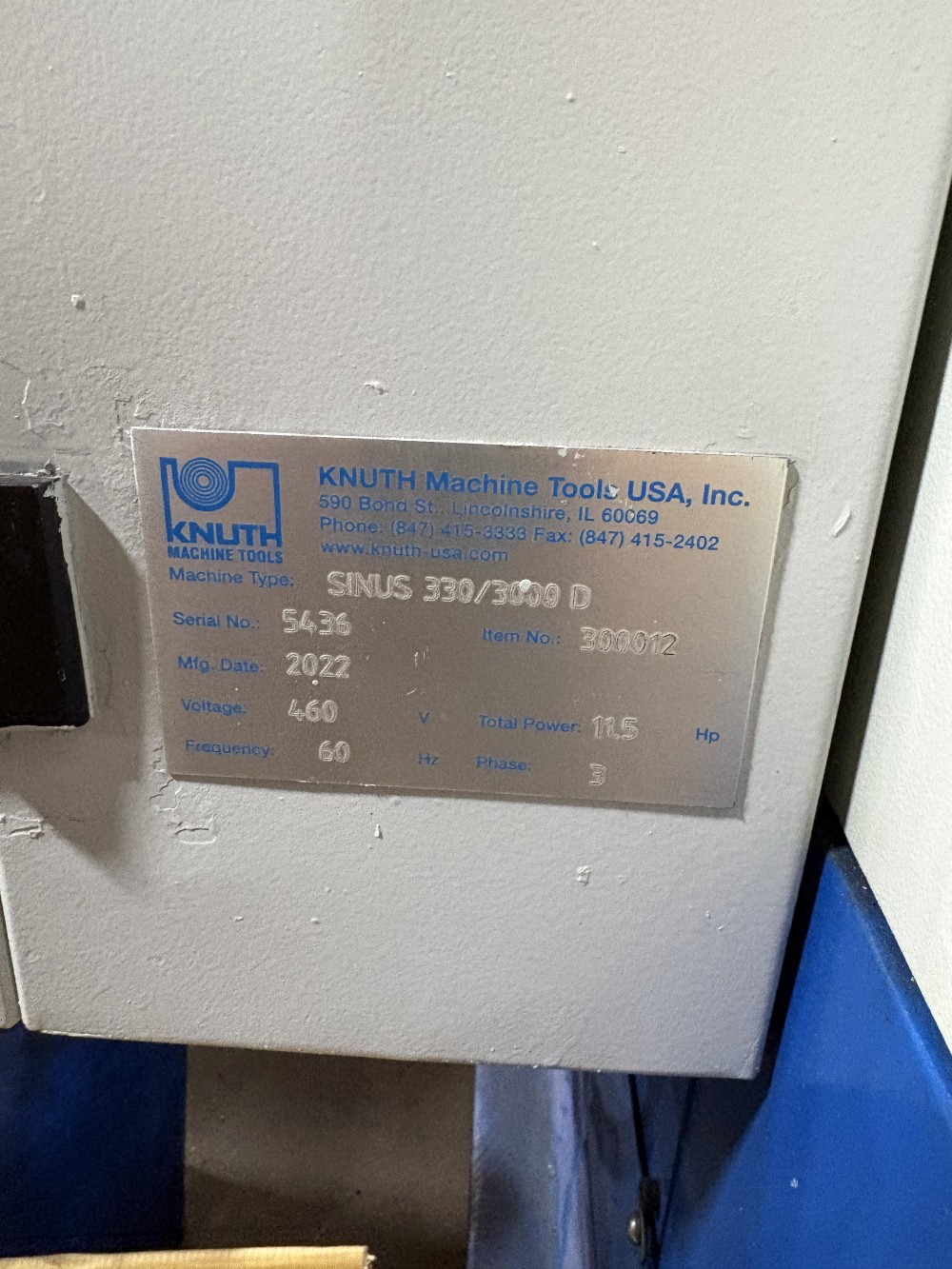

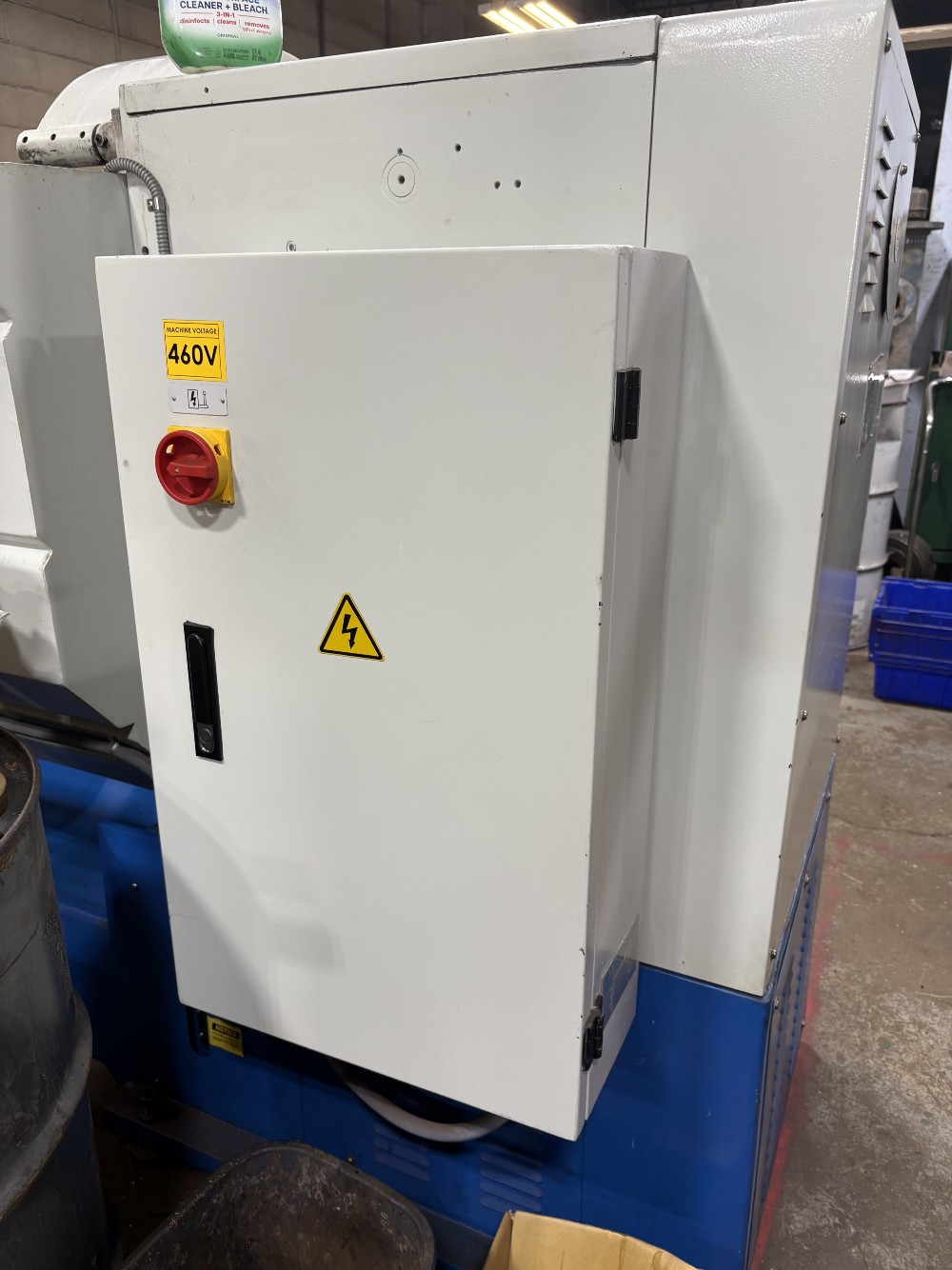

10HP/460V/3PH/60Hz

A precision lathe with a large center height and a spindle bore of 4.13", including taper turning and assembled 3 axis postion indicator.

*Removable Bridge (12.5") for machining of large parts with diameters up to 35"
*High precision and quiet operation even at maximum loads
*Heavy large bed
*Hardened guide ways (>HB400)
*4.13" spindle capacity for machining of large parts
*Manual central lubrication
*Automatic lubrication of headstock and main gears
*Protected lead screw with overload protection for feed shaft and lead screw
*Rapid feed

Specifications:
Center Width: 120"
Max Turning over bed: 26"
Max Turning over support: 17"
Max Turning w/o bridge: 35"
Bridge Length: 12.5"
Bed Width: 16"
Spindle Speed(steps): 25-1600 (16)
Spindle Bore: 4.13
Spindle mount/taper: D1-8/MT5
Max Cross Slide Travel: 14.5"
Max Top slide travel: 9"
Top slide swivel range: 45 degrees
Thread pitches: 196 threads
Metric, Whitworth, Module, Diametric
Tail Stock: MT 5/3.5"
Taitstock quil stroke: 9.25"
Tailstock Cross Adjustment: 0.5"
Motor HP: 10
Dimensions: 185 x 49 x 63"
Weigth: 7,300

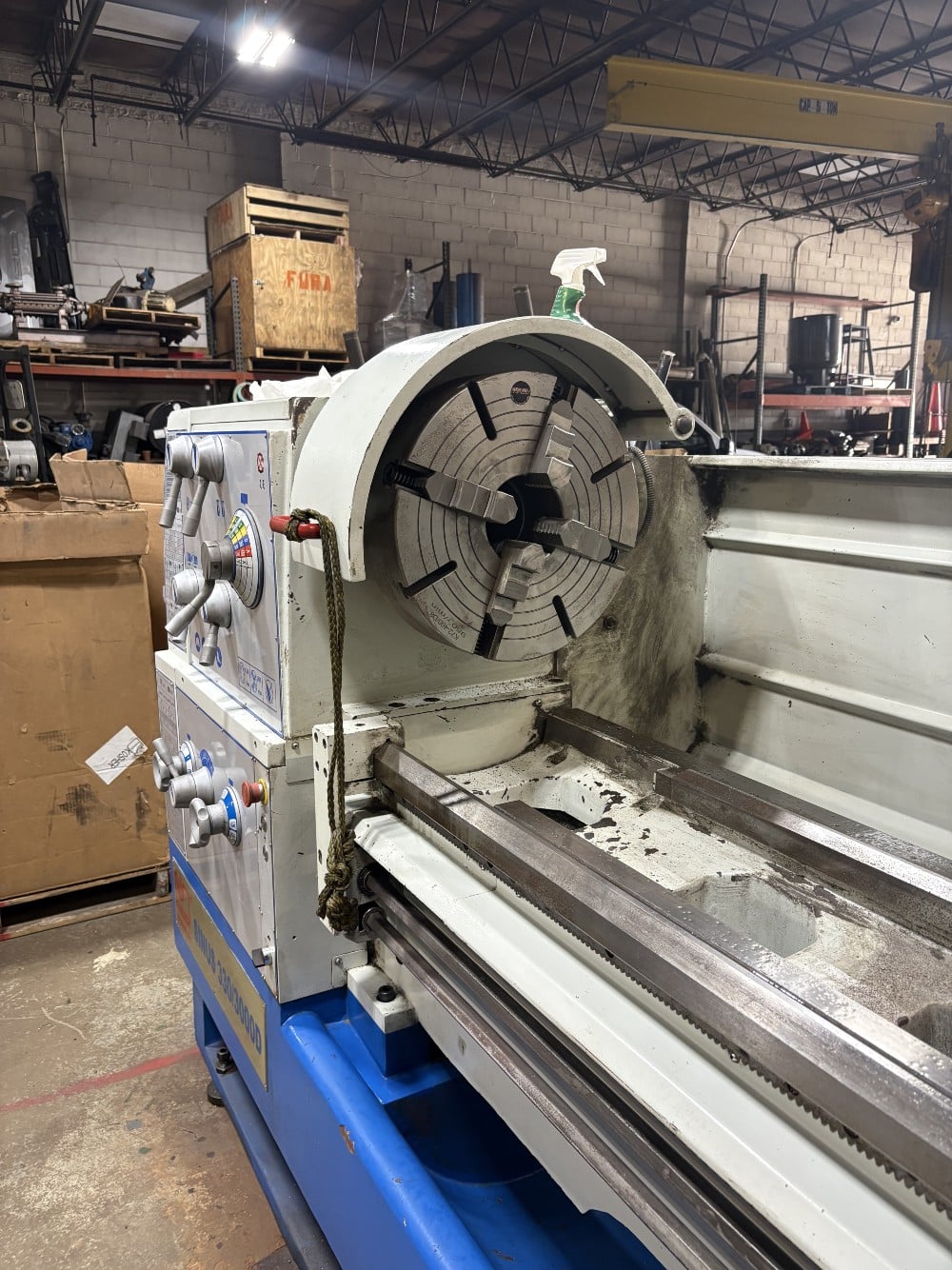

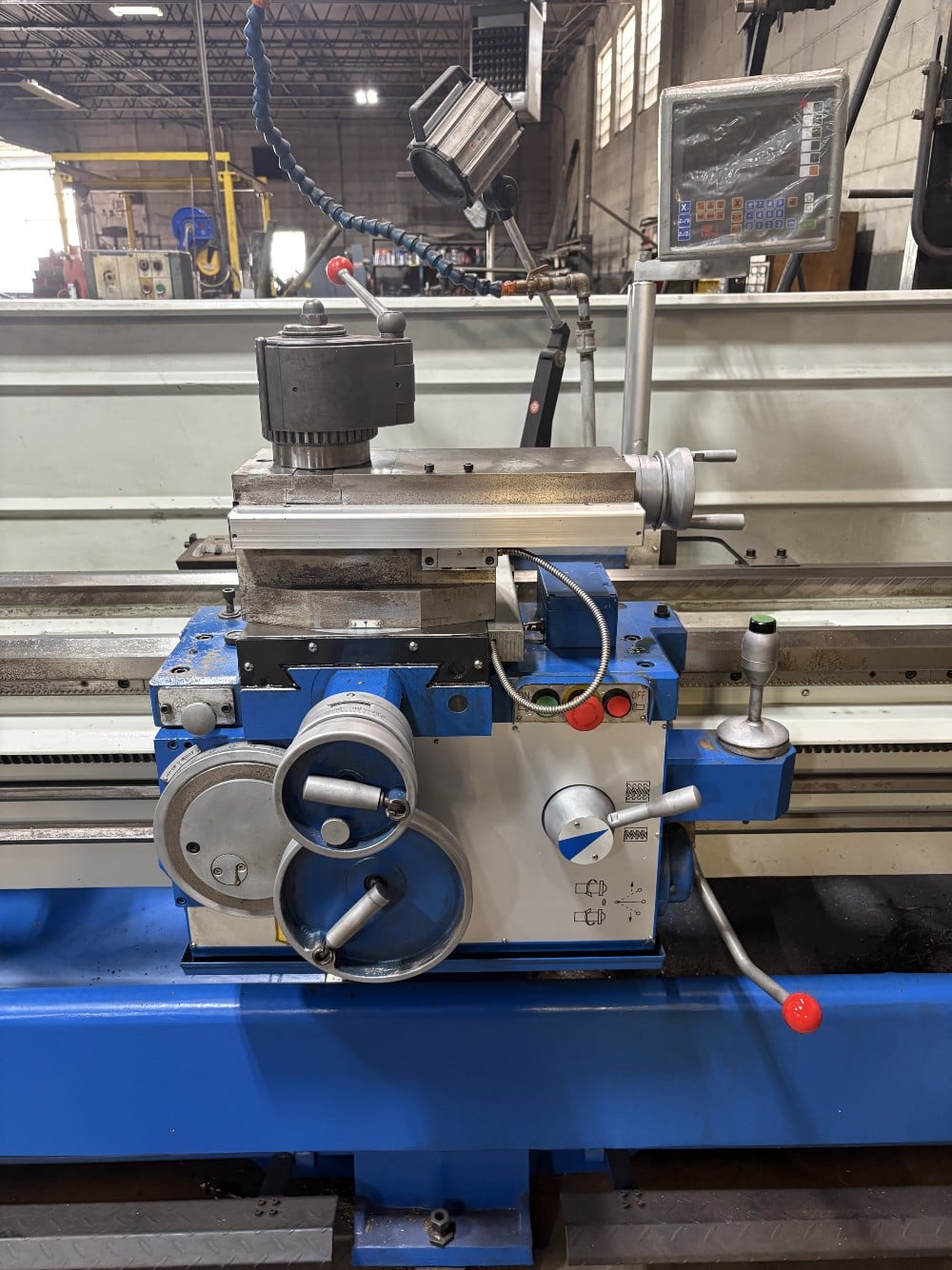

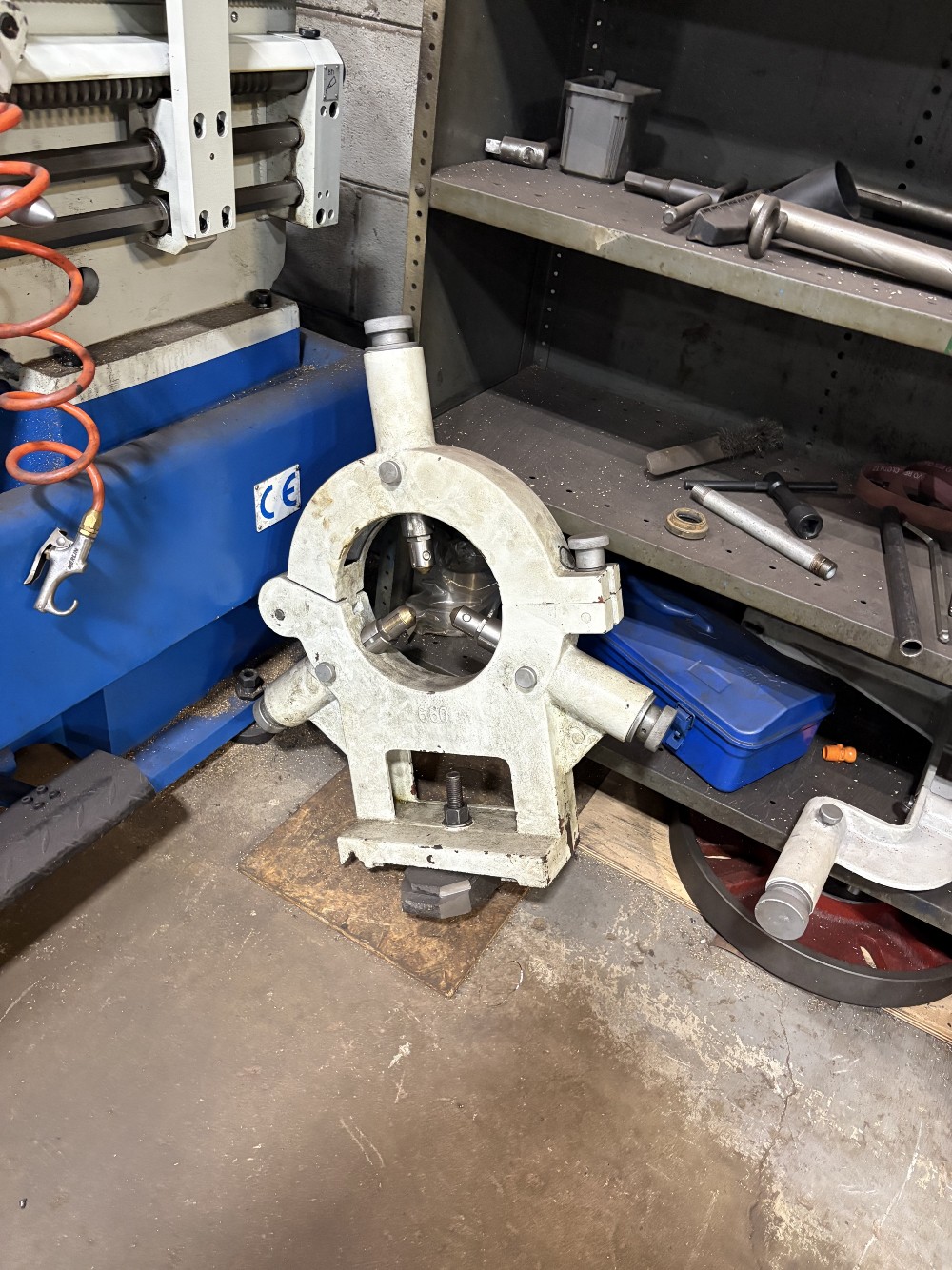

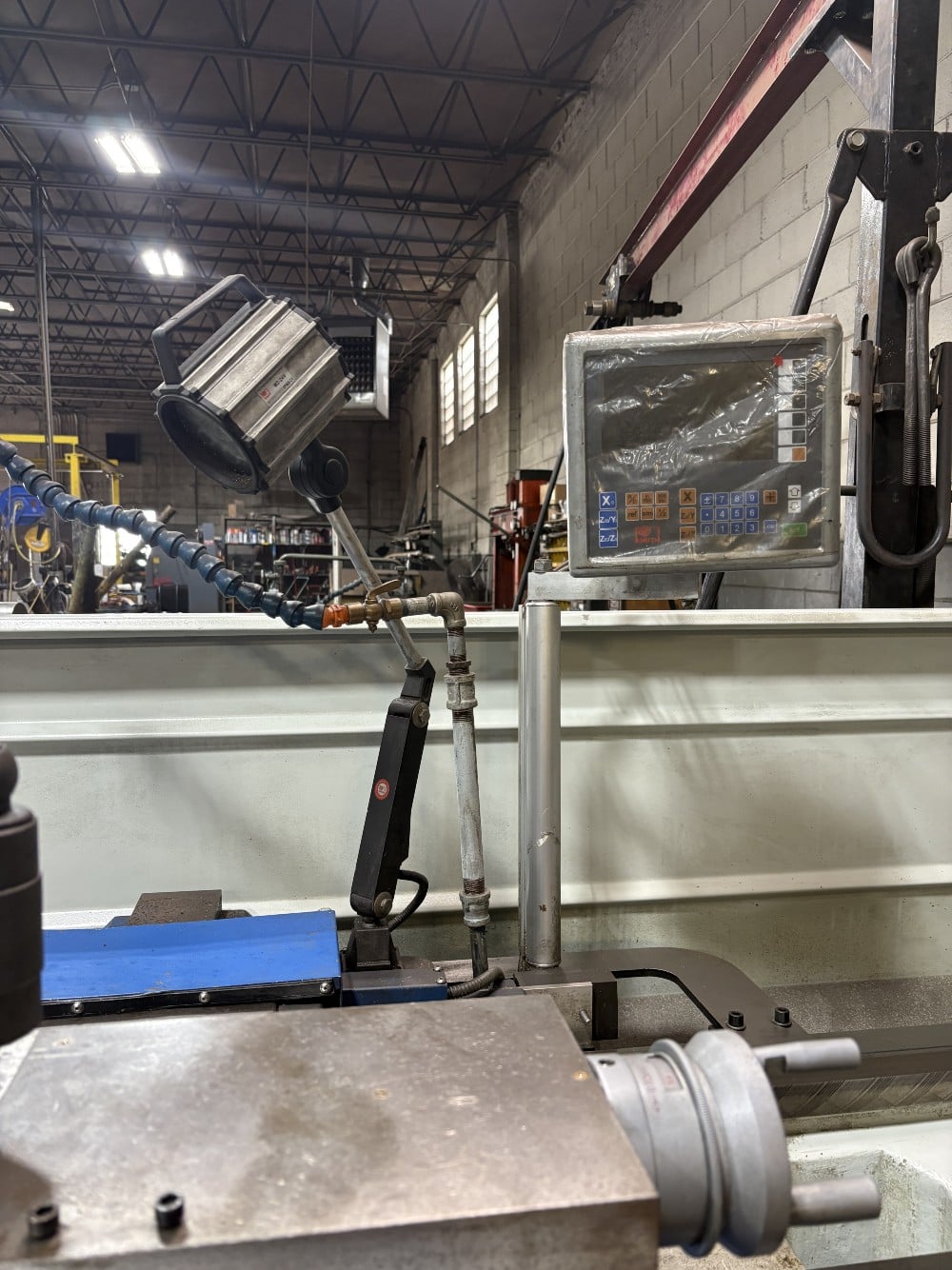

3 axis position indicator, 3 jaw chuck 13", 4 jaw chuck (15 in. dia.) face plate with 23" dia., face plate 18", dog plate, quick change tool holder head, quick change tool holder includes fixed splash guard, coolant system, steady and follow rest, taper turning unit, chuck guard, LED work lamp, reducing sleeve, dead center, operating tools.

(1) transformer 15 KVA 220 to 440 up or down for machines with a total drive power of not more than 15KVA
(1) Cut off insert holder
(2) Quick change tool holder WCD 40x170
(1) quick change tool holder WCH 40x160
