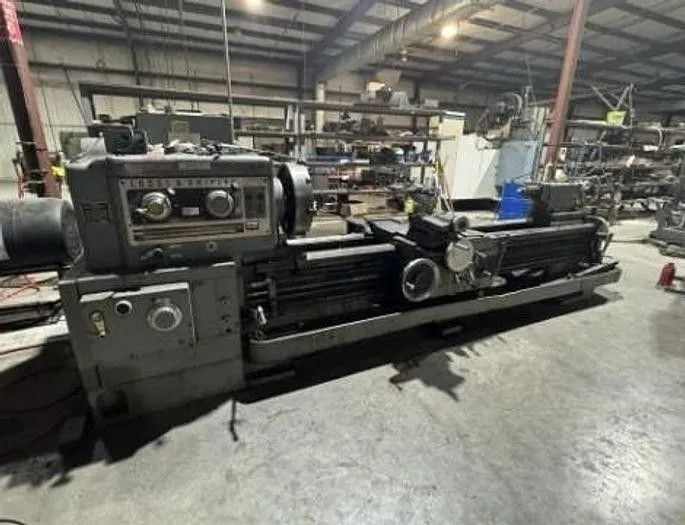

26.5" x 96" Lodge & Shipley #RXE-2516, PowerTurn Engine Lathe, 30 HP, 20" swing over cross slide, 1000 RPM, inch threading

$9,950 USD

Request Formal Quote

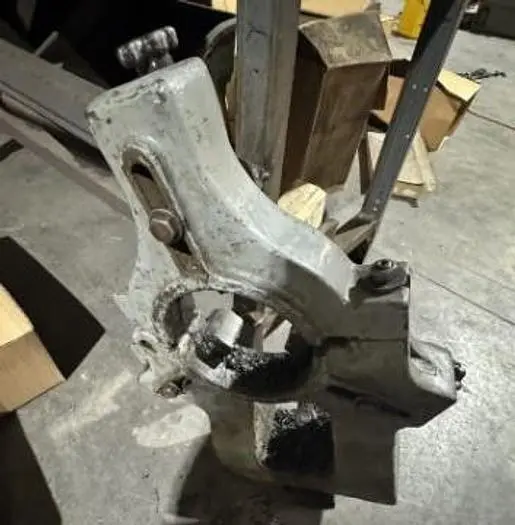

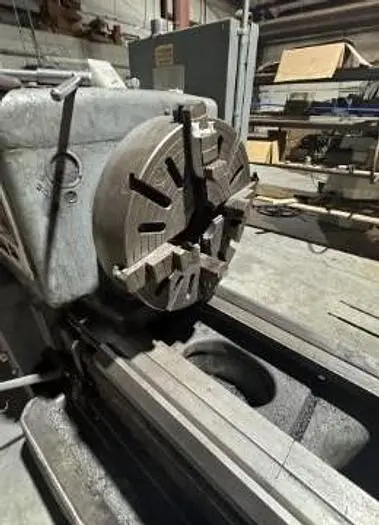

THE LODGE & SHIPLEY "POWERTURN" GAP-TYPE ENGINE LATHE, MODEL RXE 2516, IS POWERED BY A 30 HP MAIN MOTOR AND FEATURES A 2.5-INCH HOLE THROUGH THE SPINDLE. THE LATHE HAS AN ACTUAL SWING OVER THE BED WAYS AND CARRIAGE WINGS OF 26.5 INCHES, A RATED SWING OF 25 INCHES, AND A SWING OVER THE CROSS-SLIDE OF 20 INCHES. THE GAP SECTION ALLOWS FOR A MAXIMUM SWING OF 40 INCHES OVER A 20-INCH LENGTH, WITH A DISTANCE BETWEEN CENTERS OF 96 INCHES. THE MACHINE OFFERS 24 FORWARD SPINDLE SPEEDS RANGING FROM 18 TO 1000 RPM AND 16 REVERSE SPEEDS FROM 18 TO 250 RPM. FEED CAPABILITIES INCLUDE 55 CARRIAGE LONGITUDINAL FEEDS FROM .0025 TO .160 IPR AND 55 THREAD CHANGES FROM 1 TO 64 TPI. THE CROSS-SLIDE AND TOP-SLIDE FEATURE TRAVEL OF 18.5 INCHES AND 5.25 INCHES, RESPECTIVELY. THE HEAVY-DUTY TAILSTOCK IS EQUIPPED WITH A #5 MT TAPER, A 4-INCH SPINDLE DIAMETER, AND 11 INCHES OF TRAVEL. STANDARD EQUIPMENT INCLUDES A 20-INCH 4-JAW CHUCK, STEADY REST, 8"-D1 SPINDLE NOSE, REPLACEABLE HARDENED AND GROUND BED AND CROSSLIDE WAYS, QUICK CHANGE GEARBOX, AND A FULL COOLANT SYSTEM. THE MACHINE REQUIRES A FLOOR SPACE OF 16'2" X 5'7" AND WEIGHS APPROXIMATELY 13500 LBS.
