For Sale by SOMINN Machinery Sales
Surplus Record Dealer Since 1991
Location: Dodge Center, MN
Contact J.J. Francis
Phone Number: 507...> Show Phone Number 507-374-6346
Let the seller know you found their listing on Surplus Record!
Description

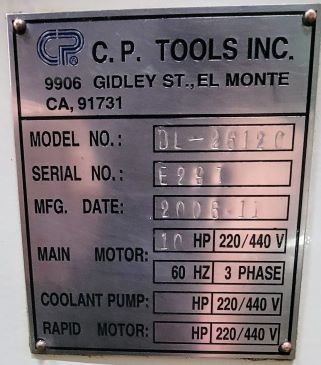

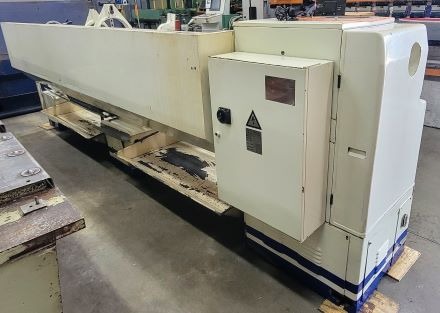

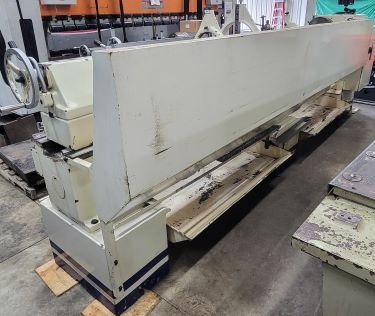

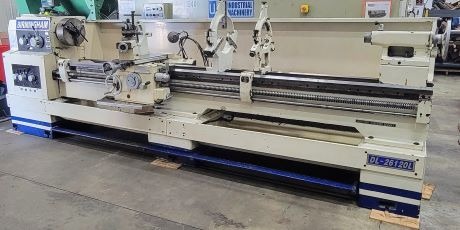

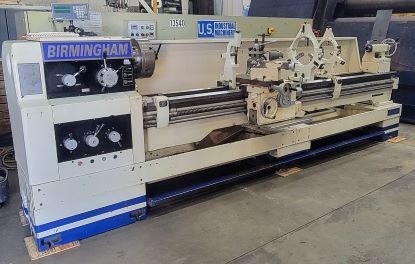

BIRMINGHAM (USED) MODEL DL-26120L HIGH SPEED PRECISION
ENGINE LATHES
26" MAX SWING OVER BED
120" MAX LENGTH OF WORKPIECE
17" MAX SWING OVER CARRIAGE
36" MAX SWING IN GAP
15-1/2" WIDTH OF BED
D1-8 SPINDLE NOSE
3-9/64 DIAMETER OF SPINDLE BORE
MT NO 5 TAPER HOLE IN SPINDLE
16-1600 RPM SPINDLE SPEEDS (16 SPEEDS)
0.0015 - 0.0772 IN./R. (54) LONGITUDINAL FEEDS
0.0006 - 0.0303 IN./R/ (54) CROSS FEEDS
0.5 - 120 MM (56 KINDS) METRIC THREADS
80 - 7/16 TPI (49 KINDS) INCH THREADS
0.25 - 60MM (47 KINDS) MODULE THREADS
160 - 7/8 D.P. (42 KINDS) DIAMETRAL THREADS
15" MAX TRAVEL OF CROSS SLIDE
6" MAX TRAVEL OF UPPER SLIDE
MT NO. 5 TAPER IN CENTER SLEEVE
1100 LBS MAX WORK PIECE WEIGHT
6" MAX TRAVEL OF CENTER SLEEVE
10 HP POWER OF MAIN MOTOR
EQUIPPED WITH
- 12" 3 JAW CHUCK
- 8" STEADY REST
- REMOVABLE GAP
- 4-WAY RAPID TRAVEL
- 26" FACE PLATE
- FOLLOW REST
- SPLASH GUARD
- 16" 4-WAY CHUCK
- 4-WAY TOOL POST
Get Your Price from SOMINN Machinery Sales!
