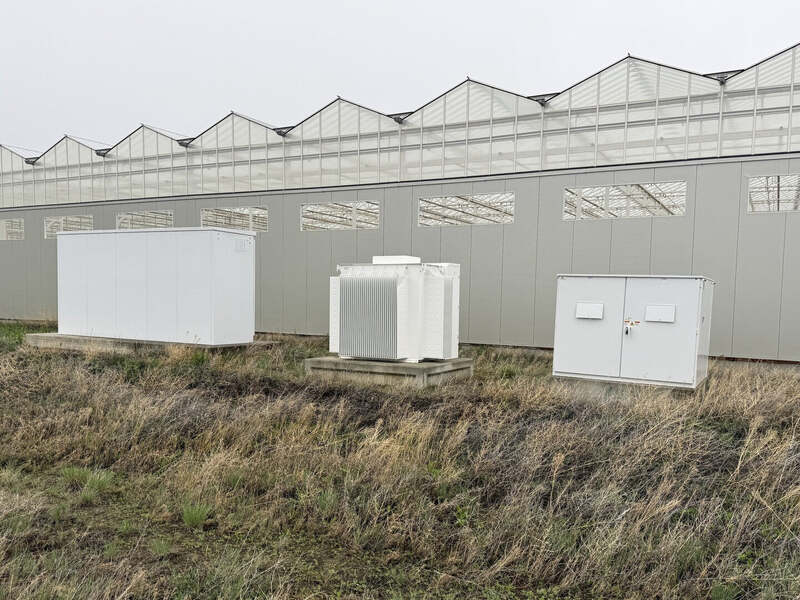

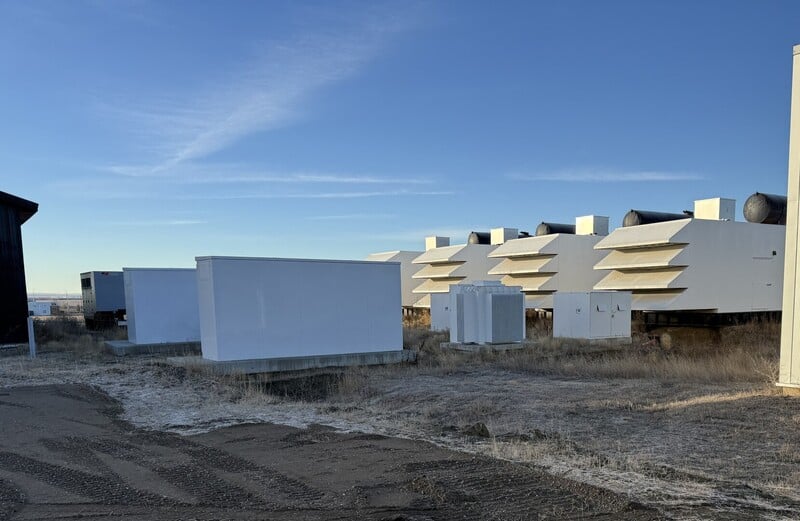

2500 Amps, Eaton, Outdoor Unit Substation, 2500 kVA, 13,800 Pri., 600Y/347 Sec., 3PH, 2019

$178,250 USD

Request Formal Quote

SKU: 156468
Year: 2019
Condition: Used
General Specifications:
Voltage: 13800 volts
Frequency: 60 Hz
Phase: 3-phase
kVA: 2500 kVA
Amps: 2500 amps
Additional Description:

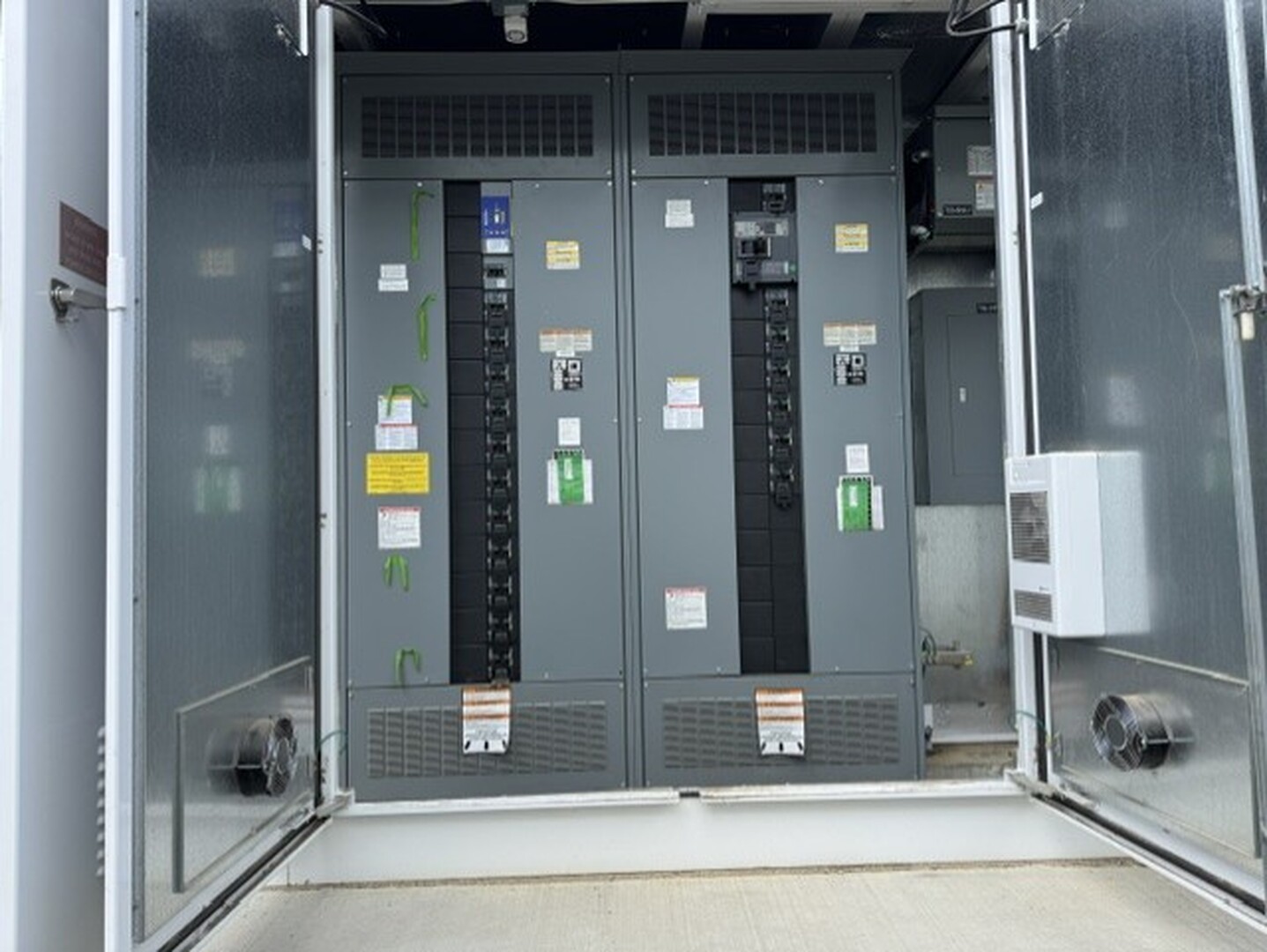

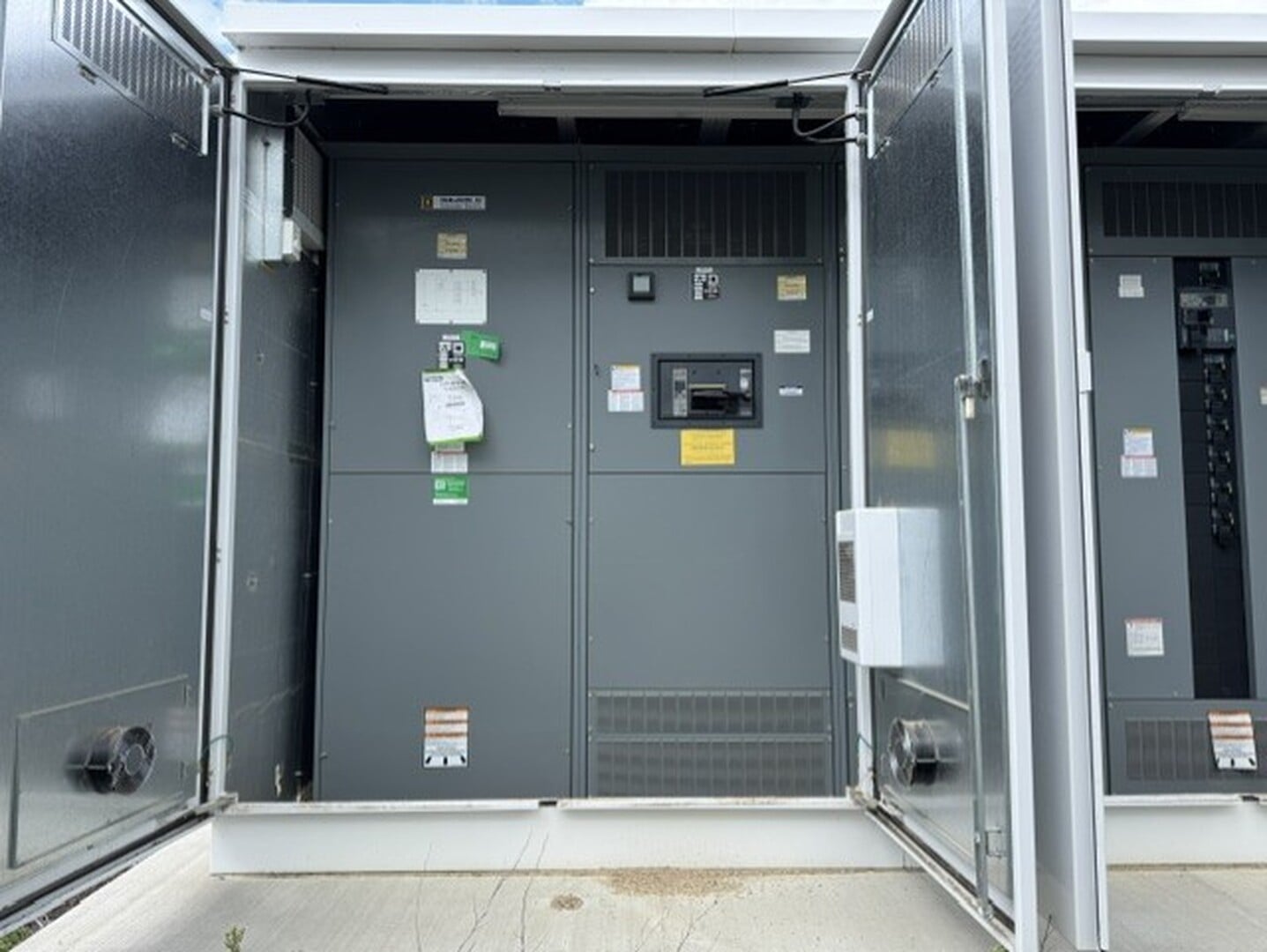

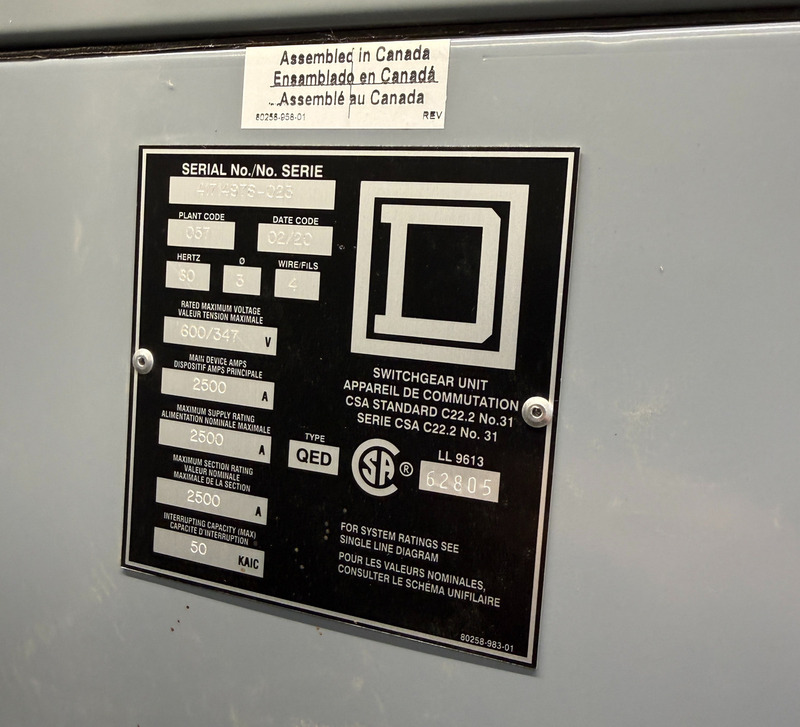

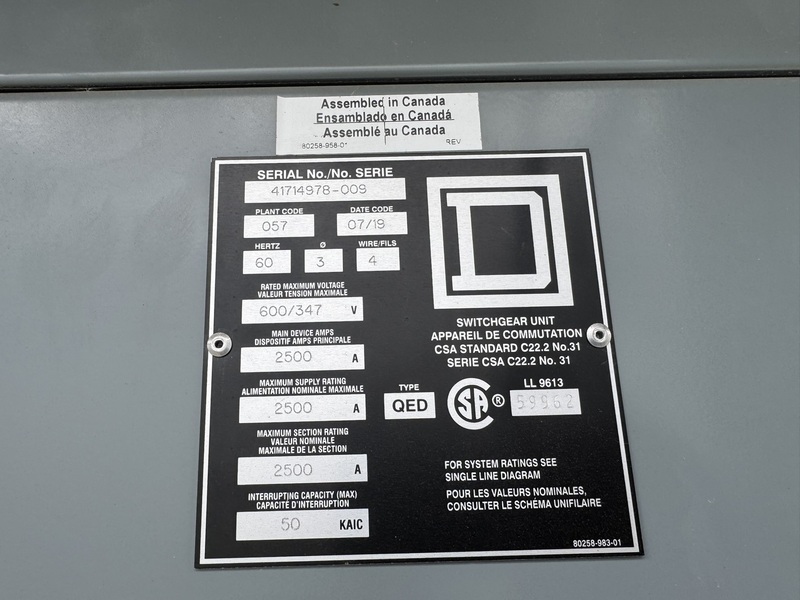

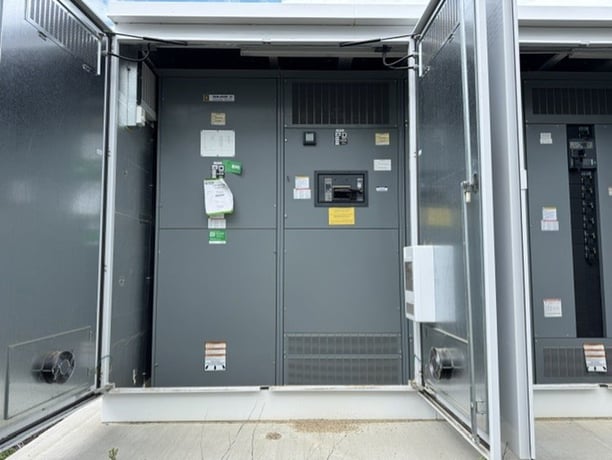

Left Cabinet - Square D QED Low-Voltage Switchgear
Manufacture: Square D
Serial No:
- 41714978-009
- 41714978-023
Type: QED
Year: 2019/2020
Rated Max. Voltage: 600/347 V
Phase: 3
Wire: 4
Main Device Amps: 2500 A
Max. Supply Rating: 2500 A
Max. Section Rating: 2500 A
Max. Interrupting Capacity: 50 kAIC

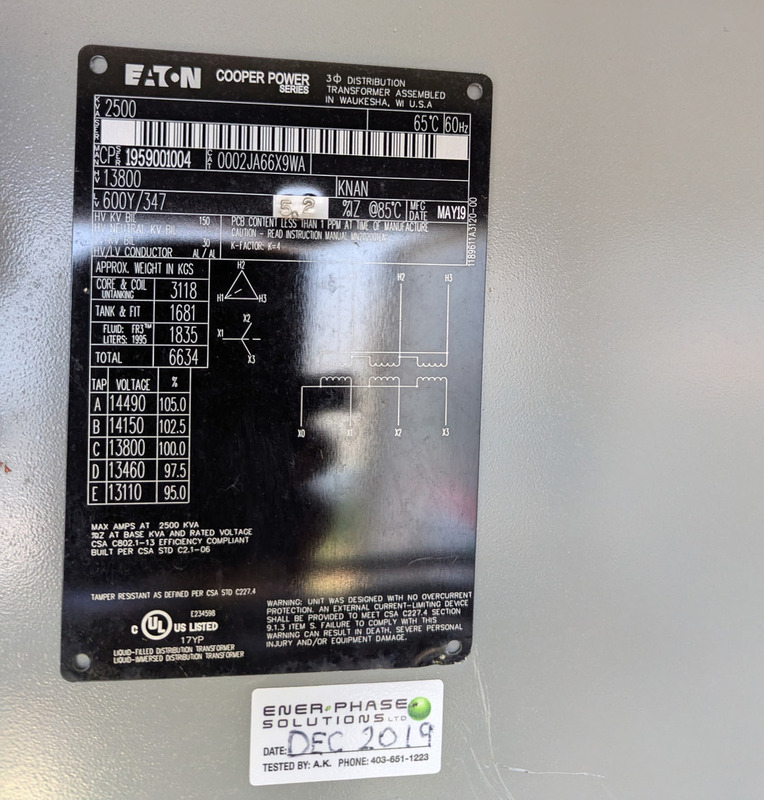

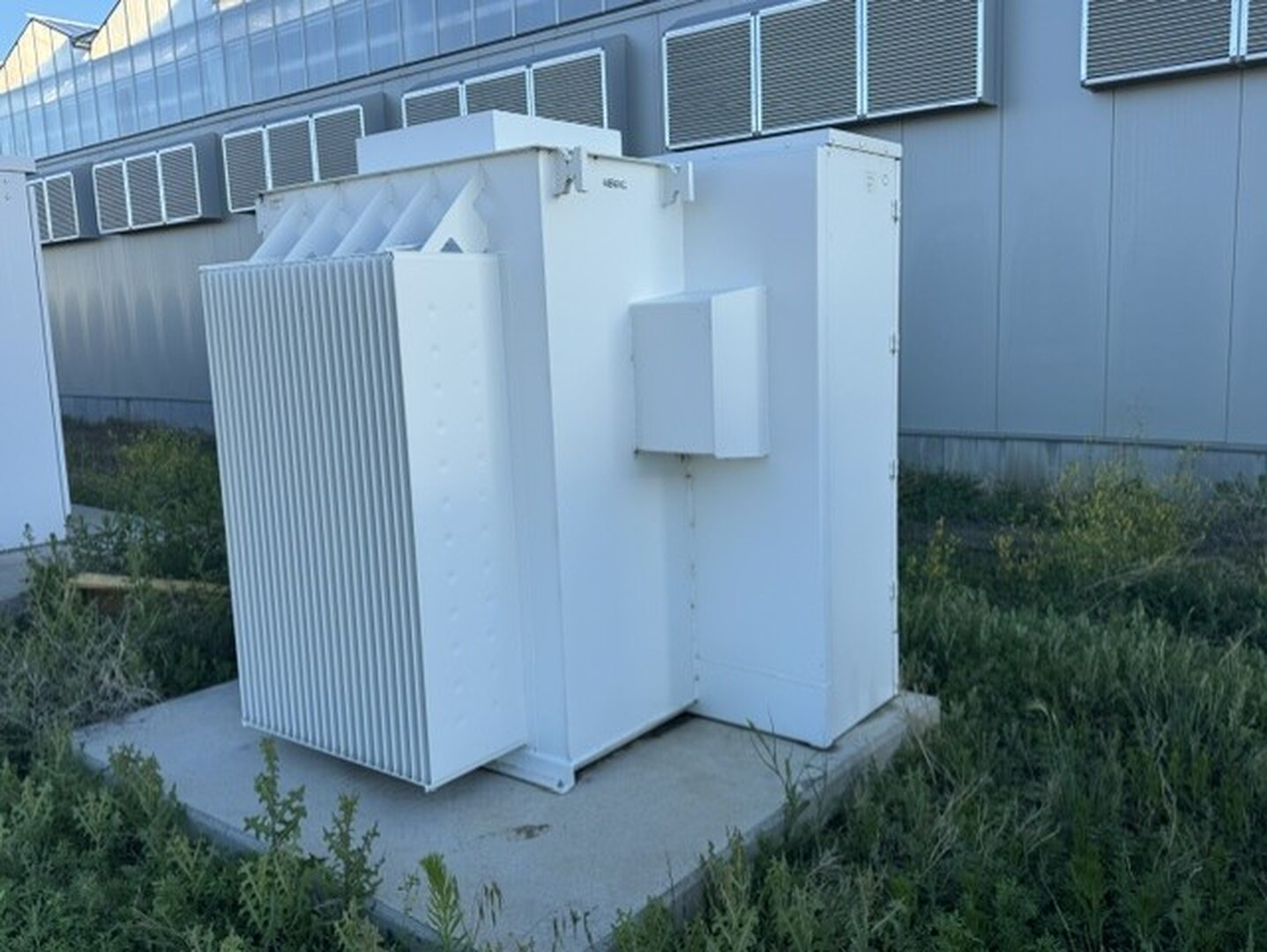

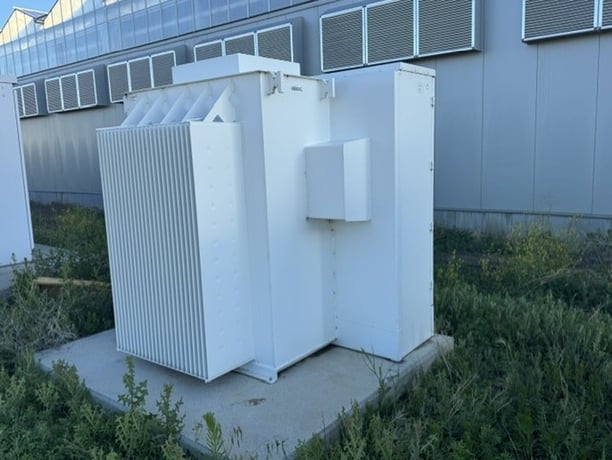

Middle - Eaton Cooper Power Transformer
Manufacture: Eaton Cooper Power Series
Model: 0002JA66X9WA
Serial: 1959001004
Year: 2019
kVA: 2500
Primary Voltage: 13800 V
Secondary Voltage: 600Y/347 V
Phase: 3
Cooling: KNAN

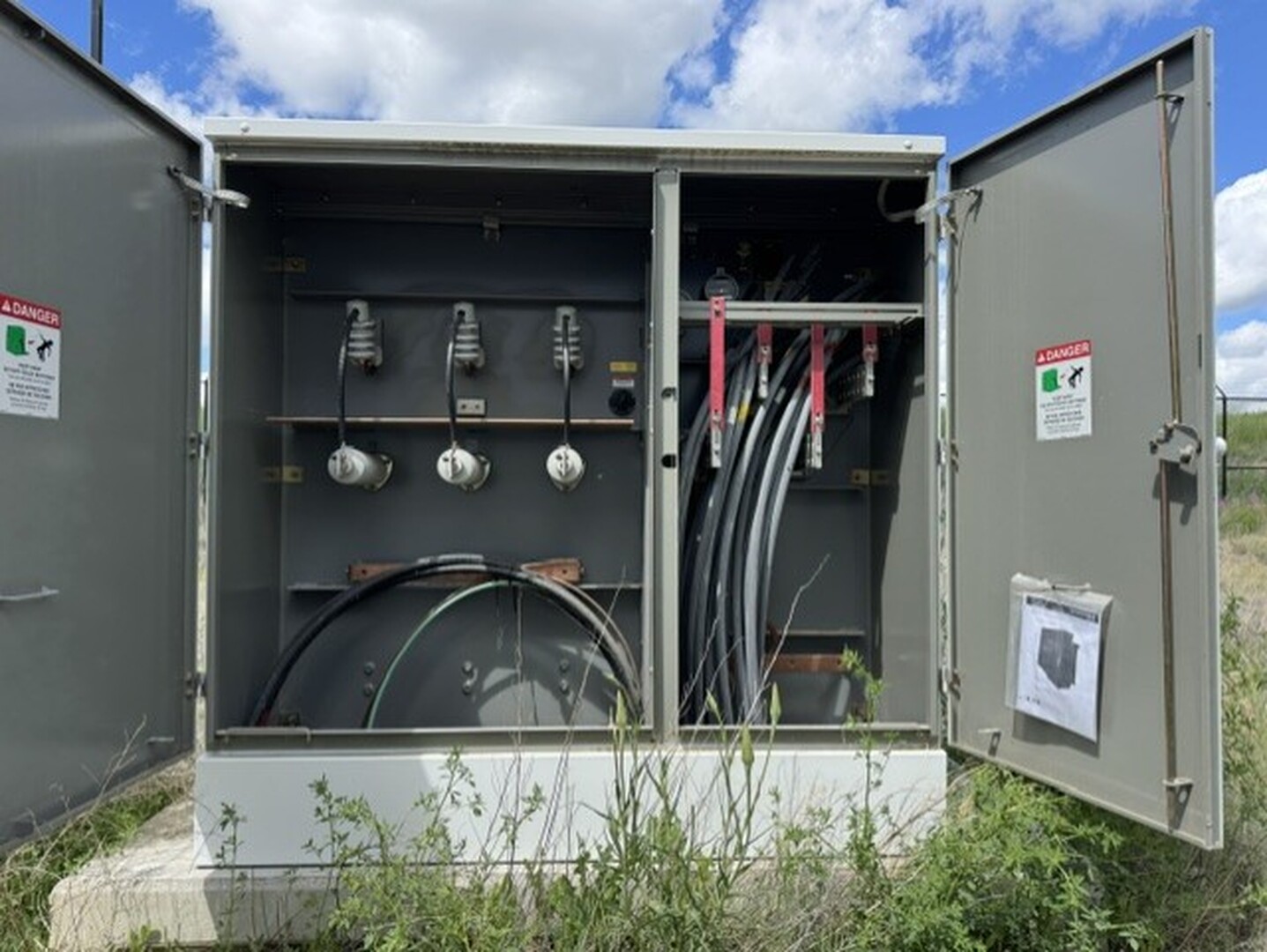

Right Cabinet - Powergrid Solutions Medium-Voltage Switch
Manufacture: Powergrid Solutions Inc.
Serial: 56758-01-005
Year: 2019
Nominal System Voltage: 13.8 kV
Max. Design Voltage: 15 kV
Continuous Current: 600 A
Basic Insulation Level: 95 kV BIL
Fuse Type: DBU
Fuse Rating, Max.: 200 A
Fuse Interrupting, Symmetrical: 14,000 A
Load Interrupting Rating: 600 A
Fault Closing, Symmetrical: 25,000 A
Momentary: 40,000 A
Short Circuit Rating: 25,000 A @ 2 sec
Weight: 1,800 lbs
