Manufacturer: Itt
Model: 3700-LX
Gallons per Minute: 250
Model/Size: 3700-LX
Stock # 20144
Price: $28,000 USD - Finance for as low as $568/mth
For Sale by JM Industrial LLC
Surplus Record Dealer Since 1993
Sheldon Sharp
304-27...> Show Seller's Phone Number 304-273-0795 Let the seller know you found their listing on Surplus Record!
Description

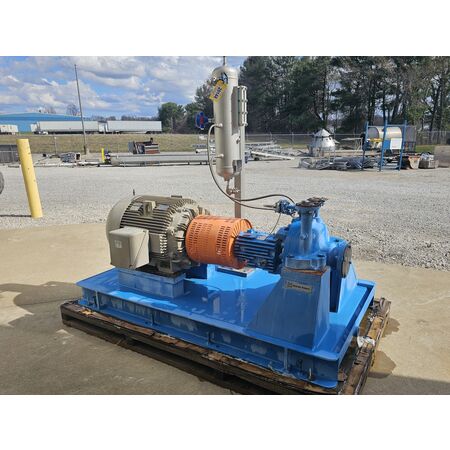

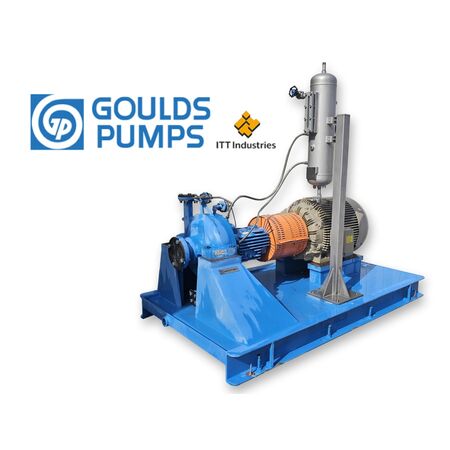

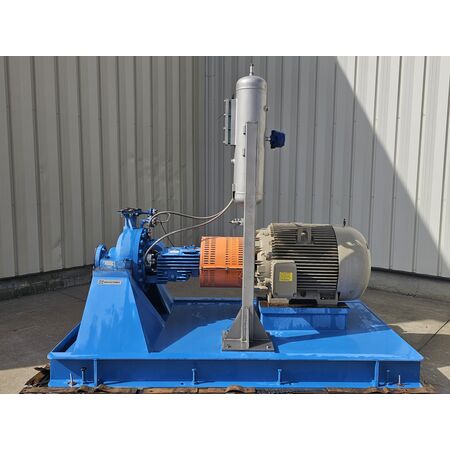

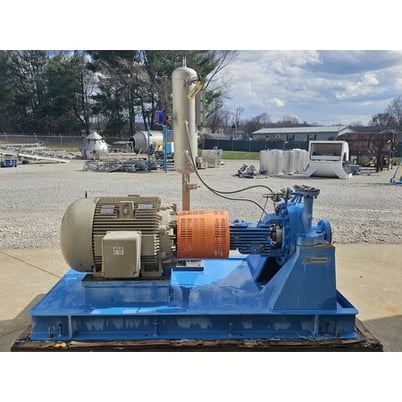

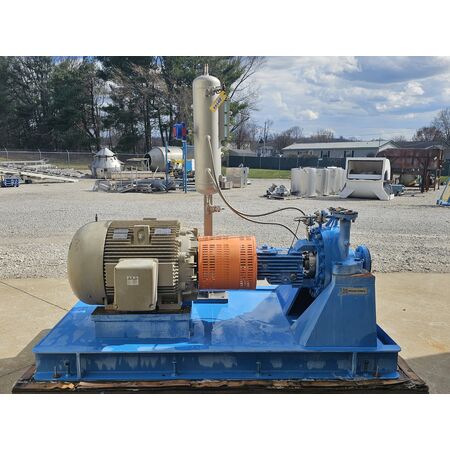

Unused 125HP ITT Goulds 3700 LX Natural Gas LNG Booster Pump 1.5X4-16
S/N: GM03A306-2; Date of Manufacture: 2020
The 3700 LX is a centerline-mounted, end-suction centrifugal process pump, meets API 610 specification.
Cast iron, dual volute overhung casing, radially split design.
Flow Rate: 250GPM
Head: 952'
Impeller: 14.38" (max.: 16.22")
Max. Design Working Pressure: 727PSIG @ 120 F
Max. Temperature: 800 F
Inlet: 4" ANSI 300 RF flange
Outlet: 1.5" ANSI 300 RF flange
Heavy-duty base skid assembly with sump (18"W X 58"L).
125HP severe duty drive with barrier fluid cooling for the mechanical seal.
Supply Power: 460V, 60Hz, 3ph, 3,580RPM
Overall dimensions: 105x63x94"
Weight = 5,610 LBS
S/N: GM03A306-2; Date of Manufacture: 2020
The 3700 LX is a centerline-mounted, end-suction centrifugal process pump, meets API 610 specification.
Cast iron, dual volute overhung casing, radially split design.
Flow Rate: 250GPM
Head: 952'
Impeller: 14.38" (max.: 16.22")
Max. Design Working Pressure: 727PSIG @ 120 F
Max. Temperature: 800 F
Inlet: 4" ANSI 300 RF flange
Outlet: 1.5" ANSI 300 RF flange
Heavy-duty base skid assembly with sump (18"W X 58"L).
125HP severe duty drive with barrier fluid cooling for the mechanical seal.
Supply Power: 460V, 60Hz, 3ph, 3,580RPM
Overall dimensions: 105x63x94"
Weight = 5,610 LBS
Inquire Further with JM Industrial LLC!
