250 GPM @ 1950' TDH, Byron-Jackson #DVMX, 3x4x9A, 8-Stage, Stainless, w/200 HP motor

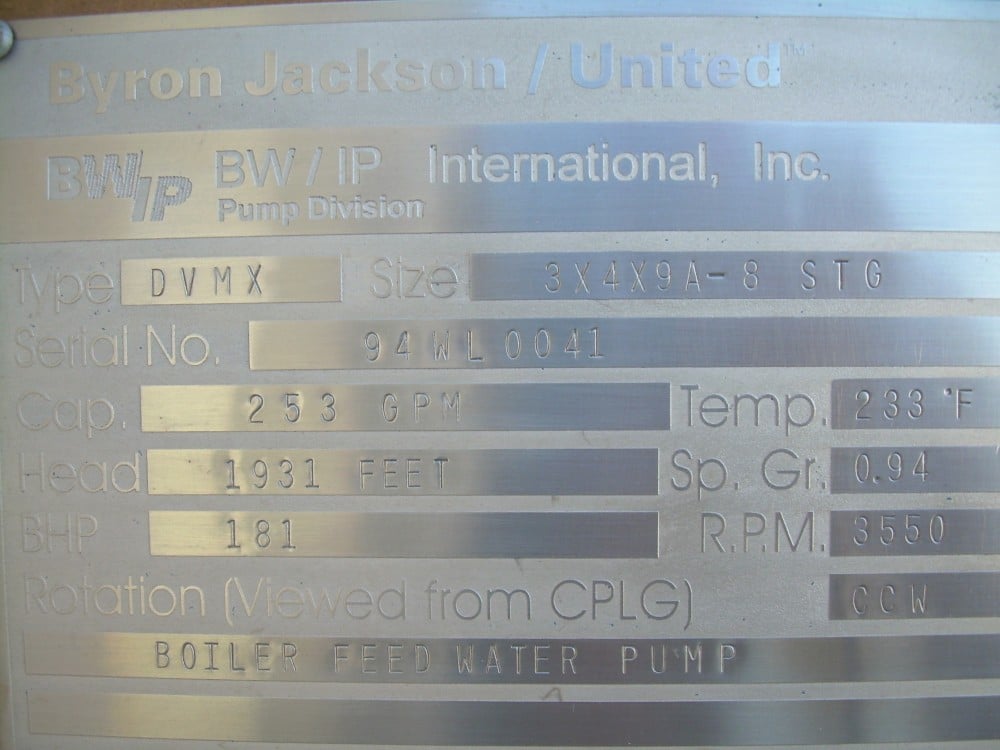

Byron-Jackson
Model: DVMX
Size: 3x4x9A
Stages: 8
Flow: 90-250 gpm
TDH: 1950 ft
Case: CA6NM stainless steel
Case / impeller wear rings: 420/410 Stainless - API 610 C-6.
Connections: 600lb RF, 4" suction and 3" discharge
Shaft: 3" diameter
Weight: 1,850 lb

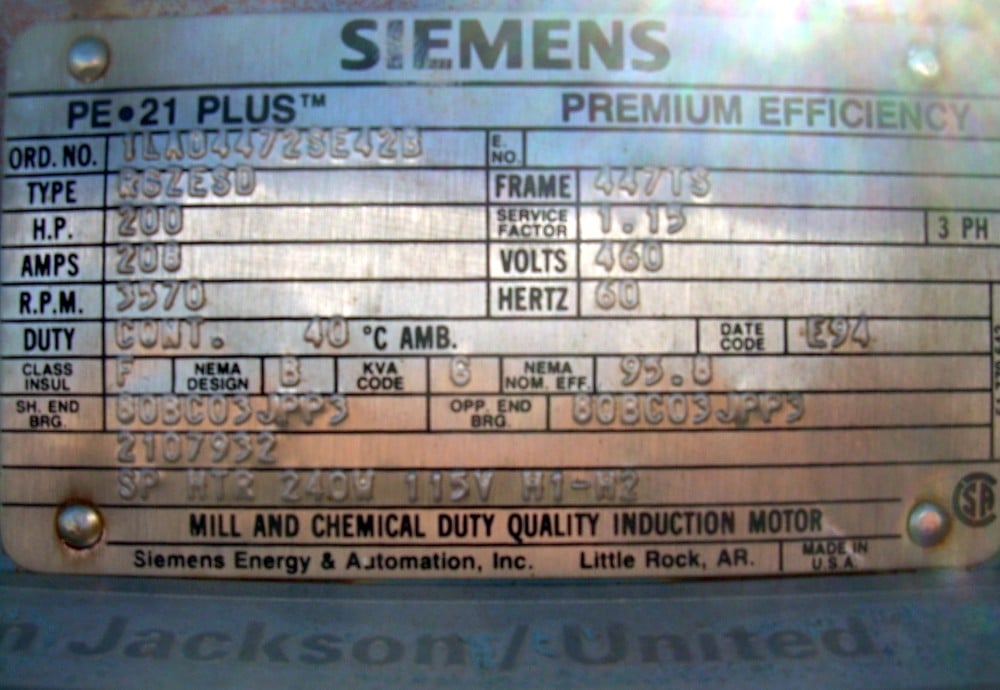

Motor: Siemens PE 21 Plus premium efficiency severe duty
460V 60Hz 200 hp 3600 rpm 447TS frame
1.15 Service Factor, 95.8% Efficiency. 120/240V 160C space heater. TEFC.
Weight: 2,100 lb approx.

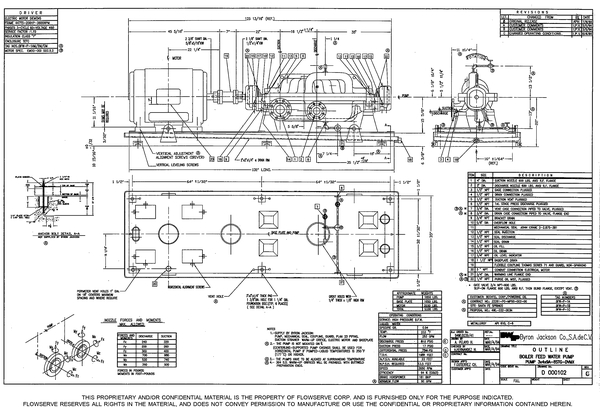

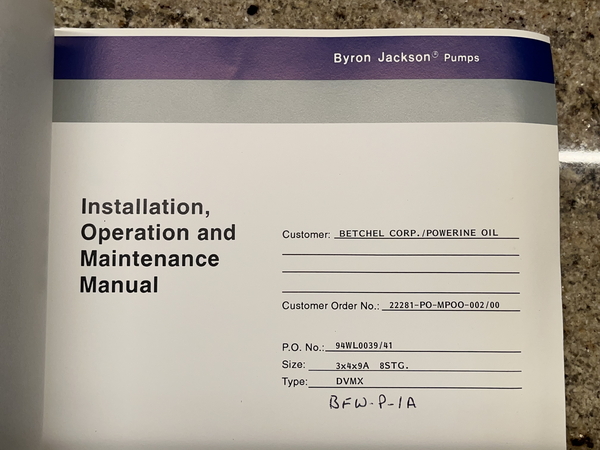

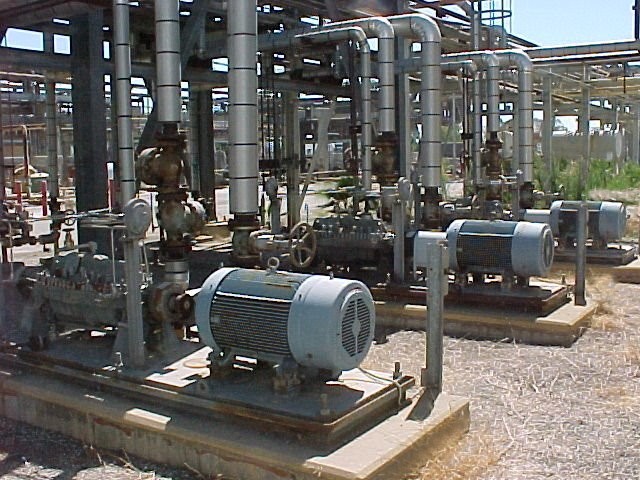

We are the original owners. We have the original documentation that was shipped with the pumps, including the installation/operation/maintenance manual and the full-size drawings. Bechtel installed three of these for us and we used them for six months for boiler feedwater at our facility in Los Angeles. Flowserve quoted a 2023 replacement cost of about $325,000, not including motor, and 48 weeks delivery time. We're asking less than what this pump cost in 1994. Two that we sold to a nearby refiner were inspected by the Flowserve shop and found to be in excellent condition and are running today.
