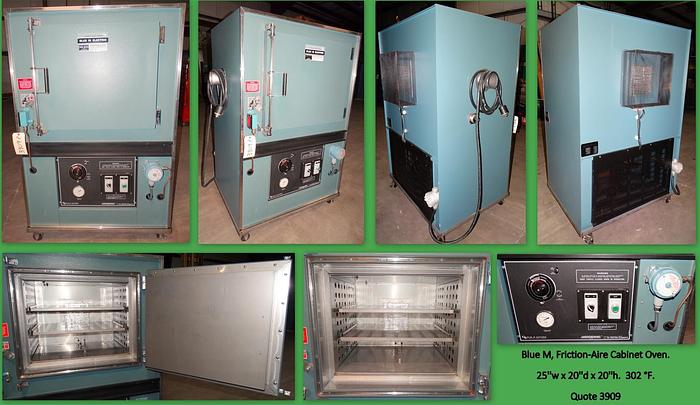

25" width x 20" H x 20" L Blue M #HS-1202F Frictionair class 1, group D, cabinet oven, 300°F , electric

Manufacturer: Blue M
Model: HS-1202F
Wide: 25.00
High: 20.00
Deep/Long: 20.00
Degrees: 300
Stock # 7582

For Sale by Furnaces, Ovens & Baths, Inc

Gold Level Dealer
Surplus Record Dealer Since 1980
Jeffrey Hynes
248-34...> Show Seller's Phone Number 248-343-1421 Let the seller know you found their listing on Surplus Record!

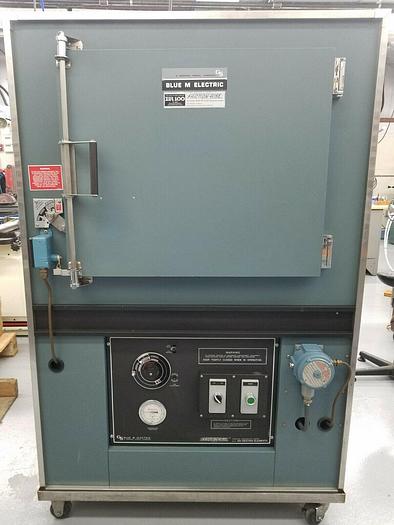

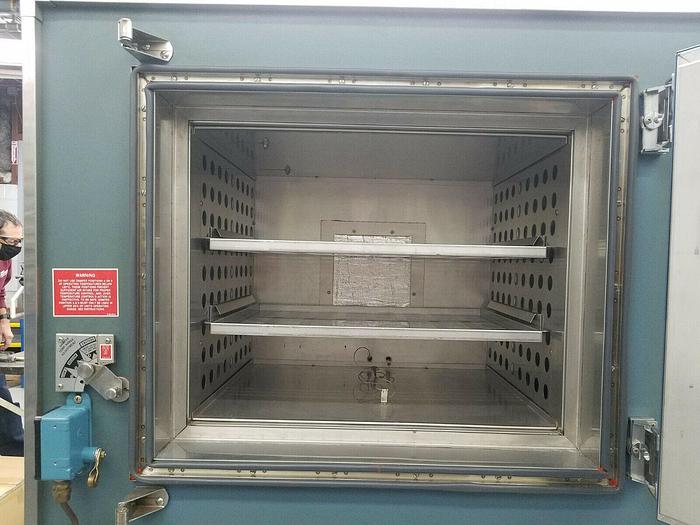

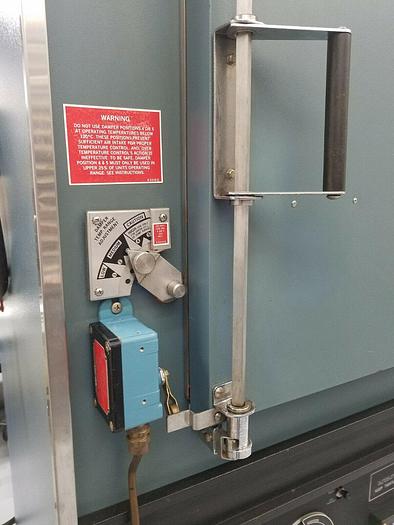

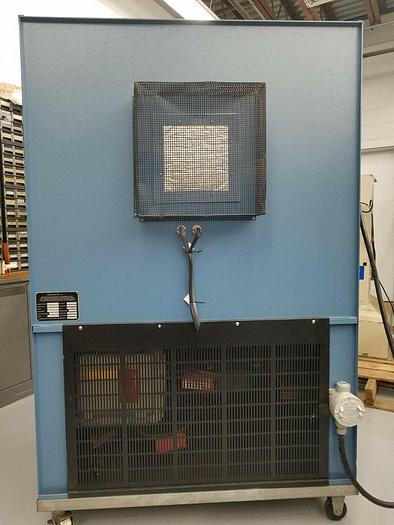

This oven is rated as Class 1, Group D suitable for use in hazardous atmospheres containing flammable vapors and solvents. A single hinged door with cam type latch opens fully for easy access to the work area. The interior is stainless steel with three adjustable stainless-steel shelves. There is an explosion relief panel with cage built into the rear wall. The blower is located under the floor of the oven. Heat is generated solely by this large blower system moving air. An air volume control damper is located on the front.

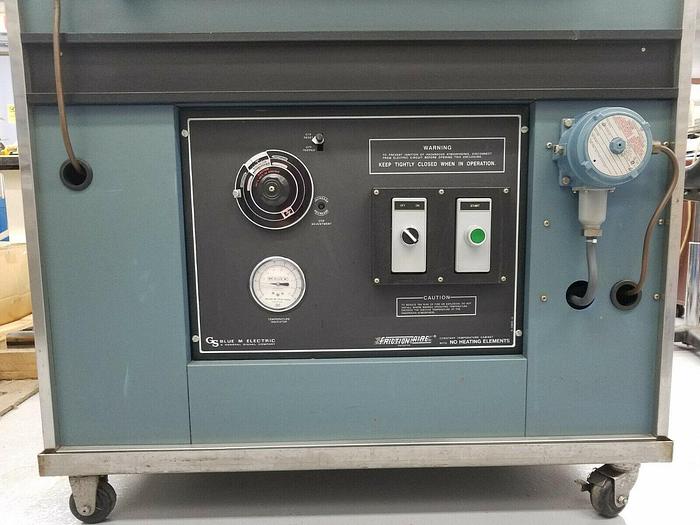

Located in a separate area below the work chamber are a Blue M non-electric proportional controller and non-electric overtemperature protection. Control is through a temperature sensitive bellows regulating a fresh air inlet to the blower wheel. A temperature indicating gauge is mounted on the front console. Explosion proof power off / on selector switch and Start push button station are also mounted in the console.

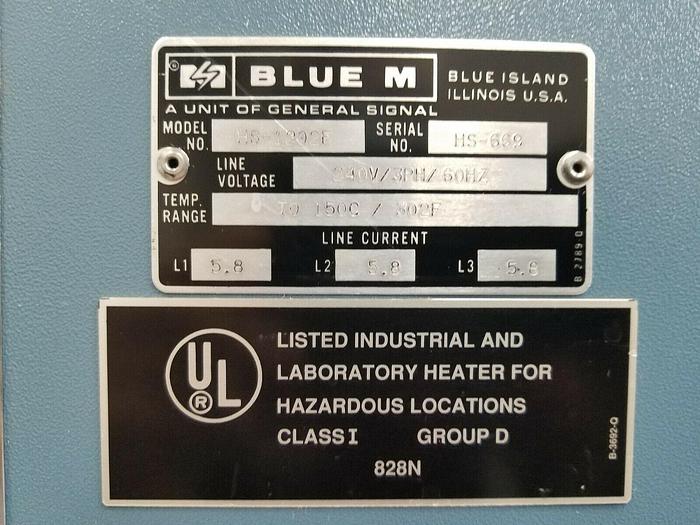

ManufacturerBlue M
Serial NumberHS-669
Stock Number7582
Work area25"W x 20"H x 20"L
Max temperature150°C / 302°F

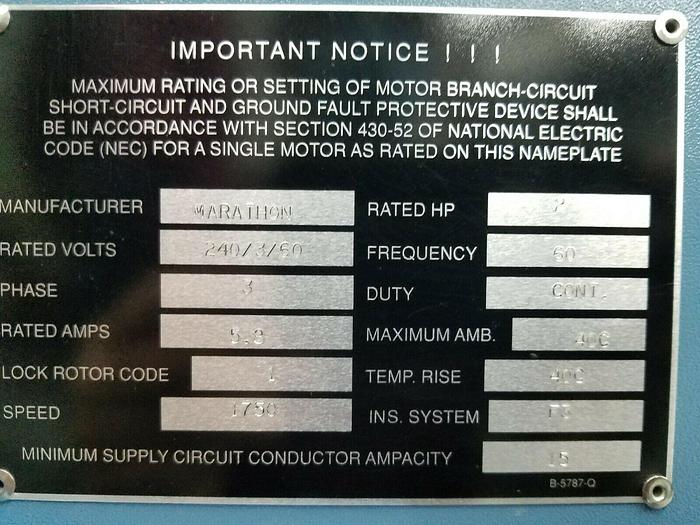

Voltage240/3/60/5.8 Amps
External dimensions42" wide x 39" deep x 63" high
