Manufacturer: Thermotron
Model: ATS-320-V-10-705-LN2
Year: 1999
Width: 25.00
Depth: 15.00
Height: 15.00
Max. Temp C: 200
Stock # 51449
1 / 3
Click to zoom in
1 / 3
For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Location: Lincolnshire, IL
Contact Peter Sonneborn
Phone Number: 847...> Show Phone Number 847-276-2761
Let the seller know you found their listing on Surplus Record!
Description
New - 1999

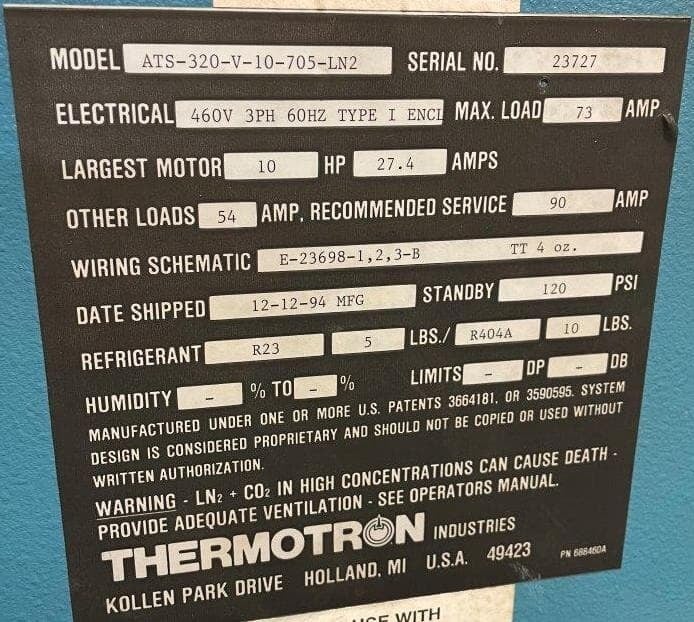

Serial No. 23727
SPECIFICATIONS:
Product Carrier Dimensions............25"W x 15"D x 15"H
Temperature Range:
- Hot Chamber............+60°C to +200°C
- Cold Chamber............-73°C to +177°C
Performance To:
- MIL-STD 883 1010.7 Test Load (-65C to 150C): 30 lbs
- MIL-STD 202, Method 107G and Many Other Automotive and Electronic Thermal Shock Specifications.
Maximum Loading (Mechanical Refrigeration):
-55C to 85C: 80 lbs
-65C to 150C: 35 lbs
Maximum Loading (LN2 Assist):
-65C to 200C: 80 lbs
Electrical Requirements............460V/60Hz/3Ph/121A
Machine dimensions - approximate............75"W x 73"D x 105"H
Weight - approximate............3,800 Lbs.
EQUIPPED WITH:
- Thermotron 8825 Programmable Touch Screen Controller
- Fully Programmable, Monitor or Control Chamber from any Computer, Tablet or Smart Phone
- Optional LN2 Assist for Lower Temperature Range: -73C to 177C in Cold/Hot Chamber and 60C to 200C in Hot Zone

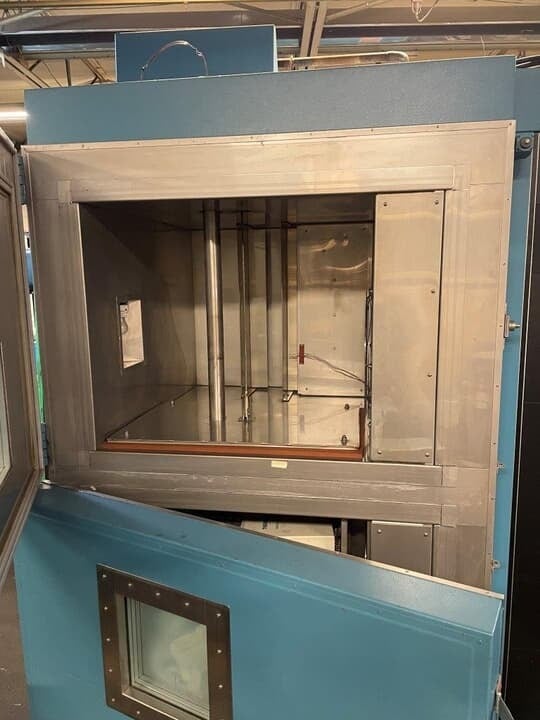

- Stainless Steel Interior
- Refrigeration Service Taps
- Door Safety Interlocks
- Users Manual
*Preliminary specifications, pending confirmation.
Serial No. 23727
SPECIFICATIONS:
Product Carrier Dimensions............25"W x 15"D x 15"H
Temperature Range:
- Hot Chamber............+60°C to +200°C
- Cold Chamber............-73°C to +177°C
Performance To:
- MIL-STD 883 1010.7 Test Load (-65C to 150C): 30 lbs
- MIL-STD 202, Method 107G and Many Other Automotive and Electronic Thermal Shock Specifications.
Maximum Loading (Mechanical Refrigeration):
-55C to 85C: 80 lbs
-65C to 150C: 35 lbs
Maximum Loading (LN2 Assist):
-65C to 200C: 80 lbs
Electrical Requirements............460V/60Hz/3Ph/121A
Machine dimensions - approximate............75"W x 73"D x 105"H
Weight - approximate............3,800 Lbs.
EQUIPPED WITH:
- Thermotron 8825 Programmable Touch Screen Controller
- Fully Programmable, Monitor or Control Chamber from any Computer, Tablet or Smart Phone
- Optional LN2 Assist for Lower Temperature Range: -73C to 177C in Cold/Hot Chamber and 60C to 200C in Hot Zone
- Stainless Steel Interior
- Refrigeration Service Taps
- Door Safety Interlocks
- Users Manual
*Preliminary specifications, pending confirmation.
Get Your Price from Liberty Machinery Co!
