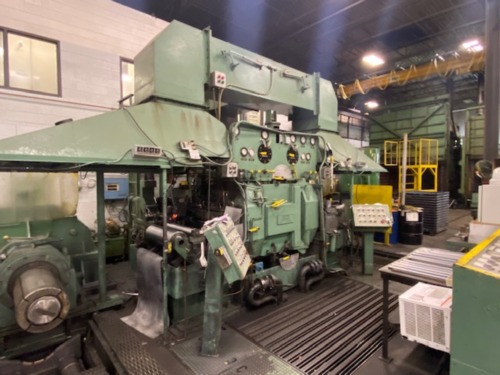

25" Innocenti #ZR23-25, Sendzmir 20 HI Rolling Mill, 1312 FPM, payoff, lateral adj.

Manufacturer: INNOCENTI (ITALY)
Model: ZR23-25

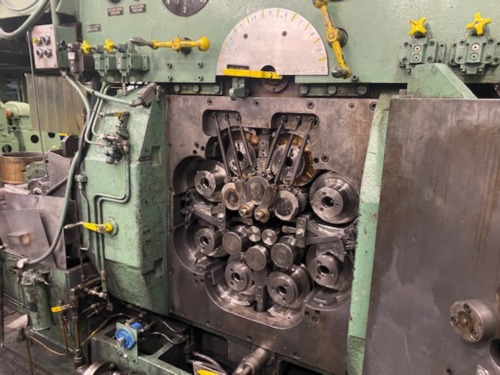

Roll Configuration: 20HI
Materials Rolled: Originally Stainless Steel & High Carbon, Currently,
Aluminum Alloys
Status: Installed
Max Width: 635 mm (25")
Min Width: 318 mm (12.5")
Maximum Mill Speed : 400 mpm (1312 fpm)
Maximum Entry Thickness: 3.0mm (.120")
Minimum Exit Thickness: .075 mm (.003")
Maximum Tension: 10,600 kg (23,360 pounds)
Mill HP 1000 Marelli DC Motor 600 V 575/1000 rpm
Winder HP 800 Marelli DC Motor 500 V 620/1000 rpm
Coolant is mineral oil with a Chemsan DE Filter (1983)
Approximate Coolant Flow : 1800 lpm (550 gpm)

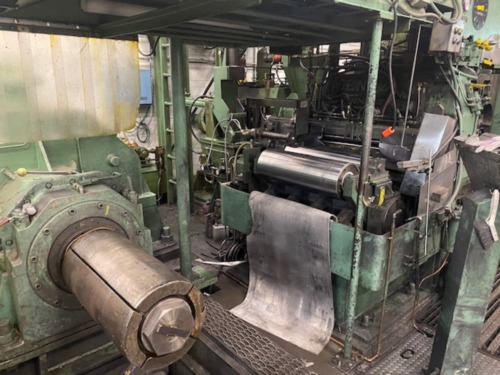

Winders are Collapsible Mandrel Type
ID\OD 400 mm to 1250 mm (15.75" to 48")
Payoff Included for first pass.

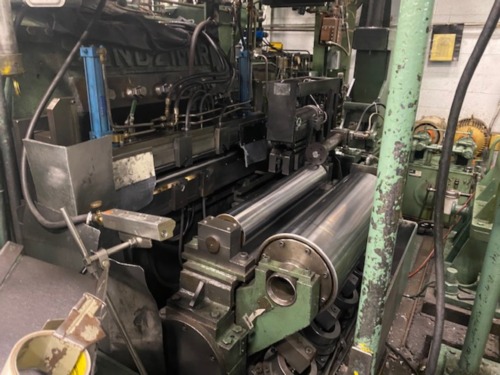

Lateral Adjustment by hydraulic motor
Manual D Saddle Crown Adjustment
Gauges: Vollmer 1076 Contact Gauges with Digital Amplifiers
AGC: Mass Flow, Feed Forward by WF

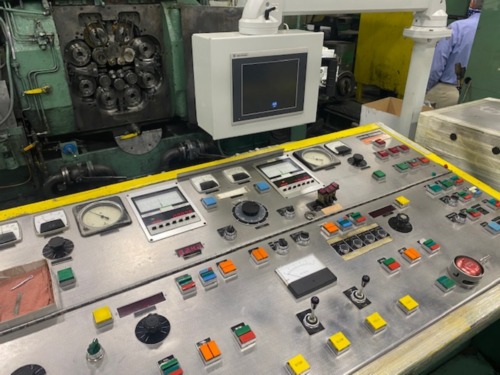

Electrics: Drives and Control by GE in 1983
Spares:
Significant Roll Spares (details on request)
