Description

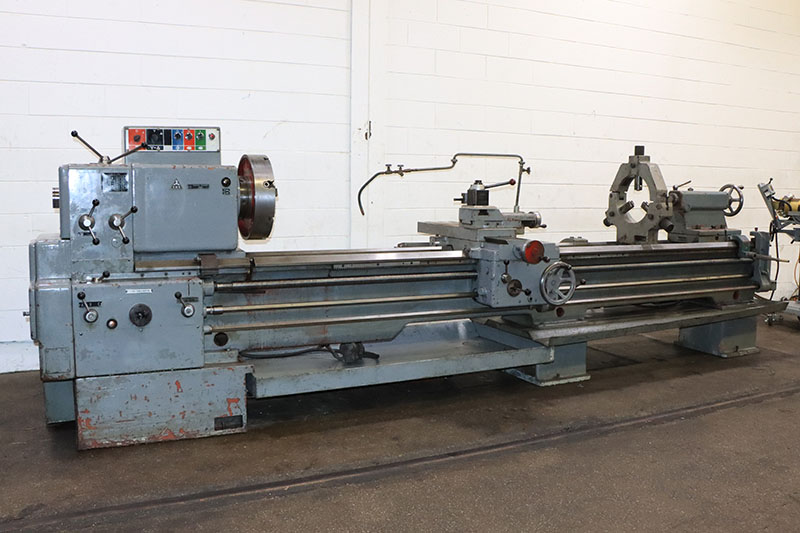

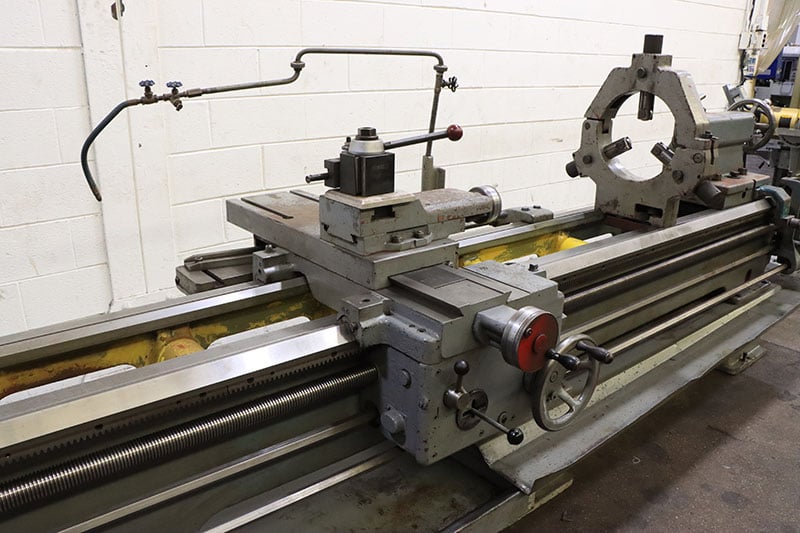

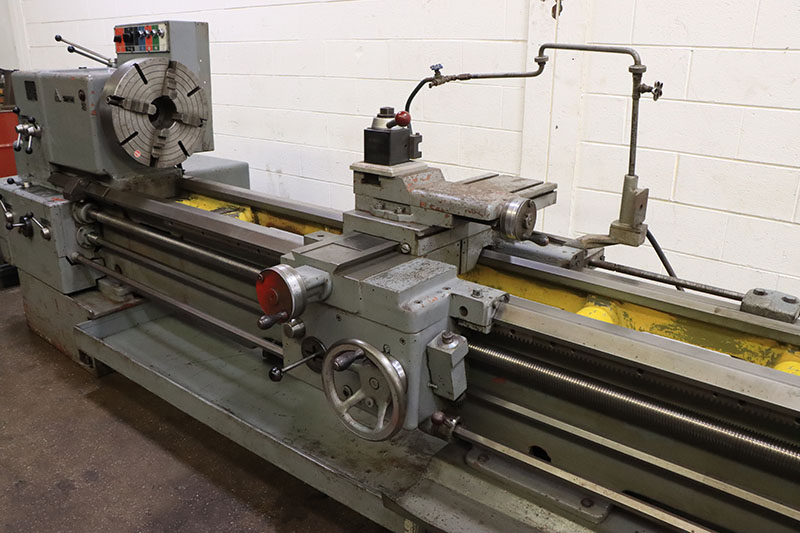

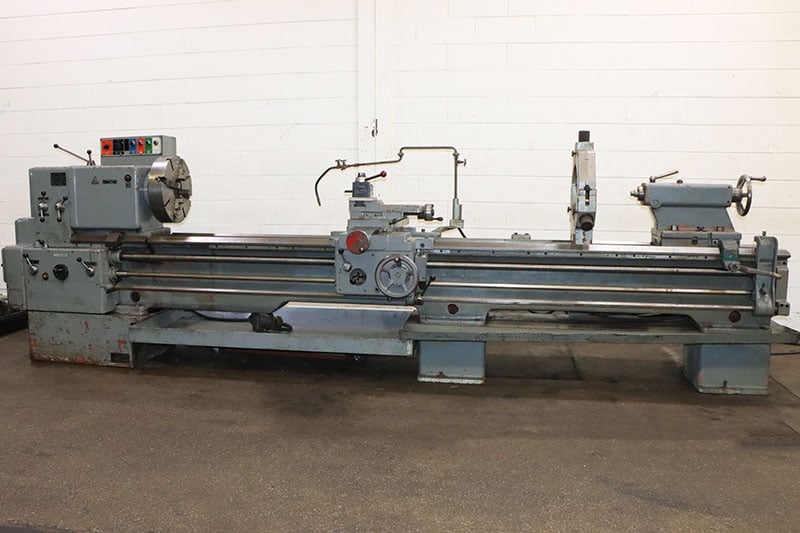

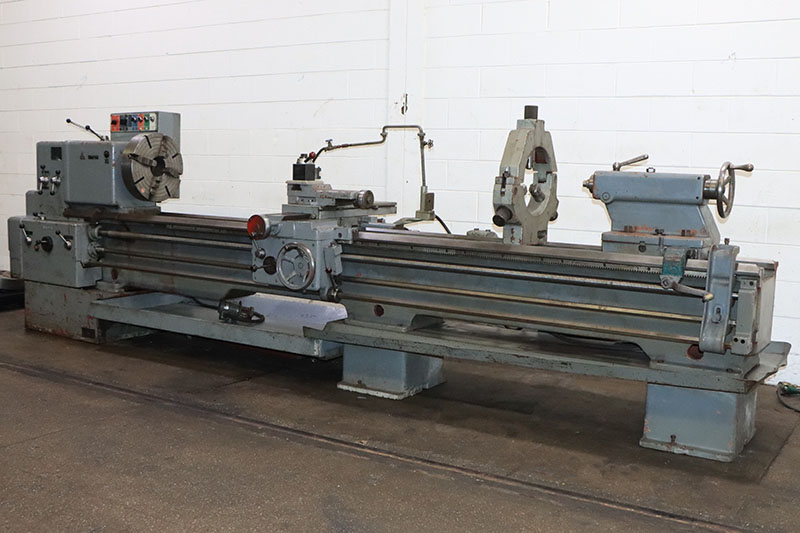

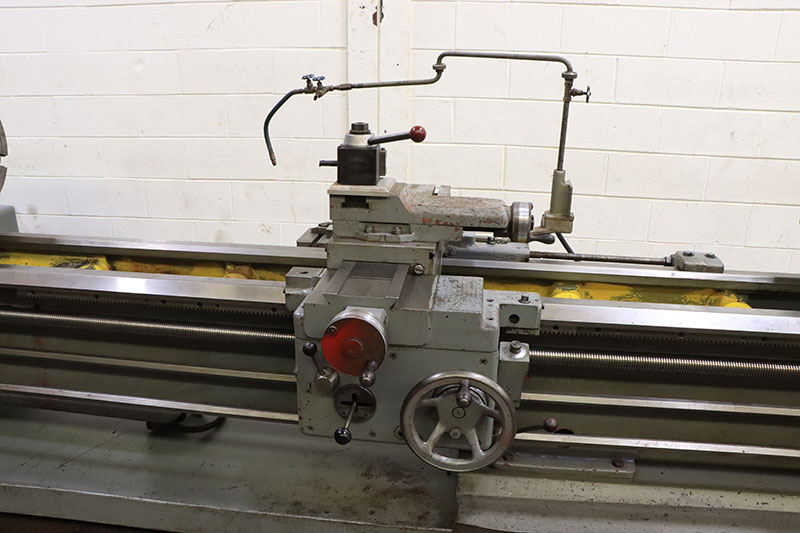

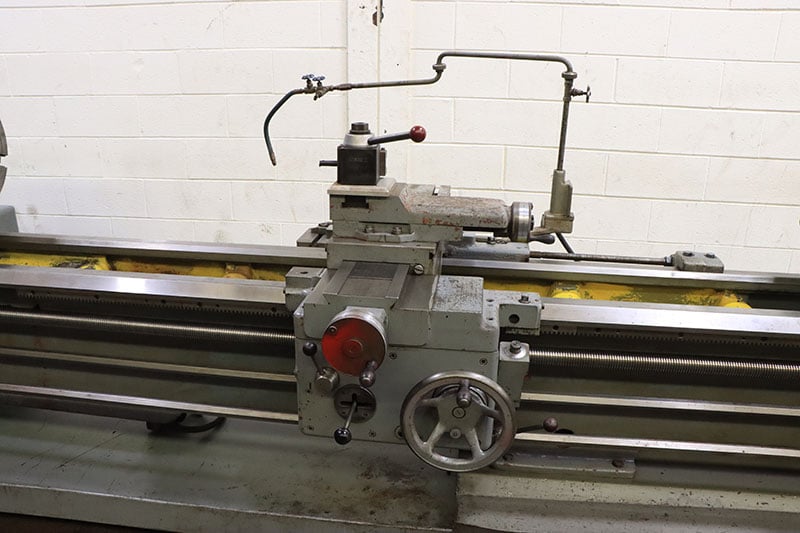

25"/34.5" X 120" TOS REMOVABLE
GAP BED ENGINE LATHE,
MODEL: SN63B, S/N: 063373159, NEW 1973
SPECIFICATIONS:
SWING OVER BED… CARRIAGE WINGS ........... 25"
SWING OVER CROSS SLIDE .................... 13.5"
SWING OVER GAP ............................″4.5"
LENGTH OF GAP FROM SPINDLE NOSE ........... 15.25"
DISTANCE BETWEEN CENTERS .................. 120"
WIDTH OF BED .............................. 18"
SPINDLE SPEEDS (16) ....................... 10 - 1,000 R.P.M.
SPINDLE HOLE .............................. 2.75"
SPINDLE TAPER ............................. D1-8"
HEADSTOCK SPINDLE CENTER TAPER ............ NO. 5 MORSE
FEED CHANGES (38):
LONGITUDINAL ........................ .002 - 0.242 IPR
CROSS ............................... .001 - 0.121 IPR
THREADS-INCH .............................. 1 TO 80 T.P.I.
THREADS-METRIC PITCH ...................... 0.5 - 4.0 MM
TAILSTOCK SPINDLE DIAMETER ................″.5"
TAILSTOCK SPINDLE TRAVEL .................. 9.5"
TAILSTOCK SPINDLE CENTER TAPER ............ NO. 5 MORSE
APPROXIMATE DIMENSIONS .................... 200" x 60" x 62"
APPROXIMATE WEIGHT ........................ 10,500 LBS.
EQUIPPED WITH:
- REMOVABLE GAP BED
- HARDENED AND GROUND BEDWAYS
- QUICK CHANGE GEARBOX WITH INCH/METRIC THREADING CAPABILITY
- TAPER TURNING ATTACHMENT
-″-JAW ROHM CHUCK
- 4-JAW ROHM CHUCK
- FACEPLATE
- FOLLOW REST
- 12" DIAMETER CAPACITY THREE POINT ROLLER-TYPE STEADY REST
- QUICK CHANGE TOOLPOST WITH TWO HOLDERS
- MICROMETER CARRIAGE STOP
- THREADING DIAL
- REMOVABLE CHIP PAN
- 1 HORSE POWER RAPID TRAVERSE MOTOR
- 10 HORSE POWER MAIN DRIVE MOTOR AND ELECTRICAL CONTROLS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION:… ****… EXCELLENT… ****
Get Your Price from Machinery Values Inc!
Buyers Who Viewed This Listing Also Viewed:
24" x 160" TOS #SN63B, Engine Lathe, 3" Spindle Bore, 14" Swing over cross-slide, 24' L x 6' H x 50" deep
Category: Sliding & Gap Bed Lathes
Seller: MachineCo
Location: Montreal, QC
Mfr: Tos
Model: SN63B
“Normal wear from regular use, ways protected with synthetic paste during storage!”, 24″ x 160″ TOS Engine Lathe, power feeds, Mod. SN63B, Swing………………………….24 in., Center dist………………….160″ ...more

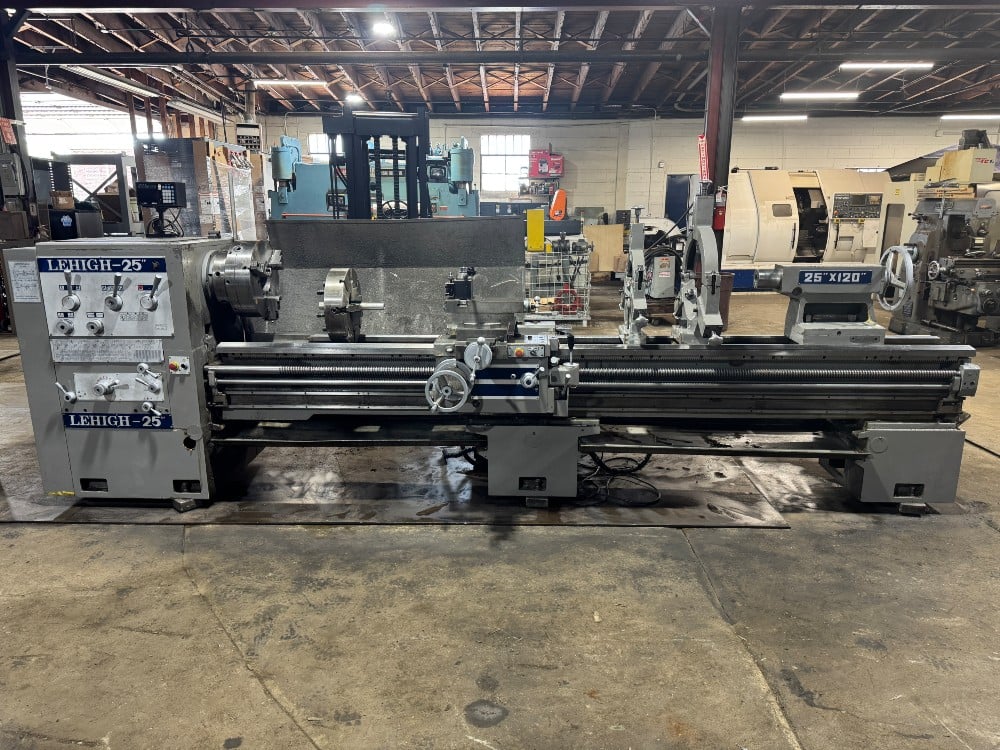

25"/32" x 120" Lehigh #25x120, Gap Bed Engine Lathe, 16.25" bed width, 12" swing over cross slide, 10 HP, 1000 RPM, 16" 3-jaw chuck & 4-jaw chuck, 4.75" bore, 1-Axis digital read out
