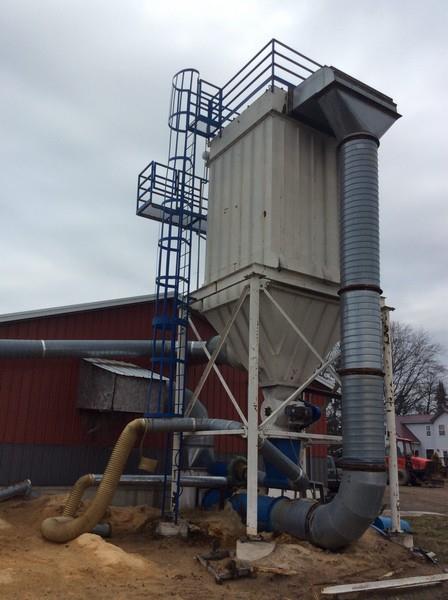

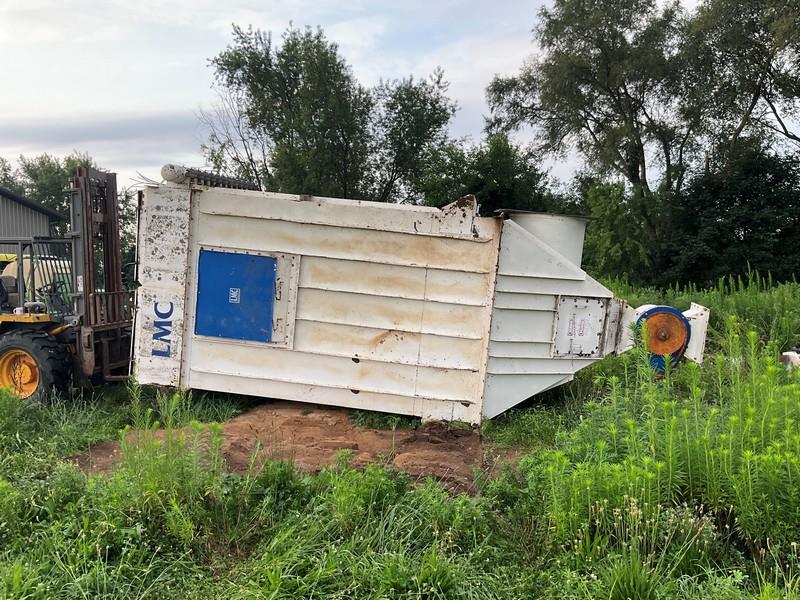

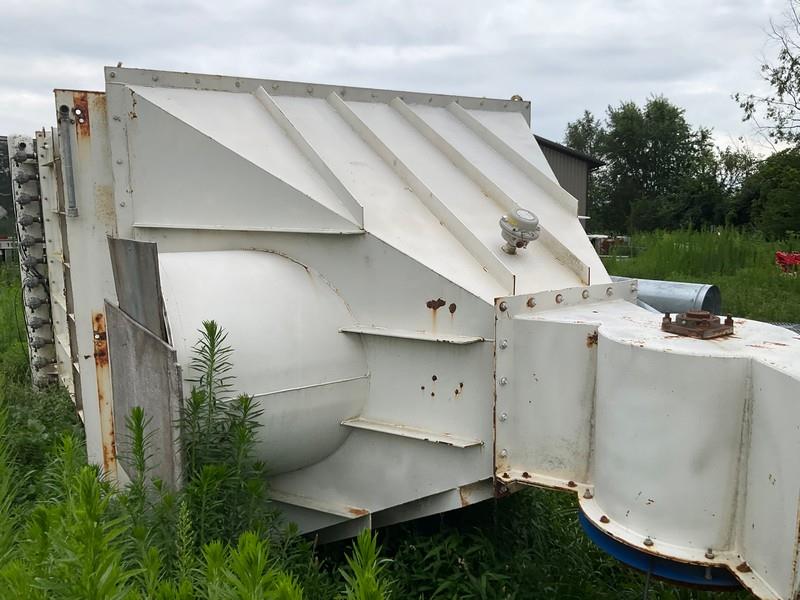

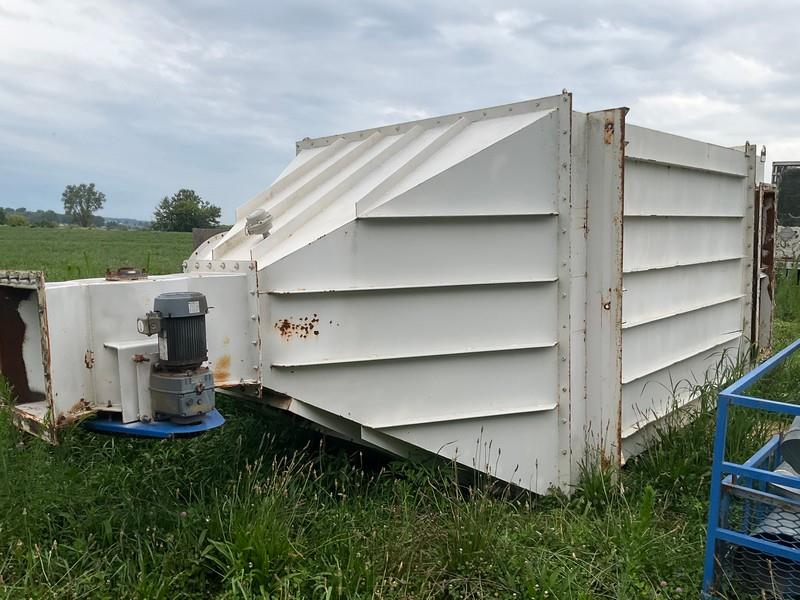

24,000 cfm LMC #144-FTD-10, Pulse Jet Dust Collector w/ Rotary Airlock, 10:1 air-to-cloth ratio, 27" Twin City fan, 12-Ga. Carbon steel construction, 2005

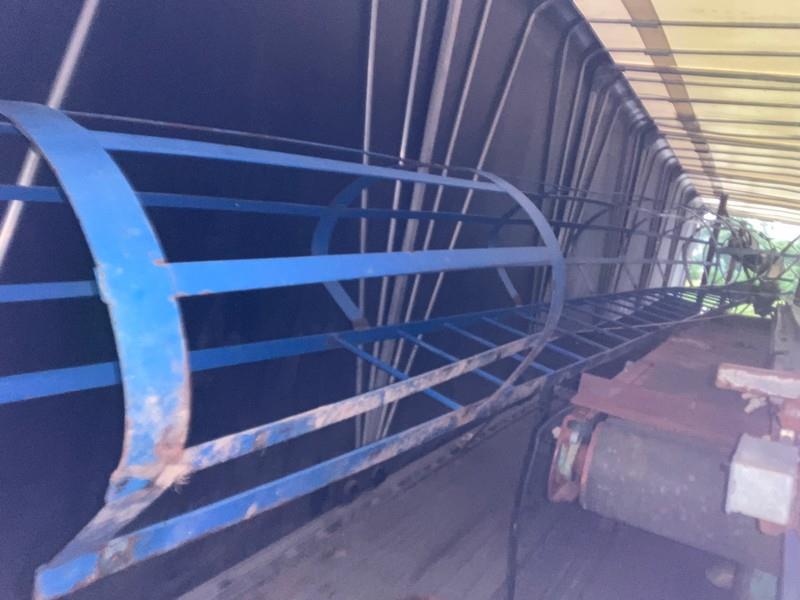

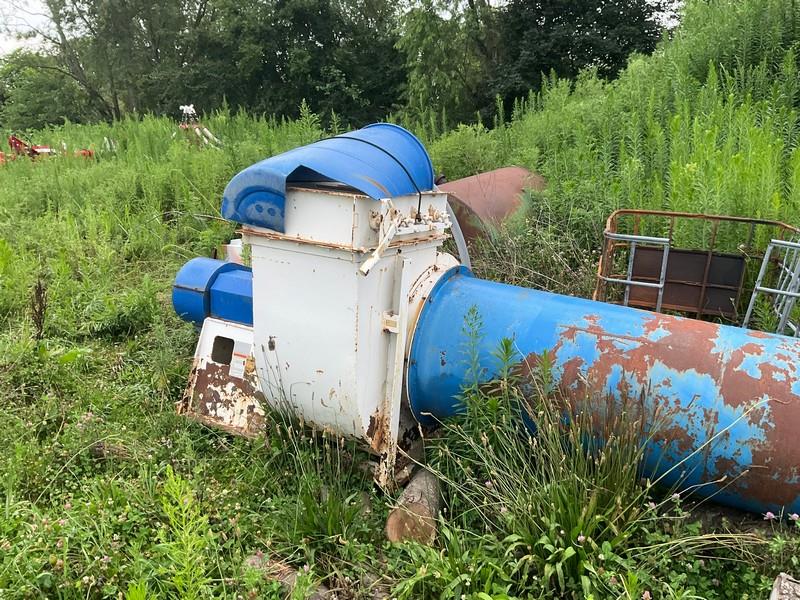

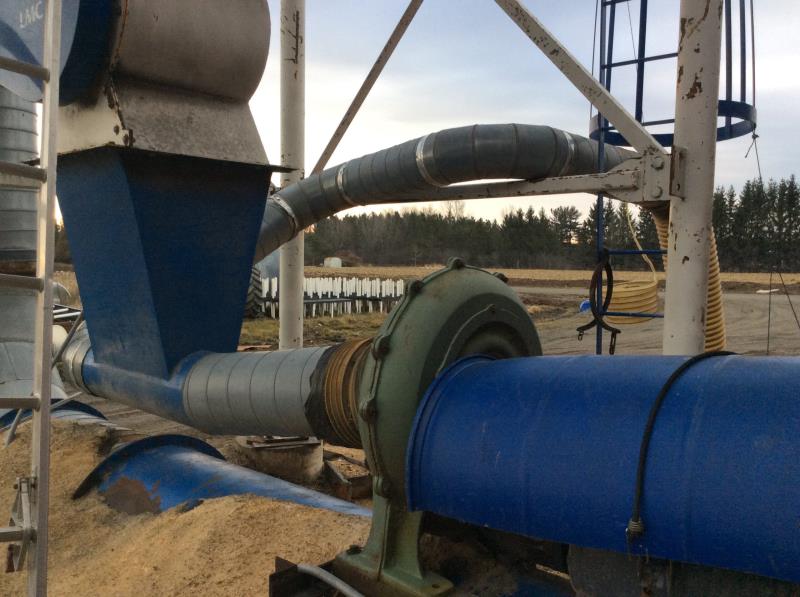

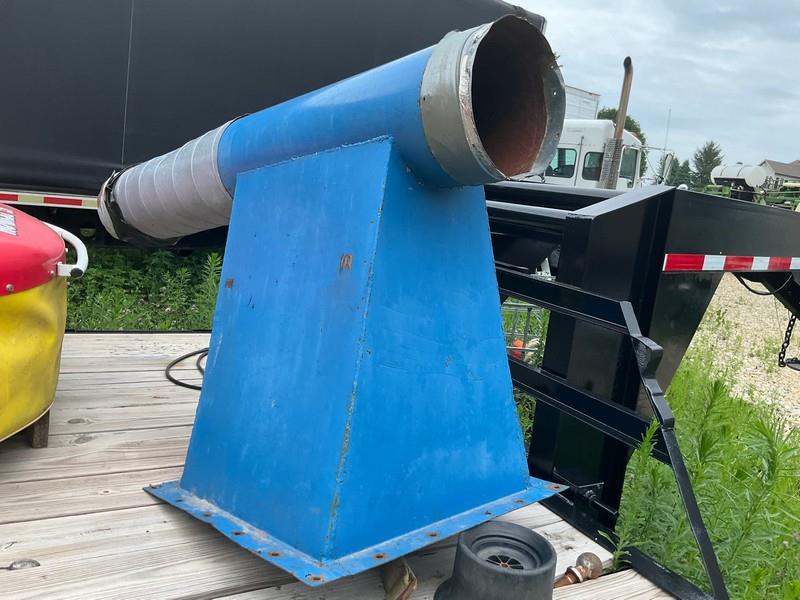

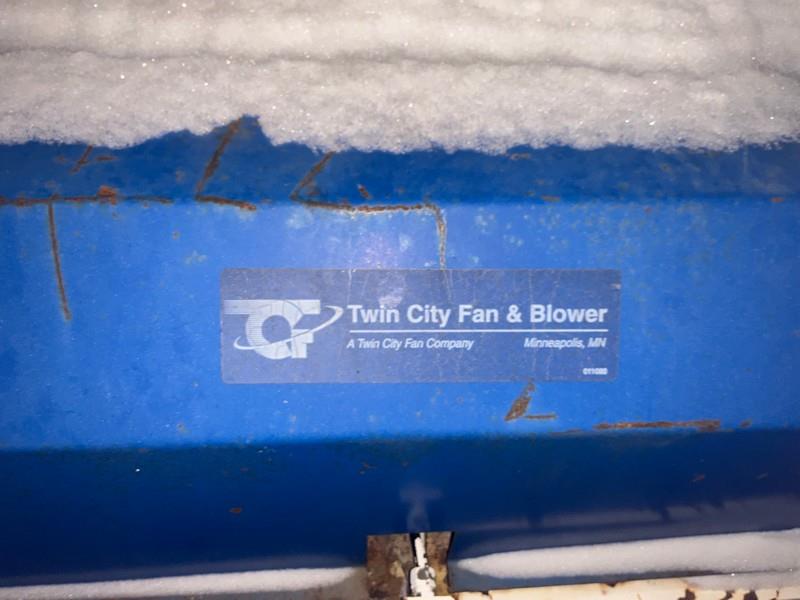

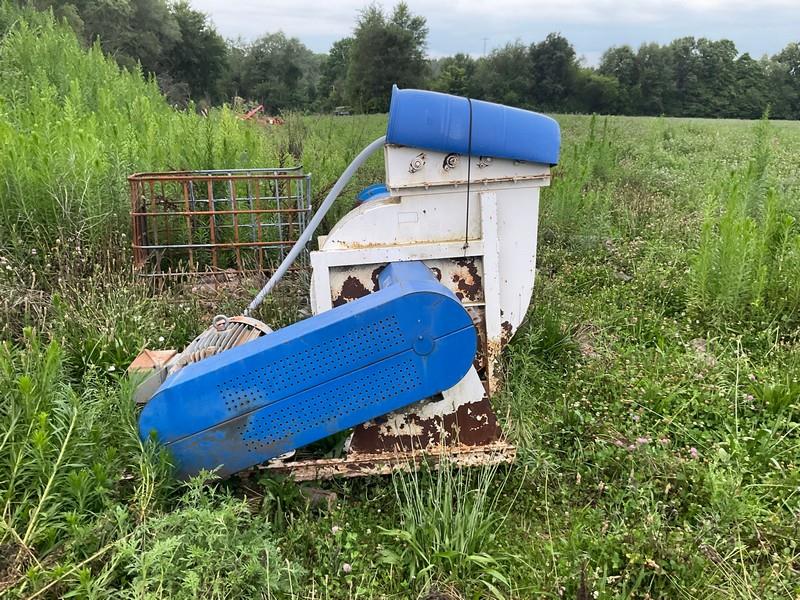

LMC 144FTD10 Pulse Jet Dust Collector with Rotary Airlock.24,000 CFM @ 14" SPWG, 10:1 air-to-cloth ratio, contains (144), 144" long bags @ 120" long (2400) sq feet filter area) pulse jet filter. -- Complete with: 270 BCS-SW TWIN CITY FAN, Air Handling, Class 17 belt-driven by 60 HPTEFC motor. Volume control damper on fan discharge. NOTE: Fan is 27" and undersized for 24K CFM as was running at lower ACR. Filter to fan ducting, support legs, access ladder, explosion relief panel, -- Includes: 110 V Timer board in NEMA-4 enclosure, GOYEN diaphraghm valves, compressed air header with drain, magnehelic differential pressure gauge 0" - 10" SPWG. -- Was installed with approx. 32" trunk line. Flanged inlet, outlet, and body; perimeter railing, galvanized bag cages with Venturi's, 16 oz. singed polyester filter bags. -- Comes with: 60 Hopper, access panel into hopper, gearmotor powered LMC Rotary Air Lock, easy lift lugs. Clean air plenum with top for filter bag service, service platform. Transfer Blower is included -- 12-Ga. carbon steel construction, enclosure rated to 17" SPWG, top access cover with side door for poor weather access. -- Filter Dimensions: 106" x 106" x 335" high. Ready to load on a truck.
