For Sale by Southern Fabricating Mchy Sales
Description

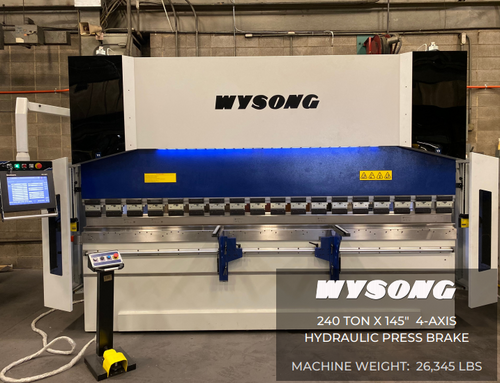

240 Ton X 12' 1” Hydraulic Press Brake with Delem 58T Control, Adjustable

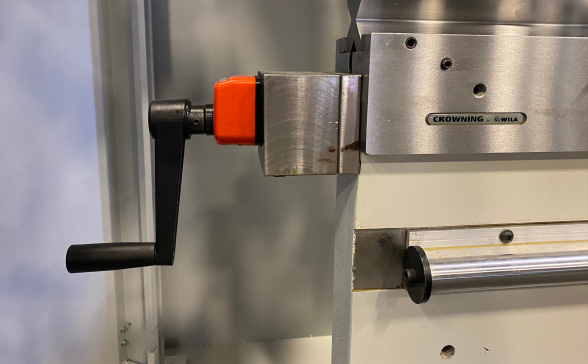

Front Supports, Illuminated Work Area, AKAS II Laser Safety. WILA Manual Crowning, Rigid Rack & Pinion Back Gauge, Full Length Segmented Tooling and Quick Release Punch Clamps.
GENERAL SPECIFICATIONS:
Bending Tonnage: 240
Bending Length: 145"
Distance Between Frames: 126"
Daylight / Stroke / Throat: 18" / 10" / 16"
Approach / Bend Speed: 425 / 24 IPM

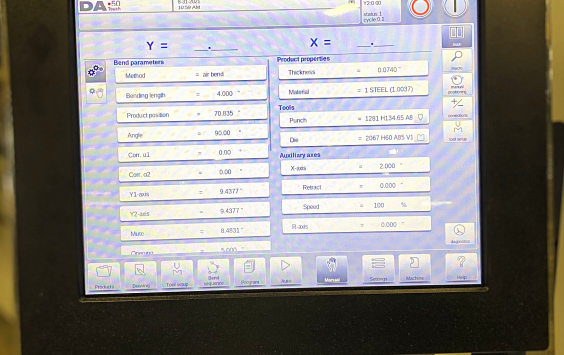

Control: Delem 58T
Table Height: 38"
Main Motor: 24.75 HP
Power: 460V/ 3 Phase/ 60 Hz
Machine Dimensions: 209" X 96" X 120" H
Machine Weight: 26,345 Lbs

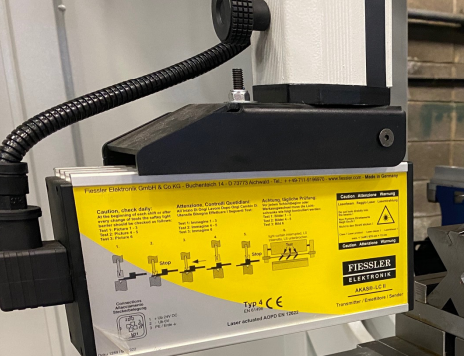

INCLUDES: Delem 58T Control, Adjustable Front Supports, Illuminated Work Area, AKAS
II Laser Safety, WILA Manual Crowning, Rigid Rack & Pinion Back Gauge, Full Length
Segmented Tooling and Quick Release Punch Clamps
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
