Description

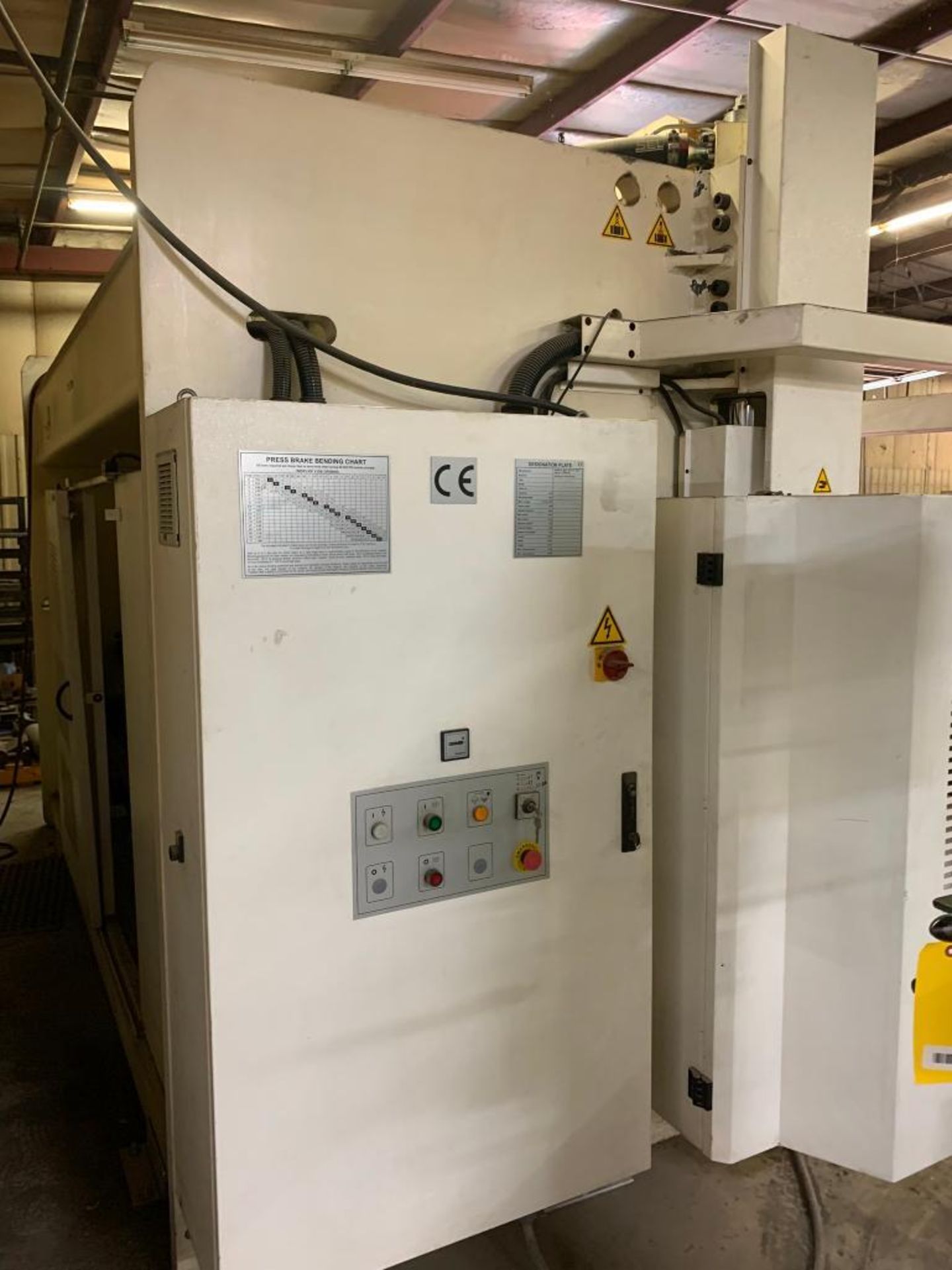

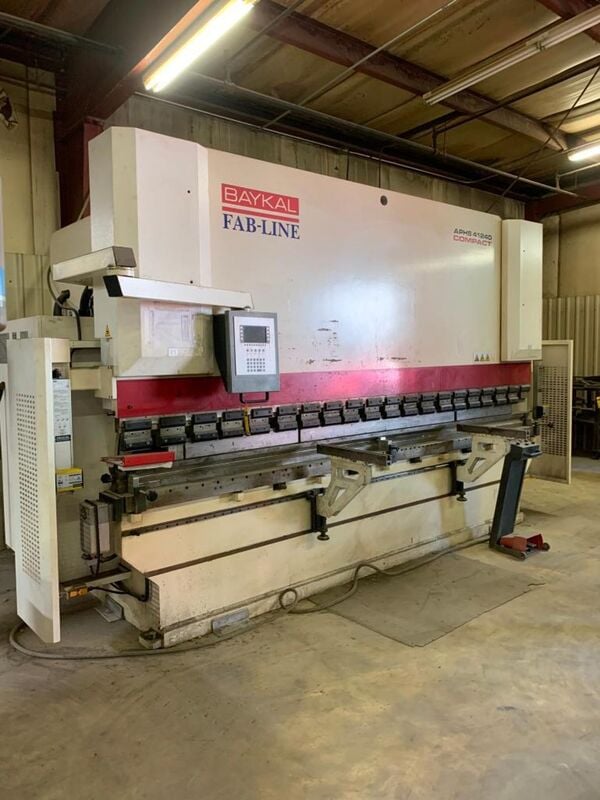

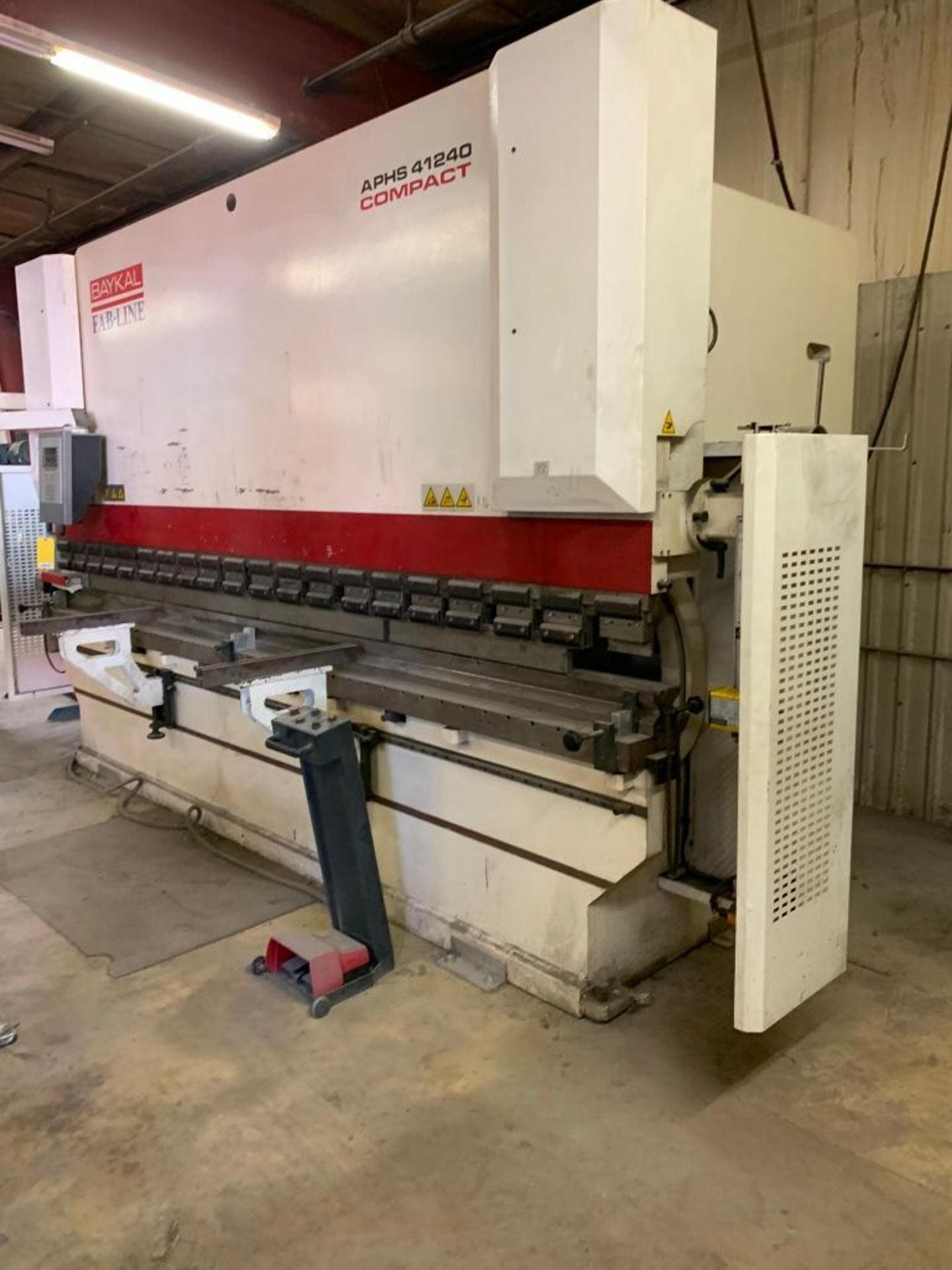

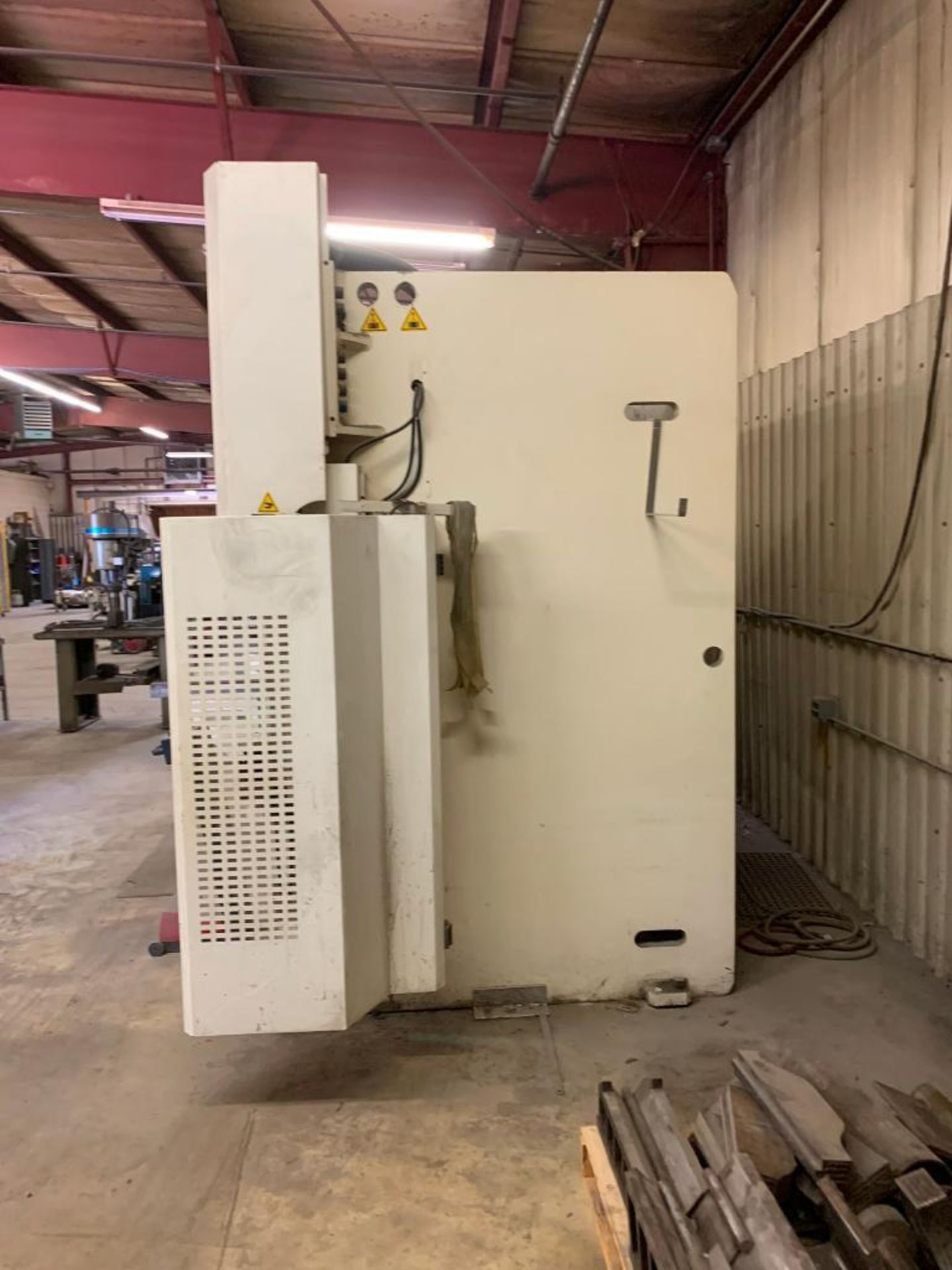

161" FAB-LINE/BAYKAL 240-TON CNC HYDRAULIC PRESS BRAKE New 2015, Serial No 22442, Model APHS41240

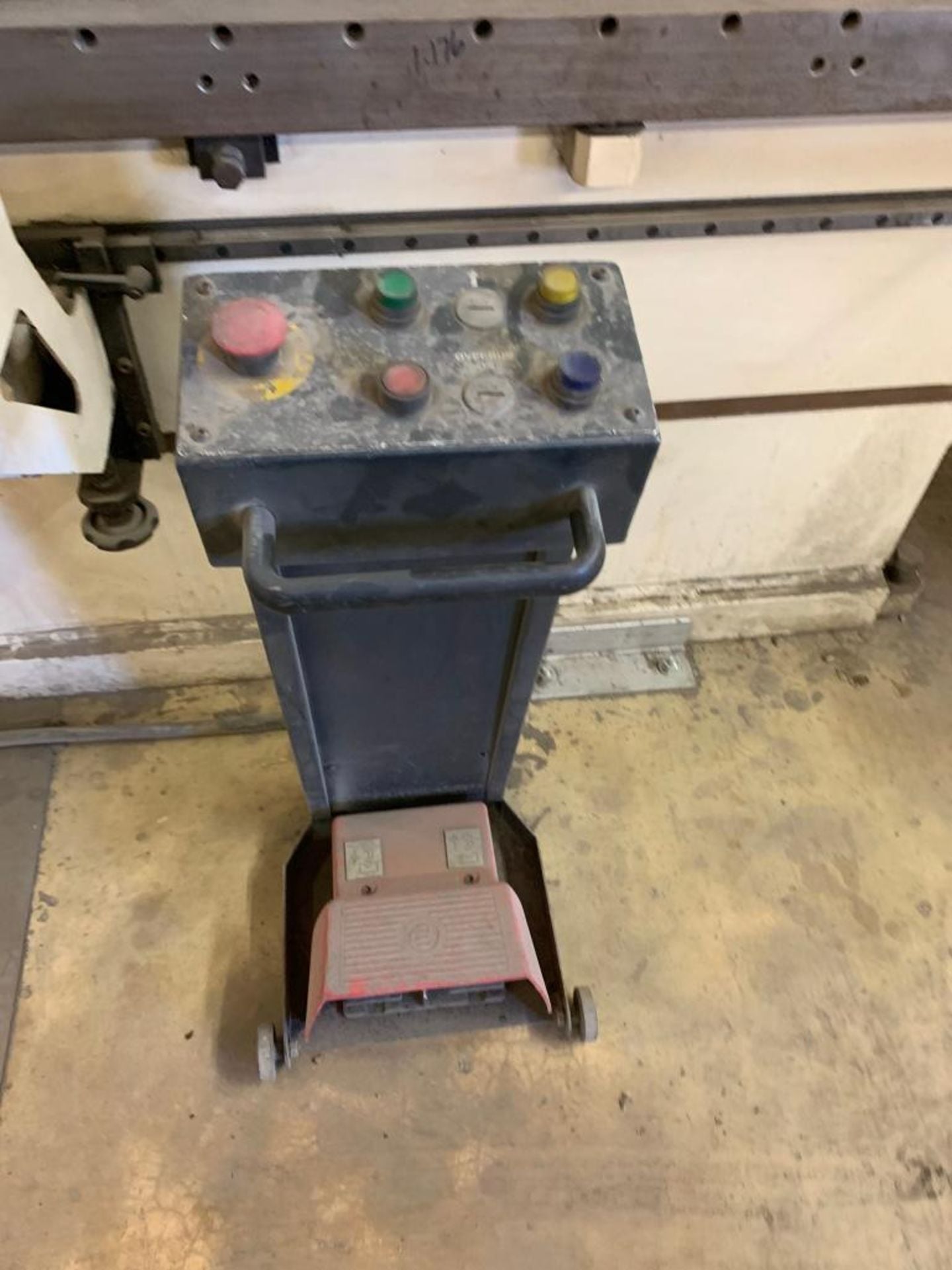

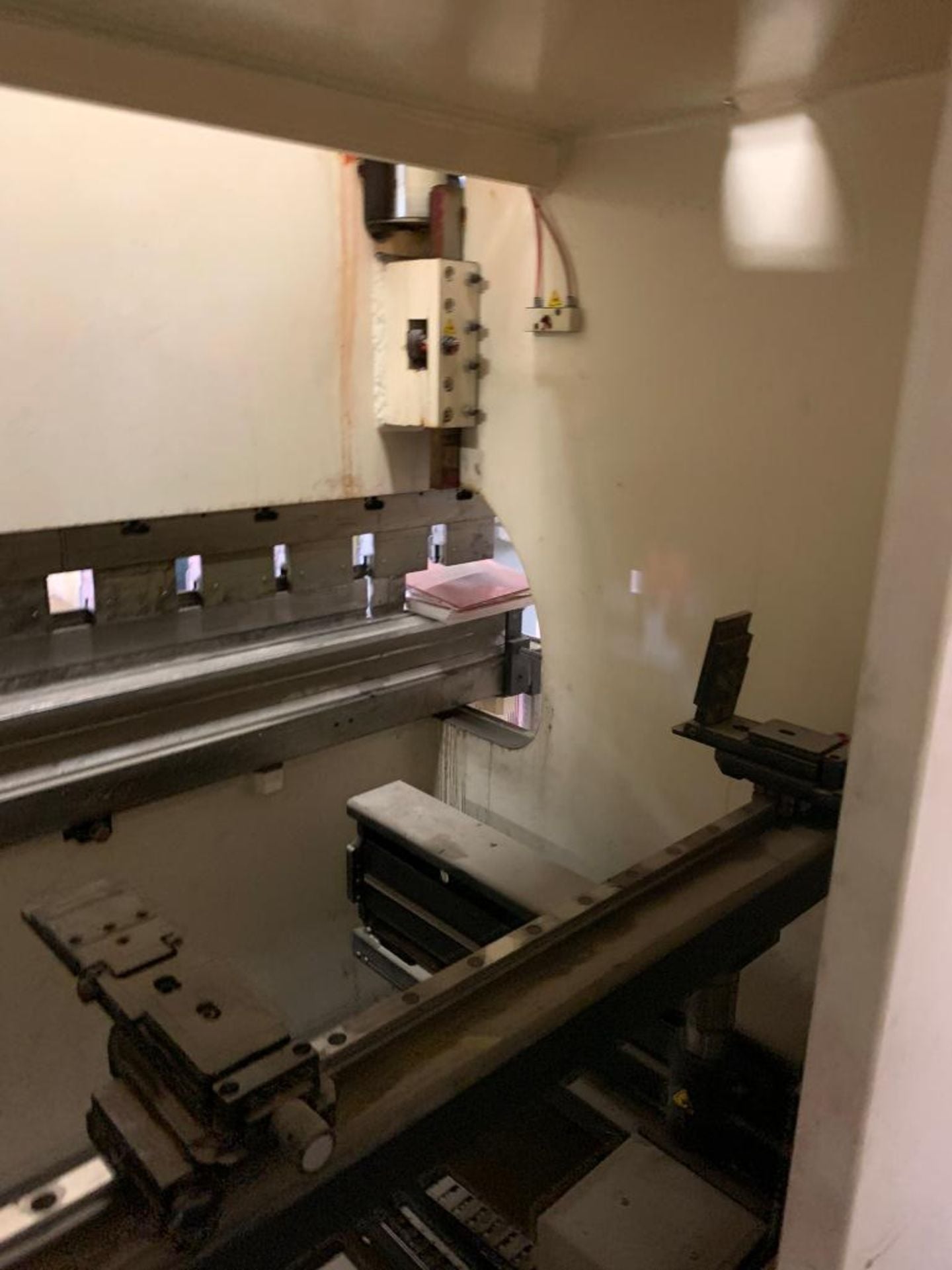

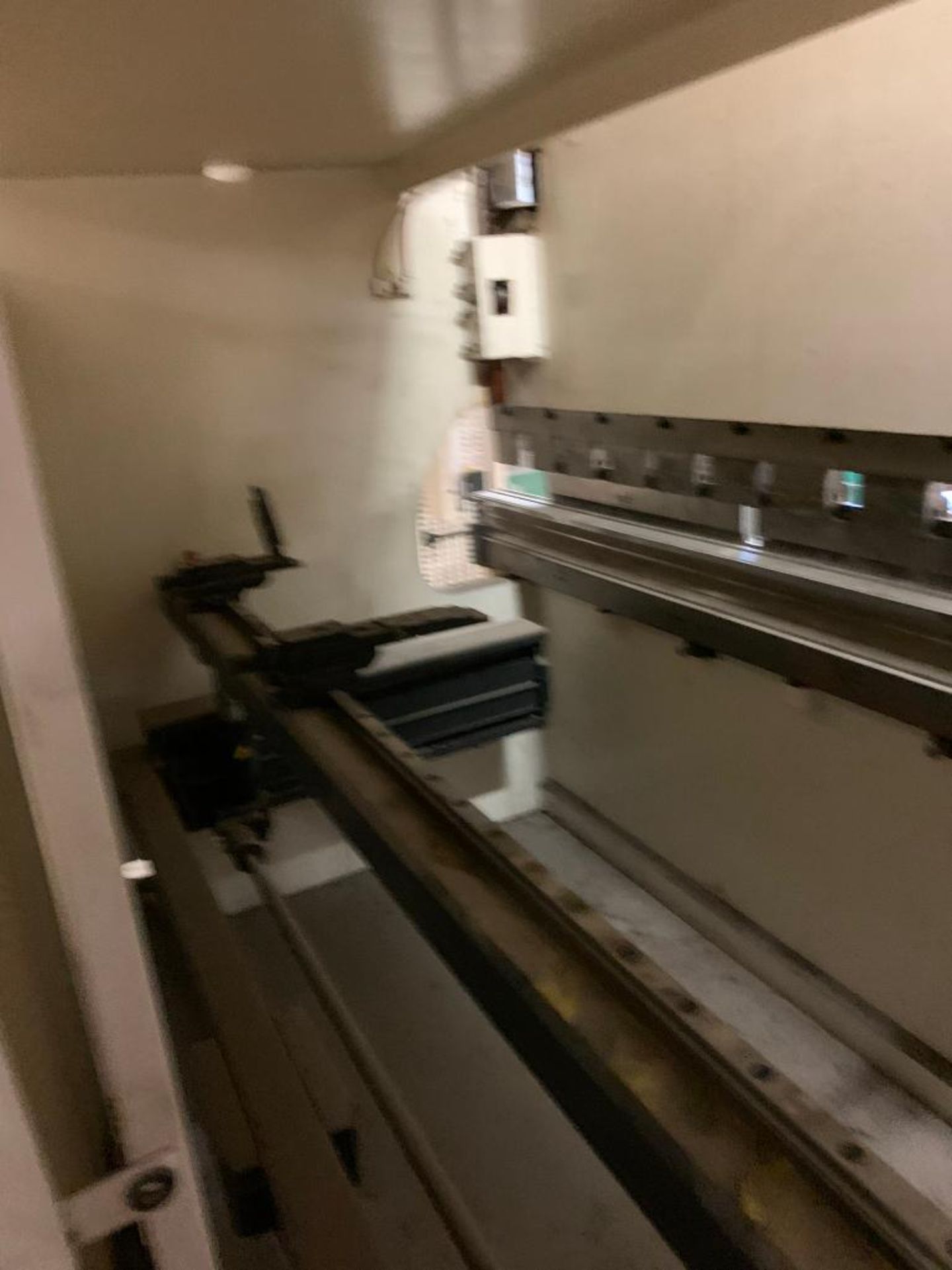

EQUIPPED WITH: Pendant Mounted CNC Control Dual Footswitch Operation Console w/Emergency Stop 2-Axis CNC Back Gauge (X,R) Power Crowning (2) Front Arm Supports Euro-Style Top Clamp Tool Holders Multi-Vee Die Block

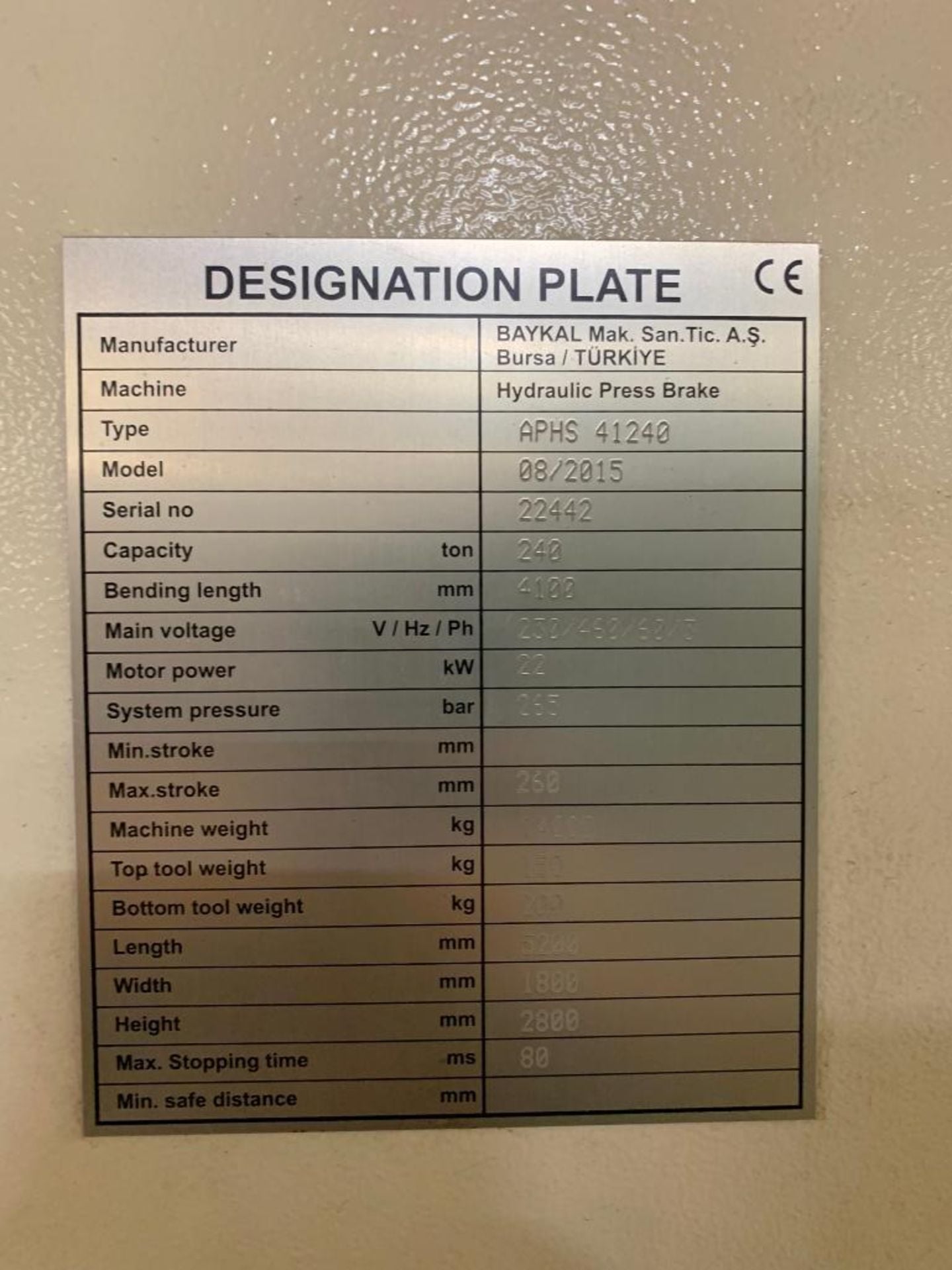

CATALOG SPECIFICATIONS: Tonnage Capacity, Rated 240 TONS 2400 kN Overall Bending Length 161" 4100 MM Distance Between Housings 139.7" 3550 MM Stroke Length, Maximum 10.2" 260 MM Daylight Open Height 20.86" 530 MM Throat Depth 16.1" 410 MM Ram Speed, Approach 5.9 IPS 150 MMPS Ram Speed, Working 0.39 IPS 10 MMPS Ram Speed, Return 3.94 IPS 100 MMPS Top Tool Weight 330 LBS 150 KG Bottom Tool Weight 440 LBS 200 KG Motor Horsepower/KW Rating 29.5 HP 22 KW Overall Dimensions, Length 205" 5200 MM Overall Dimensions, Width 71" 1800 MM Overall Height 110" 2800 MM Weight Approximately 30800 LBS 1400 KGS
SERIAL. 22409, MODEL. 240/14 PPI-MNC 90, CAPACITY. 240 TON, LENGTH OF BED & RAM. 168", UPDATED CNC CONTROL. PC CONTROLS PC800, CONTROL AXIS. Y1, Y2, X, R, BACKGAUGE. FULL CNC.
