24" x 5" Stamco, Slitting Line, 20000 lb. capacity, 28" face Mandrel Uncoiler, 20" diameter x 32" face Drum Recoiler, 20 HP, 230/460 V

SPECIFICATIONS:
MFG: STAMCO

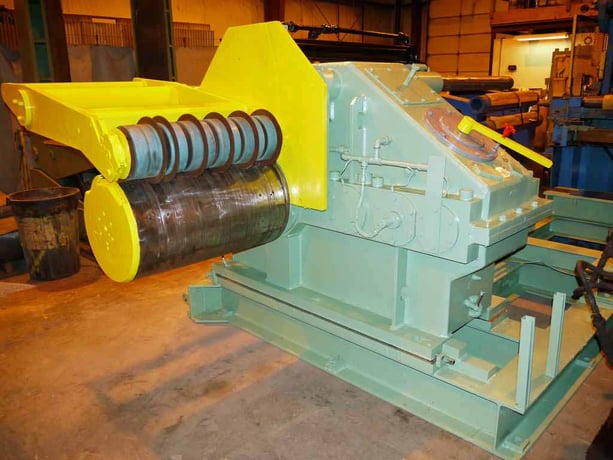

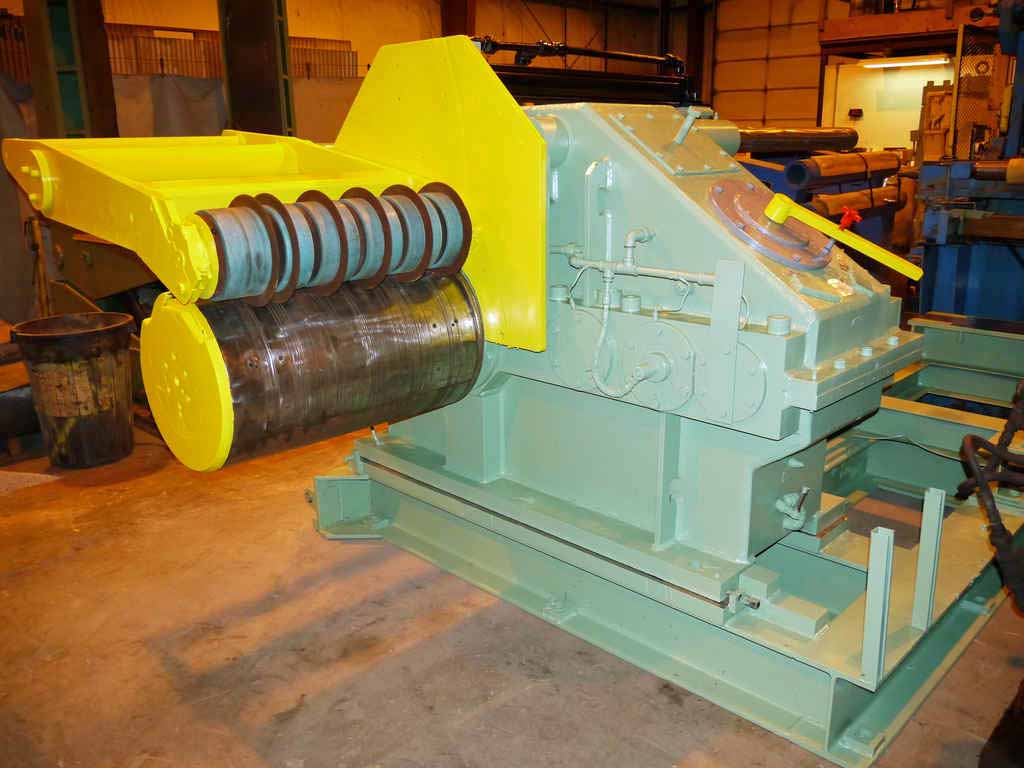

-Uncoiler:
 Hydraulic Expansion
 16" - 20" Coil I.D. range
 4 Segment Mandrel
 28" Mandrel face width
 Powered Holddown Roll
 AC Motor thru Reducer
 Sliding Base
 2 speed Gearbox
 60 HP GE DC Motor, 500/2000 rpm, 240 v
 Hyd power unit for edge control
-Entry Coil Flattener:
 5 Work Rolls, 2 over 3 Rolls
 5" dia. x 30" face rolls
 Top rolls driven
 Entry driven Pinch Rolls
 7.5" dia. x 30" face rolls
 Top Roll rubber covered
 Bottom Roll driven
 7.5 HP AC motor drive, 1760 rpm, 460 v
 Falk reducer w/45.65:1 ratio
 Line speed: 50 fpm
-Entry Crop Shear:
 Hydraulic upcut type
 Entry and Exit passline rolls
 Blade size: 30" x 3" x 1"
 Traversing base by hyd. cylinder
 Overall size: 42" L x 25" W x 60" High
-Driven Pinch Rolls:
 8" Dia. x 30" face width Rolls, rubber covered
 Bottom Roll driven
 Air cylinder loaded
 Entry Side Guides, manual adjustment
 Entry Passline Roll
 Passline: 31"
 15 HP AC motor
 Overall size: 76" L x 36" W x 59" High
-Slitter Head:
 Removable Head
 5" dia. x 30" face arbors
 Double eccentric arbor adjustment
 125 HP GE DC Motor, 650/1900 rpm, 240 v
 Falk reducer w/9.212:1 ratio, rated at 125 HP
-Scrap Winder:
 Production Machinery
 Hydraulic motor driven
 Oscillate wind
 Approx. 17" W x 30" dia. scrap ball capacity
 Manual dump
 Self contained Hyd. Power unit
 20 HP AC motor, 1750 rpm, 230/460 v
 Vickers pump
-Recoiler:
 20" dia. x 32" face Drum
 Hydraulic clamp and expansion
 Hydraulic Pushoff
 Overarm Separator
 2 speed Gearbox w/8.5:1 and 21.3:1 ratios
 75 HP GE DC Motor, 300/1800 rpm, 240 v
 Additional Drums included: 12", 14", 16" and 18" I.D.
-Hydraulic power unit:
 20 HP AC motor, 1750 rpm, 230/460 v
 Vickers pump
 Overall size: 87" L x 42" W x 60" High
No Electrics or tooling.
-Removed and in Storage: Toledo, OH.
