Description
• Equipment:

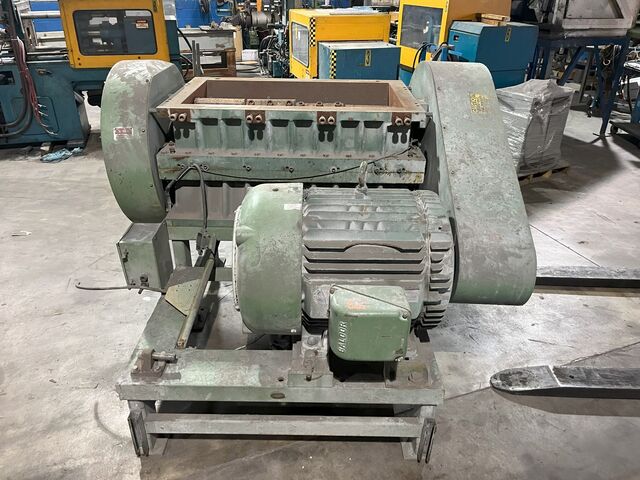

• Manufacturer: Rapid Granulator
• Model: 2442RS
• Type: Granulator
• Condition: Used
• Cutting Chamber:
• Feed Throat: 24 in. x 42 in. (610 mm x 1,066 mm)

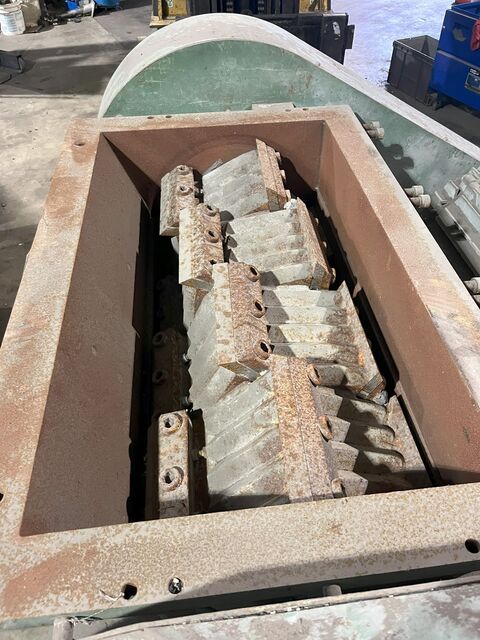

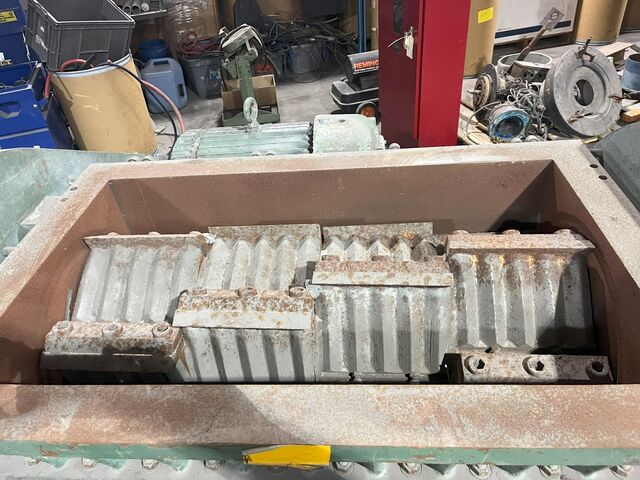

• Rotor Design: Staggered Heavy-Duty "Hog" Style Rotor
• Rotor Knives: 20
• Bed Knives: 3
• Flywheels: Dual High-Inertia Flywheels
• Power & Drive System:
• Main Motor: 100–125 HP (Typically 125 HP)
• Motor Speed: Approximately 1,780 RPM
• Drive Type: Belt Driven
• Current Draw: Approximately 142 Amps @ 460V
• Electrical Requirements:
• Voltage: 230/460 VAC
• Phase: 3-Phase
• Frequency: 60 Hz
• Material Handling:
• Infeed Hopper: Conveyor Style or Closed Blow-In Configuration
• Hopper Actuation: Pneumatic Tilt-Back Air Cylinders
• Discharge Type: Airveyor Evacuation System
• Discharge Outlet: 8–12 in. O.D. Rear or Side Outlet
• Screen Assembly:
• Screen Cradle: Drop-Down Style
• Standard Screen Opening: Approximately 1 in.
• Available Screen Sizes: 3/32 in. to 3 in.
• Screen Thickness: 0.250 in.
• Screen Arc Depth: 7.210 in.
• Construction:
• Base: Heavy-Duty Structural Steel Frame
• Controls: Across-the-Line Starter or Soft-Start Control Panel
• Typical Applications:
• Plastic Scrap
• Plastic Purgings
• Injection Molded Parts
• Blow Molded Parts
• Film & Sheet Scrap
• Industrial Plastic Recycling
• Manufacturer: Rapid Granulator
• Model: 2442RS
• Type: Granulator
• Condition: Used
• Cutting Chamber:
• Feed Throat: 24 in. x 42 in. (610 mm x 1,066 mm)
• Rotor Design: Staggered Heavy-Duty "Hog" Style Rotor
• Rotor Knives: 20
• Bed Knives: 3
• Flywheels: Dual High-Inertia Flywheels
• Power & Drive System:
• Main Motor: 100–125 HP (Typically 125 HP)
• Motor Speed: Approximately 1,780 RPM
• Drive Type: Belt Driven
• Current Draw: Approximately 142 Amps @ 460V
• Electrical Requirements:
• Voltage: 230/460 VAC
• Phase: 3-Phase
• Frequency: 60 Hz
• Material Handling:
• Infeed Hopper: Conveyor Style or Closed Blow-In Configuration
• Hopper Actuation: Pneumatic Tilt-Back Air Cylinders
• Discharge Type: Airveyor Evacuation System
• Discharge Outlet: 8–12 in. O.D. Rear or Side Outlet
• Screen Assembly:
• Screen Cradle: Drop-Down Style
• Standard Screen Opening: Approximately 1 in.
• Available Screen Sizes: 3/32 in. to 3 in.
• Screen Thickness: 0.250 in.
• Screen Arc Depth: 7.210 in.
• Construction:
• Base: Heavy-Duty Structural Steel Frame
• Controls: Across-the-Line Starter or Soft-Start Control Panel
• Typical Applications:
• Plastic Scrap
• Plastic Purgings
• Injection Molded Parts
• Blow Molded Parts
• Film & Sheet Scrap
• Industrial Plastic Recycling
