Description
Ruesch Model: 146
Type: Steel, Stainless Steel and Copper Alloys
Stock Width: 24" (609.6mm) (25" untrimmed - 635mm)
Coil O.D.: Maximum 60" (1524mm)
Entry Coil I.D.: 16" - 20" (406mm - 508mm)
Exit Coil I.D.: 16" and 20" (406mm and 508mm)
Coil Weight: 6,000 lbs. (2720 kg)
Stock Thickness - Maximum:
As per Catalog: 0.125" (3.175mm)
As per Original Order: 0.080" (2.0mm)
As Used - Maximum: 0.093" (2.36mm)
As Used - Minimum: 0.015" (0.3mm)
Direction of Travel: Right to Left
Line Speed based on Recoiler Motor:
at 890 RPM: 112/420 FPM (34/128 M/Min.)
at 1775 RPM: 225/844 FPM (68/257 M/Min.)

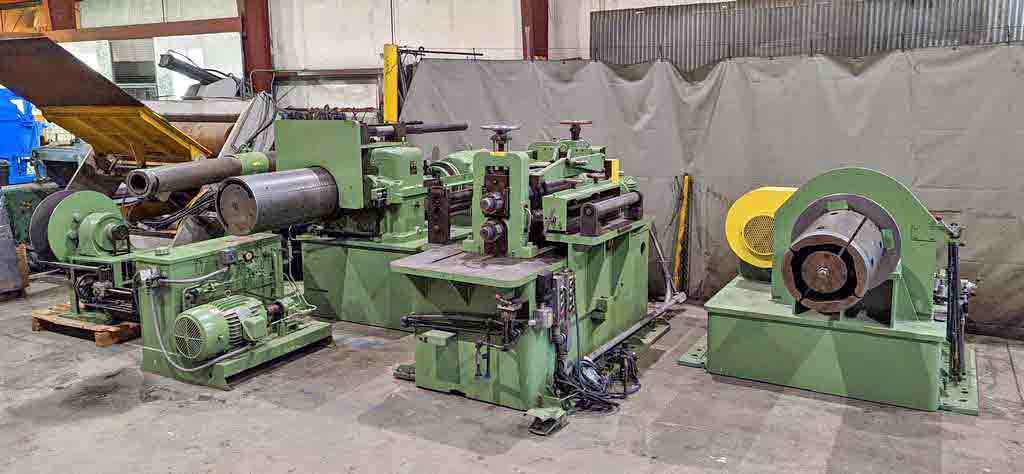

Consisting of the following:
-Uncoiler:
Hydraulic Link-Type Expansion
Mandrel Expansion: 16" - 20" (406.4 - 508mm)
Mandrel Width: 28" (711.2mm)
Non-Driven
Back Tension: Wichita Air Clutch
Air Controls: Numatics Worldwide
Brake Cooling System: Champion Blower Size 1-3/4FC
Passline: 35" from Floor to the center of the Mandrel
Overall Size: 92" L x 66" W x 51" High

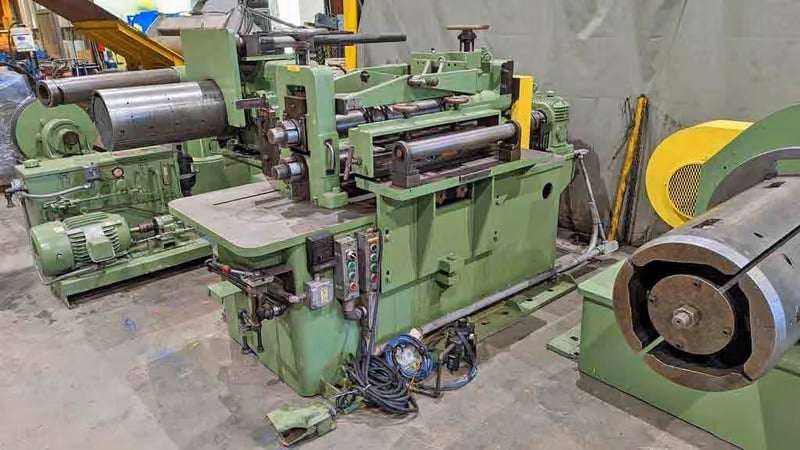

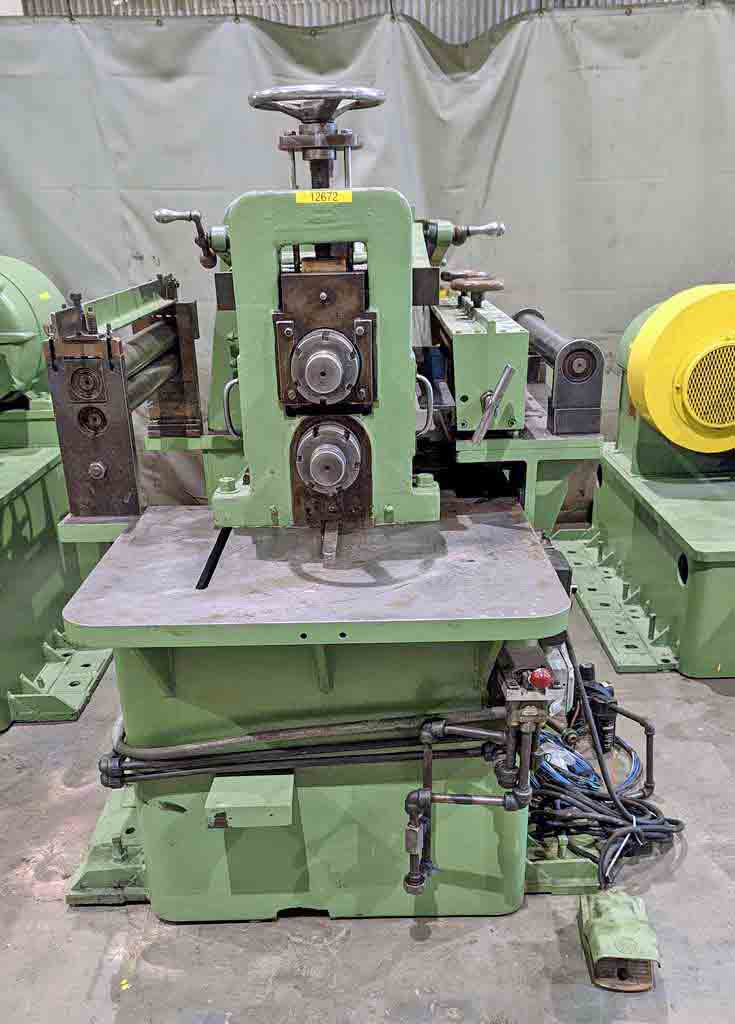

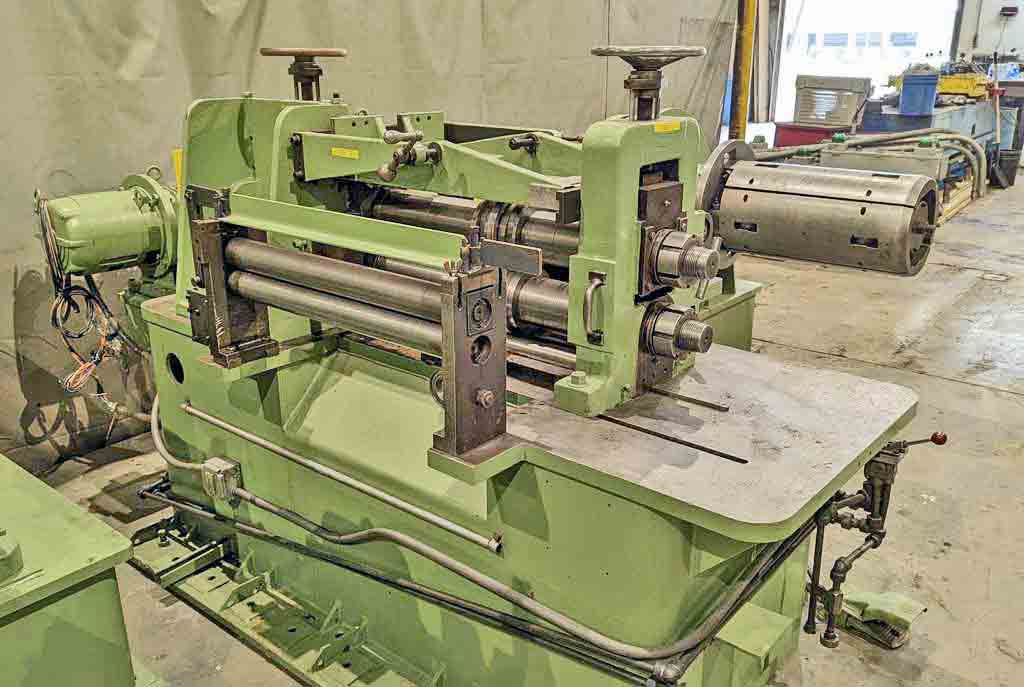

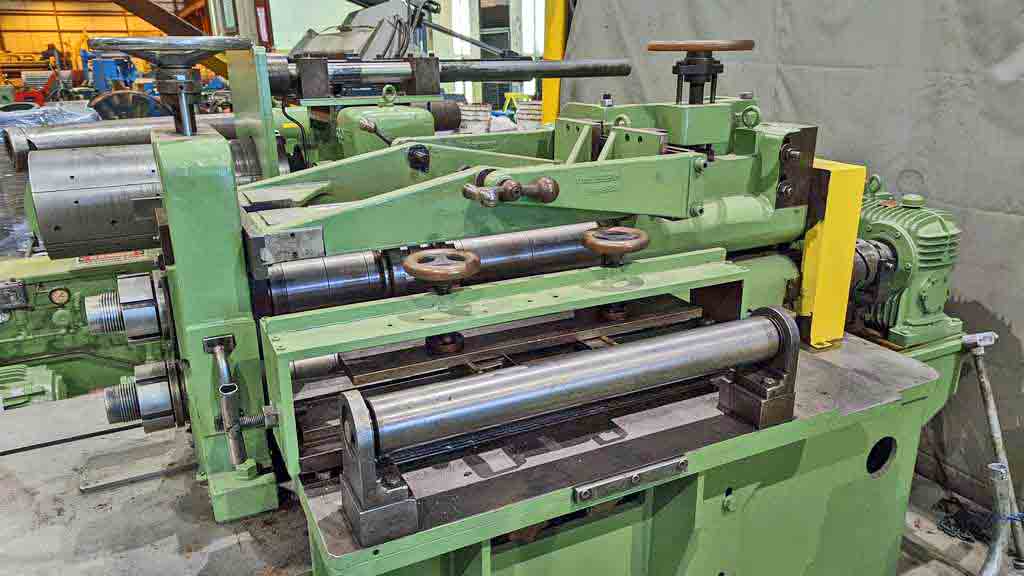

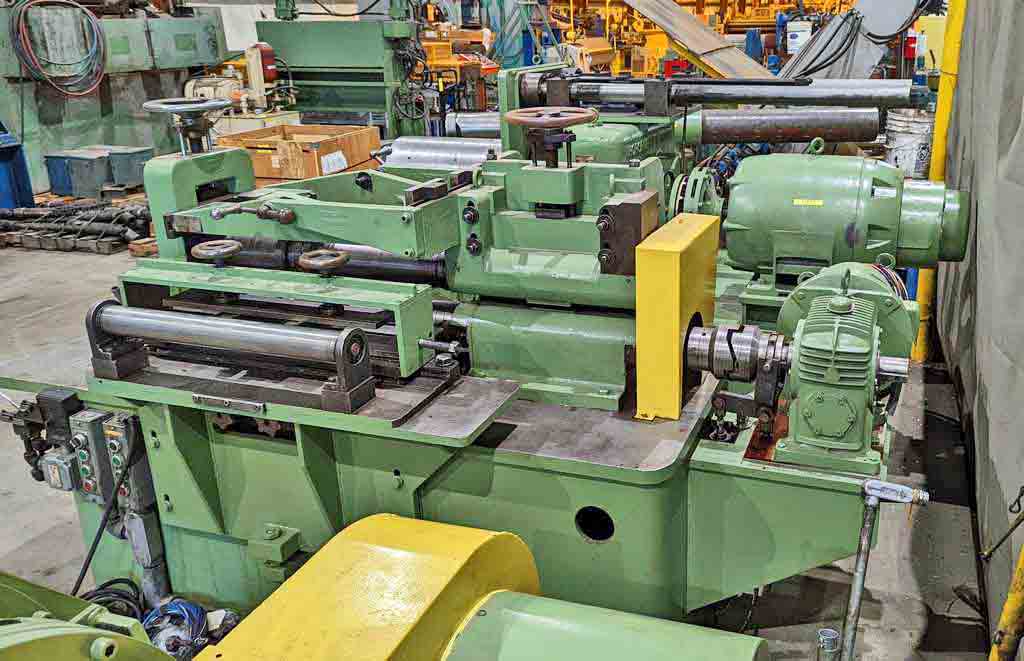

-Slitter Head:
Steel Stripper Ring Assembly
Single Entry Billy Roll: 3.250" (82mm) Dia. x 27" (685mm)
Entry Strip Holddown with Side Guides: Manual Adjustment

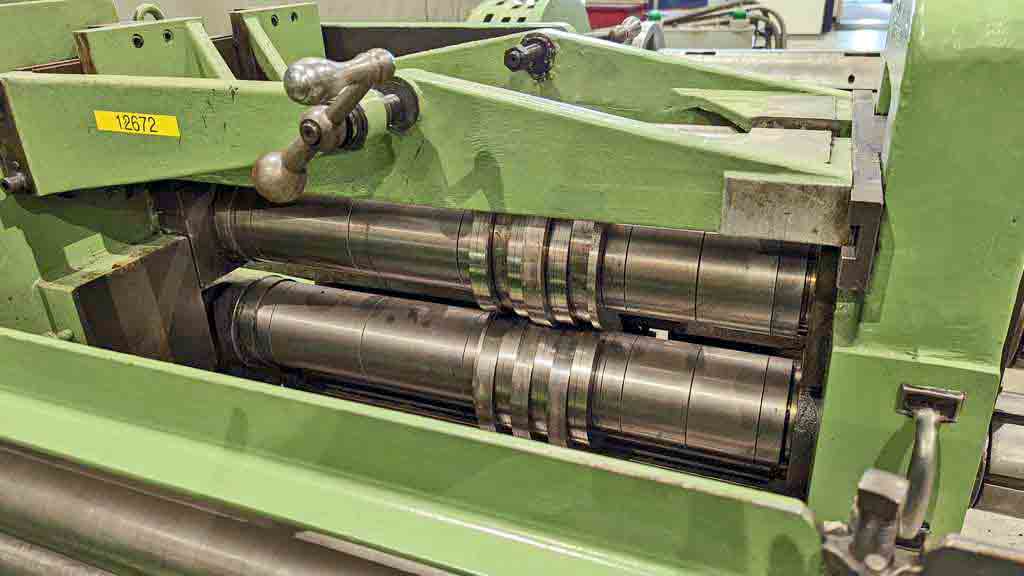

Arbor Size: 4.125" (105mm) Dia. x 27" (685mm) Face Width
Slitter Head Adjustment: Handwheel on both sides
Exit Passline Roll
Threading Motor: 3 HP Louis Allis AC, 1760 RPM, 208-220/440 Volt, 9/4.5 Amps,
Right Angle Reducer with 100:1 ratio
Warner Electric Clutch-Brake Current Control, Model CBC-200
Pushbutton Controls
Spacer O.D.: 6.125" (155mm)
Knife O.D.: 7" (178mm) Maximum, 6" (152mm) Minimum
Stripper Ring: 7.250" (184mm) O.D. x 6.250" (159mm) I.D.
Includes Wooden Stripper Fingers
Passline: 40"
Overall Size: 105" L x 48" W x 62" High
-Scrap Winder:
Maximum Traverse: 8" (203mm)
Coil I.D.: 12" (304.8mm)
Maximum Coil O.D.: 24" (610mm)
Drive Motor: 5/2.5 HP AC, 1740/870 RPM, 460 V, 9.2 Amps,
3 Phase/60 HZ, Louis Allis
Gearbox: Louis Allis s/N 1W-30540, Input RPM 1750, Output RPM 155,
Ratio 11.4:1
Oscillate Wind
Overall Size: 48" L x 28" W x 36" High

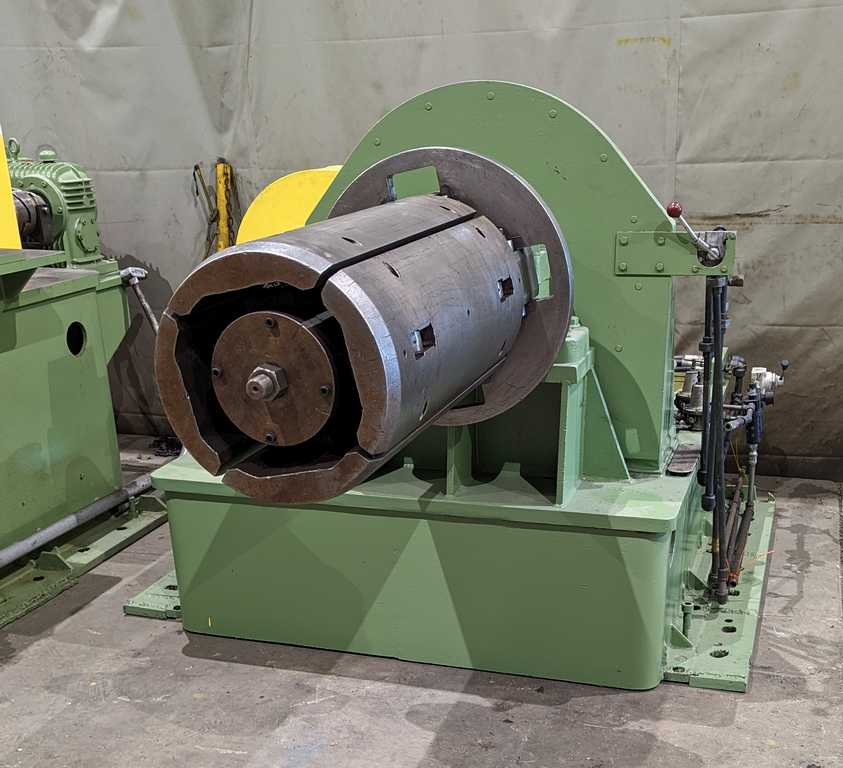

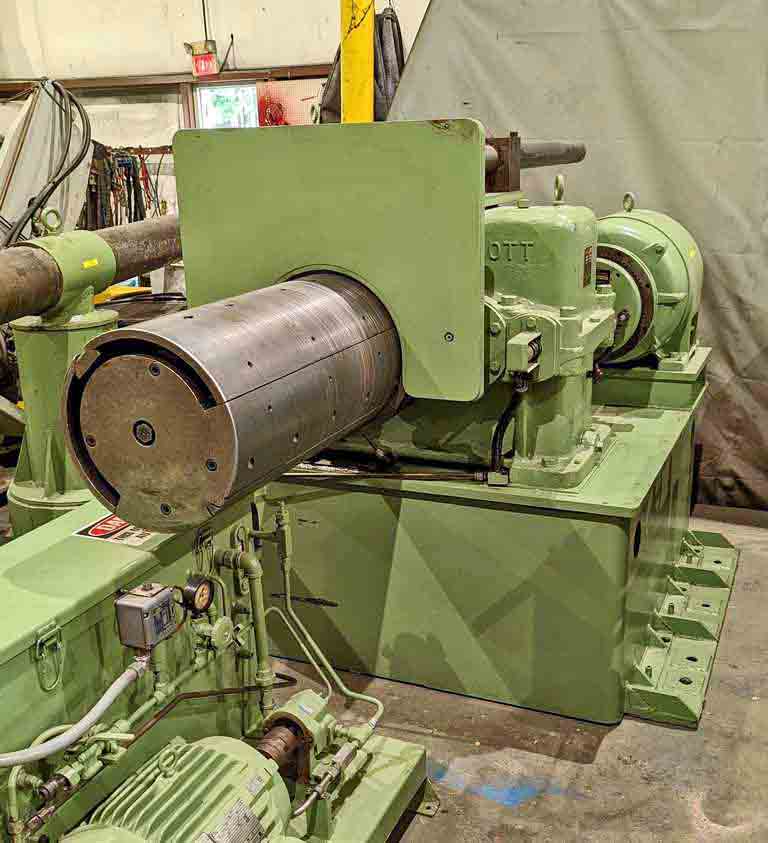

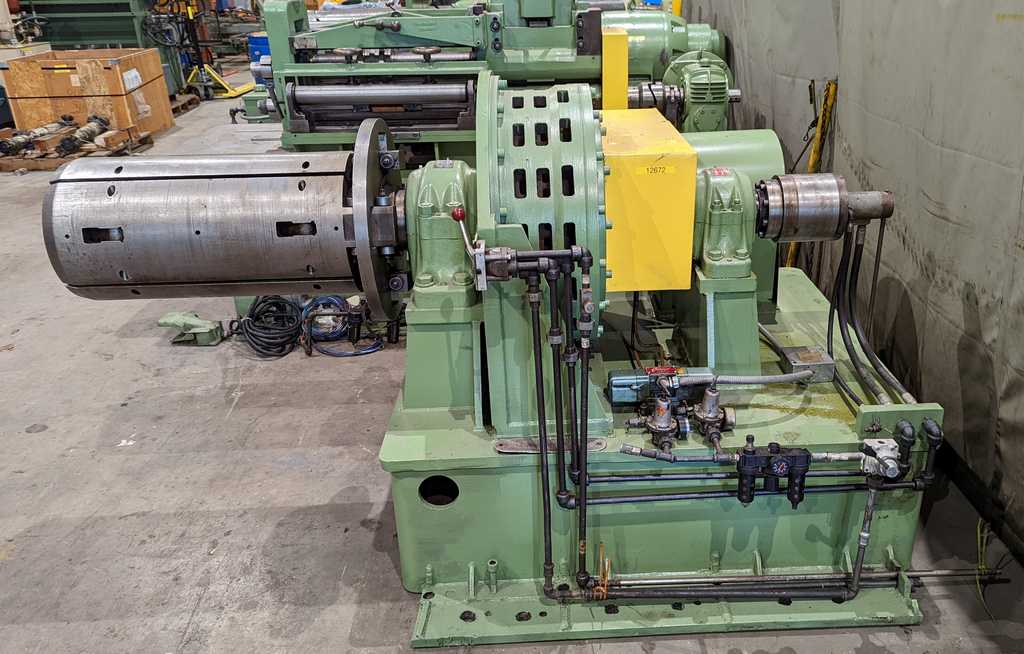

-Recoiler: Ruesch
Type: Expanding Mandrel
Drum Size: 16" (406.4mm) Dia. x 30" (762mm) Face Width
Bolt-On Pads for 20" Dia. (508mm)
Type of Expansion: Hydraulic
Material Slot, No Gripper
Coil Pushoff: Hydraulic
Separator Plates
Horsburgh & Scott Main Gearbox with 32.4:1 ratio
Drive Motor: 50/25 HP, Louis Allis, 890/1775 RPM, 440 V, 64/43 AMPS, 3 PH, 60 HZ,
Type C0GMX, S/N: 3274629001 with Wichita Slip Clutch for Acceleration Control
and Timing Belt Drive.
Air Holding Brake: Louis Allis Magnetic Model 1-042-031-1, Torque 230 ft.
440 Volt, 3 PH, S/N: B-386-463
Passline: 40" from Floor to center of Drum
Overall Size: 106" L x 60" W x 62" High
-Turnstile:
No. of Arms: 2
Arm Size: 8" (203.2mm) Dia. x 39" (990mm) Face
Manual Rotation
Passline: 49" from Floor to top of Arm
Base Plate: 36" x 36"
Overall Size: 98" L x 36" W x 53" High
-Hydraulic Unit:
Drive: 7.50 HP AC, 1180 RPM, 9.2 Amps, 3 PH, 60 Hz.
Oil Temperature Gauge
Oil Reservoir: Approx. 40 Gallon Capacity
Accumulator
Overall Size: 48" L x 34" W x 33" High
-Large Quantity of Tooling
-Spare 16" Dia. Drum for Recoiler
-In Storage: Toledo, OH
