Description

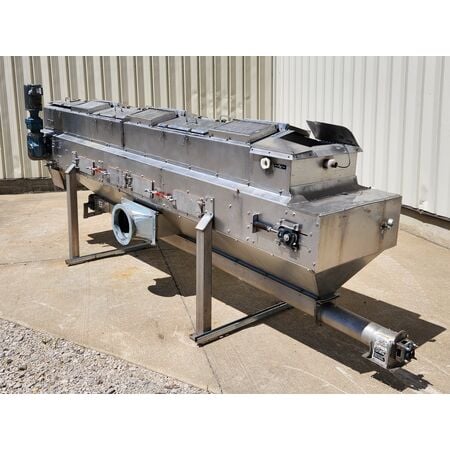

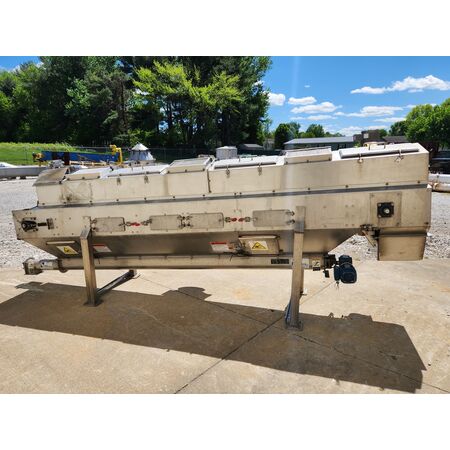

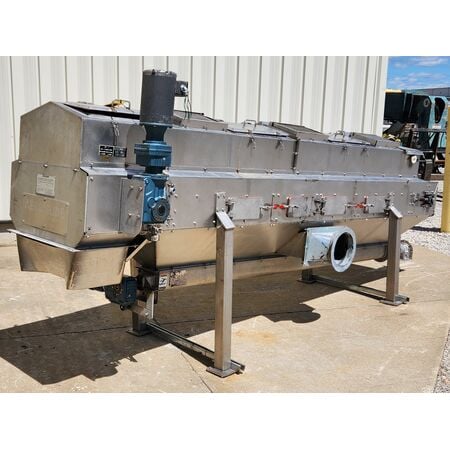

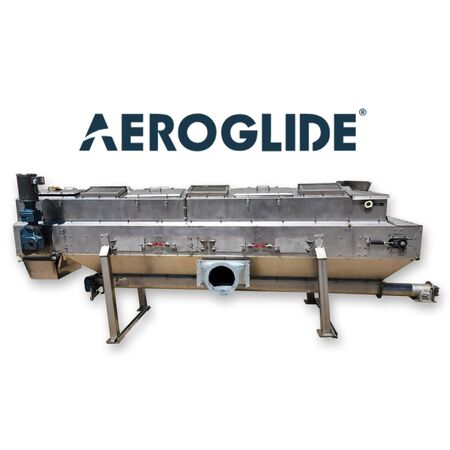

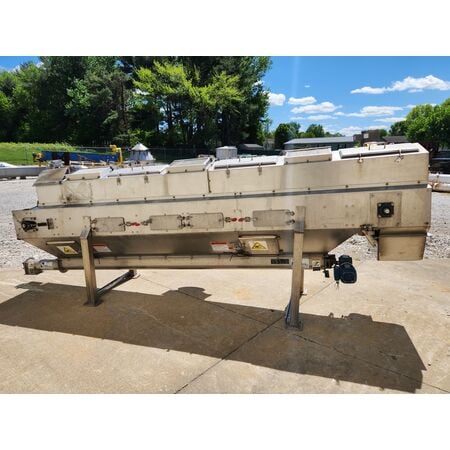

Used Aeroglide C1 24"W Stainless Steel Belt Dryer Cooler with Fines Conveyor Serial No: 08017-02 High-capacity continuous cooling system (non-insulated), 5 incline, stainless steel sanitary construction. Top cover with inspection & diffuser panels and an inlet capacitive sensor. Product Inlet: 12" X 10" (51" above base) Product Discharge: 20" X 13" (26" clearance under) Process Air Inlet: 17.5"W X 7.5" flange Belt: 24" wide X 12' long stainless steel slotted slats, 2" pitch, roller chain glides Product spreader blade (adjustable) and bottom belt scraper. Bottom hopper directs conveyor fines into a 4" X 11'-6" screw conveyor (44.5RPM auger speed). Electrical Service each (belt & auger): 230/460V, 60Hz, 3ph Speed Controllers sold separately.
Used 24 inch Christian Engineering Thermal Hollow Screw Cooler / Dryer Processor, Outer jacketed U-trough, 25" wide, 29" depth, 22'-0" long, bolt-on sectional cover., Approximate 12" elevation drop to the drive end discharge (25"W X 18" flange)., Single hollow-screw auger with 6" ...more
Used Bepex Torus Disc Dryer, model TDUS 26-5, stainless steel construction, approximately 26" diameter x 65" long screw, carbon steel jacketed trough rated 150 psi at 400 F, rotor rated 150 psi at 400 F, chain and sprocket driven less chain, full stainless steel cover, side end discharge with chute, jacket certified ...more
ITEM# – JMI18850, The Bepex Solidaire (Model SJ 30-14) has a flexible design for continuously processing solids (powders, polymers & pigments) in chemical or plastics industries. The Solidaire housing is 30″ in diameter and a length of 208″ with a jacketed shell (hot oil). It is fitted with a ...more
PART OF COMPLETE LINE 5H1360A, I J White Systems (9)-tier, stainless steel, spiral, descending, ambient air cooling system with number of product per hour – depending on materials, application, belt width and speed. All stainless steel contact parts. 30" wide total, 28" wide usable, 1" x 1" ...more
Used Bethlehem Porcupine processor, model 1P3012JTC, carbon steel construction, 30" diameter x 12' long rotor rated 150 psi, 142 sq ft surface area on rotor, shell rated atm at 375 f, carbon steel jacket rated 150 psi at 375 f, 66 sq ft surface area on jacket, packing gland shaft seals, full cover with 15" and ...more
