Description

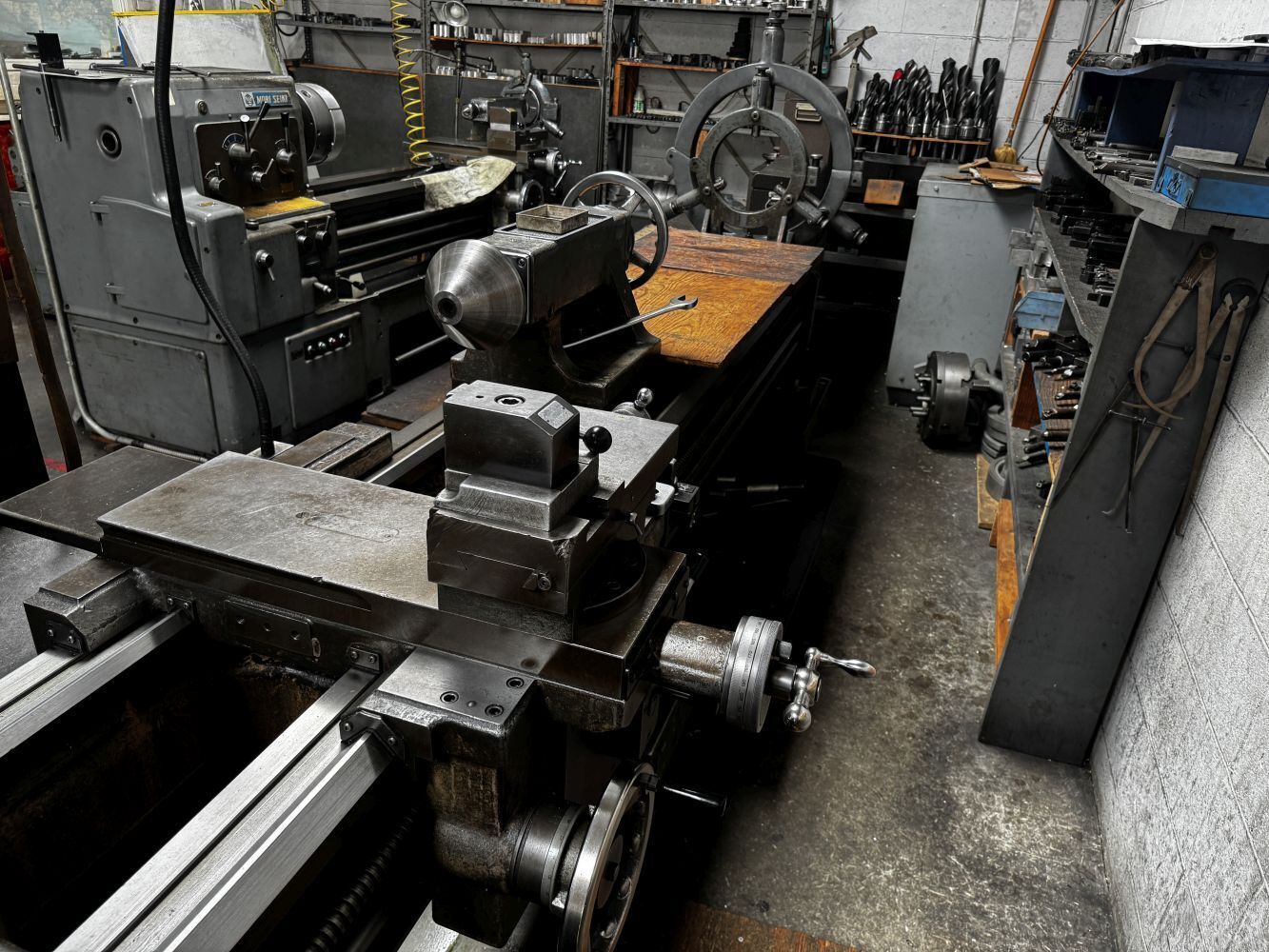

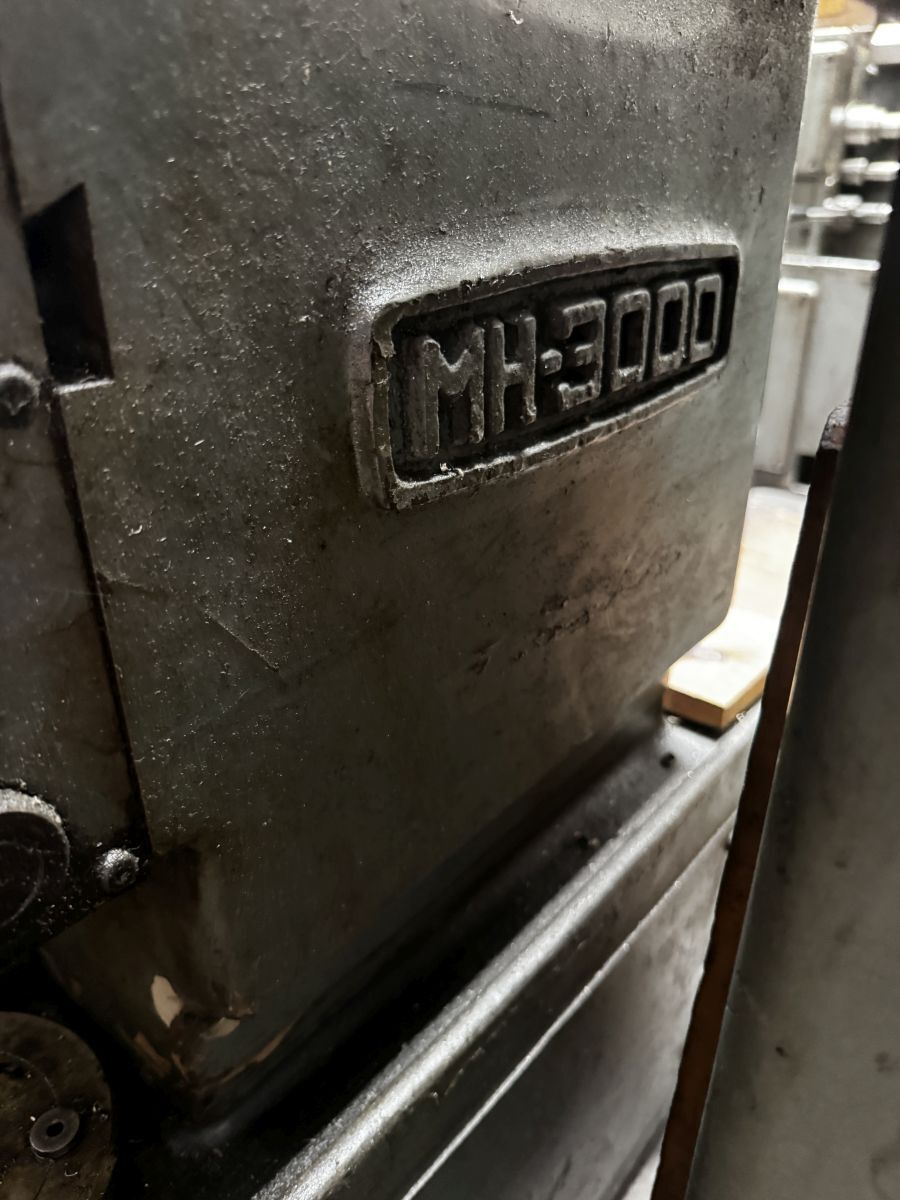

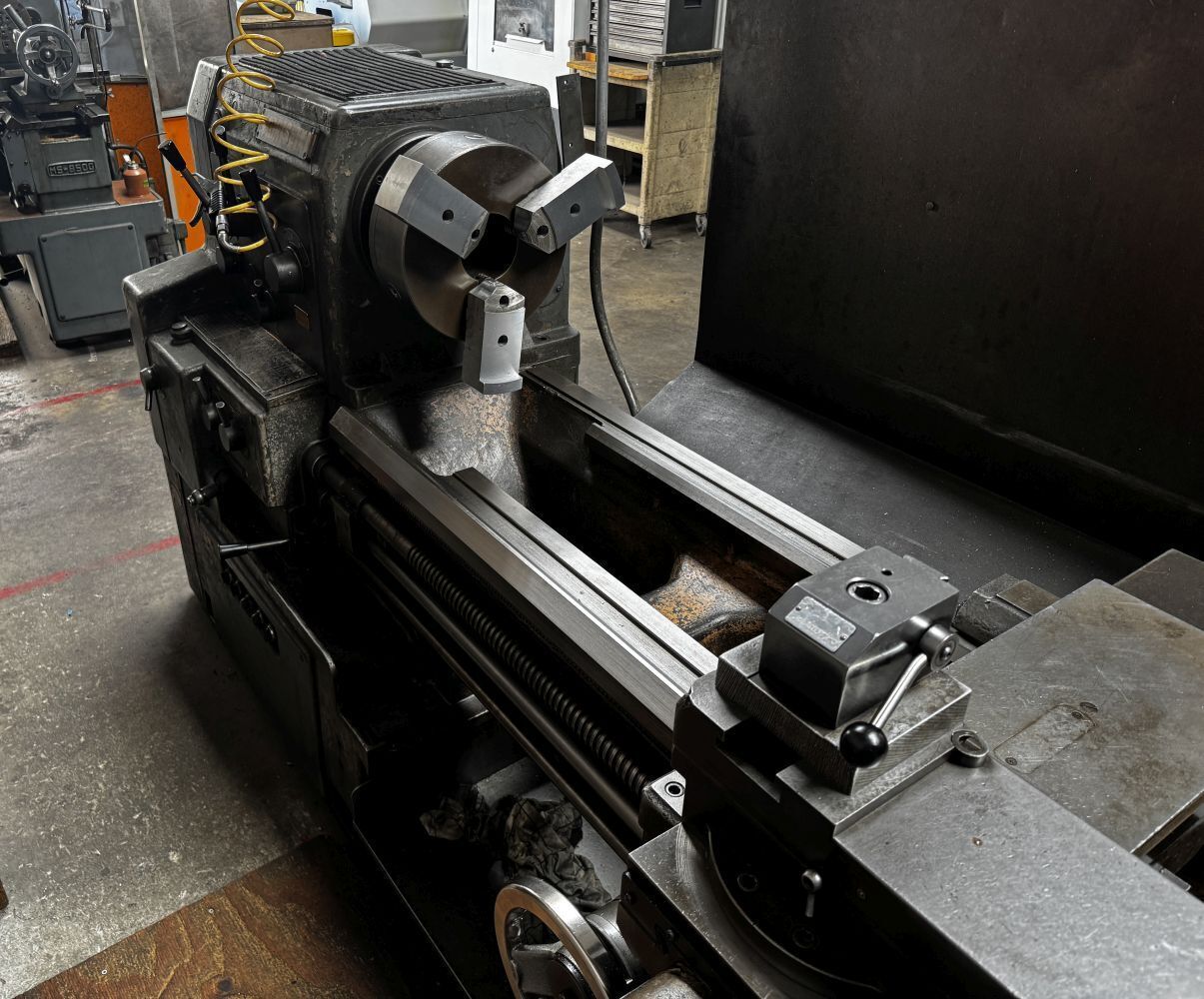

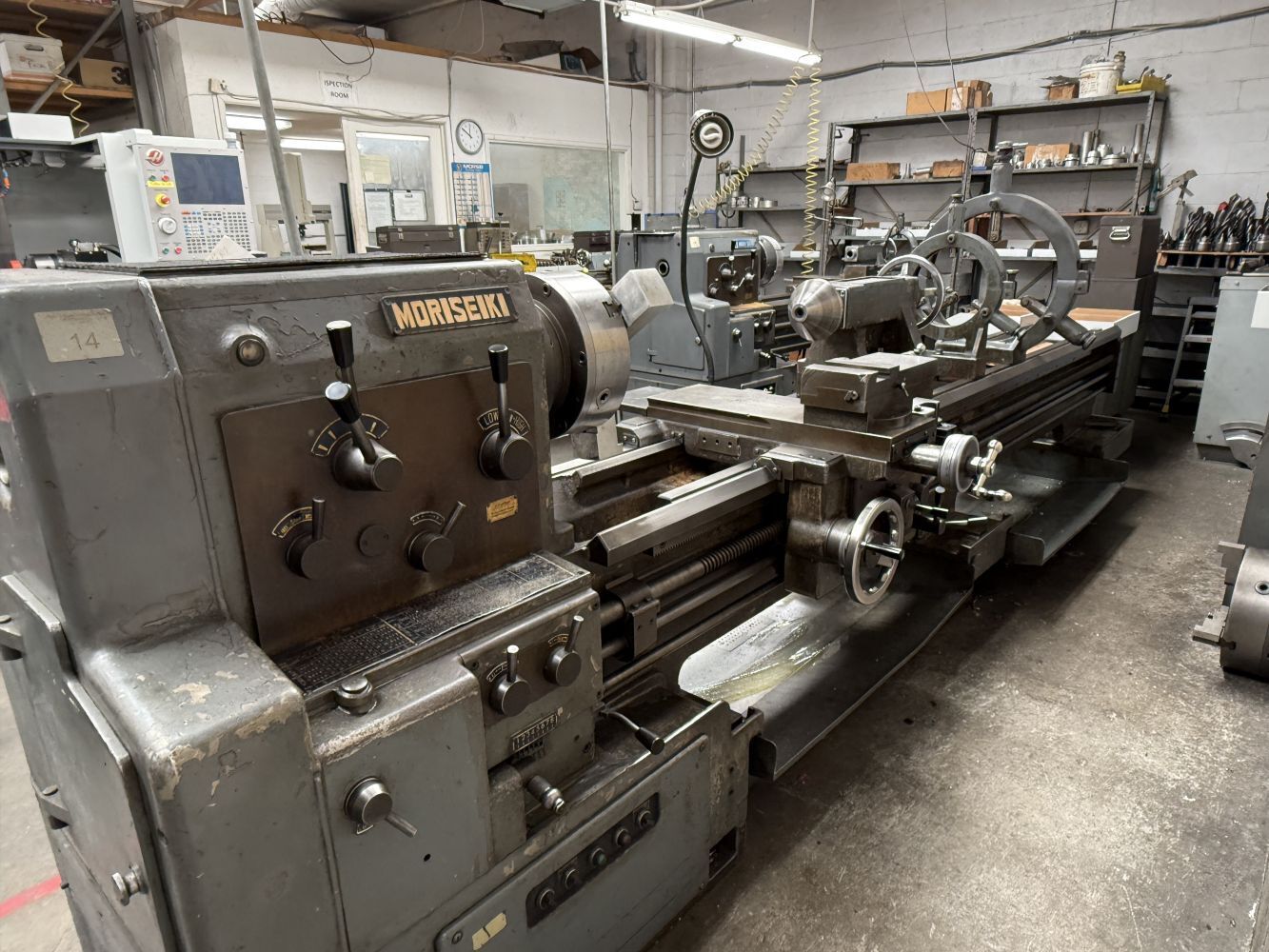

1978 MORI SEIKI MH-3000
SPECIFICATIONS:
Swing......................................... 24"
Centers....................................... 120"
Swing Over Cross Slide........................ 16"
Spindle Bore.................................. 3"
Number of Spindle Speeds...................... 12
Power......................................... 15 hp
Spindle Speed Range........................... 27 - 1205 RPM
Spindle Nose.................................. D1-8
Spindle Taper with Sleeve..................... MT #7
Number of Longitudinal and Cross Feed Rates... 40
Range of Longitudinal Feeds................... .0015" - .0433"
Tailstock Spindle Travel...................... 6"
Tailstock Taper............................... MT #5
Range of Cross Feeds.......................... .0010" - .029"
Range of Inch Threads......................... 80 - 2 TPI
Range of Metric Threads....................... 0.5 - 14mm
Width of Bed.................................. 18.1 in
Dimensions.................................... 179"L x 47"W x 54"H
Weight........................................ 7700 Lbs
EQUIPPED WITH:
10" 3-Jaw chuck
Steady rests
KDK quick change tool post
SPECIFICATIONS:
Swing......................................... 24"
Centers....................................... 120"
Swing Over Cross Slide........................ 16"
Spindle Bore.................................. 3"
Number of Spindle Speeds...................... 12
Power......................................... 15 hp
Spindle Speed Range........................... 27 - 1205 RPM
Spindle Nose.................................. D1-8
Spindle Taper with Sleeve..................... MT #7
Number of Longitudinal and Cross Feed Rates... 40
Range of Longitudinal Feeds................... .0015" - .0433"
Tailstock Spindle Travel...................... 6"
Tailstock Taper............................... MT #5
Range of Cross Feeds.......................... .0010" - .029"
Range of Inch Threads......................... 80 - 2 TPI
Range of Metric Threads....................... 0.5 - 14mm
Width of Bed.................................. 18.1 in
Dimensions.................................... 179"L x 47"W x 54"H
Weight........................................ 7700 Lbs
EQUIPPED WITH:
10" 3-Jaw chuck
Steady rests
KDK quick change tool post
