Description
Specifications:
Manufacturer: Ruesch
Maximum Coil Weight Capacity: 5,000 Lbs.
Material Thickness Range: .015” - .093”
Entry Coil I.D.: 16” - 20”
Maximum Entry Coil O.D.: 50”
Exit Coil I.D.: 16”
Maximum Exit Coil O.D.: 60”
Line Speed: 0 - 500 FPM
Line Components:

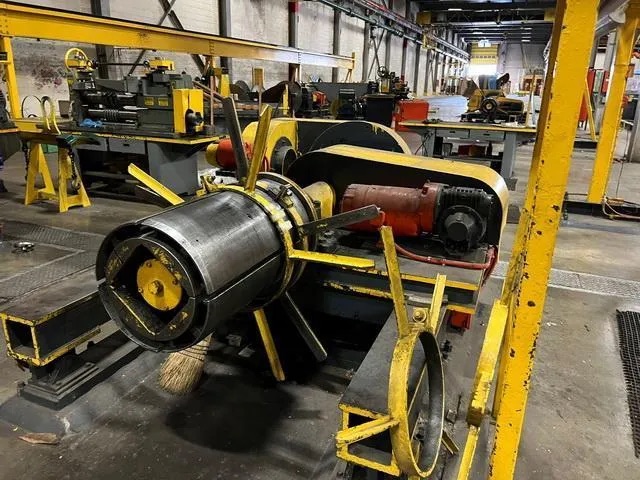

Uncoiler:
-31” Mandrel Face
-Bolted Leaves For Larger I.D.
-Hydraulic Expansion
-Sliding Base
-Feed-Up Drive
-Wichita Water-Cooled Brake
Pass Line Roll
Edge Guides & Tension Stand

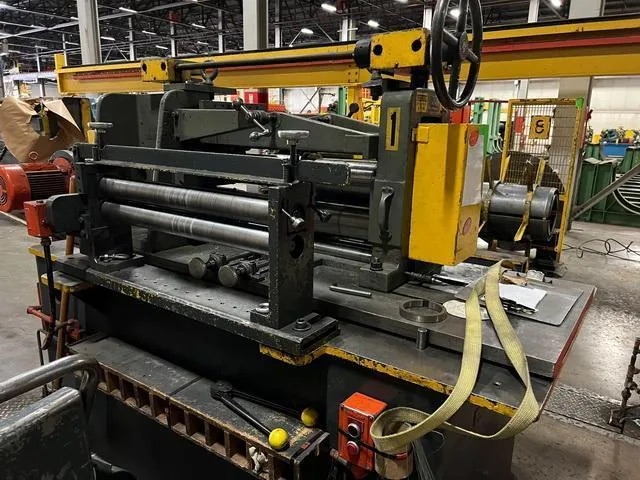

Ruesch Ring Type Slitter Head:
-Option For Additional Slitter Head With Same Specifications
-27” Arbor Face
-4” Arbor Diameter
-Parallel Adjustment
-3 HP AC Motor
Exit Pass Line Roll
Scrap Winder

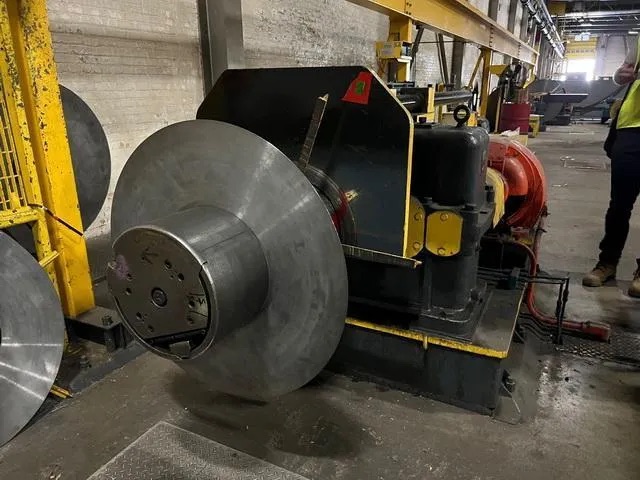

Recoiler:
-Hydraulic Push-Off Plate
-30” Mandrel Face
-16” Coil I.D.
-Maximum Coil O.D.: 60”
-Separator Rings
-25 HP Motor
-Horsburgh & Scott Gear Box
-Eaton Dynamic Electromagnetic Friction Brake
Exit Two-Arm Turnstile:
-35” Arm Length
-Manual Rotation
Tooling & Knives Included
Manufacturer: Ruesch
Maximum Coil Weight Capacity: 5,000 Lbs.
Material Thickness Range: .015” - .093”
Entry Coil I.D.: 16” - 20”
Maximum Entry Coil O.D.: 50”
Exit Coil I.D.: 16”
Maximum Exit Coil O.D.: 60”
Line Speed: 0 - 500 FPM
Line Components:
Uncoiler:
-31” Mandrel Face
-Bolted Leaves For Larger I.D.
-Hydraulic Expansion
-Sliding Base
-Feed-Up Drive
-Wichita Water-Cooled Brake
Pass Line Roll
Edge Guides & Tension Stand
Ruesch Ring Type Slitter Head:
-Option For Additional Slitter Head With Same Specifications
-27” Arbor Face
-4” Arbor Diameter
-Parallel Adjustment
-3 HP AC Motor
Exit Pass Line Roll
Scrap Winder
Recoiler:
-Hydraulic Push-Off Plate
-30” Mandrel Face
-16” Coil I.D.
-Maximum Coil O.D.: 60”
-Separator Rings
-25 HP Motor
-Horsburgh & Scott Gear Box
-Eaton Dynamic Electromagnetic Friction Brake
Exit Two-Arm Turnstile:
-35” Arm Length
-Manual Rotation
Tooling & Knives Included
