24" PMI #PMI-455-L, Automatic High Production Non-Ferrous Cut-Off Saw, 1500-3500 RPM Variable, 55" L Stroke, 15 HP, new

Description

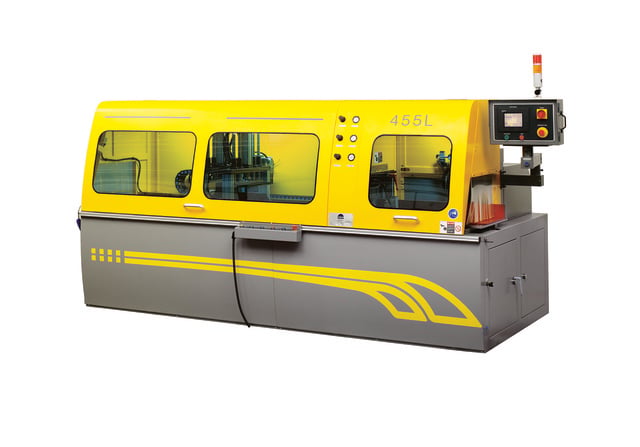

PMI 24″ Automatic High Production Non-Ferrous Cut-Off Saw, PMI-455 L

Inventory # 7894

Model: PMI-455 L

Description:

The PMI-455 L is designed for sawing aluminum and other non-ferrous metals. The PMI-455 saw’s powerful 15 HP saw motor allows it to cut extrusion and smaller solids quickly and accurately while increasing saw blade life. One of the unique features of the PMI-455 L is the specially designed outfeed table that moves 2mm forward as well as backward after the cut is complete and the saw blade is retracting. This feature prevents scratches from occurring when the saw blade retracts back to its home position

Specifications:

Blade Diameter: 24″

Saw Blade Sizes: 12″, 14″, 16″, 18″, 20″, 22″, 24″ (1″ Bore)

Saw Blade Speed: 1,500 – 3,500 RPM (Variable)

Max. Cutting Capacity: 6.89″ x 8.26″, 5.118″ x 13.779″, 0.787″ x 15.748″

Stroke Length: 55″

Motor: 15 HP

Standard Features:

Touchscreen control for easy job set up

Simple set up to run stacked or bundle lengths of material

Ballscrew controlled shuttle indexing vise and servo motor driven for precise cuts

Incremental material indexing for faster cycle times

Standard with horizontal and vertical clamps on the shuttle vise and fixed saw vise

Standard Equipment:

Chip Collector

11 1/2′ Infeed Conveyor

120T Saw Blade

Operators Manual

Tool Kit

Mechanical Specifications:

Dimensions: 138″ x 82.67″ x 73.23″ H

Weight: approx. 6,400 lbs.

Contact us for special pricing and availability

FOB Factory
