24" PMI #PMI-24, upcut saw, 7.873" cut capacity, 10 HP, 2000 RPM, 7.87" H x 16.5" width sawing, 45-1/4" x 26" table

Description

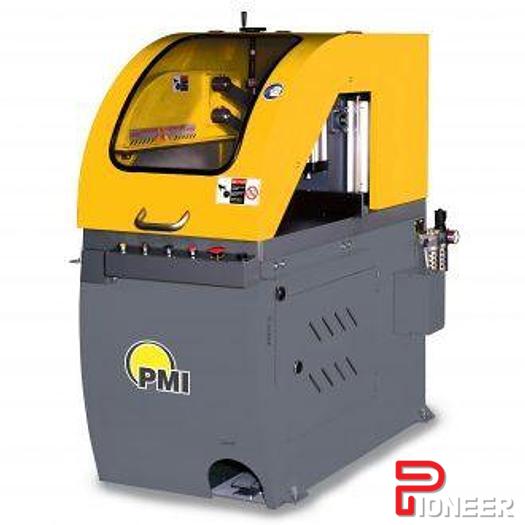

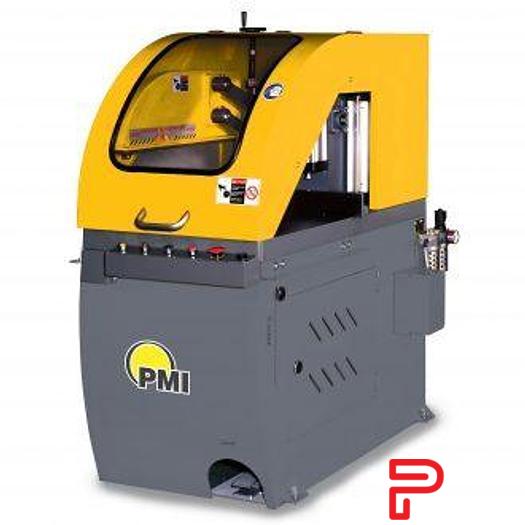

The Pat Mooney PMI-24 is a semi-automatic upcut saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics)
Upcut Design and Saw Blade Chamber: The PMI-24 is an Upcut saw. The saw blade is housed under the work table and travels up through the work piece. This has several advantages such as safety (less blade exposed during cut), chip removal and longer blade life.
Material Clamping: The pneumatic clamping system has adjustable clamping pressure to prevent distortion of thin wall profiles. The saw comes standard with vertical and horizontal clamps. The top clamp holds the work piece on both sides of the saw blade to deliver a burr free cutoff part. The clamping system is controlled by its own cylinder and is adjustable according to size of the work piece.
Additional Features
Additional Standard Items included with purchase of the PMI-24:
• Tool Kit
• Kanefusa 120T Saw Blade
• Operating Manual
Cutting Capacity
Round-90 Degree 7.873"
Round-45 Degree NA
Square-90 Degree 7.873"
Square-45 Degree NA
Rec a x b-90 Degree 6.613 x 9.448
Rec a x b-90 Degree 7.086 x 5.668
Rec a x b-90 Degree .471 x 15.875
Rec a x b-45 Degree NA
Rec a x b-45 Degree NA
Rec a x b-45 Degree NA
Specifications
