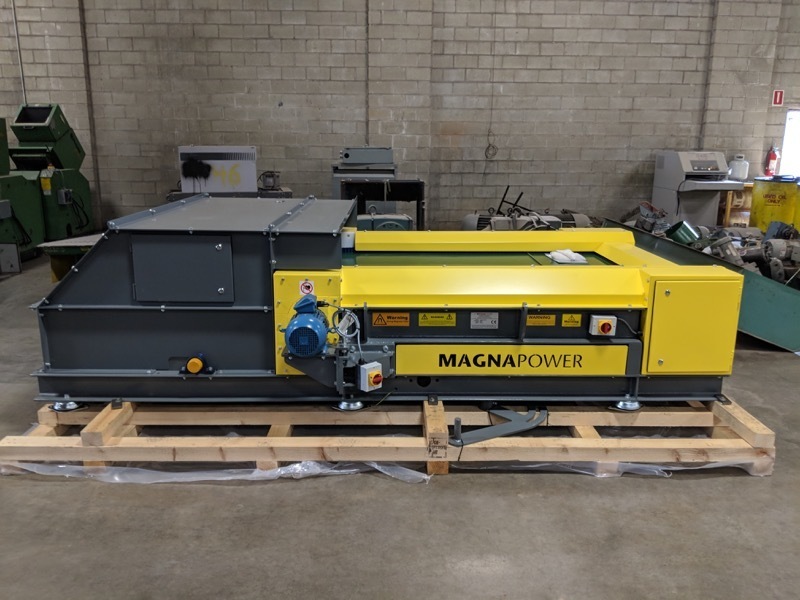

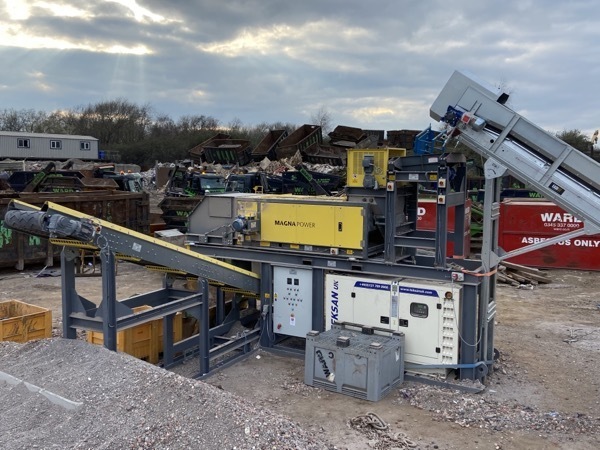

Magnapower #ECS600, 24" portable Eddy Current sorting system, eccentric high inductive force rotor design, new

600mm (24") Effective Sorting Area
Eccentric High Inductive Force Rotor Design
24" PMDS Top Fed Rare Earth Drum & Feeder
Discharge Conveyor
Support Stand
Base Support For Diesel Generator (30kVA)
Base Support For Control Panel
Cantilever Belt Change (~ 10 minutes)
- Adjustable two-stage splitter box.
- Brute force pan feeder (optional).
- 600mm PMDS rare earth drum (optional).
- Preassembled on common bolt-together frame.
- Easy belt and rotor access for maintenance.
- Dual VFD control panel.
- ECS belt cleaning brush (optional).
- Fast and precise splitter positioning lever with indicators.
.75kW PMDS Drum Motor
3kW ECS Rotor Motor
2.2kW Discharge Conveyor Motor
(2) .34 kW Vibratory Motors
Magnapower's proprietary rotor design combines high inductive force with higher frequency operation for outstanding performance at the widest range of particle sizes. In use throughout North American on large and small fractions, sorting even aluminum flake and dross. Units typically in-stock - reach out to schedule a test on your material and validate and compare performance.
