For Sale by CNC Exchange div. Gray Machinery Co.
Surplus Record Dealer Since 1966
Location: Prospect Heights, IL
Contact Glenn Gray
Phone Number: 847...> Show Phone Number 847-537-7700
Let the seller know you found their listing on Surplus Record!
Description

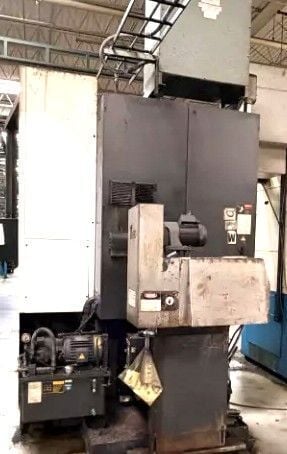

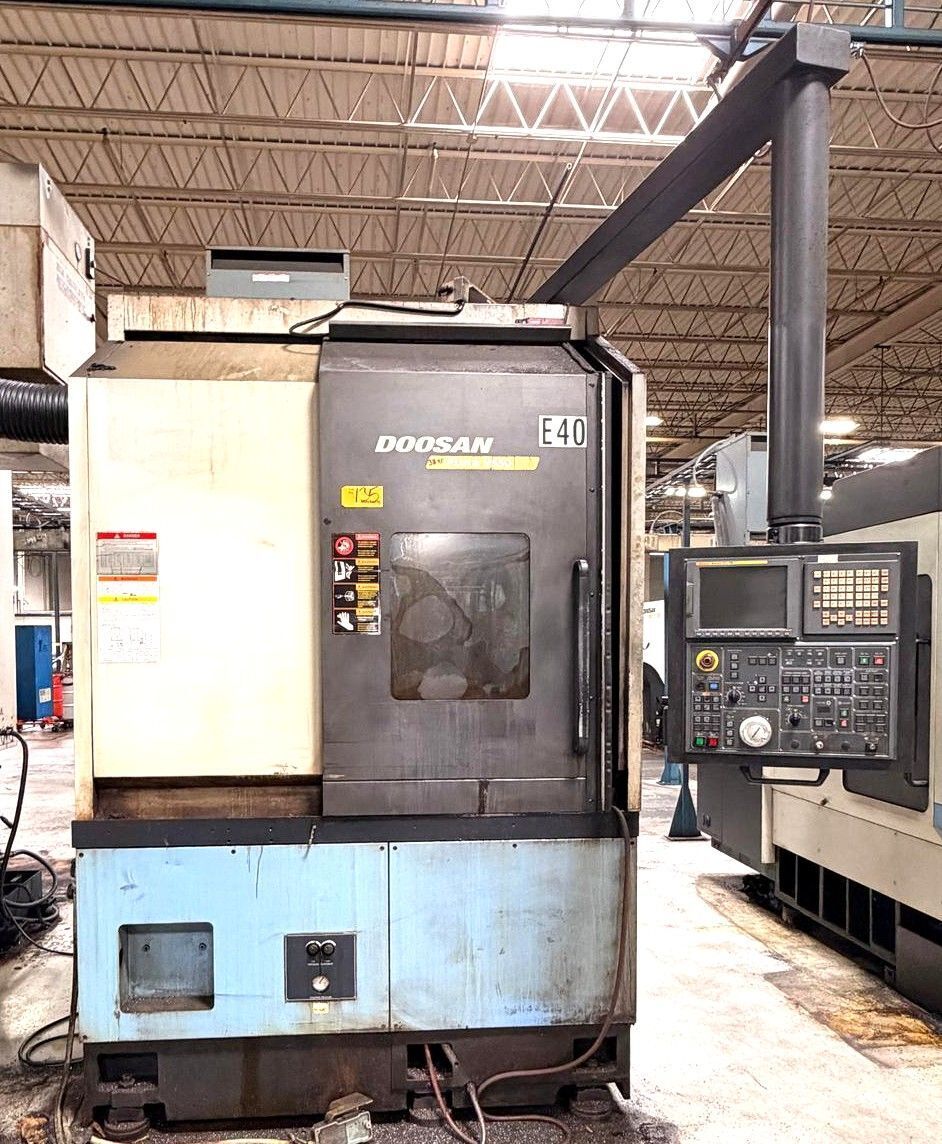

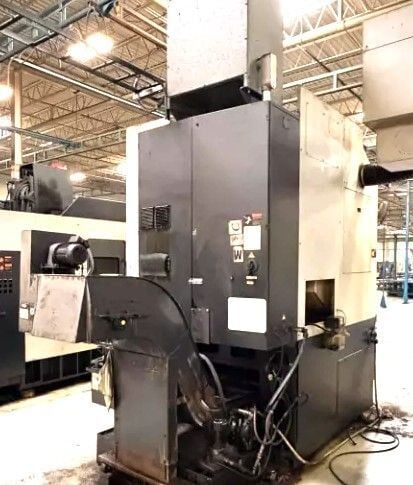

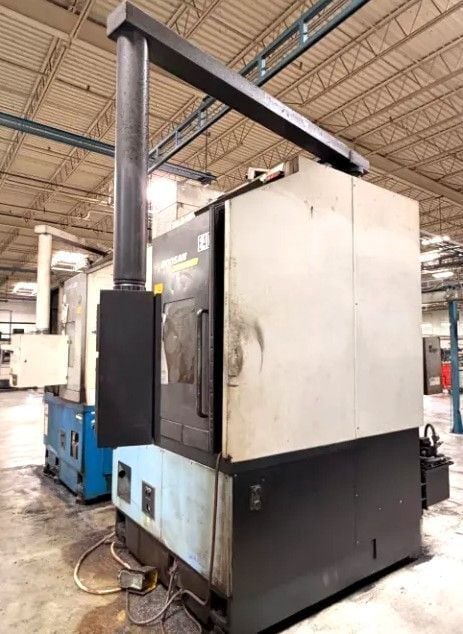

2007 DOOSAN PUMA V550 CNC 24" CHUCK VERTICAL LATHE, 50 HP, 2000 RPM
31.5" SWING COOLANT AND CHIP CONVEYOR
The Doosan PUMA V550 is a robust CNC lathe engineered for heavy-duty turning and high-production shops. Combining rigid construction with modern control features, the PUMA V550 delivers consistent accuracy, efficient chip evacuation and long-term reliability for components ranging from medium to large diameters. Ideal for automotive, hydraulics and general machining, it offers flexible tooling and automation compatibility to boost throughput and reduce cycle times.
(2007) Doosan Puma V550 CNC Vertical Turning Center 50-HP Motor, 2,000-RPM, 24" Diameter 3-Jaw Hydraulic Chuck, A2-11 Spindle Nose, 31.5" Swing, 29.5" Maximum Turning Height, 15.3" X-Axis, 30.7" Z-Axis, 10-Position Turret, Fanuc Series 21i-TB CNC Controls, Chip Conveyor, Mist Collector, S/N PV150748
Control Type
Fanuc 21i-TD Series
Table Diameter Chuck
24"
Swing
31.5"
Turning Diameter
28.74"
Max Turning Length
29.5"
Chuck Size
24"
X-Axis Travel
15.3"
Z-Axis Travel
30.7"
Rapid Traverse (X/Z)
472/630 ipm
Spindle Speed (RPM)
2,000 rpm
Spindle Nose
A2-11
Spindle Motor (HP)
50 horsepower
Turret Capacity
12
Machine Dimensions
75" x 107" x 129
Weight
20,000 pounds
31.5" SWING COOLANT AND CHIP CONVEYOR
The Doosan PUMA V550 is a robust CNC lathe engineered for heavy-duty turning and high-production shops. Combining rigid construction with modern control features, the PUMA V550 delivers consistent accuracy, efficient chip evacuation and long-term reliability for components ranging from medium to large diameters. Ideal for automotive, hydraulics and general machining, it offers flexible tooling and automation compatibility to boost throughput and reduce cycle times.
(2007) Doosan Puma V550 CNC Vertical Turning Center 50-HP Motor, 2,000-RPM, 24" Diameter 3-Jaw Hydraulic Chuck, A2-11 Spindle Nose, 31.5" Swing, 29.5" Maximum Turning Height, 15.3" X-Axis, 30.7" Z-Axis, 10-Position Turret, Fanuc Series 21i-TB CNC Controls, Chip Conveyor, Mist Collector, S/N PV150748
Control Type
Fanuc 21i-TD Series
Table Diameter Chuck
24"
Swing
31.5"
Turning Diameter
28.74"
Max Turning Length
29.5"
Chuck Size
24"
X-Axis Travel
15.3"
Z-Axis Travel
30.7"
Rapid Traverse (X/Z)
472/630 ipm
Spindle Speed (RPM)
2,000 rpm
Spindle Nose
A2-11
Spindle Motor (HP)
50 horsepower
Turret Capacity
12
Machine Dimensions
75" x 107" x 129
Weight
20,000 pounds
Get Your Price from CNC Exchange div. Gray Machinery Co.!
