Machinery & Equipment > Lathes - Engine > Engine Lathes

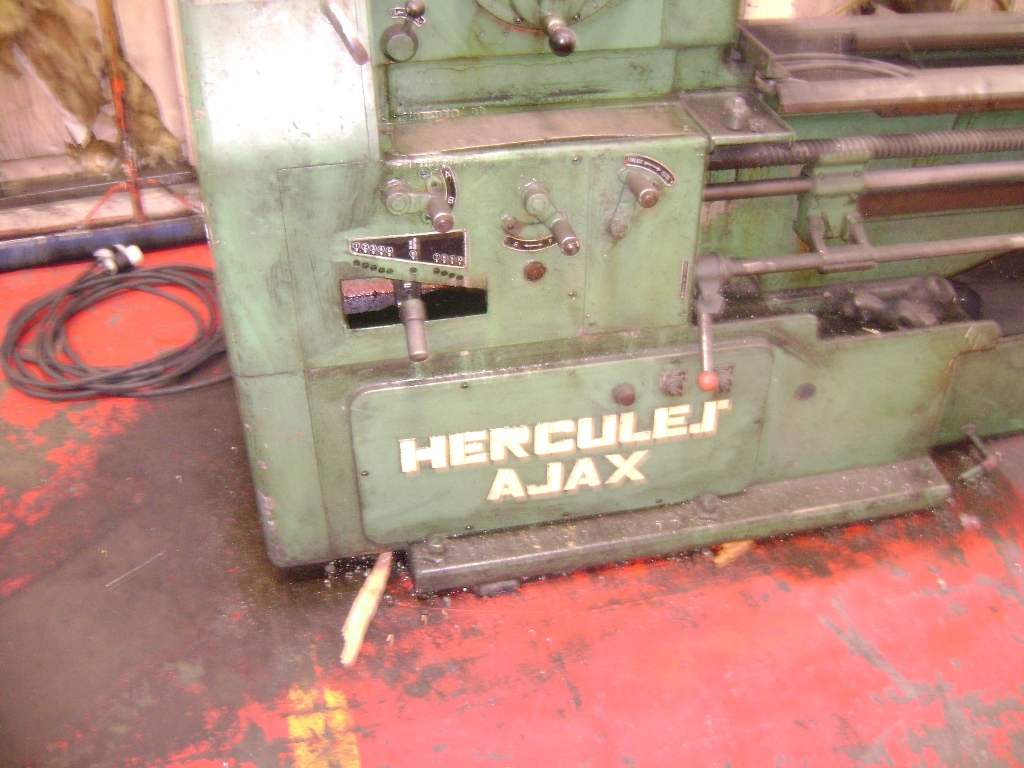

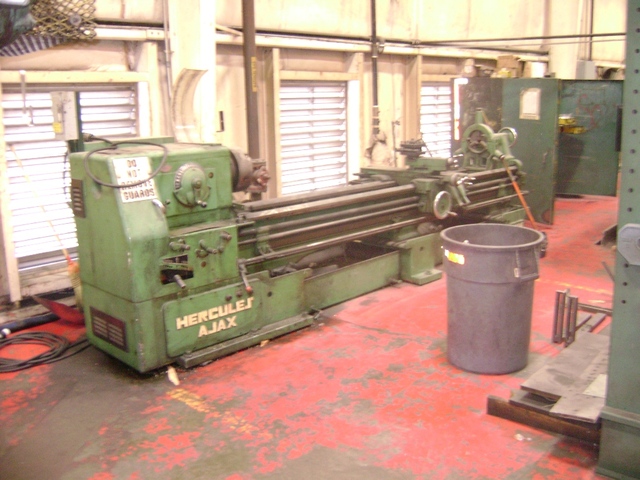

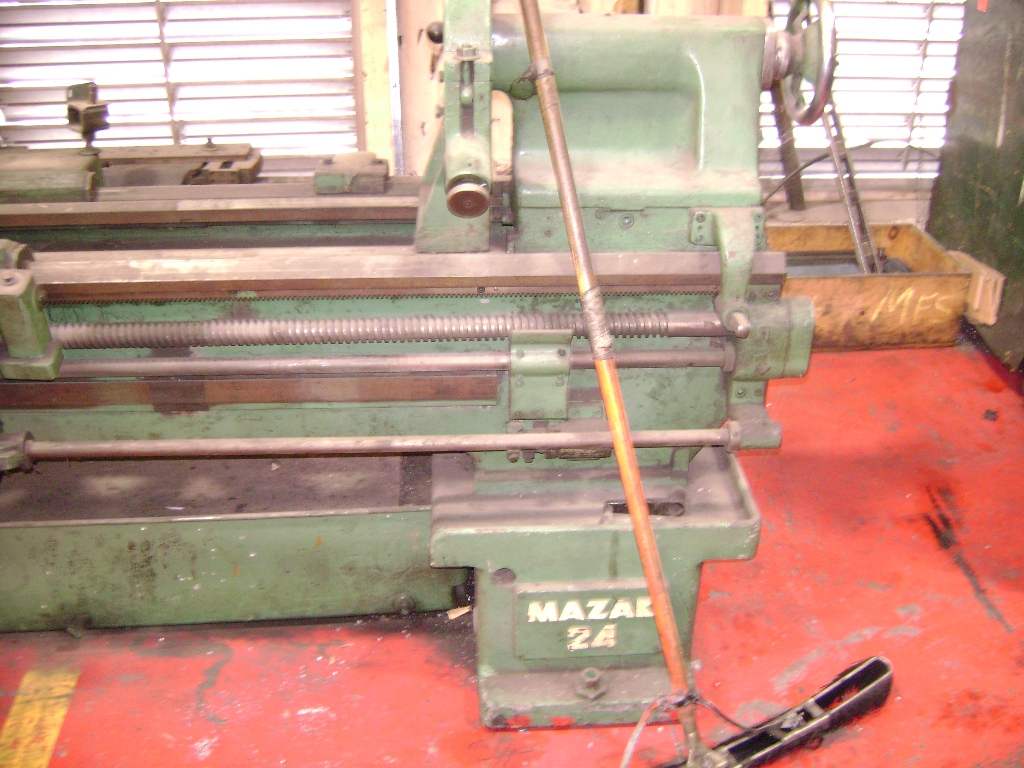

24"/33.75" x 120" Mazak #Hercules Ajax engine lathe, inch/metric, 3-jaw 15" chuck, hardened & ground bed

Manufacturer: Mazak
Model: HERCULES
Swing: 24.0
Centers: 120.0
Stock # 817

For Sale by Aleco Machinery Sales

Surplus Record Dealer Since 2002
Platinum Level Dealer
Location: Milwaukee, WI
Contact Alex Hawley
Let the seller know you found their listing on Surplus Record!

Description

(1) Pre Owned 24"/33.75" X 120" MAZAK HERCULES AJAX ENGINE LATHE

General Specifications
Swing Over Bed 24”
Swing over Cross Slide 14.46
Swing over Removable Block Gap 33.75”
Length of Gap 16.34
Distance Beween Centers 10’
Spindle Bore 2.06”
Spindle Nose (Camlock Type) D1-8
Spindle Speeds 25 to 1,540 RPM
Threads
Inch (60) 2 - .128 Per Inch
Metric (60) 25 to .16 mm
Main Drive Motor 10 HP AC
Hardened & Ground Bed
Equipped With
Taper Attachment
12" 3 Jaw Chuck
4 Way Tool Post
Removable Bed Gap
Hardened & Ground Bed
Electric Brake
Approximate Machine Weight 10,000 Lbs
Approximate Machine Dimensions 189” X 53” X 53” H

Get Your Price from Aleco Machinery Sales!

Buyers Who Viewed This Listing Also Viewed:

JUST ADDED!

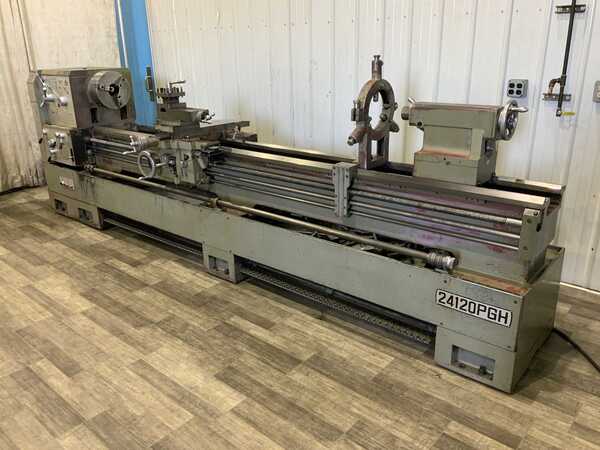

24" x 120" Jet #24X120PGH, gap bed engine lathe, 16-1/2" swing over cross slide, 3-jaw 12" chuck, foot brake
