Description

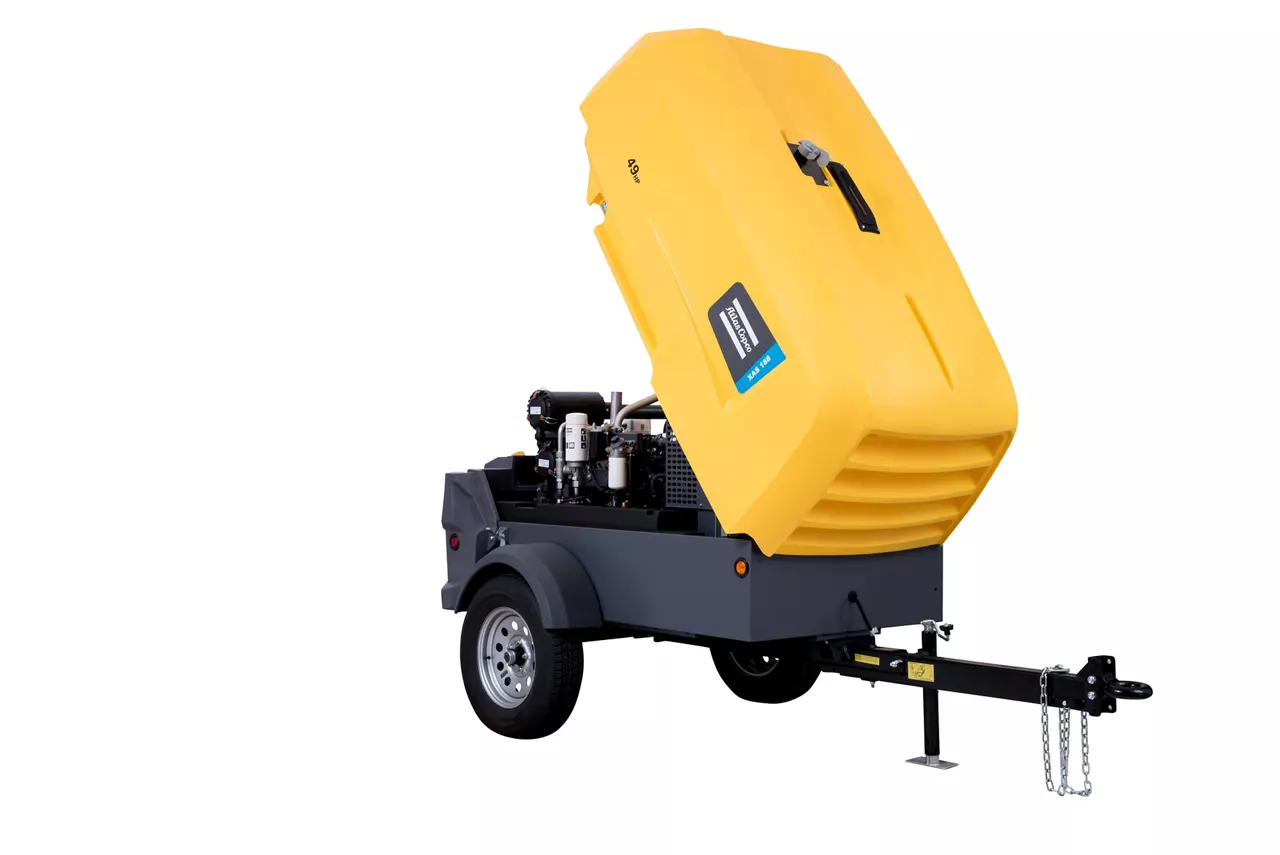

TheAtlas Copco XATS 250 is a single-stage, oil-injected, rotary screw type air compressor, powered by a liquid- cooled, Four-cylinder turbocharged Kubota diesel engine.
The unit hosts the new generation C90 Screw element in its air end combined with a Kubota made diesel engine model V2403-CR-T-E4B with a DPF in DOC exhaust treatment system, cooling circuit, air/oil separation and control systems, an undercarriage with fixed towbar, brakes and pintle eye is available as standard.
Special attention has been given to the overall product quality, user friendliness, ease of serviceability, and economical operation to ensure best in class cost of ownership.
SPECIFICATIONS
| Model | XATS 250 KD | |
| Minimum effective receiver pressure | psig | 72.51 |
| Maximum effective receiver pressure (Unloaded) | psig | 150 |
| Actual free air delivery | ||
| at pressure setting 100 psig | cfm | 238 |
| at pressure setting 125 psig | cfm | 214 |
| at pressure setting 150 psig | cfm | 189 |
| Fuel consumption | ||
| at 100% FAD (full load) | US gal/hr | 3.43 |
| at 75% FAD | US gal/hr | 2.34 |
| at 50% FAD | US gal/hr | 1.95 |
| at 25% FAD | US gal/hr | 1.70 |
| Specific fuel consumption at 100% FAD | g/m3 | 26.4 |
| Maximum typical oil content of compressed air | mg/m3 | 5 |
| Max. sound pressure level (Lw @ 2000/14/EC) | dB(A) | 98 |
| Max. sound pressure level (Lp @ ISO 2151) | dB(A) | 70 |
| Compressed air temperature at outlet valve without aftercooler | °F (°C) | 177 (80) |
| Max. ambient temperature at sea level with aftercooler | °F (°C) | 113 (45) |
| Min. starting temperature with cold weather equipment | °F (°C) | -4 (-20) |
| Min. starting temperature without cold weather equipment | °F (°C) | 14 (-10) |
| Engine | Kubota V2403-CR-T-E4B | |
| Emission stage | Tier 4F | |
| Number of compression stages | 1 | |
| Coolant | ParCool EG | |
| Number of cylinders | 4 | |
| Bore | mm | 87 |
| Stroke | mm | 102.4 |
| Swept volume | l | 2.4 |
| Engine power at normal shaft speed @ ISO 9249G | hp | 65 |
| Full Load | rpm | 2700 |
| Unload | rpm | 1800 |
| Capacity of oil sump: - Initial fill | US gal | 2.5 |
| Capacity of oil sump: - Refill (max) | US gal | 2.3 |
| Capacity of cooling system | US gal | 3.03 |
| Capacity of compressor oil system | US gal | 3 |
| Net capacity of air receiver | US gal | 8 |
| Air volume at inlet grating (approx.) | Cfm/min | 5720 |
| Capacity of standard fuel tanks | US gal (liter) | 23 (87) |
| Safety valve - minimum opening pressure | psig | 190 |
