For Sale by Southern Fabricating Mchy Sales
Description

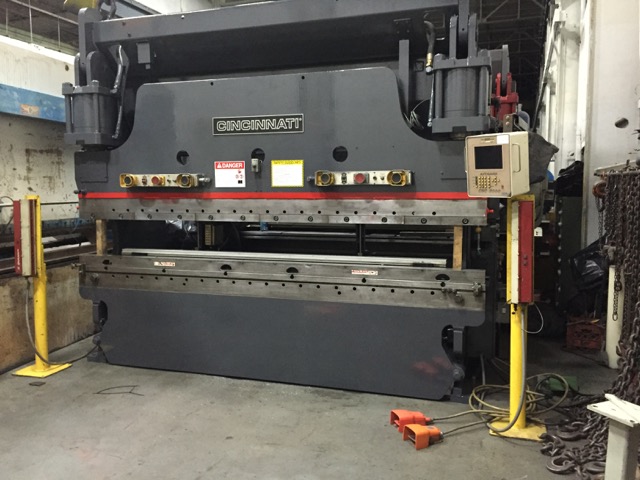

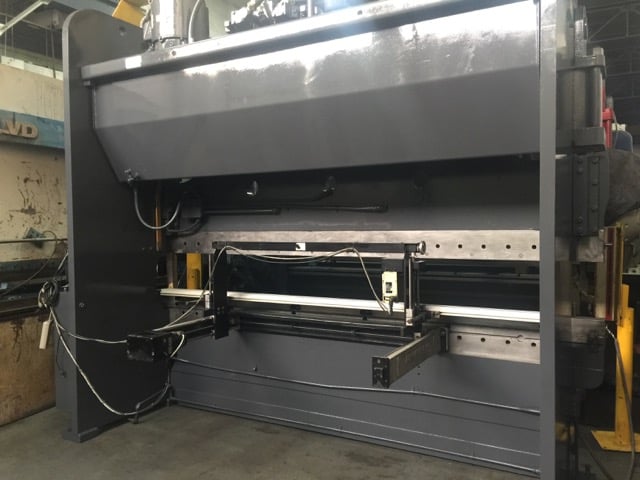

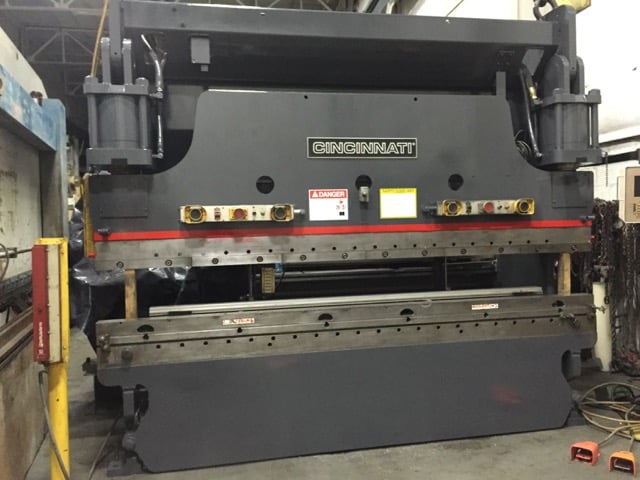

230 Ton X 12’ Hydraulic Press Brake with 24” Automec Autogage 2000 3 - Axis Backgauge, Electric Foot Switch, Palm Button Station, Light Curtains and Clevis Mounted Self Aligning Cylinders.
GENERAL SPECIFICATIONS
Capacity: 230 Tons
Overall Length of Bed & Ram: 12’
Distance Between Housings: 10’ 6”
Stroke: 10”
Open Height: 17”
Closed Height: 7”
Throat Clearance: 8”
Approach Speed: 155” / Min
Form Speed: 8-16-35” / Min
Return Speed: 175” / Min
Main Motor Horsepower: 15
INCLUDES: 24” Automec Autogage 2000 3 - Axis Backgauge, Electric Foot Switch, Palm Button Station, Light Curtains and Clevis Mounted Self Aligning Cylinders.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
