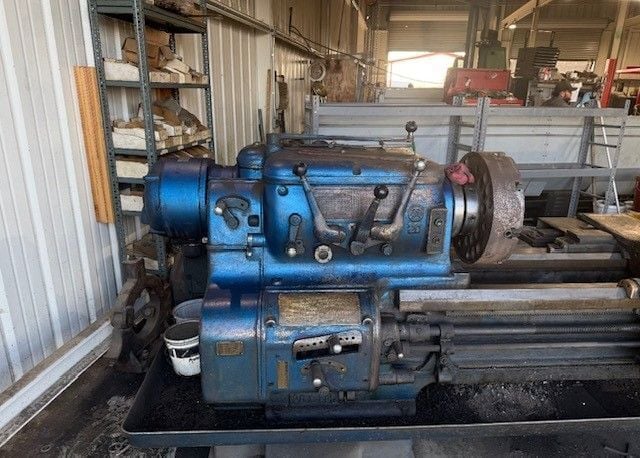

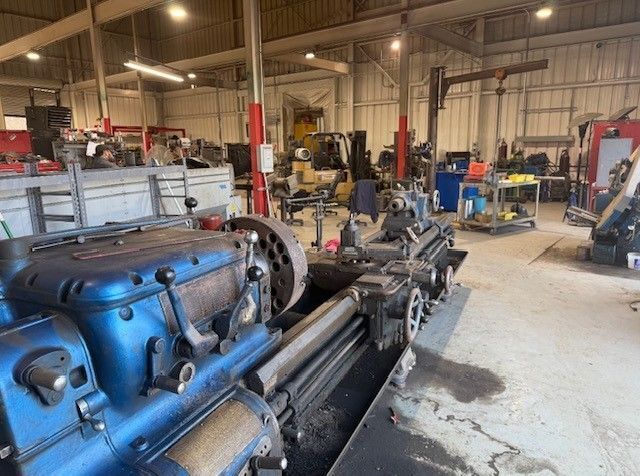

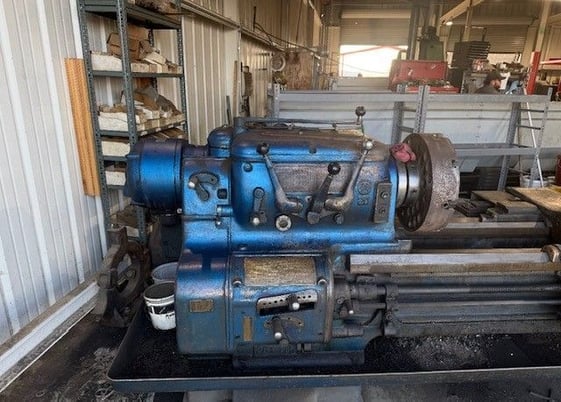

23-5/8" x 115" Axelson #20, heavy duty manual engine lathe, 2-3/8" bore, D1-6, Steady Rest

Heavy Duty Manual Engine Lathe
OEM: Axelson (Los Angeles)
Model: 20
Electrics: 220-440 Volt, 60 Cycle, 3 Phase, 27.5-13.8 Amps

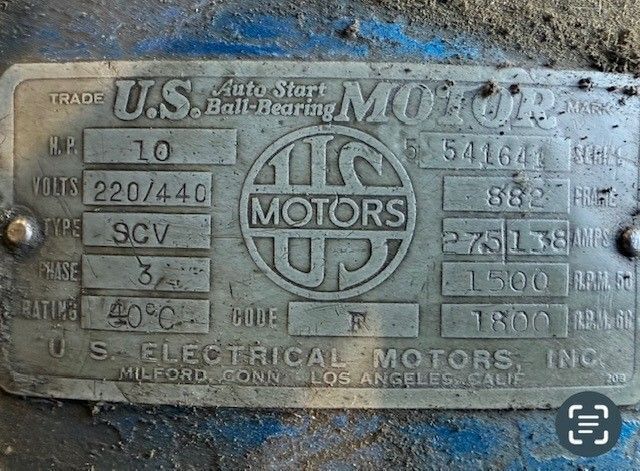

Motor: 10 HP, 1800 RPM @ 60 Cycle
Features and Specifications:
...Maximum Swing: 23-5/8"
...Distance Between Centers: 115"
...Length of Bed: 168"
...Spindle Specifications:

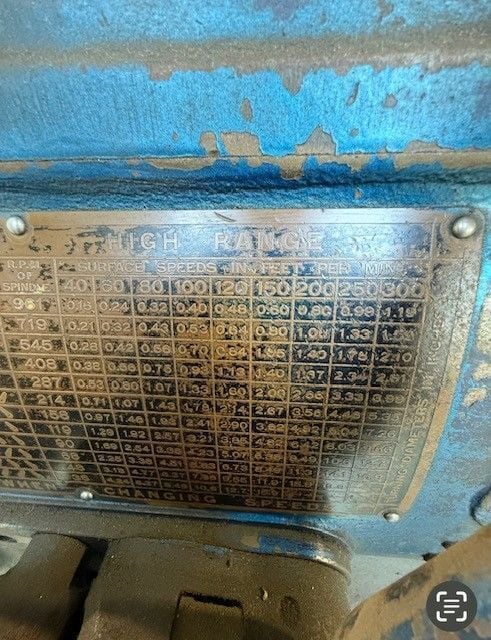

......Speeds (24): 9.5 - 961 RPM
......Nose: D1-6
......Bore: 2-3/8"

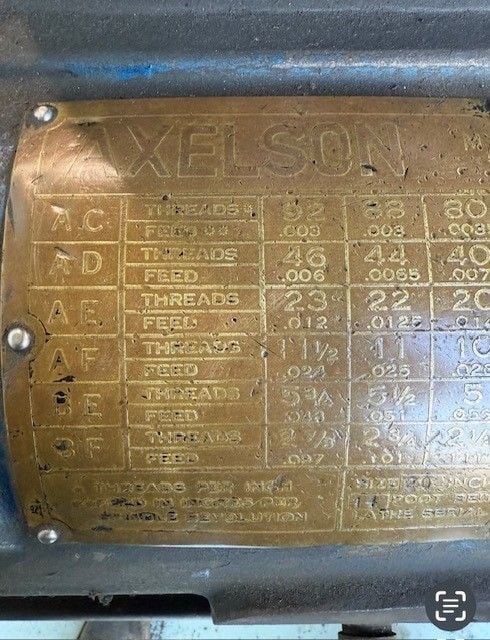

...Thread Range (54): 1-1/2" - 92 TPI
...Feed Ranges (54): .023 - .183 IPR
...Cast Iron Bed
...Hardened Ways
...Taper Attachment
...Tooling:
......Chuck (pictured on lathe)

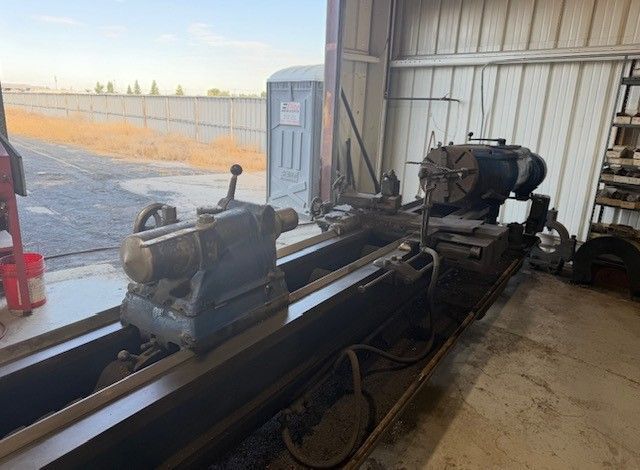

......Steady Rest
Equipment Dimensions (approx.): 210" x 60" x 48"
Equipment Weight (approx.): 15,000 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
Owner has not run the unit in the last 2 years. Wants to move to make room in his shop. Machine is presently not under power; power may be attainable for a serious inquiry. Seller will load the machine onto the Buyer's transportation. Unit comes with no tooling, except for a steady rest and as shown in pictures.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Bakersfield, CA Area
Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
