22500 lbf. (100kn) MTS #Qtest-100, 2 ball screw electro-mechanical tension & compression testing machine

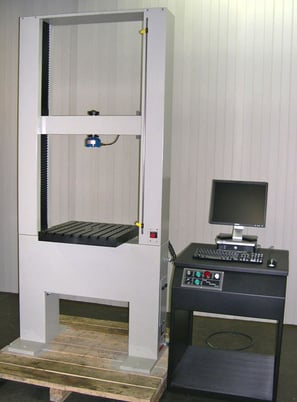

Reconditioned 22,500 lbf (100 kN) MTS, Model QTest/100, Two Ball Screw Electro-Mechanical Tension and Compression Testing Machine.

MTS Model QTest 100

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 56"
Compression Testing Opening (Less Tooling ): 56"
Distance Between Columns/Screws: 25"
Testing Stroke: 56"
Table Size (W x D): 22.5" x 6"
Testing Speed (IPM): .0002 - 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27.5" x 27" x 35"
Load Frame (W x D x H): 40" x 26" x 92"
Approximate Weight (lbs): 1,500 lbs
Electrical Requirements (V & PH): 230 3

EQUIPPED WITH:
Computer System with Keyboard & Mouse
24" Flat Screen Color Monitor
Microsoft Windows 10 Pro 64 Bit, Workstation.
MTESTQuattro, Material Testing Software for Data Acquisition (load, position & 2 strain), Analysis and Computer Controlled Testing with Manual.
MTESTQuattro, Micro console for sensor excitation and analog/digital signal processing with USB cable.
New Electronic Material Testing Control System in custom Cabinet/Desk with PC/Manual Controls.
New Yaskawa AC Servo Motor with incremental encoder and Yaskawa Solid State Drive Controller for precision control of testing rates (load, position & strain).

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
