22500 lbf. (100kN) Instron #1125 Extra Wide, 38" Compression Testing Opening, 30" x24" T-slot table

Instron, Model 1125 Extra Wide

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 38" Compression Testing Opening (Less Tooling): 38" Distance Between Columns/Screws: 29"
Testing Stroke: 38"

T-Slot Table (W x D): 30" x 24"
Testing Speed (IPM): .0002 – 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Control Console (W x D x H): 27.5" x 27" x 35" Load Frame (W x D x H): 50" x 32" x 80"
Approximate Weight (Lbs): 2000
Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:

• Computer System with Keyboard & Mouse

• 24" LED-Backlit LCD Color Monitor

• Microsoft Windows 10 Professional, Workstation

• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis

  and Computer Controlled Testing with Manual.

• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.

• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.

• New AC Servo Motor with Incremental Encoder and AC Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).

• New 100kN Tension & Compression Load Cell

• Upper & Lower Quick Release Adaptors

  FOB Warren, MI Reconditioned/Retrotted & Certied 1 Year Parts and Labor Warranty

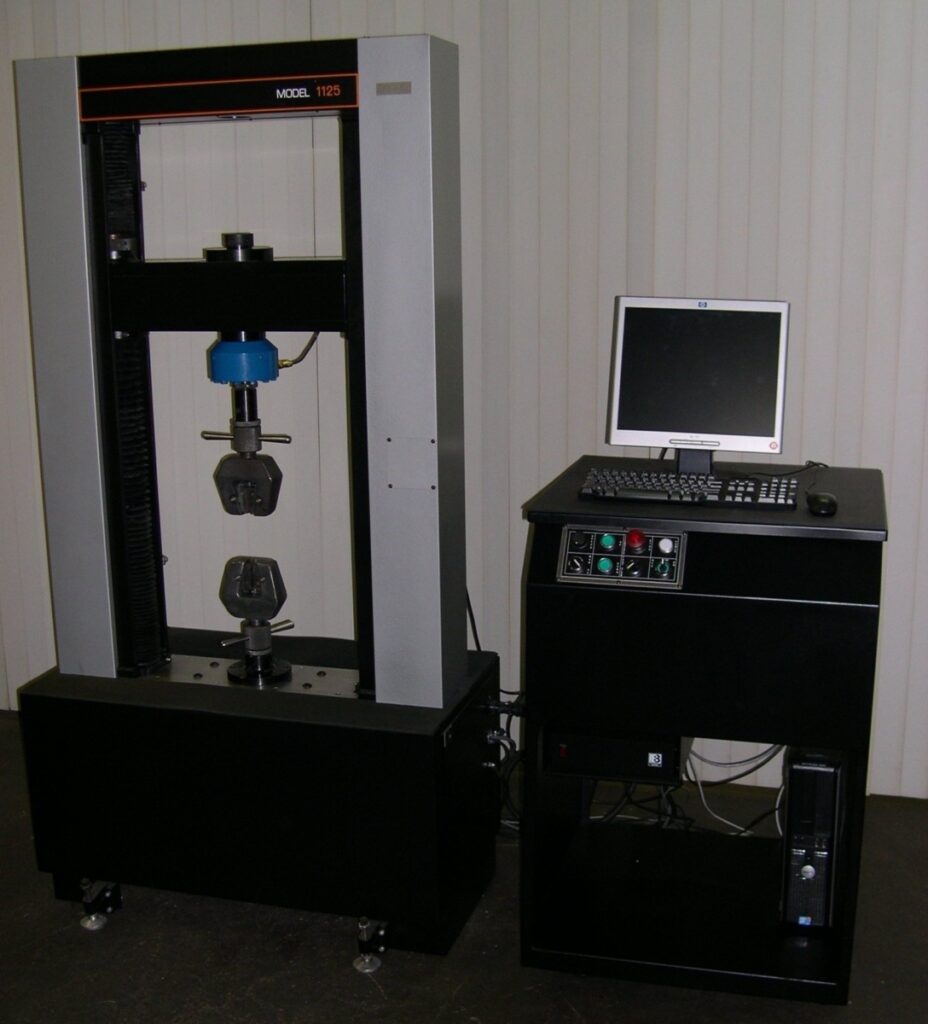

  *Representative Images After Reconditioning
