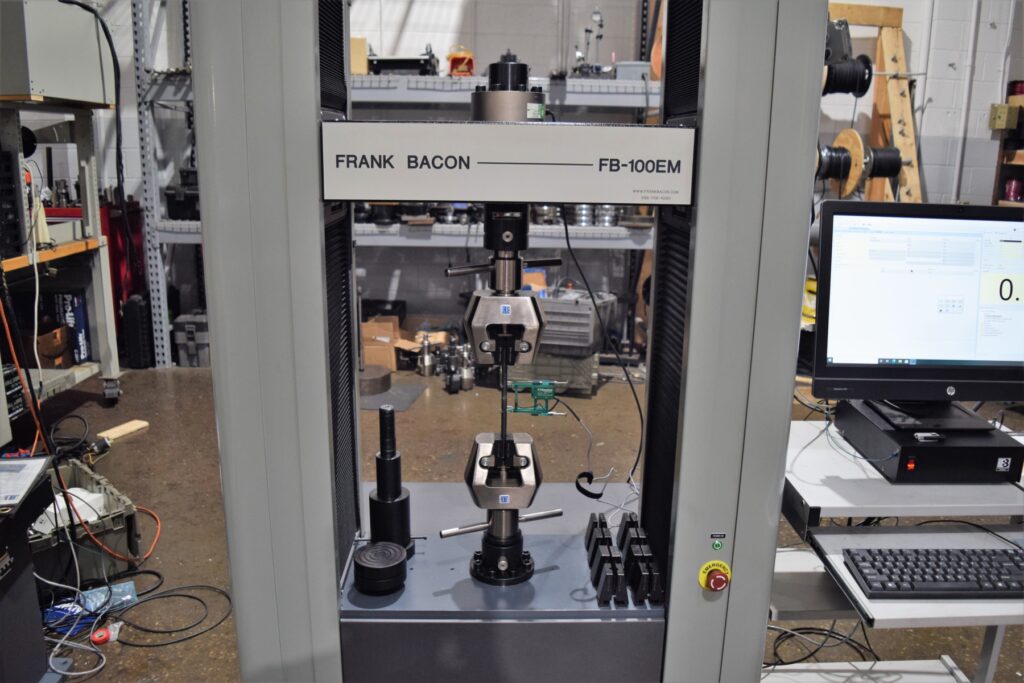

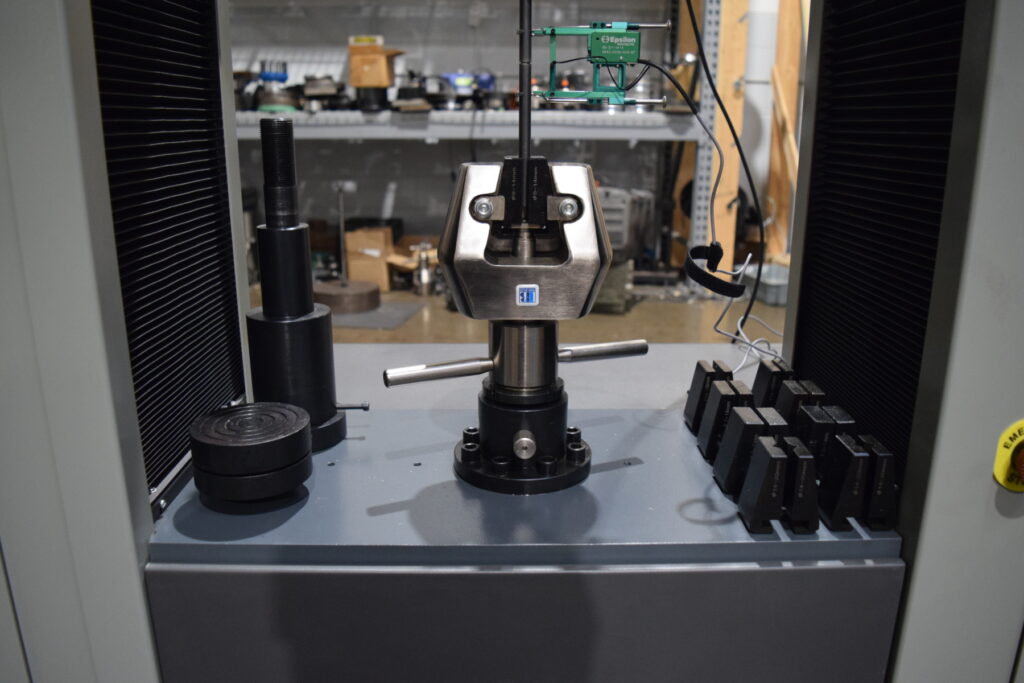

22500 lbf. (100kn) Frank Bacon #FB-100EM, 2 ball screw dual space tension & compression test system, floor standing

(1) NEW 22,500 lbf (100 kN) Capacity, Frank Bacon Machinery Model, FB-100EM, Floor Standing, Research Grade Precision
Two Ball Screw Dual-Space Tension and Compression Testing Machine with Precision Load Cell.

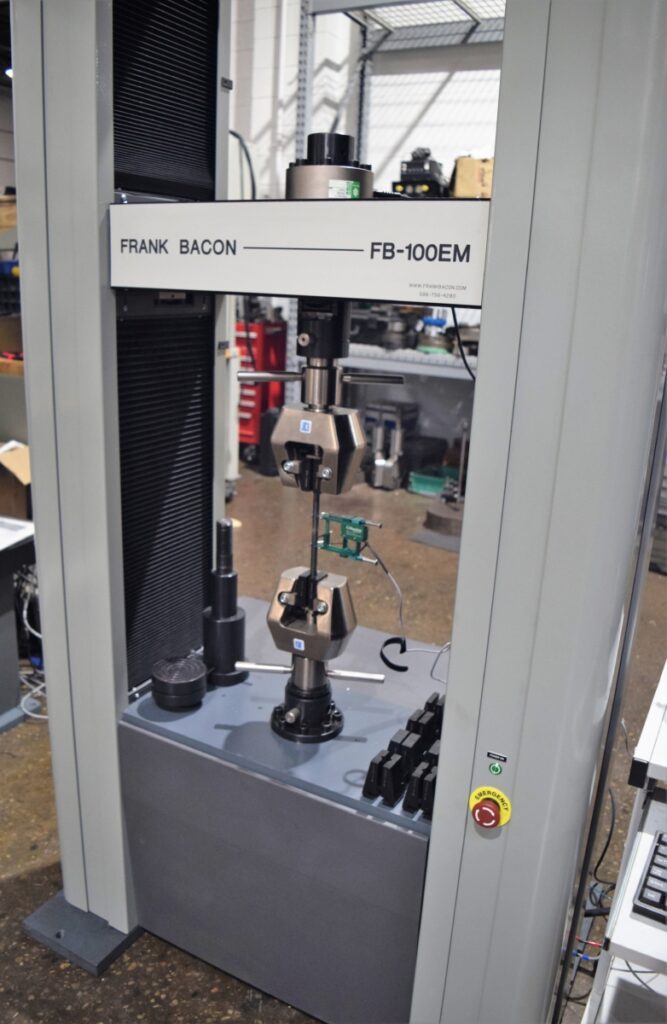

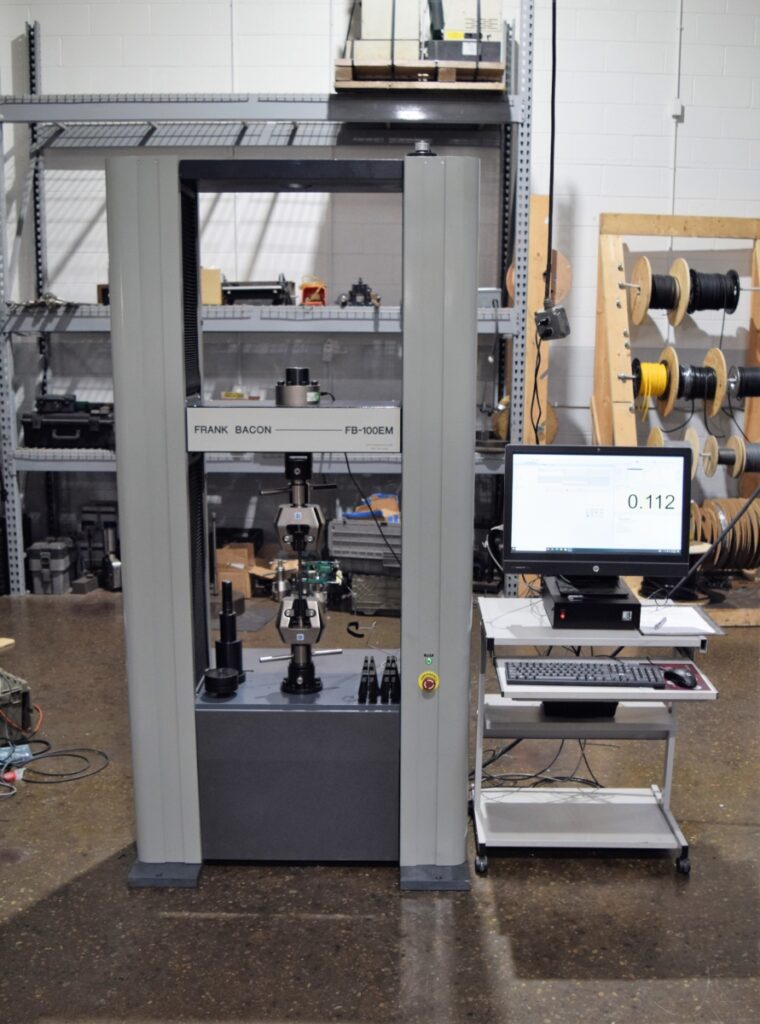

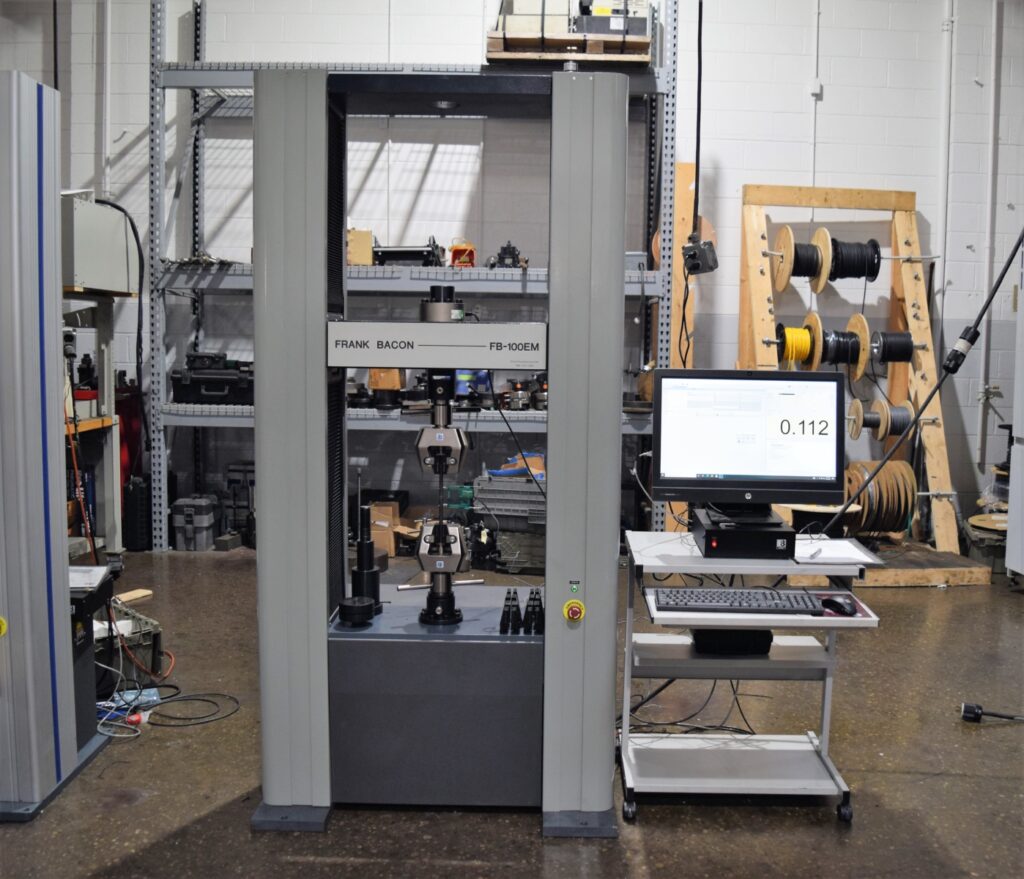

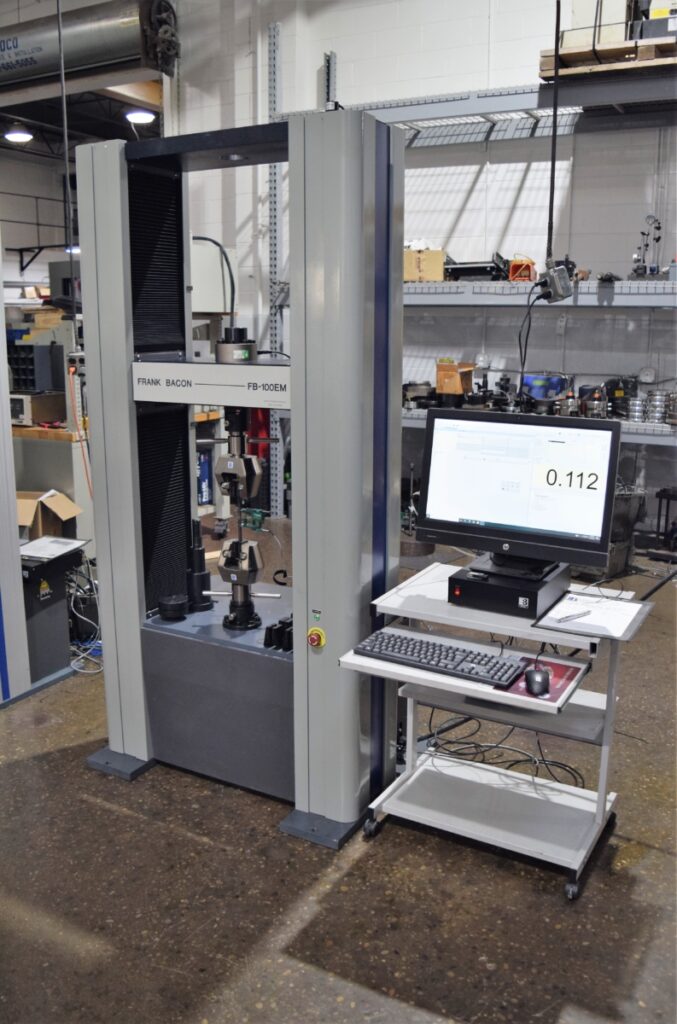

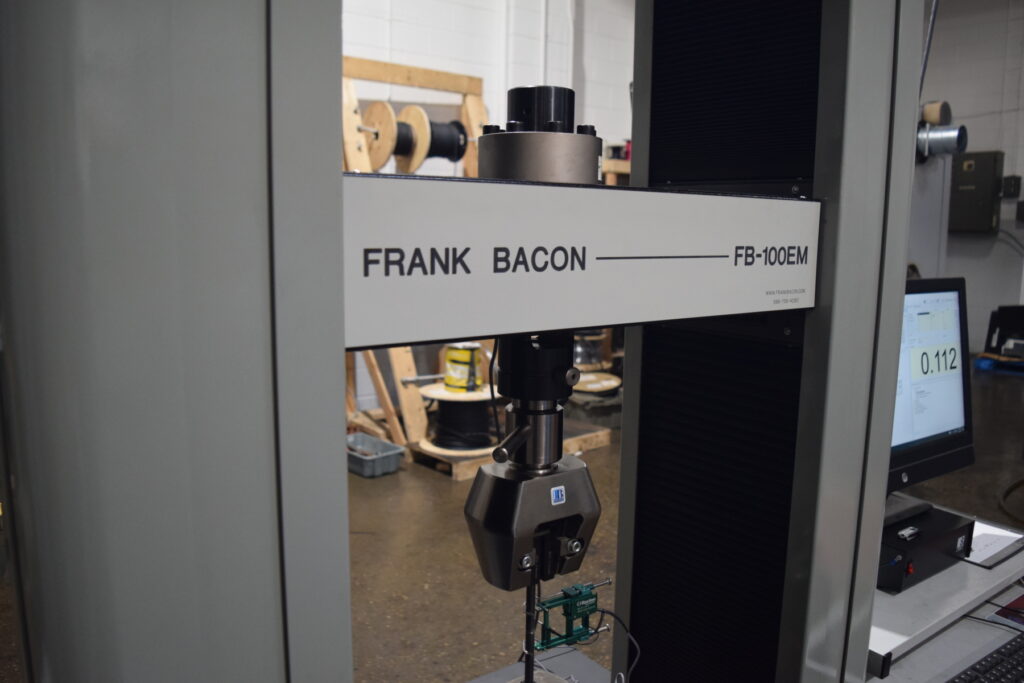

Frank Bacon Model FB-100EM

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 22.5"
Testing Stroke: 48"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Measurable Load Range: .4-100%FS
Measured Load Accuracy: ±.5%
Strain Measuring Accuracy: ±.5%
Displacement Measurement Resolution (mm): .001
Displacement Measurement Accuracy: Greater of ±.02mm and ±1%
Strain Rate Control Accuracy: ±.5%
Force Loading Control Accuracy: ±1%
Displacement Rate Control Accuracy: ±1%
Overall Dimensions:
Electronic Console (W x D x H): 27.5" x 27" x 35"
Load Frame (W x D x H): 39 x 29.5 x 86.5
Load Frame Weight (lbs.): 2,425
Electrical Requirements (V,Hz,PH): 230, 60, 1

EQUIPPED WITH:
• Computer System with Keyboard & Mouse with 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain),
Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with
USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and
Crosshead Jog Controller.
• New Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive
Controller for Precision Control of Testing Rates (Load, Position & Strain).
• 100kN Tension and Compression Load Cell

FOB Warren, MI
Industry Leading 2 Year Parts and Labor Warranty
ISO 17025 Accredited Certification

Hundreds of Grips, Fixtures, and Accessories Available
