Description

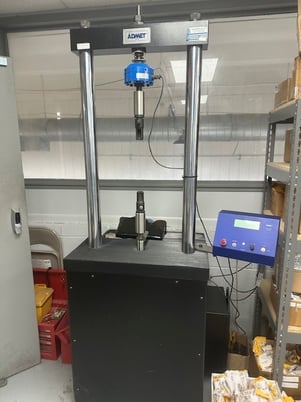

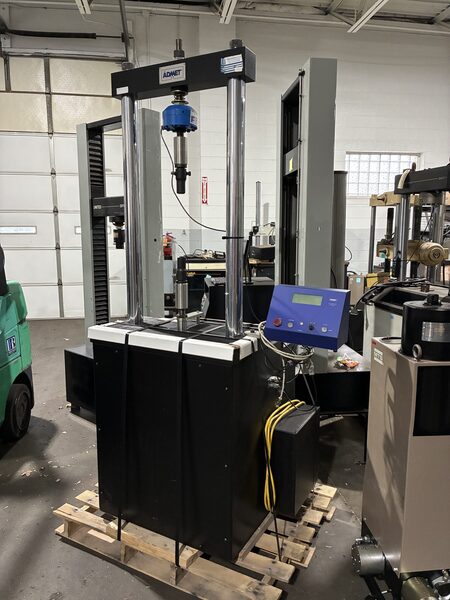

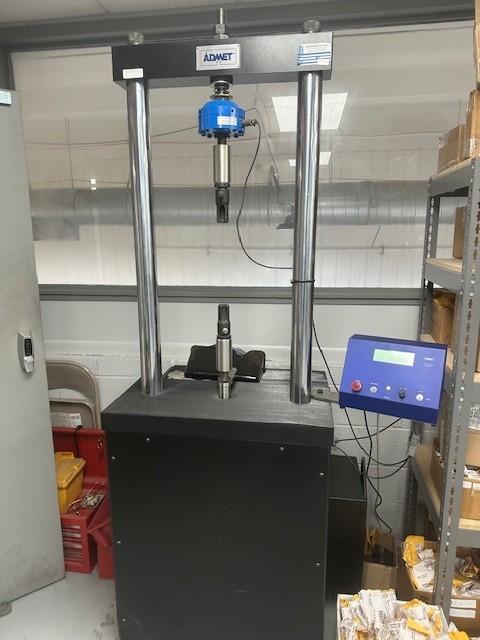

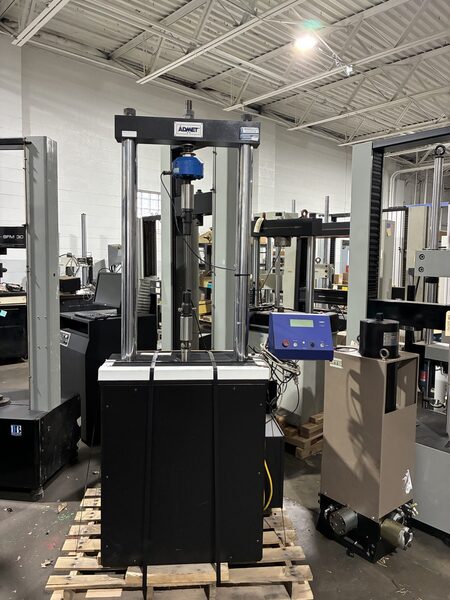

100kN (22,500 lbf) Admet Expert 1654 Tensile Testing System
Reconditioned 22,500LB (100kN) Admet eXpert 1654 Servo Hydraulic Tension/Compression System, with MTGenius Software and Controller
SPECIFICATIONS:
Actuator Stroke: 12"
Position Resolution: .0001"
Max Speed: 5.5"/min
Space Between Columns: 19"
Max. Vertical Opening: 45"
Over All Dimensions(W x D x H): 37" x 29" x 98"
Power Requirements: 220 VAC 1Phase 60HZ
EQUIPPED WITH:
-20,000 lbf Tension and Compression Load Cell
-Hydraulic Power Unit
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
| #13347-00
DOWNLOAD SPEC SHEET
