2250 lbf (10kN) Instron #4502, tension & compression testing, 52" testing opening, 16" btwm columns/screws, reconditioned / retrofitted

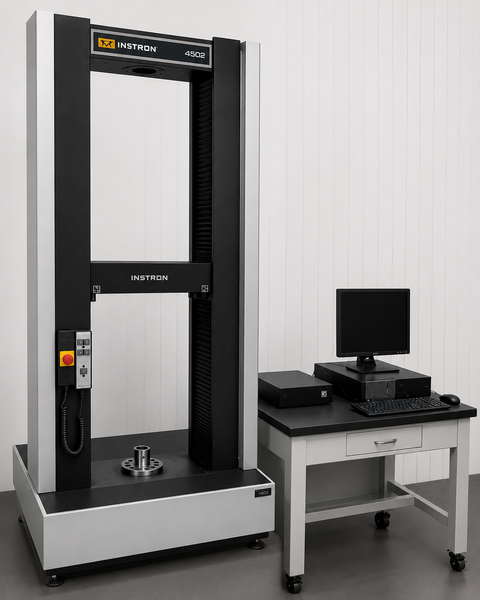

(1) Reconditioned 2,250 lbf (10 kN) Capacity Instron, Model 4502, Research Grade Electro-Mechanical Unispace Tension and Compression Testing Machine with New AC Servo Motor & Drive and 2,250 lbf Load Cell.

Instron Model 4502

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 52"

Compression Testing Opening (Less Tooling): 52"

Distance Between Columns/Screws: 16"

Testing Stroke: 52"

Table Size (W x D): 16" x 8.5"

Testing Speed (IPM): 20 To full capacity

Crosshead Adjusting Speed (IPM): 40

Overall Dimensions:

New Tabletop Control Console (W x D x H): 16" x 19.5" x 11.5

Load Frame (W x D x H): 29" x 30" x 71"

Weight (lbs.): 490

Electrical Requirements (V,Hz,PH): 120/200-230, 50-60, 1

EQUIPPED WITH:

• Computer System with Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
• New Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
